HPE P77236-425 ProLiant DL360 EU Server

Gen11 4514Y 2.0GHz 2x1000W PS

by HPE
See more product details
Part No:HPP77236-425
Manufacturer No:P77236-425
Delivery: End of Life Product
Feefo logo

/assets/images/gallery/large/1754036117HPP77236-425_1.jpg

HPE P77236-425 ProLiant DL360 EU Server
More Related Items
Click to change options
Colour:
Apply
£393.75 Ex VAT
Qty:
Click to change options
Colour:
Apply
£97.88 Ex VAT
Qty:
Email product to a friend
X
  • Scroll to top

    Purpose-built for compute-dense workloads in virtualized and hybrid cloud environments, the HPE ProLiant DL360 Gen11 server in this configuration features a single Intel Xeon Silver 4514Y processor with 16 cores, 30MB cache, and clock speeds up to 3.4 GHz. With 128GB of high-speed DDR5 memory (expandable up to 4TB across 16 DIMM slots) running at 5600 MHz, it’s primed for high-bandwidth tasks like CAD, VDI, and EDA. This 1U rack server also supports up to 153.6TB of storage and includes Broadcom 10GbE networking for faster throughput. Designed for scale, security, and remote manageability, the DL360 Gen11 is optimized to support modern workloads with reliable performance and a power-efficient footprint.


    Key Features:
    • Powered by a single Intel Xeon Silver 4514Y CPU with 16 cores, 30MB cache, and up to 3.4 GHz boost frequency.
    • 128GB DDR5 memory installed (4 x 32GB) at 5600 MHz, expandable to 4TB across 16 DIMM slots.
    • Up to 153.6TB of storage capacity with integrated RAID support for reliability and scalability.
    • 10 Gigabit Ethernet powered by Broadcom BCM57416 with dual RJ-45 ports for high-speed networking.
    • Three USB 3.2 Gen 1 Type-A ports and one VGA port for connectivity and console access.
    • Redundant 2000W power supply ensures continuous operation and energy efficiency.
    • 1U rack-optimized design with TPM 2.0 for secure operations in data-intensive environments.

    Compute-Driven Performance in 1U Form

    This configuration of the DL360 Gen11 leverages a 16-core Intel Xeon Silver processor and high-frequency DDR5 memory to deliver solid compute throughput in space-constrained data centers. Its 1U rack-optimized chassis balances performance and efficiency.


    Built for Memory-Intensive Workloads

    With support for up to 4TB of DDR5 memory across 16 DIMM slots, and a standard install of 128GB, this server is engineered for high-bandwidth workloads requiring low latency and strong memory scalability.


    Flexible Storage and Networking

    Up to 153.6TB of storage capacity and built-in RAID support provide the foundation for scalable deployments. Integrated dual-port 10GbE ensures rapid data movement for demanding virtual and containerized applications.


    Redundant Power and Secure Operation

    The inclusion of a 2000W power supply with redundancy and TPM 2.0 security ensures both operational continuity and enterprise-grade protection in mission-critical deployments.


    Designed for Remote Control and Integration

    Featuring iLO 6 for comprehensive remote management and a compact 1U rack design, the DL360 Gen11 is ready for deployment across distributed IT infrastructures with ease and reliability.

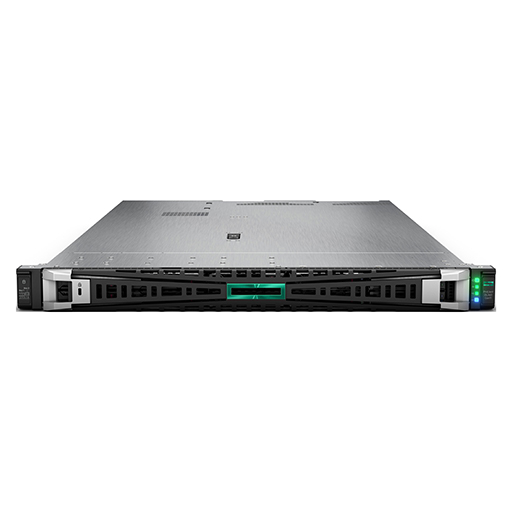

    8 SFF Front View

    8 SFF Front View
    • 1
      Drive support label
    • 2
      Serial number/iLO information pull tab
    • 3
      Quick removal access panel
    • 4
      Universal Media Bay (optional):
      • Option: Optical drive bay + Display port & USB 2.0 port kit (shown)
      • Option: 2 SFF 24G x4 NVMe/SAS (TriMode) U.3 BC Cage
    • 5
      Display Port (optional – shown)
    • 6
      Optical drive (optional – shown)
    • 7
      USB 2.0 port (optional)
    • 8
      iLO Service port
    • 9
      Power On/Standby button and system power LED
    • 10
      Health LED
    • 11
      NIC status LED
    • 12
      Unit ID button/LED
    • 13
      USB 3.2 Gen1 port
    • 14
      Drive bays; optional backplanes:
      • Option: 8 SFF 24G x1 NVMe/SAS (TriMode) U.3 BC
      • Option: 8 SFF 24G x4 NVMe/SAS (TriMode) U.3 BC

    4 SFF Front View

    4 SFF Front View
    • 1
      Drive support label
    • 2
      Optical drive (optional – shown)
    • 3
      Serial number/iLO information pull tab
    • 4
      Quick removal access panel
    • 5
      Option: Display port & USB 2.0 port bundle kit (blank shown)
    • 6
      USB 3.2 Gen1 port
    • 7
      iLO Service Port
    • 8
      Power On/Standby button and system power LED
    • 9
      Health LED
    • 10
      NIC status LED
    • 11
      Unit ID button/LED
    • 12
      SAS/SATA drive bays (12G x1 SAS LP BP embedded)

    20 EDSFF Front View

    20 EDSFF Front View
    • 1
      Drive support label
    • 2
      Serial number/iLO information pull tab
    • 3
      Quick removal access panel
    • 4
      iLO Service Port
    • 5
      Power On/Standby button and system power LED
    • 6
      Health LED
    • 7
      NIC status LED
    • 8
      Unit ID button/LED
    • 9
      USB 3.2 Gen1 port
    • 10
      EDSFF drive bays (32G x4 NVMe BP embedded)

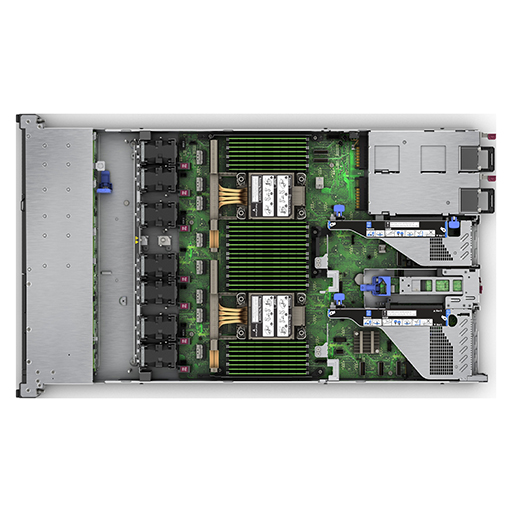

    Internal View

    Internal View
    • 1
      Liquid Cooling Module connector
    • 2
      x8 SlimSAS ports (1A to 4A, 1B to 4B)
    • 3
      DDR5 DIMM Slots (fully populated 32 DIMMs shown) • 1x 16 FH and 1x16 LP slots
    • 4
      Socket 2 MCIO ports (1 & 2)
    • 5
      Backplane Power connector
    • 6
      Internal USB port (top USB 3.2 Gen1 and bottom USB 2.0)
    • 7
      Redundant Power Supply (1 & 2 as shown)
    • 8
      Secondary (CPU 2) Riser PCIe 5.0
    • 9
      SID connector (optional feature, 8 SFF only)
    • 10
      Energy Pack connector
    • 11
      OCP Slot port • Option: Closed-loop Liquid Cooling Heat Sink Fan FIO Bundle Kit
    • 12
      HPE NS204i-u NVMe Hot Plug Boot Optimized Storage Device (optional – shown)
    • 13
      System Battery
    • 14
      Primary (CPU1) Riser PCIe 5.0
    • 15
      OCP Slot port
    • 16
      Front Display Port and USB 2.0 connector (optional feature)
    • 17
      LP SlimSAS ports (1 & 2)
    • 18
      Chipset
    • 19
      Front I/O and USB 3.2 Gen1 connector
      • Option: Low Profile x16
      • Option: Full height x16 (lose Slot 2 on Primary Riser)
    • 20
      SATA Optical port
    • 21
      Socket 1 MCIO connector
    • 22
      CPU 1 (bottom) and CPU 2 (top) (shown with High Performance Heatsink)
    • 23
      Hot plug (dual rotor) High Performance Fan Kit (7 fans)
    • 24
      HPE Hybrid Capacitor or HPE Storage Battery holder

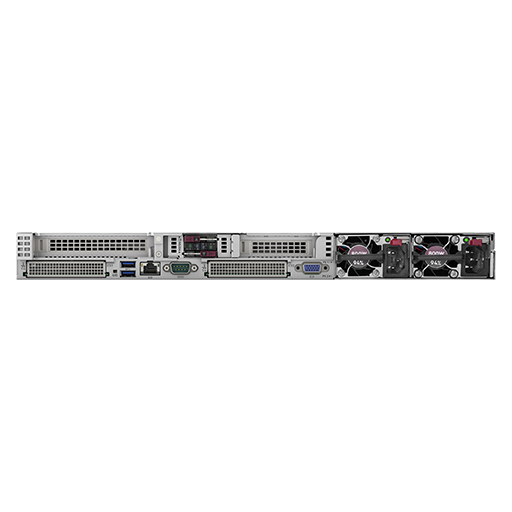

    Rear View

    Rear View
    • 1
      Slot 1 x16 PCIe 5.0 – Full Height
    • 2
      Slot 2 x16 PCIe 5.0 – Low Profile*
      Notes: *Shown with optional hot-plug NS204i-u Boot Device (cabled, PCIe connection is not required)
    • 3
      Option: Slot 3 x16 PCIe 5.0 (Requires 2nd processor) • Low Profile and Full Height options
    • 4
      Redundant Power Supply (1 & 2 as shown)
    • 5
      Video (VGA) port
    • 6
      OCP 3.0 Slot 2: x16* PCIe 5.0¹,² (Requires 2nd Processor)
      Notes: *x8 for 20EDSFF CTO Server (requires 2nd Processor)
    • 7
      Serial port (optional - shown)
    • 8
      iLO Management Port
    • 9
      USB 3.2 Gen1 Ports
    • 10
      Unit ID Indicator LED
    • 11
      OCP 3.0 Slot 1: x16* PCIe 5.0²
      Notes: *x8 for 20EDSFF CTO Server
