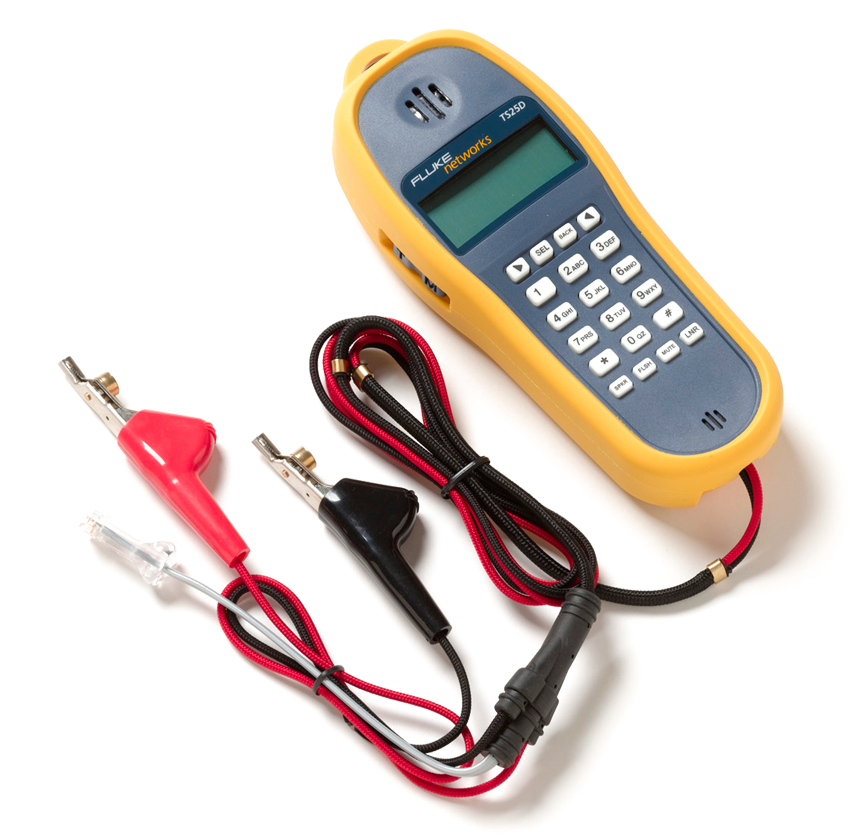

This feature-rich test set is a necessity for a variety of installs. The TS25D Test Set features data lockout and lockout override, making you completely safe in talk or monitor mode. The DSL/POTS filtering technology allows you to safely draw dial tone without downing DSL.
A built-in analog tone generator simplifies wire identification with a probe. An amplified speaker makes monitoring the line hands-free, so you can keep working. The talk battery function provides voltage to carry voice conversation on non-powered pairs.
All in a compact unit with an oversized robust liquid crystal display (LCD) that makes the intuitive, common-sense menus easy-to-read and use.
Telephone Test Set Comparison | |||||||
TS®54 TDR | TS®52 PRO | TS®22A | TS®22 | TS®25D | TS®30 / TS®120* |
TS®19 | |
TDR for distance to Open, Shorts | • | ||||||
Built-in toner | • | ||||||
Display—back lit LCD and glow-in-the-the dark keypad | • | • | LCD only | ||||
Extended range highimpedance DataSafe operation in monitor mode | • | • | • | ||||
High-impedance DataSafe operation in monitor mode | • | • | • | • | • | • | |
Data lockout protection | • | • | • | ||||
DSL/POTS filtering technology | • | • | • | ||||
Low/high voltage indication | • | • | • | ||||
Low current (mA) indication | • | • | • | ||||
Over voltage and current protection | • | • | • | • | • | • | |
Waterproof—exceeds American Military Spec. MIL-STD-810E | • | • | |||||
RainSafe—safe in severe weather conditions | • | • | • | • | • | ||
DropSafe—passes 20 foot (6 meter) drop test onto concrete | • | • | • | • | • | ||
Stores nine 18-digit numbers in repertory dialer (speed dialing) | • | • | • | • | • | ||
*TS120 for outside North America only. 67/33 break/make ratio. |
