| Product Code: | |
| Options: | |
| Qty: | |
| Unit Price: | £ |
| Part No: | FLFI2-7000-NW INT |
| Manufacturer No: | FI2-7000-NW INT |
| Delivery: | In Stock: 5-7 Days |
 |
1-second automated PASS/FAIL certification of fiber optic connector end-faces

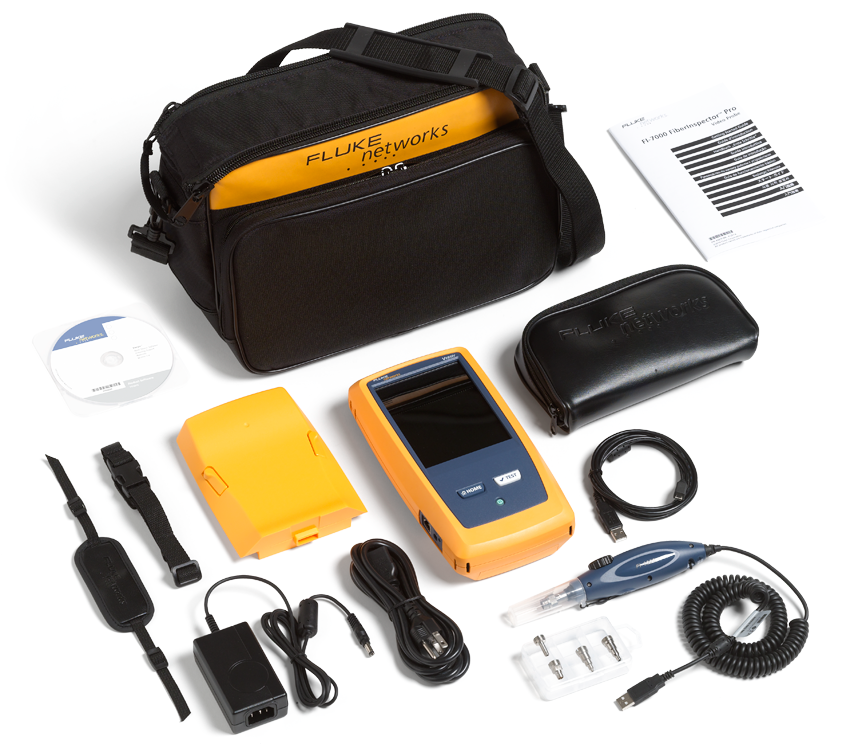

This Kit Includes:
Fiber optic connector end-face contamination is a leading cause of fiber failures. Dirt and contaminant cause insertion loss and back-reflection that inhibits optical transmission and causes havoc with transceivers. Fiber loss and OTDR testing can expose this problem, but in many cases, dirty connections make fiber testing time consuming and inaccurate.
Since dirt can be an issue before, during, or after fiber optic certification testing, and migrate from one fiber optic connector end-face to another upon mating, both sides of any connection must always be cleaned and inspected. Further, mating contaminated fiber optic connectors can cause permanent damage as microscopic debris is crushed between end-faces in physical contact. Even factory terminated patch cords or pigtails must be inspected as protective caps do not keep fiber optic connector end-faces clean. Avoiding this common cause of failure, starts with inspecting the fiber optic connector end-face and eliminating any contamination before insertion into a bulkhead or piece of equipment.
The FI-7000 FiberInspector Pro is a fiber optic inspection scope that allows you to inspect and certify fiber optic connector end-faces in 2 seconds so you can get the job done the first time. This fiber optic inspection scope provides automated PASS/FAIL certification take the guess work out of fiber inspection so anyone can be a fiber expert.
Versiv’s ProjX™ System
Versiv’s ProjX™ System manages jobs from setup to systems acceptance, ensuring that all tests are completed correctly. Enter the testing details for a job once, and ProjX stores them in a project file with a name the whole team can understand. Change modules or jobs without having to re-enter details. Support multiple testers on the same job by sharing project files via USB sticks or email. Easy just met efficient.
 |
 |
 |
| Set-up or view test limits, fiber types, and testing attributes. | View multiple projects. | Select a project icon to see specific detail. |
 |
Versiv is driven by Taptive, the most advanced user interface for a field tester. With a gestured based interface, technicians and project managers of all skill levels can eliminate costly errors and do more faster with fewer key strokes, set-up wizards, swiping, pinch to zoom, and access to more data right at their fingertips. Taptive user interface simplifies set-up, eliminates errors and speeds troubleshooting. |
LinkWare™ Management Software
Project managers have full capabilities to monitor workflow and consolidate test results.
LinkWare pulls data togther into a single report that is easy for customers to understand, showcasing quality and workmanship. LinkWare stats, provides automated statistical reports that turns test results into charts to reveal performance. The report even summarizes your entire cabling and fiber infrastructure in one compact, graphical format, so it is easy to verify margins and anomalies.
 |
 |
| Integrate tests from different testers into one unified report. | LinkWare Stats summarizes all project data |
Fibre optic connector end-face contamination is a leading cause of fibre failures. Dirt and contaminant cause insertion loss and back-reflection that inhibits optical transmission and causes havoc with transceivers. Fibre loss and OTDR testing can expose this problem, but in many cases, dirty connections make fibre testing time consuming and inaccurate.
Since dirt can be an issue before, during, or after fibre optic certification testing, and migrate from one fibre optic connector end-face to another upon mating, both sides of any connection must always be cleaned and inspected. Further, mating contaminated fibre optic connectors can cause permanent damage as microscopic debris is crushed between end-faces in physical contact. Even factory terminated patch cords or pigtails must be inspected as protective caps do not keep fibre optic connector end-faces clean. Avoiding this common cause of failure starts with inspecting the fibre optic connector end-face and eliminating any contamination before insertion into a bulkhead or piece of equipment.
The FI-7000 FiberInspector Pro is a fibre optic inspection scope that allows you to inspect and certify fibre optic connector end-faces in 2 seconds so you can get the job done the first time. This fibre optic inspection scope provides automated PASS/FAIL certification take the guesswork out of fibre inspection so anyone can be a fibre expert.
Certify your fibre end-faces to industry standards - IEC 61300-3-35. Or if you prefer, you can manually grade your end-faces.
FiberInspector Pro highlights defects found on fibre end-faces. Instead of just colouring the defect area, the FI-7000 colours the defect and highlights the defect’s background so that the defect is clearly visible. Defects that fail the standard’s requirements are coloured Red, while defects that pass are coloured Green.
Store both end-face images of a fibre directly in your Versiv test results. Combine end-face images with CertiFiber Pro OLTS and/or OptiFiber Pro OTDR test results for the complete history of your fibre cabling health.
The FI-7000 is built on the Versiv Cable Certification Platform which enables you to easily add optical loss (OLTS) and Optical Time Domain Reflectometry (OTDR) or even twisted pair copper or network analysis functionality to FI-7000. Product add-on kits are available for the DTX CableAnalyzer, CertiFiber Pro OLTS, OptiFiber Pro OTDR and OneTouch AT Network Assistant.
Versiv’s ProjX™ System manages jobs from setup to systems acceptance, ensuring that all tests are completed correctly. Enter the testing details for a job once, and ProjX stores them in a project file with a name the whole team can understand. Change modules or jobs without having to re-enter details. Support multiple testers on the same job by sharing project files via USB sticks or email. Easy just met efficiently.
Versiv is driven by Taptive, the most advanced user interface for a field tester. With a gestured based interface, technicians and project managers of all skill levels can eliminate costly errors and do more faster with fewer keystrokes, set-up wizards, swiping, pinch to zoom, and access to more data right at their fingertips.
Taptive user interface simplifies set-up, eliminates errors and speeds troubleshooting.
Project managers have full capabilities to monitor workflow and consolidate test results.
LinkWare pulls data together into a single report that is easy for customers to understand, showcasing quality and workmanship. LinkWare stats provides automated statistical reports that turn test results into charts to reveal performance. The report even summarizes your entire cabling and fibre infrastructure in one compact, graphical format, so it is easy to verify margins and anomalies.
The FI-7000’s PASS/FAIL fibre end-face grading is available to all Versiv owners. It is included in Versiv firmware v3.0 and higher. To enjoy this free fibre end-face grading, just download the latest Versiv firmware and create a new Project using FiberInspector as the test.
