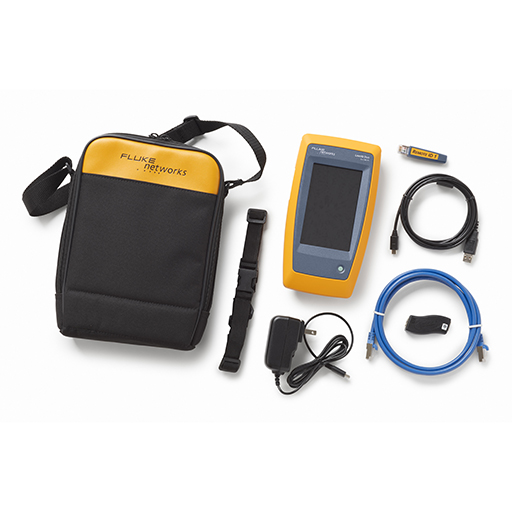

LIQ-DUO-H6-UK - LinkIQ™ Cable + Wi-Fi + Network Tester

Fluke Networks presents the LinkIQ™ tester – a comprehensive solution for cable performance verification, network diagnostics, and Wi-Fi analysis.

Key Features

• Cable testing up to 10GBASE-T with wire map, distance to fault, and toning.
• Network diagnostics including IPv4/v6 ping, switch identification, VLAN info, and data rates.
• PoE verification with class detection (1–8), power measurement, and load testing.
• Wi-Fi analysis (Duo model) supporting 2.4 GHz, 5 GHz, and 6 GHz bands (Wi-Fi 6E).
• Industrial Ethernet support with M12X, M12D, and M8D adapters.
• Results management and reporting via LinkWare™ PC.

Capacitive Colour Touchscreen

Maximum Cable Length:

305m

Tone:

Yes

Dimensions:

22 cm x 11 cm (8.5 in x 4.5 in)

Weight:

624g

Model Number p:

LinkIQ DUO Cable+Wi-Fi+Network

Connector Type:

Internal Antenna, M8, M12, M12x, RJ45, USB

Height:

50mm

Power Source:

Battery

Width:

115mm

Length:

220mm

Battery Life:

8 Hours Typical

Equipment Type:

Network Tester

Classification:

10Gb/s Ethernet

Battery Type:

Lithium-ion

Wi-Fi Testing (Duo Model)

• Displays networks, channels, and access points.
• Flags configuration issues like illegal channels, overlapping APs, and weak security.
• Tracks signal strength and data rates over time.
• Supports 802.11b/a/g/n/ac/ax and detects future standards like 802.11be.

PoE Testing

• Certified to IEEE 802.3af/at/bt standards.
• Displays powered pairs, class, and voltage under load.
• Supports both single and dual signature implementations.

Industrial Ethernet Support

• Supports EtherNet/IP, PROFINET, EtherCAT protocols.
• Identifies miswired and split pairs on RJ45, M12X, M12D, and M8D cables.
• Provides distance to opens/shorts and remote ID mapping.

Specifications

• Display: 800x480 color capacitive touchscreen
• Battery: Li-ion, 6400 mAh, 8 hours typical
• Dimensions: 22 cm x 11 cm
• Operating Temp: 0°C to 45°C
• Storage Temp: -10°C to 60°C
• Languages: Supports 20+ languages including English, German, French, Chinese, etc.

Ordering Information

Multiple kits and configurations available including:

• LIQ-DUO: Standard Duo model with accessories
• LIQ-DUO-IE: Industrial Ethernet version
• LIQ-KIT: Basic kit with Remote IDs and IntelliTone Probe
• LIQ-KIT-FTK1475: Professional troubleshooting kit with fiber tools

About Fluke Networks

Fluke Networks is a global leader in network certification and troubleshooting tools. Their LinkWare™ Live platform has over 14 million uploaded test results, supporting professionals in maintaining critical infrastructure.
