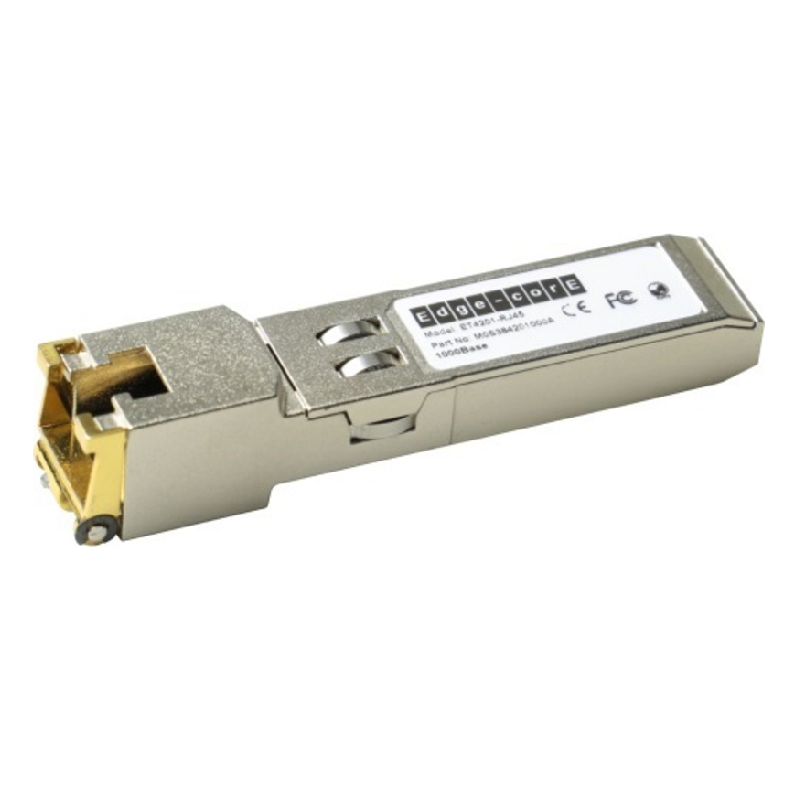

Edge-core 1000BASE-T Copper SFP Transceiver
The 1000BASE-T copper SFP transceiver is a high-performance, cost-effective module, compliant with Gigabit Ethernet and 1000BASE-T standards, as specified in IEEE 802. 3-2002 and IEEE 802.3ab, which supports 1000Mb/s data rate up to 100 meters reach over twisted-pair Category 5 cable.
Edgecore's pluggable optical transceivers provide fiber and copper connectivity over the entire range of Edgecore products. The optical transceivers allow a product the flexibility to expand by media type (copper/fiber), speed (FE/GE/10GE), and distance (100 m to 80 km). Edgecore also offers SFP, XFP, and SFP+ pluggable transceivers that comply with network-industry standards. This compliance enables Edgecore transceivers to be used together with any industry-standard network equipment.
• Hot-pluggable SFP footprint
• Low power dissipation
• Compact RJ-45 connector assembly
• Detailed product information in EEPROM
• +3.3V single power supply
• 1000 BASE-T operation in host systems with SGMII interface
• Compliant with SFP MSA
• Compliant with IEEE Std 802.3™-2002
• Commercial: 0°C to +70°C
• Varied Distance and Speed, ET4202-LX provides the various distance from 550m to 80km with FE, GE and 10GE speed
• Compacted Size Designed, Edgecore's SFP transceiver compacted size also designed for the high port density fibre switch
• Standard Compliance, Mechanical dimensions compliant to SFF INF-8074i, Optical interface compliant to 802.3ae, Class 1 laser safety standard IEC 825 compliant
• Hot Swappable
• Low Power Consumption
• Bi-Direction SFP to Double Usage Bandwidth
• Digital Diagnostics Monitoring Interface (DDMI) provides the ability to monitor real-time parameters of the SFP
Full specification and details can be found in the Product Datasheet PDF file
