CoolControl Drop-Away Panel Sheet, 1 x 554 x 1174mm - Translucent White

CoolControl Drop-Away Panel Sheet, 1 x 554 x 1174mm - Translucent White

See more product details
Part No:DC4814-3010-15
Manufacturer No:4814-3010-15
Delivery: In Stock: 2-3 Days

/assets/images/gallery/large/17102484564814-3010-15-1.png

CoolControl Drop-Away Panel Sheet, 1 x 554 x 1174mm - Translucent White
More Related Items
Click to change options
Colour:
Apply
£152.00 Ex VAT
Qty:
Email product to a friend
X
  • Scroll to top
    CoolControl Drop-Away Panel Sheet, 1 x 554 x 1174mm - Translucent White

    Drop-Away Panels For Aisle Containment Solutions

    In the event of a fire, conventional roof panels for aisle containment solutions do not allow the fire suppression systems at ceiling height to bring extinguishing agents into the contained aisle.

    Therefore, to address this problem, there is the CoolControl Drop-Away Panel solution. It consists of heat-sensitive panels that lose their rigidity if the temperature in the immediate vicinity climbs to 57°C. This leads the feather-light panels to drop into the aisle, opening the roof of the containment system, and allowing the fire suppression system to automatically apply completely space-filling.

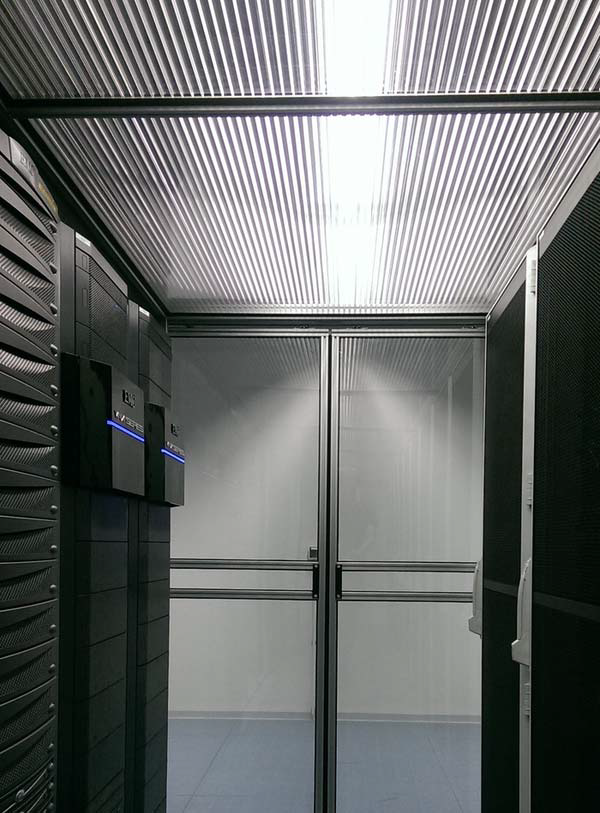

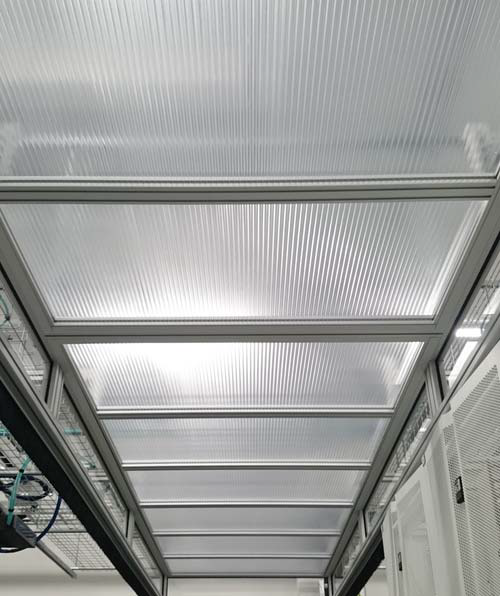

    The system comprises an aluminum frame construction that accommodates the heat-sensitive roof panels. With the roof panel transparency at 90%, the standard ceiling lighting in the data center is fully sufficient to provide the contained aisles with enough light.

    Key Features

    • Frame construction: anodised aluminium
    • Feather-light, but rigid material used for panels
    • Panel versions: clear-translucent (transparency >90%) or white-translucent (transparency >77%)
    • Panels lose rigidity at 57°C and drop away
    • Panel dimensions (W x L): 556 mm x 1236mm (standard size)
    • Custom panel sizes available upon request
    • FM approved and UL listed
    • Single burn item test, EN 13823; US Class A
    • BS476 Part 7 surface spread of flame with a class 1 rating

    Ideally, a heat-generating fire never occurs, but there may be instances where high-pressure fire suppression systems are still activated through smoldering cables or other hazards. In this case, the Drop-Away Panels should be more accurately described as feather-light panels that are blown away. The high pressure from the suppression systems has enough force to blow the panels, allowing the gas to flow freely throughout the room.

    Drop-Away Panels For Aisle Containment Solutions

    In the event of a fire, conventional roof panels for aisle containment solutions do not allow the fire suppression systems at ceiling height to bring extinguishing agents into the contained aisle.

    Therefore, to address this problem, there is the CoolControl Drop-Away Panel solution. It consists of heat-sensitive panels that lose their rigidity if the temperature in the immediate vicinity climbs to 57°C. This leads the feather-light panels to drop into the aisle, opening the roof of the containment system, and allowing the fire suppression system to automatically apply completely space-filling.

    The system comprises an aluminum frame construction that accommodates the heat-sensitive roof panels. With the roof panel transparency at 90%, the standard ceiling lighting in the data center is fully sufficient to provide the contained aisles with enough light.

    Key Features

    • Frame construction: anodised aluminium
    • Feather-light, but rigid material used for panels
    • Panel versions: clear-translucent (transparency >90%) or white-translucent (transparency >77%)
    • Panels lose rigidity at 57°C and drop away
    • Panel dimensions (W x L): 556 mm x 1236mm (standard size)
    • Custom panel sizes available upon request
    • FM approved and UL listed
    • Single burn item test, EN 13823; US Class A
    • BS476 Part 7 surface spread of flame with a class 1 rating

    Ideally, a heat-generating fire never occurs, but there may be instances where high-pressure fire suppression systems are still activated through smoldering cables or other hazards. In this case, the Drop-Away Panels should be more accurately described as feather-light panels that are blown away. The high pressure from the suppression systems has enough force to blow the panels, allowing the gas to flow freely throughout the room.
