Ex Connection Rail 4-port PoE
PoE switch for hazardous areas
• Four 30 W PoE ports
• Extends the temperature range of the camera
• Certified for ATEX and IECEx Ex d IIC/IIIC
• Single-mode or multi-mode fiber variants
• Resistant to corrosion
ExConnection Rail 4-Port PoE is a high performance PoE switch and 24 V DC power supply for hazardous areas. It is designed to connect explosion-protected network cameras over long distances. The network connection can be realized via optical fiber or copper-bound Ethernet and is available for single-mode or multi-mode fiber.

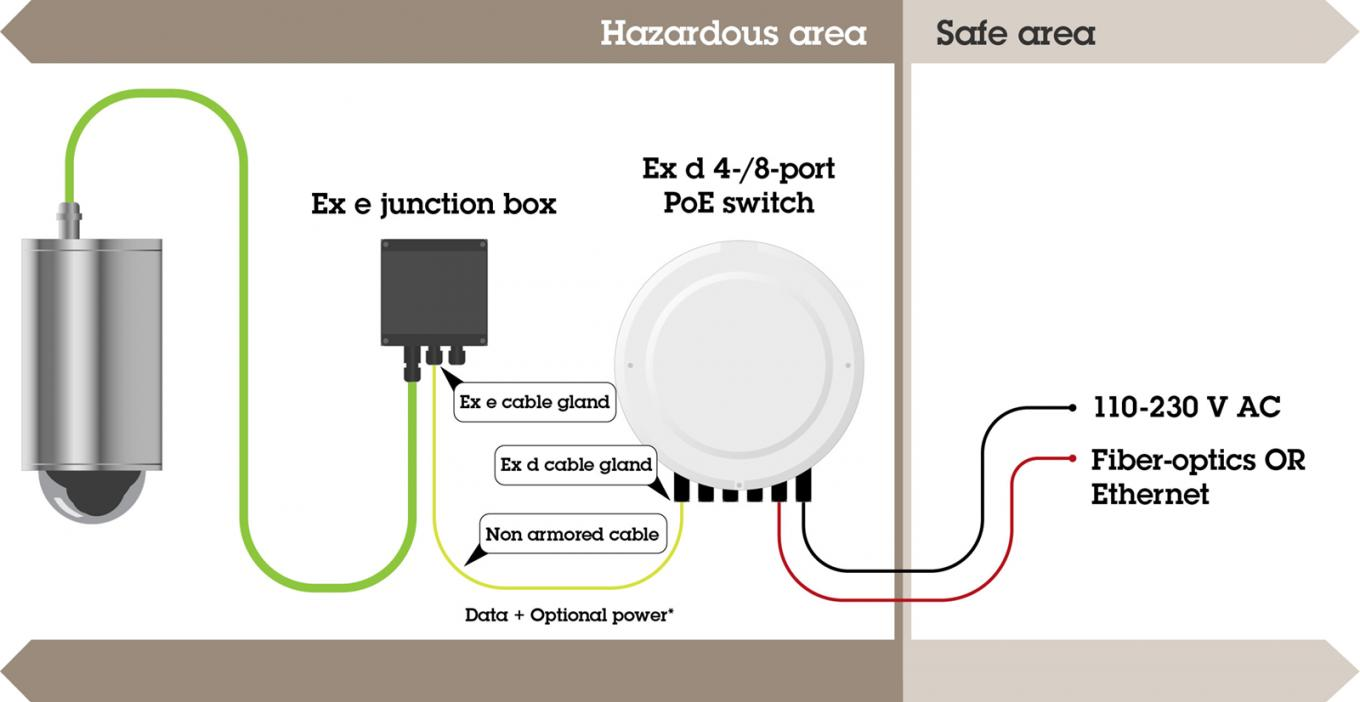

The power supply provides additional power to the camera’s heater to extend the temperature range. (See the schematics below for *Optional power).

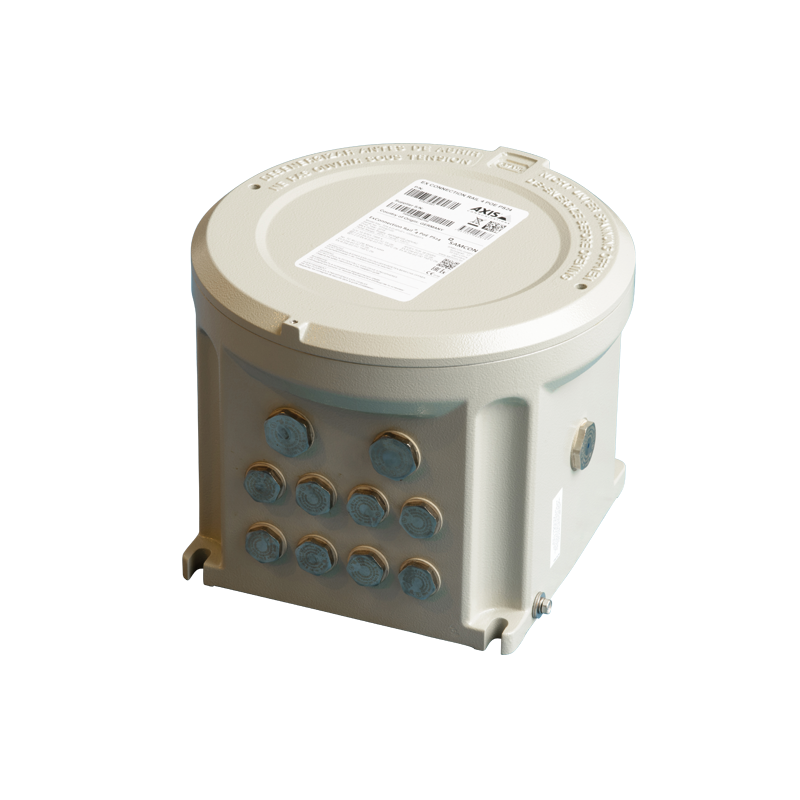

The Ex d-rated enclosure is made of seawater-resistant copper-free aluminum and is ready for wall mounting.
Ports & interfaces | |
Copper ethernet cabling technology | 10BASE-T, 100BASE-FX, 100BASE-TX |
Basic switching RJ-45 Ethernet ports quantity | 4 |
Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
Network | |
Copper ethernet cabling technology | 10BASE-T, 100BASE-FX, 100BASE-TX |
Networking standards | IEEE 802.3at |
10G support | No |
Power | |
AC input voltage | 100 - 240 V |
Power over Ethernet (PoE) | Yes |
Power over Ethernet (PoE) power per port | 30 W |
Total Power over Ethernet (PoE) budget | 120 W |
Operational conditions | |
Storage temperature (T-T) | -60 - 50 °C |
Operating temperature (T-T) | -60 - 50 °C |
Operating relative humidity (H-H) | 10 - 100 % |
