Aten PG6308G 30A/32A 8-Outlet 1U Switched eco PDU

Aten PG6308G 30A/32A 8-Outlet 1U Switched eco PDU

ATEN's PG6308 switched series intelligent PDU features 8 outlets* housed in a compact 1U rack enclosure.

• Dual 1G Ethernet ports support cascading up to 64 PDUs
• Environment sensor port enables RJ-45 connectivity to connect or daisy-chain up to 8 ATEN EA1640 environment sensors for monitoring and management of temperature, humidity, airflow, differential air pressure, and leaks, featuring alerts for potential threats (sold separately)
• Precise kWh metering (+/-1% ) for better power consumption habits, baselines, and initiative tracking
• With an ARM Cortex-A8 processor, these PDUs provide advanced control options through USB, COM, environmental sensors, and dual Gigabit LAN ports

With an ARM Cortex-A8 processor, these PDUs provide advanced control options through USB, COM, environmental sensors, and dual Gigabit LAN ports.

Designed for rapid deployment, PG series PDUs can power all connected equipment within just 10 seconds of being plugged in. For enhanced cost efficiency and space optimization, these intelligent PDUs can be cascaded, allowing interconnection of up to 64 units.

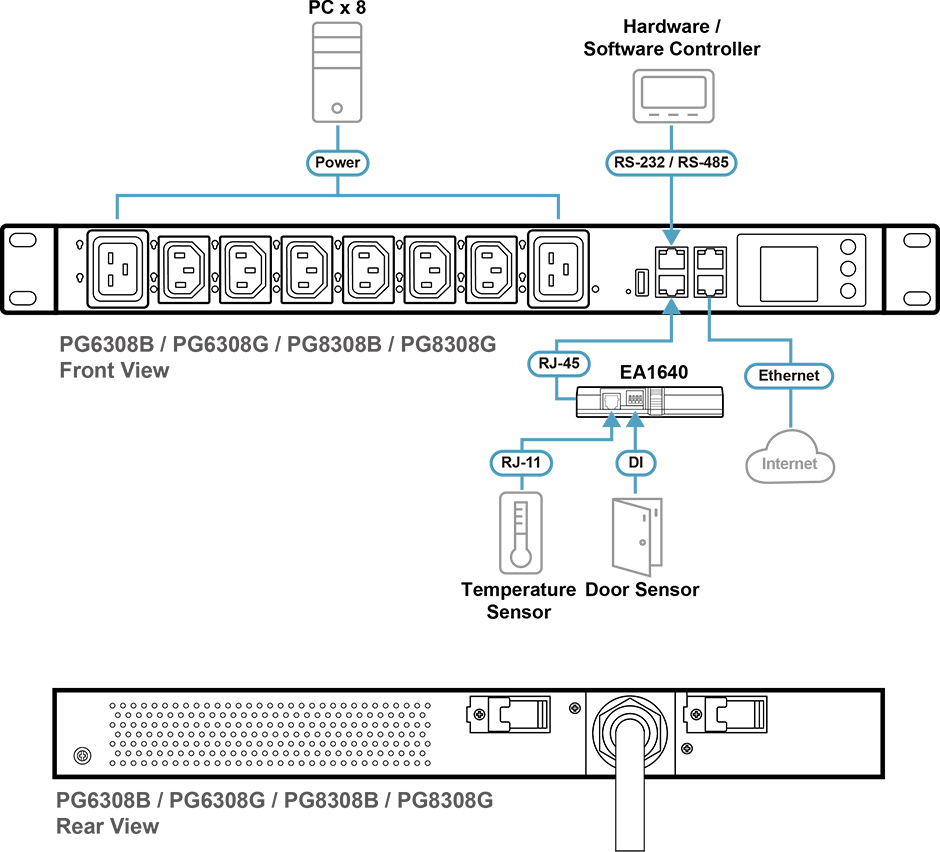

The PG series PDUs are equipped with RJ-45 sensor ports to connect with EA1640 that monitor the health of the data center environment, ensuring optimal operating conditions. They offer secure, centralized, and intelligent power management capabilities, allowing users to power on, off, or cycle data center IT equipment such as servers, storage systems, KVM switches, network devices, and serial data devices.

With the integration of remote power control and real-time power measurement, users can manage and monitor the power status of devices connected to the PG series PDUs from virtually anywhere with an IP connection. This functionality is accessible at the PDU device, bank, or outlet level, depending on the specific model.

These intelligent PDUs are capable of handling high voltage ranges of 100V to 240V. Additionally, they provide precise kWh energy usage data with an accuracy of ±1%. This level of precision enhances the monitoring of power consumption, aids in the establishment of baseline energy usage, and supports the tracking of energy efficiency initiatives.

In terms of hardware design, the PG series PDUs incorporate built-in energy-saving relays – subtypes of electromagnetic switches – to manage large current flows more efficiently, resulting in lower energy consumption compared to non-relay models. The PG series models are equipped with circuit breakers that support 30A or 32A currents, automatically disconnect the power supply to prevent overloads, and protect connected devices from damage.

The firmware of the PG series is upgradeable via web GUI or USB, allowing users to conveniently download updates from ATEN's website, ensuring access to the latest functionalities and improvements for practical use.

Green LCD console panel sticker is included for users, with additional options in blue, yellow, red, and purple available for purchase. This color-coding system enhances the ability to differentiate between power feed settings and facilitates more efficient troubleshooting.

The PG series intelligent PDUs are ideally suited for enterprise server rooms, network closets, and data centers, providing an intelligent power distribution and management solution that meets the demands of high-density IT applications while optimizing overall costs.

Note:
1. PG6308A contains 8 x NEMA 5-20R socket configurations
2. PG6308B / PG6308G contains 6 x IEC60320 C13 and 2 x IEC60320 C19 socket configurations

Features

• Metering
  • Secure locking enhancement prevents power cords from becoming unplugged due to vibration or human error
  • Metering and monitoring of power at the PDU and outlet levels
  • Measuring and establishing threshold levels for current, voltage, power, power dissipation, temperature, and humidity
  • Precise kWh metering (+/-1% ) for better power consumption habits, baselines, and initiative tracking
  • Real-time alerts via LCD display notify users of unusual power states:
    – Home Screen Readings: A (aggregate Current), V (voltage), W (power), kWh (power consumption)
    – Types of Alerts: Critical, Alert (value exceeds a predefined threshold), Warning (value approaches alert threshold)

• Network
  • Dual Ethernet ports support cascading up to 64 PDUs
  • Daisy chaining functions support SNMP & Modbus protocols and TC / IP protocols (web page)
  • Supports ATEN’s eco DC (Energy & DCIM Management Web GUI) for monitoring power distribution, energy, and environmental data from PDUs and connected devices

• Outlet Switch Control
  • Remote power outlet control (On/Off, Power Cycle) by individual outlets and outlet groups
  • Outlet group support at the PDU level
  • Supports multiple power control methods – Wake on LAN, System After AC Back, Kill the Power
  • Power-On/Off sequencing – users can set the power-on sequence and delay time for each outlet to allow equipment to be powered on in the correct order
  • Proactive overload protection (POP) – automatically powers off the last outlet, causing the current overload, while allowing users to set shutdown priority
  • Schedule Control
  • When the temperature or humidity sensor value reaches the predetermined threshold, the PDU can turn on, off, or reboot a particular outlet
  • Energy-efficient relays allow operators to control large amounts of current flow for lower energy consumption

Package Content

• 1 x 8-Outlet 1U eco PDU
• 1 x rack mount kit
• 1 x foot pad set (4 pcs)
• 1 x RJ-45 to DB-9 cable
• 1 x full-panel colored sticker
• 1 x user instructions
