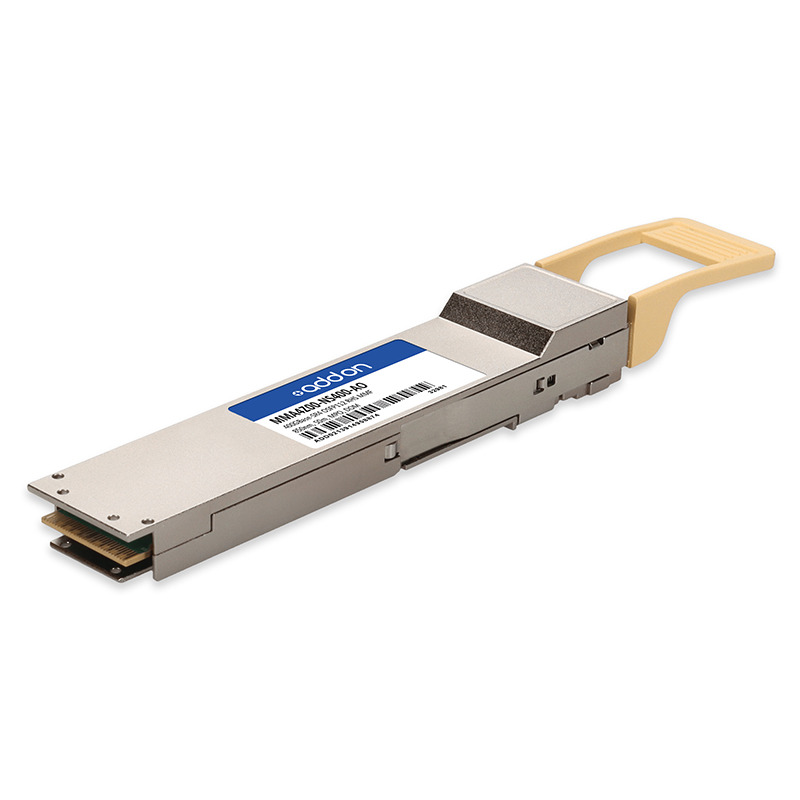

AddOn Mellanox MMA4Z00-NS400 Compatible Transceiver

The Mellanox® MMA4Z00-NS400 compatible OSFP112 RHS transceiver delivers high-performance 400GBase-SR4 throughput up to 50m over multi-mode fiber (MMF) using PAM4 modulation at an 850nm wavelength via an MPO connector. Designed for reliability, it operates in temperatures ranging from 0 to 70°C and is built to meet or exceed OEM specifications. This hot-swappable transceiver is guaranteed 100% compatible with Mellanox® devices and has been programmed, uniquely serialized, and rigorously tested for data traffic and application performance to ensure seamless integration and identical functionality.

All of our transceivers comply with Multi-Source Agreement (MSA) standards to provide seamless network integration. Additional product features include Digital Optical Monitoring (DOM) support which allows access to real-time operating parameters. This transceiver is Trade Agreements Act (TAA) compliant. We stand behind the quality of our products and proudly offer a limited lifetime warranty.

Key Features

• OSFP MSA Compliant
• Bi-directional operation: 4x Tx, and 4x Rx at 106.25Gbps with 53.125GBd PAM4 modulation scheme
• Compliant with IEEE 802.3db 400GBASE-SR4
• Commercial Temperature: 0 to 70 Celsius
• VCSEL Transmitter
• Single MPO-12 Connector
• Hot Pluggable
• Built in DSP
• RoHS Compliant and Lead-Free
