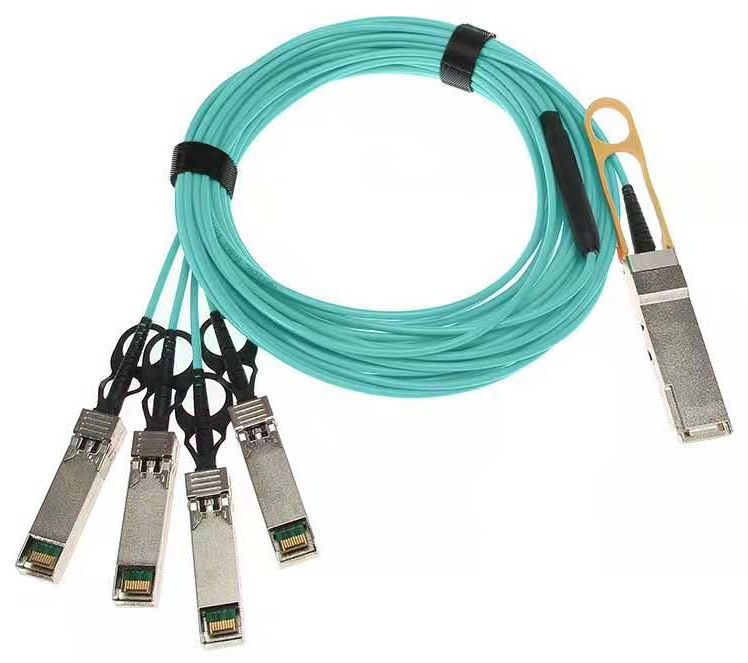

40G QSFP+ to 4x 10G SFP+ Breakout Active Optical Cable

QSFP-4x10G-AOCxxM is a Four-Channel, Pluggable, Parallel, Fiber-Optic QSFP+ Active Optical Ca¬ble (AOC) to 4× SFP+ Active Optical Cable break-out solu¬tion. This Breakout cable is intended for 40G to 4× 10G applications.

This AOC is a high performance cable for short-range multi-lane data communication and interconnect appli¬cations. It integrates four data lanes in each direction with 40 Gbps aggregate bandwidth. Each lane can operate at 10.3125 Gbps. These cables also support 4 x 10G Infini-Band QDR applications and are backwards compatible to the 4 × 5G IB DDR and 4 × 2.5G IB single IB SDR applica¬tions.

Features

QSFP+ AOC end

• Compliant to the 40GBASE-SR4 and XLPPI Specification per IEEE 802.3ba-2010 and supporting 40G-IB-QDR / 20G-IB-DDR / 10G-IB-SDR applications
• Operate at 10.3125 Gbps per channel with 64b/66b encoded data for 40GbE application and at 10 Gbps with 8b/10b compatible encoded data for 40G-IB-QDR application
• Compliant to the industry standard SFF-8436 QSFP+ Specification
• Power Level 1: Max Power < 1.5 W

SFP+ ends

• Compliant to the electrical specifications per SFF-8431 Specifications for Enhanced Small Form Factor Pluggable Module
• Mechanical specifications per SFF Committee SFF-8432 Improved Pluggable Form factor "IPF"
• Maximum power dissipation 0.35W per end

Active Optical Cable Assembly

• 0 to 70 C degree case temperature operating range
• Proven High Reliability 850 nm technology: Rayoptek VCSEL transmitter and Rayoptek PIN receiver
• Hot pluggable for ease of servicing and installation
• Utilizes optical fiber for high density and thin, lightweight cable management
• Two Wire Serial interface
