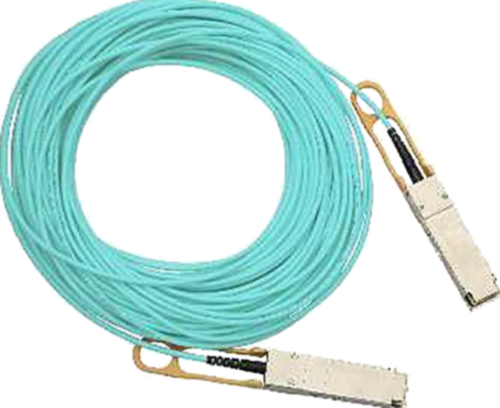

100G QSFP28 to QSFP28 Active Optical Cable

100G QSFP28 Active Optical Cables (AOCs) are high-performance, cost effective 1/0 solutions for 100 or 40 Gigabit Ethernet, lnfiniband FDR/EDR Applications. This AOC is a high-performance QSFP28 AOC for short-range multilane data communication and interconnect applications. It integrates four data lanes in each direction with 100 Gbps bandwidth. Each lane can operate at 25Gbps up to 70 m using OM3 fiber or 100 m using OM4 fiber.

The 100G QSFP28 AOC are designed to operate over multimode fiber systems using a nominal wavelength of 850nm. The electrical interface uses a 38 contact edge type connector. The optical interface uses an 12 fiber MTP (MPO) connector. This module incorporates Gigalight Technologies proven circuit and VCSEL technology to provide reliable long life, high performance, and consistent service.

Features

• Full duplex 4 channel 850nm parallel active optical cable
• Transmission data rate up to 25Gbps per channel
• Support 40GE and 56G FDR data rate
• 4 channels 850nm VCSEL array
• 4 channels PIN photo detector array
• Internal CDR circuits on both receiver and transmitter channels
• Maximum link length of 300m on OM3 Multimode Fiber (MMF)and 400m on OM4 MMF
• Support CDR bypass
• Low power consumption <2.5W
• Hot Pluggable QSFP form factor
• Built-in digital diagnostic functions
• Operating case temperature 0c to + 70°C
• 3.3V power supply voltage
• RoHS 6 compliant (lead free)

Applications

• 100 Gigabit Ethernet
• Fiber Channel over Ethernet
• IEEE 802.3bm 1 00GBASE SR4 and 40GBASE SR4
• lnfiniband FDR/EDR
