Uniti Power Symphony UPS Accessories

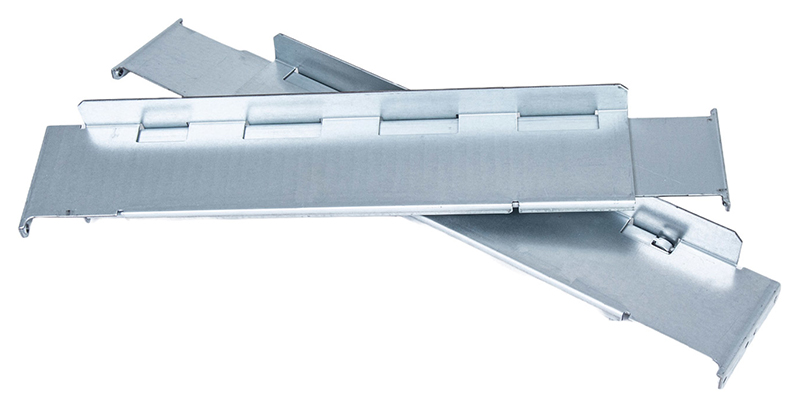

Overview A universal 19 Inch rail kit for mounting a Uniti Power Symphony 1500–3000VA UPS and/or a compatible external battery pack into a rack. The SPYRAIL1-3 can support individual devices up to 60 kilograms in weight.

Description Uniti Power Symphony provides market-leading power protection for mission-critical loads in server rooms, IT networks, medical applications, and industrial settings. Installable in either a rackmount or freestanding tower, this UPS is extremely versatile.





Specifications

Enables easy mounting of your new UPS in your cabinet
Easy installation
2 years repair or replace warranty
100mm W x 450mm D x 45mm H
Weight 4 kg
Colour - Grey
All required fixings are included
Mounting Mode - Rack

Overview A universal 19 inch rail kit for mounting a Uniti Power Symphony 6–10kVA UPS and/or a compatible external battery pack into a rack. The SPYRAIL6-10 can support individual devices up to 100 kilograms in weight.

Description Uniti Power Symphony provides market-leading power protection for mission-critical loads in server rooms, IT networks, medical applications, and industrial settings. Installable in either a rackmount or freestanding tower, this UPS is extremely versatile.





Specifications

Enables easy mounting of your new UPS in your cabinet
Easy installation
2 years repair or replace warranty
100mm W x 690mm D x 50mm H
Weight 4 kg
Colour - Grey
All required fixings are included
Mounting Mode - Rack

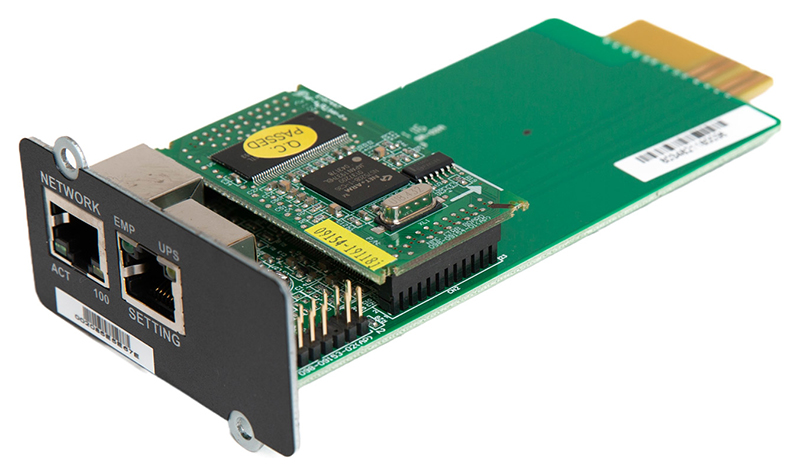

The Network Management Card (NMC) from Uniti Power is an advanced SNMP (Simple Network Management Protocol) manager designed to seamlessly communicate with your UPS via Ethernet. This card offers dual communication protocols – SNMP and HTTP – ensuring versatile and efficient application.

With the NMC, users can effortlessly access vital UPS information via a Network Management Station (NMS) or a web browser. This provides real-time insights and empowers users to precisely manage UPS and NMC parameters.

One of the standout features of the NMC is the integrated System Protect Software (SPS). This application is engineered for multi-server shutdown operations. When the UPS encounters shutdown events, which are user-configurable, the SPS ensures an orderly and automatic shutdown process across various operating systems. This systematic approach eliminates the risk of abrupt shutdowns, safeguarding clients and servers from potential data loss or damage.

Firmware

NMC FW 2.6.0.5.zip

Latest Update Date: 07/03/2019



NMC FW 3.1.0.0.zip

Latest Update Date: 24/09/2021



NMC MIB.zip

Latest Update Date: 02/11/2020



NMC Modbus Protocol

Latest Update Date: 09/03/2019



Uniti Power Symphony provides market-leading power protection for mission-critical loads in server rooms, IT networks, medical applications, and industrial settings. Installable in either a rackmount or freestanding tower, this UPS is extremely versatile.




Easy installation

Allows remote monitoring of your new UPS
Our SNMP works with most major brands of server software
Enables firmware to be upgraded remotely
2 years repair or replace warranty

Overview The Uniti Power Relay Card offers voltage-free dry-contact signals, ideal for programmable controllers and management systems. It also facilitates a connection for remote on/off and UPS shutdown with a dedicated input signal.

Description Equipped with 5 output relay signals, this relay card allows for configurable normal-open or normal-close signals. Additionally, users can set a configurable delay time. The SPYREL relay card is fully compatible with all Symphony UPSs from Uniti Power

Uniti Power Symphony provides market-leading power protection for mission-critical loads in server rooms, IT networks, medical applications, and industrial settings. Installable in either a rackmount or freestanding tower, this UPS is extremely versatile.



Specifications

Simple approach for showing UPS alarms and statuses
Easy to install and use
Allows user to customise each contact
2 years repair or replace warranty
60mm W x 145mm D x 20mm H
Weight 0.10 kg
Also Includes - User manual, RJ45 to DB9 cable, screw & saftey cover
Compatible with the Symphony Range of UPS

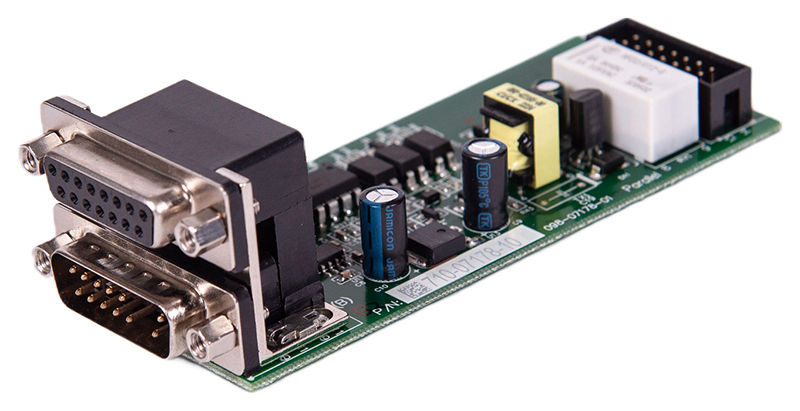

Overview This parallel kit accessory allows you to operate up to three Uniti Power Symphony UPSs, each with a capacity of 6kVA or 10kVA, in parallel. You can set them up for increased capacity or in N+1 or N+2 redundant configurations, enhancing the overall system protection.

Description Uniti Power Symphony provides market-leading power protection for mission-critical loads in server rooms, IT networks, medical applications, and industrial settings. Installable in either a rackmount or freestanding tower, this UPS is extremely versatile.





Specifications

Parallel up to 3x Symphony 6kVA or 10kVA UPSs
Allows user to customise each contact
2 years repair or replace warranty
43mm W x 100mm D x 30mm H
Weight 0.11 kg
Compatible for use with SPY6KiRTB, SPY6KiRT, SPY10KiRTB & SPY10KiRT
