HDMI Signal Booster - 115 ft - 1080p
Amplify the strength of your HDMI signal to extend your video source up to 115 ft. over standard HDMI cable
This HDMI signal booster lets you increase the signal strength of your HDMI video source so you can connect an HDMI display up to 115 ft. (35 m) away, using standard HDMI cables. You can place the booster inline between two HDMI cables, up to 82 ft. in length at the video input, and up to 33 ft. in length at the video output.
Discreet installation
With its small form factor, the HDMI booster is easy to hide, for a discreet installation. You don’t need an external power adapter to operate the signal booster, and it includes mounting hardware, so installing it is hassle-free. By extending your video signal using standard HDMI cables, the HDMI booster is a cost-effective alternative to more expensive HDMI extension systems that require the installation of CAT5 or CAT6 cabling infrastructure.
Compatible with varying distances
The HDMI booster features an equalization switch with ten different levels. The equalization switch lets you adjust the amplification of your HDMI signal based on the distance of your cables, so that you can ensure your HDMI signal will be perfect even at distances up to 115 ft. (35 m). The booster is perfect for boardrooms, offices or classrooms that may require varying distances depending on the room size.
Maintains high-definition video signals
When extending HDMI over long distances using standard video cabling, higher resolutions can become unavailable. Using the HDMI signal booster ensures that you’ll still be able to depend on high-definition resolutions up to 1080p at 60Hz.
The HDBOOST is backed by a 2-year StarTech.com warranty and free lifetime technical support.
Product Diagram:
Applications:
Avoid running network cabling to extend video signals, by using this booster with standard HDMI cabling
Boost the signal strength of your HDMI video signals for classroom, office or boardroom displays
Features:
INLINE CAPABILITY: You can place the HDMI signal booster inline between two HDMI cables, up to 82 ft. in length at the video input, and up to 33 ft. in length at the video output.
SIMPLE INSTALLATION: The HDMI booster mounting hardware is included. No CAT5 or CAT6 cable infrastructure required. A power adapter is not required for standard applications, SVUSBPOWER sold separately.
EASILY CUSTOMIZABLE: The HDMI extender features an equalization switch with ten different levels. The switch lets you adjust the amplification of your signal based on the distance of your cables.
LONG DISTANCE CAPABILITY: When extending HDMI over long distances, higher resolutions can become unavailable. Using the HDMI amplifier ensures high-definition resolutions up to 1080p at 60Hz.
THE IT PRO'S CHOICE: Designed and built for IT Professionals, this HDMI Extender is backed for 2-years, including free lifetime 24/5 multi-lingual technical assistance.
Technical details
Audio output channels
7.1 channels
Rack mounting
Yes
Certification
CE, FCC
Type
AV repeater
Maximum resolution
1920 x 1080 pixels
Maximum transfer distance
35 m
Audio system
Multichannel
Supported video modes
720p, 1080p
Supported graphics resolutions
1280 x 720 (HD 720), 1280 x 768 (WXGA), 1280 x 800 (WXGA), 1360 x 768 (WXGA), 1440 x 900, 1600 x 900, 1680 x 1050 (WSXGA+)
Product colour
Black
Audio support
Yes
LED indicators
Power
Sustainability certificates
RoHS
Ports & interfaces
HDMI in
1
Number of HDMI outputs
1
DC-in jack
Yes
Power
Output current
1 A
Power plug type
Type N
AC input voltage
100 - 240 V
Operating voltage
5 V
Operational conditions
Operating temperature (T-T)
0 - 70 °C
Storage temperature (T-T)
-10 - 80 °C
Operating relative humidity (H-H)
5 - 90%
Weight & dimensions
Width
42.2 mm
Height
26.2 mm
Depth
54.2 mm
Weight
72 g
Packaging data
Package width
143 mm
Package height
33 mm
Package depth
144 mm
Package weight
163 g
Mounting brackets included
Yes
Full specification and details can be found in the
45 ft. (14 m) HDMI Signal Booster - 4K 60Hz
HDMI® Inline Repeater & Amplifier | USB Powered | 7.1 Audio Support | YUV 4:4:4
Use this 4K HDMI® signal booster to amplify your HDMI signal and extend it 45 ft. (14 m) using HDMI cabling.
Maintains Ultra HD 4K Video
When you're extending HDMI over distances using standard video cabling, higher resolutions from your HDMI 2.0 devices can become unavailable after a few short feet. With this signal extender you can ensure that HDMI 2.0 resolutions up to UHD 4K at 60Hz are available even at distances up to 45 ft. (14 m). You can achieve even longer distances at lower refresh rates - up to 4K at 30Hz, at up to 100 ft. (30 m).
The signal booster works by connecting two HDMI certified cables, each up to 22.5 ft. (7 m) in length, to either side of the signal booster.
Hassle-Free Installation
With its compact design, the HDMI signal amplifier is easy to hide, for a discreet installation. By extending your video signal using HDMI certified cables, the inline booster is a cost-effective alternative to more expensive extension systems that require the installation of a CAT5 or CAT6 cabling infrastructure.
Supports Several Distances
Support for a variety of extension distances makes the 4K repeater perfect for multi-device deployment across large institutions, such as boardrooms in corporate offices, classrooms in schools, or waiting rooms in hospitals, as these applications may require varied distances in different rooms.
HDBOOST4K2 is backed by a 2-year StarTech.com warranty with free lifetime technical support.
Note: To achieve resolutions up to 4K 60Hz, your video source, display and cabling must support HDMI 2.0.
Product Diagram:
Applications:
Amplify your 4K video signals up to 45 ft. (14 m)
Boost the signal strength of your HDMI video signals in classrooms, offices and boardrooms
Avoid network cabling to extend video signals, using this extender with standard HDMI cables
Features:
BOOST YOUR SIGNAL: Use this repeater to amplify your 4K HDMI signal extending it 45 ft. using certified HDMI cables. Operating System Independent, no extra drivers or software required.
4K RESOLUTION SUPPORT: Enjoy astonishing picture quality with support for 4K 60Hz at up to 45 ft. away from your video source.
AUDIO SUPPORT: This HDMI inline repeater supports 7.1 surround sound audio for an complete AV solution.
SMALL FOOTPRINT: Designed to be compact, this HDMI amplifier is easy to setup and can be hidden away for a discreet installation.
INDUSTRY-LEADING SUPPORT: StarTech.com offers a 3-year warranty and free lifetime technical support on this 4K HDMI video signal booster, and has been the choice of IT professionals and businesses for over 30 years
Technical details
Material
Plastic
HDCP
Yes
Audio output channels
7.1 channels
Rack mounting
No
Daisy chain
No
Maximum refresh rate
60 Hz
Certification
REACH, CE, FCC
Type
AV repeater
Maximum resolution
3840 x 2160 pixels
Maximum transfer distance
14 m
Bandwidth
18 Gbit/s
Product colour
Black
HDCP version
2.2
Sustainability certificates
RoHS
Ports & interfaces
USB ports quantity
1
USB connector type
Micro-USB B
HDMI in
1
Number of HDMI outputs
1
HDMI in
2.0
Power
Power consumption (typical)
2.5 W
USB powered
Yes
Operational conditions
Operating temperature (T-T)
0 - 70 °C
Storage temperature (T-T)
-10 - 80 °C
Operating relative humidity (H-H)
5 - 90%
Weight & dimensions
Width
52 mm
Height
13.7 mm
Depth
28.5 mm
Weight
15 g
Packaging data
Package width
140 mm
Package height
30 mm
Package depth
170 mm
Package weight
113 g
Quick start guide
Yes
Cables included
USB
Full specification and details can be found in the
HDMI Signal Booster - HDMI Extender - 4K 60Hz
Use this repeater to amplify your 4K HDMI signal and extend it 30 ft. using a standard HDMI cable
This 4K HDMI® signal booster lets you increase the signal strength of your HDMI video source so it can travel greater distances using standard HDMI cables. You can achieve resolutions up to 4K at 60Hz at distances of up to 30 ft. (10 m), and depending on your desired resolution, the booster supports distances up to 115 ft. (35 m) away at 1080p 60Hz resolution.
To install the booster, place it between two HDMI cables. Reference the table below for supported resolutions and cable lengths.
Maintains Ultra HD 4K video signals at 60Hz
When you’re extending HDMI over distances using standard video cabling, higher resolutions from your HDMI 2.0 devices can become unavailable after a few feet. Using this HDMI signal booster ensures that HDMI 2.0 resolutions up to UHD 4K at 60Hz are available even at distances up to 30 ft. (10 m).
You can achieve even longer distances at lower resolutions -- up to 4K at 30Hz, at up to 82 ft. (25 m), and 1080p at 60Hz at up to 115 ft. (35 m).
Easy and discreet installation
With its small form factor design and no external power adapter, the HDMI booster is easy to hide, for a discreet installation. By extending your video signal using standard HDMI cables, the 4K booster is a cost-effective alternative to more expensive extension systems that require the installation of a CAT5 or CAT6 cabling infrastructure.
Supports a variety of distances
The booster makes it easy to adjust your HDMI signal strength based on the distance of your cables, with equalization adjustment buttons. This means that you can adjust the amplification of your HDMI signal, to ensure your signal will be flawless.
Support for a variety of extension distances makes the booster perfect for multi-device deployment across large institutions, such as boardrooms in corporate offices, classrooms in schools, or waiting rooms in hospitals, as these applications may require varied distances in different rooms.
Note: To achieve resolutions up to 4K60, your video source, display and cabling must support HDMI 2.0.
The HDBOOST4K is TAA compliant and backed by a 2-year StarTech.com warranty with free lifetime technical support.
Product Diagram:
Applications:
Avoid the time and expense of running network cabling to extend video signals, using this booster with standard HDMI cables
Boost the signal strength of your HDMI video signals for classroom, office or boardroom displays
Features:
Astonishing picture quality with support for 4K (60Hz) at up to 30 ft. (10 m) away from your video source
Backward compatible with 1080p resolutions at up to 115 ft. (35 m) away from your video source
Discreet installation with no external power adapter required
Works at varying distances up to 115 ft. (35 m) with a built-in equalization switch
Works with two standard HDMI cables
Supports HDCP 2.2
Supports 7.1 surround sound audio
Technical details
Audio output channels
7.1 channels
Rack mounting
No
Certification
CE, FCC
Type
AV repeater
Maximum resolution
3840 x 2160 pixels
Maximum transfer distance
35 m
Audio system
Multichannel
Supported video modes
720p, 1080p, 2160p
Supported graphics resolutions
1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA), 3840 x 2160
Product colour
Black
Audio support
Yes
LED indicators
Power
Sustainability certificates
RoHS
HDCP
Yes
Ports & interfaces
HDMI in
1
Number of HDMI outputs
1
Operational conditions
Operating temperature (T-T)
0 - 35 °C
Storage temperature (T-T)
-5 - 40 °C
Operating relative humidity (H-H)
20 - 80%
Weight & dimensions
Width
46 mm
Height
15 mm
Depth
56 mm
Weight
150 g
Packaging data
Package width
101 mm
Package height
46 mm
Package depth
154 mm
Package weight
170 g
Cables included
USB
Full specification and details can be found in the
WiFi to HDMI Video Wireless Extender with Audio - High-Definition
Wirelessly connect your PC or laptop to your HDMI® television, projector, or monitor through your WiFi network
The WIFI2HD2 HDMI® over Wi-Fi Adapter enables you to send an HDMI audio/video signal from a laptop or desktop computer, to a remote projector or display over a wireless IP network.
Unlike other wireless video solutions which require devices at both ends of the connection, the WIFI2HD2 is a single compact device that can be situated by your remote display / projector, making it perfect for business applications such as boardroom presentations. The only requirement is the included software must be installed on a computer to connect to the WIFI2HD2.
Compatible with Wireless-N (IEEE 802.11n) and backward compatible with Wireless-G (802.11 g) networks, this HDMI over WiFi extender supports resolutions up to 1080p for optimum video and audio quality. The extender also features an integrated USB port, for keyboard/mouse connection.
The WIFI2HD2 HDMI Wi-Fi Adapter is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Front View:
Rear View:
Applications:
Display spreadsheets, and graphs wirelessly on a display or projector
Deliver multimedia presentations to HDMI displays at trade-shows and vendor fairs without running cables
Features:
Supports resolutions up to 1080p
Optional RJ-45 Ethernet port for LAN connectivity
Integrated USB port for mouse/keyboard connection
Compliant with IEEE 802.11n/g wireless adapters
Wireless transmission up to 180 ft (55m) on open sites
The StarTech.com Advantage:
Hassle Free installation, with no local transmitter required
Eliminates cost of running bulky HDMI cables
Broad compatibility with Wireless N and G networks
Features
Networking standards
IEEE 802.11g,IEEE 802.11n
Certification
CE, REACH, TAA
Type
AV transmitter
Maximum resolution
1920 x 1080 pixels
Maximum transfer distance
55 m
Supported video modes
1080i, 1080p, 720p
Supported graphics resolutions
1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800 (WXGA), 1366 ? 768, 1440 x 900 (WXGA+), 1600 x 1200 (UXGA), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080)
LED indicators
Yes
Cable length
0.13 m
Product colour
Black
Technical details
Networking standards
IEEE 802.11g, IEEE 802.11n
Certification
CE, REACH, TAA
Wi-Fi
Yes
Ethernet LAN
Yes
Type
AV receiver
Maximum resolution
1920 x 1080 pixels
Maximum transfer distance
55 m
Supported video modes
1080i, 1080p, 720p
Supported graphics resolutions
1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800 (WXGA), 1366 ? 768, 1440 x 900 (WXGA+), 1600 x 1200 (UXGA), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080)
Cable length
0.13 m
Product colour
Black
Connectivity technology
Wireless
Sustainability certificates
RoHS
Ports & interfaces
USB ports quantity
2
Wi-Fi
Yes
Ethernet LAN
Yes
RJ-45 output ports
1
HDMI in
1
Audio input
3.5 mm
Connectivity technology
Wireless
Power
Input current
0.2 A
Output current
1 A
Power plug type
Type M
AC input voltage
100 - 240 V
Power consumption (typical)
5 W
External power adapter
Yes
Operating voltage
5 V
Weight & dimensions
Width
55 mm
Height
27 mm
Depth
72 mm
Weight
140 g
Packaging data
Package width
153 mm
Package height
91 mm
Package depth
229 mm
Package weight
400 g
Manual
Yes
Included power plug types
EU, NA, UK
Full specification and details can be found in the
HDMI Over CAT5e/CAT6 Extender with Power Over Cable - 165 ft (50m)
Extend HDMI® up to 165ft (50m) over Cat5e/6 cabling with Power over Cable to Receiver
The ST121SHD50 HDMI® over Cat5e/Cat6 Video Extender kit lets you extend HDMI video and audio by up to 165 feet (50 Meters) over dual Cat5e cables or dual Cat6 cables. For added versatility the kit features Power Over Cable and only requires a single power adapter that can be connected to either the Transmitter or Receiver.
With support for High-Definition resolutions of up to 1920x1080 / 1080p and the accompanying digital audio, this cost-effective HD extender can easily be installed using new or existing Ethernet infrastructure wiring. For a convenient plug-and-play installation, the HDMI extender features built-in EDID monitor emulation, which ensures native resolution and maximum compatibility with your display or projector.
For added flexibility and convenience, HDMI cables up to 32ft (10m) can be connected to both the local and remote units, which lets you extend your HDMI signal to even further distances.
The HDMI extender kit offers a point-to-point digital signage solution right out of the box, including both local transmitter and remote receiver units, along with optional hardware that lets you mount the units as needed. Plus, with Power Over Cable, you can easily extend an HDMI signal in areas where access to power outlets is limited.
This product is TAA compliant and backed by a Startech.com 2-year warranty with free lifetime technical support.
Top view:
1. LED Indicator
2. EDID Copy Button
3. LED Indicator
4. EQ Selector
Front view:
1. LINK OUT A (RJ-45 Connector)
2. LINK OUT B (RJ-45 Connector)
3. LINK OUT A (RJ-45 Connector)
4. LINK OUT B (RJ-45 Connector)
Applications:
Extend HDMI when power outlets are limited, with only a single power adapter required at either the Transmitter or Receiver using Power Over Cable
Place the display in a convenient viewing area, while the system equipment is placed elsewhere in a clean and secure environment
Optimize placement of digital signage in healthcare, education, retail, and government facilities
Features:
Power Over Cable allows a single power source to operate the Transmitter and Receiver
Supports Cat5e or Cat6 Ethernet cabling (50m)
No software/drivers required
Supports HD resolutions up to 1080p (1920x1080)
Includes transmitter (local) and receiver (remote) units
The StarTech.com Advantage:
Requires only a single power adapter that can be connected to either the Transmitter or Receive
Cost-effective HDMI extension through non-proprietary network cabling
Clean, professional installation, using optional mounting hardware (included)
Features
Material
Aluminium
Rack mounting
Yes
Daisy chain
No
Certification
CE, FCC, REACH, TAA
Type
AV transmitter & receiver
Maximum resolution
1920 x 1080 pixels
Cable types supported
Cat5e, Cat6
Maximum transfer distance
50 m
Supported video modes
1080i, 1080p
Supported graphics resolutions
1920 x 1080 (HD 1080)
LED indicators
Power
Product colour
Black
Technical details
Material
Aluminium
Rack mounting
Yes
Daisy chain
No
Certification
CE, FCC, REACH, TAA
Ethernet LAN
Yes
Type
AV transmitter & receiver
Maximum resolution
1920 x 1080 pixels
Cable types supported
Cat5e, Cat6
Maximum transfer distance
50 m
Supported video modes
1080i, 1080p
Supported graphics resolutions
1920 x 1080 (HD 1080)
Product colour
Black
Connectivity technology
Wired
Sustainability certificates
RoHS
Ports & interfaces
Ethernet LAN
Yes
RJ-45 input ports
2
RJ-45 output ports
2
HDMI in
1
Number of HDMI outputs
1
DC-in jack
Yes
Connectivity technology
Wired
Power
Input current
0.5 A
Output current
1.5 A
Power plug type
Type M
AC input voltage
100 - 240 V
Power consumption (typical)
18 W
External power adapter
Yes
Operating voltage
12 V
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-10 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Weight & dimensions (Transmitter & Receiver)
Width
51 mm
Height
21 mm
Depth
80 mm
Weight
157 g
Packaging data
Package width
157 mm
Package height
65 mm
Package depth
237 mm
Package weight
935 g
Manual
Yes
Mounting brackets included
Yes
AC adapter included
Yes
Cables included
HDMI
Full specification and details can be found in the
HDMI over CAT6 Extender Kit - 4K 60Hz
HDMI® Balun Kit | HDR | 4:4:4 | 7.1 Audio Support | 165 ft. (50 m)
This HDMI over CAT6 extender lets you transmit your 4K 60Hz signal up to 165 ft. (50 m) over a single CAT6 cable, with the added benefit of a local HDMI output. The extender supports High Dynamic Range (HDR), providing high contrast images with enhanced video.
Astonishing 4K Picture Quality
This HDMI Ethernet extender supports a 4K 60Hz (3840 x 2160) resolution, providing four times the picture quality of high-definition (1080p). The extender supports HDMI 2.0 capabilities, offering 4:4:4 chroma subsampling. This ensures a crystal-clear picture that's ideal for delivering video content. With HDR support, you can enjoy increased contrast, color brightness and greater luminosity in your images.
Long-Distance Transmission
Extend an HDMI signal to up to 165 ft. (50 m) with the HDMI to CAT6 converter. Use your existing CAT6 cable infrastructure with a direct connection to the converter for an easy run through walls and ceilings, saving you on installation costs.
Compatible with HDCP 2.2 Devices
Connect your HDMI 2.0 devices and displays with confidence, knowing this extender is HDCP 2.2 compliant. This lets you harness the capabilities of HDMI-enabled devices such as Blu-ray players or online streaming devices in higher resolutions. It is also backward compatible with previous generations of HDMI and HDCP.
ST121HD20V is backed by 2-year StarTech.com warranty with free lifetime technical support.
Transmitter:
Receiver:
Applications:
Extend your HDMI signal in classrooms and boardrooms
Use existing CAT6 infrastructure to create digital signage
Distribute an HDMI signal to multiple displays at tradeshows
Extend your HDMI signals to locations that lack power outlets
Features:
Crystal-clear picture quality with support for resolutions up to 4K 60Hz
Compatible with HDR and 4:4:4 chroma subsampling for lifelike images
Hassle-free setup with long-distance transmission over a reliable connection
Ensured compatibility with HDCP 2.2 devices and displays
Certifications, Reports and Compatibility:
Technical details
HDCP
Yes
Audio output channels
7.1 channels
Maximum refresh rate
60 Hz
Certification
CE, FCC, REACH
Type
AV transmitter & receiver
Maximum resolution
3840 x 2160 pixels
Cable types supported
Cat6
Maximum transfer distance
50 m
Supported graphics resolutions
1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA), 3840 x 2160
Product colour
Black
Connectivity technology
Wired
HDCP version
2.2
Sustainability certificates
RoHS
Ports & interfaces
RJ-45 input ports
1
RJ-45 output ports
1
HDMI in
1
Number of HDMI outputs
2
HDMI version
2.0
Connectivity technology
Wired
Power
Input current
0.3 A
Output current
1 A
Power plug type
Type M
Operating voltage (transmitter)
12 V
Operating voltage (receiver)
12 V
AC input voltage
100 - 240 V
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80 %
Weight & dimensions
Width
70 mm
Height
13 mm
Depth
97 mm
Weight
156 g
Packaging data
Package width
130 mm
Package height
70 mm
Package depth
220 mm
Package weight
777 g
Quick start guide
Yes
IR blaster included
Yes
IR receiver included
Yes
Included power plug types
ANZ, EU, JP, NA, UK
Full specification and details can be found in the

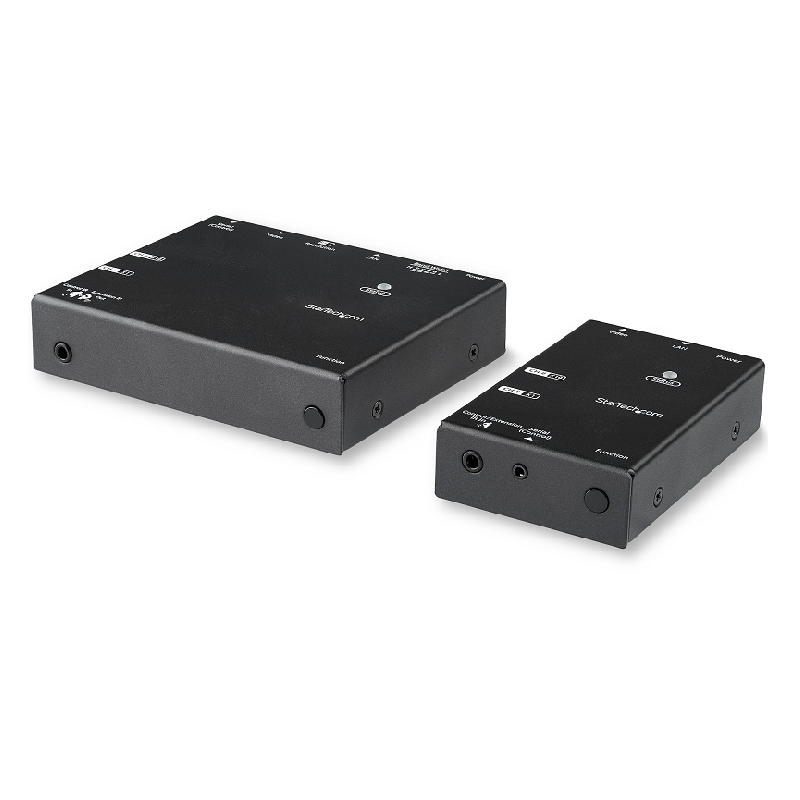

HDMI over IP Receiver for ST12MHDLNHK - 1080p
Broadcast your HDMI signal to multiple locations throughout your site, using your existing network infrastructure
The HDMI® over IP receiver works with the HDMI over IP Extender (ST12MHDLNHK) to distribute HDMI to an additional remote display. You can add multiple receivers (each sold separately) to easily distribute HDMI to multiple locations.
Customize your video distribution with a scalable solution
With additional receivers, you can scale your HDMI over IP kit installation to suit your needs. In a point-to-multipoint setup, you can route HDMI over IP to as many receivers as you need. For additional scalability, you can combine up to 99 different kits (ST12MHDLNHK) to create a multipoint-to-multipoint setup, where you can route different HDMI source signals to different displays. Mounting hardware and IR extenders are included for each transmitter and receiver to ensure tidy, professional installation and hassle-free remote operation.
Get brilliant video at HD 1080p
The receiver maintains your HD video signal, supporting resolutions up to 1080p. Maintaining your HD quality over IP makes it easy to distribute dynamic digital signage throughout your site to attract and engage customers.
Save your network bandwidth with video compression
StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to our customers. Our local StarTech.com Technical Advisors have broad product expertise and work directly with StarTech.com Engineers to provide support for our customers both pre and post-sales.
The ST12MHDLNHR is backed by a 2-year StarTech.com warranty and free lifetime technical support.
Transmitter Front View:
Transmitter Rear View:
Receiver Front View:
Receiver Rear View:
Applications:
Display multiple communication boards showing easy to update dynamic data on digital charts in airports, train stations, bus stations or hospitals
Present your social media feeds on multiple screens
Create digital signage displays in settings such as hospitals, shopping centers or stadiums
Features:
Efficiently distribute video throughout your site using your local area network
Easily create your ideal digital signage solution with a versatile and scalable video distribution system
Brilliantly maintain the HD picture quality of your video source with 1080p support
Features
Material
Aluminium
Audio output channels
2.0 channels
Rack mounting
Yes
Daisy chain
Yes
Maximum refresh rate
60 Hz
Certification
CE, REACH, FCC, TAA
Type
AV receiver
Maximum resolution
1920 x 1200 pixels
Cable types supported
Cat5e
Maximum transfer distance
15 m
Supported video modes
1080p
LED indicators
Status
Cable length
15.2 m
Product colour
Black
Rubber feet
Yes
1080pBlackRoHS
Technical details
Material
Aluminium
Audio output channels
2.0 channels
Rack mounting
Yes
Daisy chain
Yes
Maximum refresh rate
60 Hz
Certification
CE, REACH, FCC, TAA
Ethernet LAN
Yes
Type
AV receiver
Maximum resolution
1920 x 1200 pixels
Cable types supported
Cat5e
Maximum transfer distance
15 m
Supported video modes
Cable length
15.2 m
Product colour
Connectivity technology
Wired
Sustainability certificates
Ports & interfaces
USB ports quantity
1
USB connector type
Mini-USB B
Ethernet LAN
Yes
RJ-45 input ports
1
Number of HDMI outputs
1
Audio output
1
Connectivity technology
Wired
Power
Input current
0.3 A
Output current
1 A
AC input voltage
100 - 240 V
External power adapter
Yes
Operating voltage
5 V
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-10 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Storage relative humidity (H-H)
0 - 80 %
Weight & dimensions
Width
97 mm
Height
28 mm
Depth
130 mm
Weight
448 g
Packaging data
Package width
143 mm
Package height
63 mm
Package depth
168 mm
Manual
Yes
AC adapter included
Yes
IR receiver included
Yes
Mounting kit
Yes
Cables included
LAN (RJ-45), Serial, USB
Included power plug types
ANZ, EU, NA, UK
Full specification and details can be found in the
HDMI over CAT6 Extender with 4-port USB Hub - 165 ft (50m) - 1080p
Extend 1080p video and four USB peripheral devices to a remote location
This HDMI® extender kit lets you transmit your HD video source to your remote HDMI display at a distance of up to 165 ft. (50 m) away. 1080p video can be extended 131 ft. (40 m) using shielded CAT 6 cabling. The extender features a built-in 4-port USB 2.0 hub that also lets you connect four remote USB peripheral devices at your display location.
Crystal-clear picture quality
Using this HDMI extender, you can maintain the quality of your high-definition video signal along with the accompanying 7.1 digital audio, even at 165 feet away from your source device. The extender supports resolutions up to 1920x1200 or 1080p - perfect for dazzling your audience in remote digital-signage applications in hospitals or at shopping centers.
Hassle-free remote USB integration
The built-in 4-port USB 2.0 hub lets you remotely connect, access or control up to four USB devices located at your remote display - great for flash drives, printers, scanners, external hard drives and I/O devices. Remote USB extension also enables you to remotely control your source device, which is ideal for adding touchscreen interfaces at your display in market or POS kiosks.
Easy installation and setup
For hassle-free setup the HDMI extender offers easy plug-and-play installation with no additional software or drivers required. Plus, the extender passes the EDID information included in your HDMI signal, and automatically adjusts video equalization ensuring you won’t have to configure it manually. Mounting hardware is also included, for a tidy and professional installation.
Note: To maximize performance this extender requires shielded CAT6 cable. When using unshielded CAT6 cable the maximum distance is reduced to 30m. When using CAT5 cable the maximum distance is reduced to 15m.
The ST121USBHD is TAA compliant and backed by a 2-year StarTech.com warranty with free lifetime technical support.
Front view:
Rear view:
Applications:
Place your display in a convenient viewing area, while your system equipment is installed elsewhere in a clean and secure environment
Optimize placement of your demo stations at tradeshows and in auditoriums
Operate one or more servers from a remote location within the same building or campus
Control your PC in an area where fan or hard drive noise is unacceptable, such as a television broadcast studio
Features:
Crystal-clear picture quality, with support for uncompressed 1920x1200 or 1080p HD video extension
Easy remote peripheral integration, with a built-in 4-port USB hub
Tidy, professional installation using the included mounting hardware
Extends HDMI video and four USB peripheral devices up to 165 ft
Supports CAT5e and CAT6 Ethernet cable
HDMI transmitter and receiver included
Features
Colour depth
48 bit
Carrier frequency
38 kHz
Maximum refresh rate
60 Hz
Certification
CE, FCC, TAA, REACH
Type
AV transmitter & receiver
Cable types supported
Cat5, Cat5e, Cat6
Maximum transfer distance
50 m
Supported video modes
1080p
Product colour
Black
Technical details
Colour depth
48 bit
Carrier frequency
38 kHz
Maximum refresh rate
60 Hz
Certification
CE, FCC, TAA, REACH
Type
AV transmitter & receiver
Cable types supported
Cat5, Cat5e, Cat6
Maximum transfer distance
50 m
Supported video modes
1080p
Product colour
Black
Connectivity technology
Wired
Audio support
Yes
Sustainability certificates
RoHS
Ports & interfaces
USB ports quantity
7
USB connector type
Mini-USB B, USB Type-A
RJ-45 input ports
2
RJ-45 output ports
2
HDMI in
1
Number of HDMI outputs
1
Connectivity technology
Wired
Power
Output current
1 A
Power plug type
Type N
Power consumption (typical)
5 W
External power adapter
Yes
Operating voltage
5 V
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-10 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Weight & dimensions (Transmitter & Receiver)
Width
82 mm
Height
21 mm
Depth
82 mm
Weight
460 g
Packaging data
Package width
309 mm
Package height
71 mm
Package depth
180 mm
Package weight
1.07 kg
Quick start guide
Yes
AC adapter included
Yes
Cables included
LAN (RJ-45), USB
Full specification and details can be found in the
Compact HDBaseT Transmitter - HDMI over CAT5e - USB Powered - Up to 4K
Extend HDMI to an HDBaseT display or receiver over Cat5e or CAT6 cabling
This compact transmitter uses HDBaseT™ technology to extend your HDMI® signal up to 230 feet (70 meters) over a single CAT5e or CAT6 cable, to an HDBaseT display, projector or receiver (sold separately). The transmitter supports Ultra HD and Full HD video resolutions (4K and 1080p), with support for the accompanying digital 7.1 audio.
Easy and discreet installation
For a simple and tidy installation, the HDBaseT transmitter features a small footprint and a built-in HDMI cable that connects directly to your video source, reducing clutter by eliminating the need for an HDMI cable at your local source. The transmitter is powered using USB, which means you can use a USB port on your source device to power the transmitter, which is perfect for extending from areas where power outlets may be limited.
Use your own HDBaseT display, projector or receiver
The compact transmitter works seamlessly with other HDBaseT equipment, such as HDBaseT displays, projectors, and receivers. The simplicity and versatility of this compact transmitter make it the ideal solution for transmitting an HDBaseT signal to a boardroom or classroom projector, enabling presenters in your office to quickly connect their laptop computer and share presentations or data sheets.
Seamless integration with your existing infrastructure
This transmitter extends HDMI and 7.1 surround sound over a single cable, unlike some HDMI extenders that require two cables and only offer minimal audio support. Extending HDMI with one cable reduces potential failure points while also lowering your cost in cabling.
Plus, because the HDBaseT transmitter uses standard network cables, it works with existing Ethernet infrastructures. This makes it the perfect solution for deploying digital signage in large buildings such as shopping centers, stadiums, schools or hospitals.
Astonishing 4K picture quality from an impressive distance
With high-quality HDMI cables beginning signal degradation at 30 feet, it can be difficult to maintain the brilliance of 4K video even at shorter distances. But with HDBaseT you’ll be amazed at how your Ultra HD picture, four times the resolution of high-definition 1080p, is just as brilliant, even at distances up to 130 feet from your video source.
Even if you're not running 4K, HDBaseT supports High-Definition 1080p and lower resolutions at even greater distances, up to 230 feet from your source, giving you piece of mind to know that this extender will comfortably work with any HDMI video source and display.
What is HDBaseT?
HDBaseT is a standardized, zero-latency, video distribution technology that’s revolutionizing HDMI distribution. HDBaseT uses an advanced method of modulation that enables you to distribute uncompressed HDMI audio and video along with additional signals, over a single Ethernet cable. Offering greater versatility than traditional HDMI extenders and longer distances than HDMI cables alone, HDBaseT is the clear choice for every integrator and system designer, because it can do so much, with just a single cable.
The ST121HDBTD is backed by a 2-year StarTech.com warranty and free lifetime technical support.
Product Diagram:
Applications:
Transmits your HDMI video signal from a secure location to a remote HDBaseT display, projector or receiver, in a convenient, customer-facing viewing area
Turns your HDMI video source into an HDBaseT signal that can be used to create brilliant digital signage displays in hospitals, shopping centers or restaurants
Replaces a defective HDBaseT transmitter in your existing HDBaseT infrastructure
Features:
Installs easily and discreetly, with a compact transmitter that's USB powered and features a built-in HDMI cable
Maintains astonishing picture quality up to 130 feet away, with support for UltraHD 4K over non-proprietary CAT5e or CAT6 cabling
Ensures compatibility with your existing HDBaseT hardware, with HDCP compliance
Also supports HD video resolutions such as 1920x1200 or 1080p up to 230 ft. away
No software or drivers required with plug-and-play installation
Dolby TrueHD, DTS-HD MA Audio
Features
HDCP
Yes
Audio output channels
7.1 channels
Rack mounting
No
Plug and Play
Yes
Daisy chain
No
Type
AV transmitter
Maximum resolution
4096 x 2160 pixels
Cable types supported
Cat5e, Cat6
Maximum transfer distance
70 m
Cable length
0.1 m
Product colour
Black
Technical details
HDCP
Yes
Audio output channels
7.1 channels
Rack mounting
No
Plug and Play
Yes
Daisy chain
No
Type
AV transmitter
Maximum resolution
4096 x 2160 pixels
Cable types supported
Cat5e, Cat6
Maximum transfer distance
70 m
Cable length
0.1 m
Product colour
Black
Ports & interfaces
RJ-45 output ports
1
HDMI in
1
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-10 - 60 °C
Operating relative humidity (H-H)
0 - 80 %
Weight & dimensions
Width
35 mm
Height
25 mm
Depth
310 mm
Weight
108 g
Packaging data
Package width
99 mm
Package height
47 mm
Package depth
156 mm
Package weight
210 g
Quick start guide
Yes
Cables included
USB
Full specification and details can be found in the
HDMI Video Over IP Gigabit LAN Ethernet Receiver for ST12MHDLAN - 1080p
Use with ST12MHDLAN to extend HDMI Over IP to additional displays
This HDMI® over IP Receiver works with the HDMI over IP Extender Kit (sold separately) and lets you extend an HDMI signal over your network. You can use additional receivers (sold separately) to distribute the HDMI signal to multiple locations and combine your remote displays to create a video wall.
Versatile configuration options
In a point-to-multipoint setup, the HDMI over IP kit can be connected through an unmanaged or managed Gigabit LAN portal. You can connect one or multiple sources (transmitters) to multiple displays (receivers) over IP, using a managed Gigabit Ethernet switch (with IGMP). For additional scalability, you can combine up to 16 different kits.
For smaller-scale applications, the extender kit can be used as a point-to-point video extender. You can connect the transmitter and receiver units directly over Cat5 or Cat6 cabling for a small-scale, one-to-one HDMI extension up to 330 feet (100 meters).
Manage your video distribution from your mobile device
The HDMI distribution kit features easy-to-use video control software that helps you manage your IP video distribution. The app is simple to set up with automatic hardware detection, and lets you switch video sources for each remote display. You can also intuitively create and manage a video wall for an impressive digital signage presentation to catch the attention of your audience.
The software is available on iOS for your iPhone or iPad, Android for your smartphone or tablet, and Google Chrome browser.
Professional, cost-effective, simple installation
The HDMI over IP extender kit includes optional mounting hardware for a tidy installation. Ideal for high-definition applications, the extender supports 1080p video resolutions and digital stereo audio. Plus, because the extender uses standard non-proprietary Cat5e or Cat6 Ethernet cable with RJ45 connectors, it eliminates both the expense and hassle of running specialized cables.The extender also features an EDID copy function, which ensures native resolution and maximum compatibility with your display or projector for a convenient plug-and-play installation.
Download the StarTech.com Video Control software to manage your IP video distribution.
Note: If using more than 1 Transmitter, or more than 4 Receivers an IGMP / Managed Network Switch is recommended for optimal performance. Non-managed network switches may also limit the performance of other devices connected to the same network.
The ST12MHDLANRX is TAA compliant and backed by a StarTech.com 2-year warranty with free lifetime technical support.
Product Diagram - Front:
1. F2 (Used during EDID Copy procedure)
2. F1 (Used during factory default setting)
3. Dip Rotary Switch (Used to pair Transmitter to Receiver)
Product Diagram - Rear:
1. Power Jack
2. Network Status LED
3. Reset Button
4. LAN Port (RJ-45)
5. Video Out
6. Link OK POWER LED
Applications:
Connect the HDMI source equipment to multiple displays in a point-to-multipoint configuration over a Gigabit Network using additional ST12MHDLANRX Receivers
Place the display in a convenient viewing area, while the HDMI source equipment is placed elsewhere in a separate, secured environment
Extend HDMI using existing infrastructure
Display the same HDMI audio/video signal on multiple displays, for large scale digital signage applications
Run multiple transmitters and receivers over the network using a managed switch
Features:
Highly scalable - output an HDMI signal to over 100 additional displays (requires additional ST12MHDLANRX Receiver units, sold separately)
EDID emulation ensures maximum resolution and compatibility with your display or projector
Stereo Audio
Includes optional mounting hardware
Connect through a Gigabit LAN Network, or Point-to-Point
High Definition support for resolutions up to 1080p (1920x1080)
The StarTech.com Advantage:
DMaximize HDMI signal distribution, by extending your HDMI source equipment output across the entire distance of your Local Network
Add more displays at any time, using additional receivers
Easy Point-to-Point or Point-to-Multi Point Setup
Features
Material
Aluminium, Plastic
Rack mounting
Yes
HDCP & EDID bypass
Yes
Daisy chain
Yes
Certification
CE, FCC, TAA, REACH
Type
AV receiver
Maximum resolution
1920 x 1200 pixels
Cable types supported
Cat5e, Cat6
Maximum transfer distance
100 m
Audio system
stereo
Supported video modes
720p, 1080p
Supported graphics resolutions
1600 x 1200 (UXGA), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA)
LED indicators
Link, Reset
Product colour
Black
Rubber feet
Yes
stereo1600 x 1200 (UXGA), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA)RoHS
Technical details
Material
Aluminium, Plastic
Rack mounting
Yes
HDCP & EDID bypass
Yes
Daisy chain
Yes
Certification
CE, FCC, TAA, REACH
Wi-Fi
No
Ethernet LAN
Yes
Type
AV receiver
Maximum resolution
1920 x 1200 pixels
Cable types supported
Cat5e, Cat6
Maximum transfer distance
100 m
Audio system
Supported video modes
720p, 1080p
Supported graphics resolutions
Product colour
Black
Sustainability certificates
Ports & interfaces
Wi-Fi
No
Ethernet LAN
Yes
RJ-45 input ports
1
HDMI in
1
Power
Input current
0.6 A
Output current
1.5 A
Power plug type
Type M
AC input voltage
100 - 240 V
External power adapter
Yes
Operating voltage
12 V
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-10 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Weight & dimensions
Width
97 mm
Height
28 mm
Depth
131 mm
Weight
465 g
Packaging data
Package width
235 mm
Package height
65 mm
Package depth
156 mm
Package weight
969 g
Manual
Yes
Mounting brackets included
Yes
Included power plug types
AU, EU, NA, UK
Full specification and details can be found in the
HDMI over CAT5e HDBaseT Extender - Power over Cable - Ultra HD 4K
Extend HDMI® up to 230ft (70m) over a single CAT5e/6 cable with Power over Cable to Receiver
The StarTech.com HDBaseT extender kit, extends HDMI up to 230 feet (70 Meters) over a single CAT5e or CAT6 cable. The extender supports Ultra HD and Full HD resolutions (4K / 1080p) with support for 3D and the accompanying digital audio. For added versatility, both the transmitter and receiver can be powered by the same single power source using Power Over Cable (POC). The versatility of this video extender makes it an ideal solution for digital signage applications in large buildings such as commercial shopping centers, stadiums, schools, and hospitals.
What is HDBaseT?
HDBaseT is a standardized, zero latency, video distribution technology that’s revolutionizing HDMI distribution. HDBaseT uses an advanced method of modulation that enables you to distribute uncompressed HDMI audio and video along with additional signals such as 100BaseT Ethernet, IR, RS-232 serial and power over cable.
Extend more with HDBaseT
The extender offers HDBaseT technology with HDMI and Power in a single extender kit, for complete end-to-end solution. Offering greater versatility than traditional HDMI extenders or HDMI cabling alone HDBaseT is the clear choice for every integrator and system designer. The added benefit of power over cable means you’ll only need one power source at either side of your extension, great for extending video to areas where power outlets may be limited, such as industrial sites.
Astonishing 4K picture quality from an impressive distance
With the A/V industry quickly adopting 4K as the new high-resolution video standard, long range video distribution can be a challenge with standard HDMI cables beginning signal degradation at 30 feet.
With support for 4K you’ll be amazed at how HDBaseT maintains your Ultra HD picture quality, four times the resolution of high-definition 1080p, even at 130 feet away from your video source. Plus, because the extender supports High-Definition 1080p and lower resolutions at 230 feet away, you can comfortably use this extender to make any video source look great.
Simplify your setup
This extender has been specially crafted for a smooth, tidy installation. HDBaseT technology allows for single cable installation, for seamless integration using existing CAT5e or CAT6 infrastructure, avoiding the hassle of running multiple Ethernet cables while, reducing potential failure points. Plus, the added benefit of power over cable means you’ll only need one power source to power both your extender and receiver, great for extending to areas where power outlets may be limited. Mounting hardware is also included for both the extender and receiver for discrete, professional mounting.
The ST121HDBTE is TAA compliant and backed by a 2-year StarTech.com warranty with free lifetime technical support.
Front View – Transmitter/Receiver Unit:
1. HDMI® IN
2. Status LED
1. HDMI® OUT
2. Status LED
Rear View – Transmitter/Receiver Unit:
1. Power Jack
2. LINK (RJ-45 Connector)
3. Optional grounding bolt
1. Power Jack
2. LINK (RJ-45 Connector)
3. Optional grounding bolt
Applications:
Extend HDMI when power outlets are limited, with only a single power adapter required at either the Transmitter or Receiver, using Power Over Cable
Place the display in a convenient viewing area, while the system equipment is placed elsewhere in a clean and secure environment
Optimize placement of your demo stations at tradeshows and in auditoriums
Features:
Extend video where power outlets are limited with power over cable that powers both the transmitter and receiver using a single power source at either side of the connection
Maintains astonishing picture quality up to 115 ft. (35 m) away, with support for UltraHD 4K over non-proprietary CAT5e or CAT6 cabling
Also supports HD video resolutions such as 1920x1200 or 1080p at distances up to 230 ft. (70m)
Hassle-free, professional installation with included mounting brackets, and full video extension over one CAT5 cable
70m (230ft) maximum Cat5 cable distance
No software/drivers required
Mounting Hardware Included
Dolby TrueHD, DTS-HD MA Audio
The StarTech.com Advantage:
Requires only a single power adapter for both the Transmitter and Receiver
Cost-effective HDMI extension through non-proprietary network cabling
Optional mounting hardware included for a tidy, professional installation
Features
Material
Aluminium
Audio output channels
7.1 channels
Daisy chain
No
Maximum refresh rate
60 Hz
Certification
CE, FCC, HDBT, TAA
Type
AV transmitter & receiver
Maximum resolution
4096 x 2160 pixels
Cable types supported
Cat5e, Cat6
Maximum transfer distance
70 m
Audio system
Multichannel
Supported video modes
720p, 1080p
Supported graphics resolutions
1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA), 4096 x 2160
LED indicators
Status
Cable length
0.1 m
Product colour
Black
Mean time between failures (MTBF)
52000 h
Technical details
Material
Aluminium
Audio output channels
7.1 channels
Daisy chain
No
Maximum refresh rate
60 Hz
Certification
CE, FCC, HDBT, TAA
Type
AV transmitter & receiver
Maximum resolution
4096 x 2160 pixels
Cable types supported
Cat5e, Cat6
Maximum transfer distance
70 m
Audio system
Multichannel
Supported video modes
720p, 1080p
Supported graphics resolutions
1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA), 4096 x 2160
Cable length
0.1 m
Product colour
Black
Connectivity technology
Wired
Audio support
Yes
Sustainability certificates
RoHS
Ports & interfaces
RJ-45 input ports
1
RJ-45 output ports
1
HDMI in
1
Number of HDMI outputs
1
Connectivity technology
Wired
DC-in jack
Yes
Power
Input current
0.5 A
Output current
1.5 A
Power plug type
Type M
AC input voltage
110 - 240 V
Power consumption (typical)
3 W
Operating voltage
12 V
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-10 - 60 °C
Operating relative humidity (H-H)
0 - 80 %
Weight & dimensions
Width
67 mm
Height
25 mm
Depth
80 mm
Weight
428 g
Packaging data
Package width
235 mm
Package height
65 mm
Package depth
156 mm
Package weight
1.1 kg
Manual
Yes
AC adapter included
Yes
Mounting brackets included
Yes
Grounding wire
Yes
Cables included
LAN (RJ-45)
Included power plug types
AU, EU, NA, UK
Full specification and details can be found in the
HDMI Video and USB Over IP Receiver for ST12MHDLANU - 1080p
A scalable HDMI over IP distribution system, with intuitive control and USB extension, ideal for point-to-point or video wall applications
This HDMI® over IP Receiver works with the HDMI over IP Extender Kit (sold separately) and lets you extend an HDMI signal, as well as four USB peripheral device connections, over your network. You can use additional receivers (sold separately) to distribute the HDMI signal to multiple locations and combine your remote displays to create a video wall.
Versatile configuration options
In a point-to-multipoint setup, the HDMI over IP kit can be connected through an unmanaged or managed Gigabit LAN portal. You can connect one or multiple sources (transmitters) to multiple displays (receivers) over IP, using a managed Gigabit Ethernet switch (with IGMP). For additional scalability, you can combine up to 16 different transmitters and an unlimited number of receivers, depending on available network bandwidth.
Extend up to four USB devices at each remote display
With a built-in USB extension hub, you can add up to four remote USB devices at each remote display. This enables you, or your customers, to control a computer at the video source device from the remote location and lets you create interactive digital signage to engage your customers. Or, if you're using the video-over-IP extender as part of your I.T infrastructure, you can use the USB extenders to add a remote KVM console that you can use to control your servers from different remote locations.
Manage your video distribution from your mobile device
The HDMI distribution kit features easy-to-use video control software that helps you manage your IP video distribution. The app is simple to set up, with automatic hardware detection, and it lets you switch video sources for each remote display. You can also create and manage a video wall for an impressive digital signage presentation, to catch the attention of your audience.
The software is available on iOS for your iPhone or iPad, Android™ for your smartphone or tablet, and Google Chrome™ browser.
Professional, cost-effective, simple installation
The HDMI over IP extender kit includes optional mounting hardware for a tidy installation. Ideal for high-definition applications, the extender supports 1080p video resolutions and digital stereo audio. Plus, because the extender uses standard non-proprietary Cat5e or Cat6 Ethernet cable with RJ45 connectors, it eliminates both the expense and hassle of running specialized cables. The extender also features an EDID copy function, which ensures native resolution and maximum compatibility with your display or projector, for a convenient plug-and-play installation.
Download the StarTech.com Video Control software to manage your IP video distribution.
Note: For best performance, a managed network switch with IGMP is recommended if you are using more than one transmitter, or more than four receivers, Non-managed network switches may also limit the performance of other devices connected to the same network.
The ST12MHDLANUR is This product is TAA compliant and backed by a Startech.com 2-year warranty with free lifetime technical support.
Transmitter Unit:
1. USB peripheral ports
2. Video output port (HDMI)
3. LAN port (RJ-45 connector)
4. Reset button
5. Power jack
6. Link and power LED
7. Function 2 button
8. Function 1 button
9. Dip rotary switch
10. Serial control (not active)
11. Serial extension (for extending RS232 signal)
Applications:
Build a multi-display video wall to present entertainment to your patrons with an impressive display at a restaurant or shopping center
Extend HDMI and USB to create an interactive digital signage presentation
Display multiple communication boards showing dynamic data such as times and dates on digital charts in airports, train stations, bus stations or hospitals, that you can update at any time
Present your social media feeds on multiple screens in a large viewing area
Place the display in a convenient viewing area, while your HDMI source equipment is placed elsewhere in a separate, secured environment
Features:
Versatile video distribution with support for large multi-display presentations, video walls, video switching and point-to-point extension
Extends four USB peripheral devices for remote console control
Free mobile app makes it easy to manage switching video wall control (iOS, Android or Chrome browser)
Tidy, professional installation using the included mounting hardware
Connect using a Gigabit LAN network
Easy point-to-point or point-to-multipoint setup
Extend HDMI using existing network infrastructure
Supports video resolutions up to 1920x1080 (1080p)
Features
Material
Aluminium
Rack mounting
Yes
Daisy chain
Yes
Certification
CE, FCC
Type
AV receiver
Maximum resolution
1920 x 1200 pixels
Cable types supported
Cat5e, Cat6
Maximum transfer distance
100 m
Audio system
stereo
Supported video modes
720p, 1080p
Supported graphics resolutions
1600 x 1200 (UXGA), 1920 x 1080 (HD 1080)
LED indicators
Link, Power, Reset
Product colour
Black
BlackRoHS
Technical details
Material
Aluminium
Rack mounting
Yes
Daisy chain
Yes
Certification
CE, FCC
Type
AV receiver
Maximum resolution
1920 x 1200 pixels
Cable types supported
Cat5e, Cat6
Maximum transfer distance
100 m
Audio system
stereo
Supported video modes
720p, 1080p
Supported graphics resolutions
1600 x 1200 (UXGA), 1920 x 1080 (HD 1080)
Product colour
Audio support
Yes
Sustainability certificates
Ports & interfaces
USB ports quantity
4
USB connector type
USB Type-A
RJ-45 output ports
1
Number of HDMI outputs
1
Power
Input current
0.6 A
Output current
1.5 A
Power plug type
Type M
AC input voltage
100 - 240 V
External power adapter
Yes
Operating voltage
12 V
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-10 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Weight & dimensions
Width
135 mm
Height
28 mm
Depth
132 mm
Weight
634 g
Packaging data
Package width
210 mm
Package height
65 mm
Package depth
300 mm
Package weight
1.24 kg
Quick start guide
Yes
AC adapter included
Yes
Mounting kit
Yes
Mounting brackets included
Yes
Cables included
LAN (RJ-45)
Full specification and details can be found in the
HDBaseT Repeater for ST121HDBTE or ST121HDBTPW HDMI Extender Kit - 4K
Turn your HDBaseT extender into a scalable distribution system, by delivering HDMI content to additional locations
This HDBaseT™ repeater lets you add another HDMI® display to your existing ST121HDBTE or ST121HDBTPW HDBaseT extender kit. This makes it easy to expand your digital signage system to meet the growing needs of your business.
The repeater receives the HDBaseT signal from your transmitter and deploys it to the receiver up to 70 m away while outputting the HDBaseT signal to an HDMI display at the repeater's location. The repeater also enables you to add an HDMI source at the repeater’s location and switch between sources at each of your connected HDMI or HDBaseT displays.
Add affordable scalability to your ST121HDBTE or ST121HDBTPW HDBaseT extender kit
The repeater connects between your existing HDBaseT transmitter and receiver, enabling you to connect an HDMI display to the repeater, then daisy-chain the HDBaseT signal to an additional location up to 230 ft. (70 m) away. The repeater also features an HDMI input that lets you connect a different HDMI video source at the repeater and then switch between which source is output to the receiver.
For additional flexibility, you can add up to three HDBaseT repeaters to an ST121HDBTE or ST121HDBTPW extender kit. Using multiple repeaters (sold separately) you can run an HDBaseT signal to a total of four locations, which provides the ideal solution for routing digital signage through large buildings such as shopping centers, stadiums, schools, or hospitals.
Ensure professional installation and operation
The HDBaseT repeater includes hardware for mounting it out of sight on a wall or in an equipment rack. This helps to reduce clutter and ensures a professional installation that doesn't draw your viewers' attention away from the content on your display -- perfect for customer facing displays in bars or restaurants.
Get astonishing 4K picture quality from an impressive distance
With the A/V industry quickly adopting 4K as the new high-resolution video standard, long-range video distribution can be difficult, given the distance limitations of standard HDMI cables. With support for 4K, you’ll be amazed at how HDBaseT maintains your Ultra HD picture quality -- four times the resolution of high-definition 1080p, even at 130 feet away from your video source.
Maintain support with HD equipment
Because the extender is backward compatible with High-Definition 1080p and lower resolutions at 230 feet away, you can comfortably use this extender to make any video source look great, while future-proofing your setup for 4K implementation.
What is HDBaseT?
HDBaseT is a standardized, zero-latency, video distribution technology that’s revolutionizing HDMI distribution. HDBaseT uses an advanced method of modulation that enables you to distribute uncompressed HDMI audio and video along with additional signals, over a single Ethernet cable. Offering greater versatility than traditional HDMI extenders and longer distances than HDMI cables alone, HDBaseT is the clear choice for every integrator and system designer, because it can do so much, with just a single cable.
The ST121HDBTRP is backed by a 2-year StarTech.com warranty and free lifetime technical support.
Product Diagram:
1. Input selection LEDs
2. Input selection button
3. Output selection LEDs
4. Status LED
5. IR sensor
6. Function button
1. Power adapter port
2. Grounding bolt
3. IR extender I/O ports
4. HDMI input port
5. HDBase-T input port
6. HDBase-T output port
7. HDMI output port
8. EDID switch
9. EDID copy buttons
10. RS232 switch
11. RS232 port
Applications:
Add more displays to your existing HDBaseT run
PCreate a scalable solution that gives you the freedom to add displays at different locations in the future
Route digital signage through large commercial settings, such as schools, hospitals, arenas or shopping centers
Features:
Expand your HDBaseT video signal to accommodate more displays in different locations
Increase the range and scalability of your HDBaseT setup by adding up to three independent repeaters
Maintain astonishing picture quality up to 130 feet away, with support for UltraHD 4K, over non-proprietary CAT5e or CAT6 cabling
Reduce upgrade costs, when expanding your digital signage setup, by utilizing your existing ST121HDBTE or ST121HDBTPW HDBaseT extender
Supports HD video resolutions such as 1920x1200 or 1080p up to 230 ft. away
HDBaseT and HDMI inputs, enable you to switch between which video source is output to the receiver
Ensures compatibility with your existing HDBaseT hardware, with HDCP compliance
No software or drivers required, with simple plug-and-play installation
Dolby TrueHD, DTS-HD MA Audio
Features
HDCP
Yes
Audio output channels
7.1 channels
Rack mounting
Yes
Plug and Play
Yes
Daisy chain
Yes
Certification
CE, FCC, TAA, REACH
Remote control type
IR
Type
AV repeater
Maximum resolution
4096 x 2160 pixels
Cable types supported
Cat5e, Cat6
Maximum transfer distance
70 m
Audio system
Multichannel
Supported video modes
1080p, 2160p
Supported graphics resolutions
1920 x 1200 (WUXGA), 4096 x 2160
LED indicators
Yes
Product colour
Black
Rubber feet
Yes
Technical details
HDCP
Yes
Audio output channels
7.1 channels
Rack mounting
Yes
Plug and Play
Yes
Daisy chain
Yes
Certification
CE, FCC, TAA, REACH
Remote control type
IR
Type
AV repeater
Maximum resolution
4096 x 2160 pixels
Cable types supported
Cat5e, Cat6
Maximum transfer distance
70 m
Audio system
Multichannel
Supported video modes
1080p, 2160p
Supported graphics resolutions
1920 x 1200 (WUXGA), 4096 x 2160
Product colour
Black
Quantity per pack
1 pc(s)
Sustainability certificates
RoHS
Ports & interfaces
3.5 mm (1/8-inch) out
Yes
3.5 mm (1/8-inch) in
Yes
Serial ports quantity
1
Serial interface type
RS-232
RJ-45 input ports
1
RJ-45 output ports
1
HDMI in
1
Number of HDMI outputs
1
DC-in jack
Yes
Power
Output current
0.6 A
Power plug type
Type M
AC input voltage
100 - 240 V
Power consumption (typical)
18 W
Operating voltage
12 V
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-10 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Weight & dimensions (Transmitter & Receiver)
Width
117 mm
Height
43 mm
Depth
220 mm
Weight
930 g
Packaging data
Package width
235 mm
Package height
77 mm
Package depth
368 mm
Package weight
1.7 kg
Quick start guide
Yes
Remote control included
Yes
Mounting kit
Yes
Mounting brackets included
Yes
Cables included
LAN (RJ-45)
Included power plug types
AU, EU, NA, UK
Full specification and details can be found in the
HDMI Over CAT6 Extender - Power Over Cable - Up to 70 m (230 ft.)
Extend HDMI over CAT5e/CAT6 cabling to a remote location, with support for 4K 60Hz at 35 m (115 ft.) and 1080p 60Hz at 70 m (230 ft.)
This HDMI® over CAT6 extender transmits your HDMI audio/video signal to a remote location up to 70 m (230 ft.) away.
Get 4K at 60Hz from 35 m (115 ft.) away
This HDMI over CAT6 extender maintains your Ultra HD 4K picture quality, even at 35 m (115 ft.) away from your video source. If you're not running 4K video, this extender supports High-Definition 1080p 60Hz and lower resolutions at even greater distances, up to 70 m (230 ft.) from your HDMI source.
With full support for your HDMI 2.0 equipment, including 4K resolution at 60Hz, this extender can transmit at a bandwidth of up to 18Gbps, making it the ideal solution for high-resolution tasks requiring the highest color detail. For smoother video and color transitions, the extender offers 4:4:4 chroma subsampling via visually lossless compression, meaning every pixel gets its own unique color.
With HDR support, you can enjoy lifelike images with increased contrast, brightness and colors and greater luminosity than standard digital imaging.
Simplify your setup
The HDMI Extender Over CAT6 offers a hassle-free solution for your digital signage project. The extender only requires a single CAT5e or CAT6 cable, so you can extend an HDMI signal using your building's existing infrastructure. Plus, this HDMI extender supports Power Over Cable (POC), which means you'll only need one power adapter connected to either your transmitter or receiver. Mounting hardware is also included for discreet, professional installation.
The ST121HDBT20S is TAA compliant and backed by a 2-year StarTech.com warranty with free lifetime technical support.
Transmitter Front View:
1. LED Indicator
2. IR Out Port
3. IR In Port
Transmitter Rear View:
1. Grounding Screw
2. LINK (RJ45 Connector)
3. DC 18V Power Port
4. HDMI In Port
Receiver Front View:
1. LED Indicator
2. IR In Port
3. IR Out Port
Receiver Rear View:
1. Grounding Screw
2. LINK (RJ45 Connector)
3. DC 18V Power Port
4. HDMI Out Port
Applications:
Distribute HDMI in large buildings such as commercial shopping centers, stadiums, schools, and hospitals
Extend your HDMI audio/video signals to locations where power outlets are limited, such as industrial sites
Integrators and system designers can use existing CAT5 or CAT6 infrastructure to create digital-signage solutions
Features:
Get astonishing video quality at impressive distances with UHD 4K 60Hz resolution at up to 35 m (115 ft.) and 1080p 60Hz resolutions at up to 70 m (230 ft.)
Hassle-free setup with video and power over a single CAT5e or CAT6 cable
Sleek professional installation with optional mounting hardware included
Remotely control your video source from the location of your remote display, with support for IR extension
Supports HDR for expanded contrast ratio and color accuracy
Features
Material
Aluminium
Audio output channels
7.1 channels
Daisy chain
No
Maximum refresh rate
60 Hz
Certification
CE, FCC, TAA, REACH
Type
AV transmitter & receiver
Maximum resolution
3840 x 2160 pixels
Cable types supported
Cat5e, Cat6
Maximum transfer distance
70 m
Supported video modes
720p, 1080p
Supported graphics resolutions
1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 3840 x 2160
LED indicators
Status
Product colour
Black
Rubber feet
Yes
Technical details
Material
Aluminium
Audio output channels
7.1 channels
Daisy chain
No
Maximum refresh rate
60 Hz
Certification
CE, FCC, TAA, REACH
Type
AV transmitter & receiver
Maximum resolution
3840 x 2160 pixels
Cable types supported
Cat5e, Cat6
Maximum transfer distance
70 m
Supported video modes
720p, 1080p
Supported graphics resolutions
1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 3840 x 2160
Product colour
Black
Connectivity technology
Wired
Sustainability certificates
RoHS
Ports & interfaces
Remote (IR) output
2
Remote (IR) input
2
RJ-45 input ports
1
RJ-45 output ports
1
HDMI in
1
Number of HDMI outputs
1
DC-in jack
Yes
Connectivity technology
Wired
Power
Input current
0.6 A
Output current
1 A
Power plug type
Type M
AC input voltage
100 - 240 V
External power adapter
Yes
Operating voltage
18 V
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-10 - 60 °C
Operating relative humidity (H-H)
0 - 80 %
Weight & dimensions
Width
76 mm
Height
26 mm
Depth
293 mm
Weight
1.6 kg
Packaging data
Package width
206 mm
Package height
62 mm
Package depth
280 mm
Package weight
800 g
Quick start guide
Yes
AC adapter included
Yes
Mounting brackets included
Yes
IR blaster included
Yes
IR receiver included
Yes
Included power plug types
ANZ, EU, JP, NA, UK
Full specification and details can be found in the
4K HDMI Extender with Compact Transmitter - HDBaseT - UHD 4K
HDBaseT Extender Kit | 7.1 Audio | Mounting Hardware Included | Up to 70 m (230 ft.)
This 4K HDMI extender uses HDBaseT to transmit your HDMI A/V signal to a remote location up to 70 m (230 ft.) away.
Easy and Discreet Installation
The transmitter in this HDMI HDBaseT extender kit features a small footprint and built-in HDMI cable that connects directly to your source for reduced clutter. It’s powered from a USB port on your source device, which makes it easier to install in areas where power outlets may be limited. Mounting hardware is included for the receiver for a discreet, professional installation.
Get 4K Video at 130 ft. (40 m)
This HDMI over CAT6 extender maintains your UHD 4K picture quality, even at 130 feet away from your video source. Because the extender is backward compatible with 1080p and lower resolutions at 230 feet away, you can comfortably use this extender to make any video source look great. The extender also supports 7.1 audio to ensure all audio channels are captured.
Seamless Integration with Your Existing Infrastructure
The kit extends HDMI over a single cable, unlike some HDMI extenders that require two cables, reducing potential failure points and lowering your cabling costs. Ideal for digital signage, the HDMI over CAT6 extender uses standard CAT5e, CAT6 or CAT7 cables to extend HDMI video over the Ethernet infrastructure that's already in your building.
The ST121HDBTDK is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Transmitter Diagram:
Receiver Diagram:
Applications:
Transmit an HDBaseT signal to a boardroom or classroom projector
Distribute digital signage in large buildings like shopping centers, stadiums, schools, and hospitals
Power your transmitter using the USB port on your video source
Features:
Simple and versatile installation with a compact, USB-powered transmitter that features a built-in HDMI cable
Astonishing picture quality with support for UHD resolutions up to 4K
Easy integration with existing CAT5/CAT6/CAT7 infrastructure
Mounting hardware included
7.1 audio support
Features
Audio output channels
7.1 channels
Rack mounting
Yes
Plug and Play
Yes
Daisy chain
No
HDBaseT certified
Yes
Certification
CE, FCC, TAA, REACH
Type
AV transmitter & receiver
Maximum resolution
4096 x 2160 pixels
Cable types supported
Cat5e, Cat6
Maximum transfer distance
70 m
Audio system
Multichannel
LED indicators
Status
Cable length
0.1 m
Product colour
Black
Technical details
Audio output channels
7.1 channels
Rack mounting
Yes
Plug and Play
Yes
Daisy chain
No
HDBaseT certified
Yes
Certification
CE, FCC, TAA, REACH
Type
AV transmitter & receiver
Maximum resolution
4096 x 2160 pixels
Cable types supported
Cat5e, Cat6
Maximum transfer distance
70 m
Audio system
Multichannel
Cable length
0.1 m
Product colour
Black
Connectivity technology
Wired
Sustainability certificates
RoHS
Ports & interfaces
RJ-45 input ports
1
RJ-45 output ports
1
HDMI in
1
Number of HDMI outputs
1
Connectivity technology
Wired
Power
Input current
0.6 A
Output current
1.5 A
Power plug type
Type M
AC input voltage
100-240 V
Power consumption (typical)
18 W
External power adapter
Yes
Operating voltage
12 V
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-10 - 60 °C
Operating relative humidity (H-H)
0 - 80 %
Weight & dimensions
Width
68 mm
Height
25 mm
Depth
80 mm
Weight
252 g
Packaging data
Package width
196 mm
Package height
74 mm
Package depth
293 mm
Package weight
1.6 kg
Quick start guide
Yes
AC adapter included
Yes
Mounting kit
Yes
Cables included
USB
Included power plug types
ANZ, EU, NA, UK
Full specification and details can be found in the
HDMI Over IP Receiver for ST12MHDLAN2K - Video Wall Support - 1080p
HDMI®?Video Over Cat5e or Cat6?|Scale to Multiple Displays |Mobile Control App
This HDMI over IP receiver works with the HDMI Over IP Extender Kit (ST12MHDLAN2K, sold separately) and an Ethernet switch (sold separately), to receive HDMI video over your local area network (LAN) in remote locations, using Cat5e or Cat6 cabling. You can use additional receivers to distribute the HDMI signal to multiple locations or combine your remote displays to create a video wall.
Highly Scalable
In a point-to-multipoint (one source to many screens) or multipoint-to-multipoint (many sources to many screens) configuration, you can output video to over 100 additional displays. Each display requires a receiver. Remote control of serial devices is supported through RS232 extension.
Resolutions Up to 1080p, with Audio
With support for video resolution up to 1080p (1920 x 1080 at 60Hz), the transmitter also supports digital and analog audio to the receiver and analog audio from the receiver to the transmitter.
Mobile Control with Included App
The kit includes an easy-to-use online app to manage your IP video distribution.
The app is available on iOS for your iPhone or iPad, Android for your smartphone or tablet, and Google Chrome browser for your desktop.
Hassle-Free Installation
The HDMI over IP receiver includes optional shelf-mounting hardware. It uses Cat5e or Cat6 cables and works with existing network infrastructures, eliminating the expense of running proprietary cables.
ST12MHDLAN2R is backed by a StarTech.com 2-year warranty and free?lifetime technical support.
Transmitter Front:
Transmitter Rear:
Receiver Front:
Receiver Rear:
Applications:
Add additional receivers and distribute video to multiple locations
Distribute digital signage or entertainment content in schools, hospitals, shopping centers or stadiums
Create a video wall by combining multiple displays
Extend RS232 serial control to create an interactive digital signage presentation
Point-to-point, point-to-multipoint and multipoint-to-multipoint applications
Features:
Scalable video distribution system extends your HDMI video signal and RS232 control to one or multiple displays
Create stunning video walls easily using a single video source with multiple receivers
Manage and control your digital signage with our intuitive mobile app
Crystal-clear picture quality, video resolutions up to 1080p
Tidy, professional installation with included mounting hardware
Features
Material
Aluminium
Audio output channels
7.1 channels
Rack mounting
Yes
Daisy chain
Yes
Certification
CE, FCC, TAA
Type
AV receiver
Maximum resolution
1920 x 1080 pixels
Cable types supported
Cat5e, Cat6
Maximum transfer distance
100 m
Supported graphics resolutions
1280 x 720 (HD 720), 1280 x 768 (WXGA), 1280 x 800, 1360 x 768 (WXGA), 1440 x 900 (WXGA+), 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080)
LED indicators
Link, Power, Status
Product colour
Black
Rubber feet
Yes
Technical details
Material
Aluminium
Audio output channels
7.1 channels
Rack mounting
Yes
Daisy chain
Yes
Certification
CE, FCC, TAA
Type
AV receiver
Maximum resolution
1920 x 1080 pixels
Cable types supported
Cat5e, Cat6
Maximum transfer distance
100 m
Supported graphics resolutions
1280 x 720 (HD 720), 1280 x 768 (WXGA), 1280 x 800, 1360 x 768 (WXGA), 1440 x 900 (WXGA+), 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080)
Product colour
Black
Connectivity technology
Wired
Audio support
Yes
Sustainability certificates
RoHS
Ports & interfaces
Remote (IR) output
1
Remote (IR) input
1
RJ-11 ports quantity
2
RJ-45 input ports
1
Number of HDMI outputs
1
Audio output
3.5 mm
Audio input
3.5 mm
Connectivity technology
Wired
Power
Input current
0.6 A
Output current
1.5 A
Power plug type
Type M
AC input voltage
100 - 240 V
Power consumption (typical)
10 W
External power adapter
Yes
Operating voltage
12 V
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-10 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Weight & dimensions (Transmitter & Receiver)
Width
118 mm
Height
31 mm
Depth
131 mm
Weight
80 g
Packaging data
Package width
208 mm
Package height
64 mm
Package depth
295 mm
Package weight
175 g
Manual
Yes
Mounting kit
Yes
IR receiver included
Yes
IR blaster included
Yes
Cables included
LAN (RJ-45), Phone (RJ-11)
Included power plug types
ANZ, EU, JP, NA, UK
Full specification and details can be found in the
4K HDMI over IP Receiver for ST12MHDLAN4K
Use this 4K receiver with your HDMI extender over IP kit (ST12MHDLAN4K) to scale the extender to additional displays for your video wall or other digital signage applications
This 4K HDMI® over IP receiver works with the 4K HDMI over IP Extender Kit (sold separately) and lets you extend a 4K HDMI signal, as well as RS-232 peripheral device connections, over your network. You can use additional receivers (sold separately) to distribute the HDMI signal to multiple locations, each with 4K support, and combine your remote displays to create a video wall.
The IP receiver also features RS-232 extension which enables you to add a remote serial operated device at your video source or each remote display. This HDMI over IP extender is the perfect solution for combining a serial-operated touchscreen with your display or video wall, to create interactive digital signage presentations.
The IP receiver also features RS-232 extension which enables you to add a remote serial-operated device.
Extended scalability
You can add multiple receivers to your HDMI over IP extender kit to create a point-to-multipoint setup or video wall. In these configurations, you can also add additional sources (transmitters) with even more displays (receivers) over your Gigabit Ethernet switch with IGMP. For further scalability, you can combine up to 16 total (transmitters) and as many receivers (displays) as your network bandwidth can support.
The extender also features a separate 3.5 mm audio source that enables you to switch between the native HDMI audio and a separate 3.5 mm audio source, so you can distribute a single audio source to multiple remote locations over IP (also requires a Gigabit Ethernet switch with IGMP).
Ultra HD 4K resolution at 30Hz
This HDMI over IP kit uses H.264 compression to deliver astonishing 4K UHD video to your remote 4K displays over an IP connection. With support for 4K, you can achieve an output resolution of up to 3840 x 2160p at 30Hz, which enables you to extend a 4K video source to multiple remote locations -- perfect for digital signage or entertainment video distribution throughout large buildings such as schools, hospitals, shopping centers or areas.
The extender is backward compatible with lower resolutions such as 1080p or 720p, making it great for lower resolution applications while future-proofing your infrastructure for 4K implementation.
Manage your video distribution from your mobile device
This HDMI distribution kit features an easy-to-use video control software app that helps you manage your IP video distribution. The app is simple to set up, with automatic hardware detection, and it lets you switch video sources for each remote display. You can also create and manage a video wall, for an impressive digital signage presentation that’s sure to catch your audience’s attention.
The software is available on iOS for your iPhone or iPad, Android™ for your smartphone or tablet, and Google Chrome™ browser.
Professional, cost-effective, simple installation
The HDMI over IP extender kit includes optional slot shelf mounting hardware for a tidy installation. Plus, because the extender uses standard non-proprietary CAT5e or CAT6 Ethernet cable with RJ-45 connectors, it eliminates both the expense and hassle of running specialized cables.
The extender also features an EDID copy function, which ensures native resolution and maximum compatibility with your display or projector for a convenient plug-and-play installation.
Download the StarTech.com Video Control software to manage your IP video distribution.
The ST12MHDLAN4R is TAA compliant and backed by a StarTech.com 2-year warranty with free lifetime technical support.
Note: For best performance, a managed network switch with IGMP is recommended for more than one transmitter, or more than four receivers, Non-managed network switches will also limit the performance of other devices on your network. Support for Jumboframes must be enabled to distribute 4K video.
Product Diagram:
1. Function 1 button
2. Function 2 button
3. Dip rotary switch
4. Serial control (not active)
5. Serial extension (for extending RS-232 signal)
6. Infrared (in) and (out) ports
7. Audio in port
8. Video resolution selection switch
9. Link and power LED
10. DC 9-12V power jack
11. Reset LED
12. Reset button
13. LAN port (RJ-45)
14. HDMI output port (audio/video)
15. 3.5 mm output port (audio)
Applications:
Distribute a separate 3.5 mm audio source and switch between that source and the native HDMI audio source
Build a multi-display video wall to present entertainment to your patrons with an impressive display at a restaurant or shopping center
Extend HDMI and RS-232 serial to create an interactive digital signage presentation
Display multiple communication boards showing dynamic data such as times and dates on digital charts in airports, train stations, bus stations or hospitals, that can be updated at any time
Present your social media feeds on multiple screens in a large viewing area
Features:
Versatile video distribution with support for large multi-display presentations, video walls, video switching and point-to-point extension
Astonishing picture quality over IP with support for 4K at 30Hz resolution
Free mobile app makes it easy to manage switching video wall control (iOS / Android / Chrome browser)
Tidy, professional installation using the included mounting hardware
Connect using a Gigabit LAN network
Easy point-to-point or point-to-multipoint setup
Extend HDMI using existing network infrastructure
Features
Material
Aluminium
Daisy chain
Yes
Maximum refresh rate
30 Hz
Certification
CE, FCC
Type
AV receiver
Maximum resolution
3840 x 2160 pixels
Cable types supported
Cat5e
Maximum transfer distance
100 m
Audio system
stereo
Supported video modes
720p, 1080p, 2160p
Supported graphics resolutions
1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA), 3840 x 2160
Product colour
Black
Black
Technical details
Material
Aluminium
Daisy chain
Yes
Maximum refresh rate
30 Hz
Certification
CE, FCC
Type
AV receiver
Maximum resolution
3840 x 2160 pixels
Cable types supported
Cat5e
Maximum transfer distance
100 m
Audio system
stereo
Supported video modes
720p, 1080p, 2160p
Supported graphics resolutions
1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA), 3840 x 2160
Product colour
Sustainability certificates
RoHS
Ports & interfaces
Remote (IR) output
1
Remote (IR) input
1
RJ-11 ports quantity
2
RJ-45 output ports
1
Number of HDMI outputs
1
Audio output
3.5 mm
Audio input
3.5 mm
Power
Input current
0.6 A
Output current
1.5 A
Power plug type
Type M
AC input voltage
100 - 240 V
Power consumption (typical)
18 W
Operating voltage
12 V
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-10 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Packaging data
Package width
210 mm
Package height
65 mm
Package depth
295 mm
Package weight
1.23 kg
Quick start guide
Yes
Mounting brackets included
Yes
AC adapter included
Yes
Cables included
LAN (RJ-45), Phone (RJ-11)
Full specification and details can be found in the
HDMI over CAT5e Extender with IR and Serial - HDBaseT Extender - 4K
Extend HDMI over CAT6 or CAT5e cabling, with RS232 serial and IR control
This HDBaseT™ extender kit can transmit your 4K HDMI signal up to 115 ft. (35 m) over a single CAT5e or CAT6 cable. At lower resolutions up to 1080p, the extender kit can transmit your signal up to 230 ft. (70 m).
Extend video and more with HDBaseT
The extender offers a complete end-to-end video and control solution, using HDBaseT technology to extend not just HDMI, but also DC power, IR and serial control over a single CAT5 cable. By extending so much over just one CAT5e or CAT6 cable, HDBaseT is the clear choice of every integrator and system designer.
The added benefit of power over cable means that you’ll only need one power source at one side of your extension - great for extending video and control to areas where power outlets may be limited, such as industrial sites.
Serial and IR extension optimizes operation by enabling you to control the video source or display from both the local and remote location.
Maximize reliability with HDBaseT certification
This HDBaseT extender has been certified via the HDBaseT Certification Program. This certification ensures the extender is compliant with HDBaseT technical standards, and maximizes reliability with your HDMI display and video source, by ensuring compliance with their established HDMI ecosystem.
Astonishing 4K picture quality at an impressive distance
With the A/V industry adopting 4K as the new high-resolution video standard, long-range video distribution can be a challenge over standard HDMI cables that become susceptible to signal degradation at 30 feet. This HDBaseT extender can maintain your Ultra HD 4K picture quality - four times the resolution of high-definition 1080p - even at 330 feet away from your video source. Plus, because the extender supports high-definition 1080p and lower resolutions, you can comfortably use this extender to make any video source look great, while future-proofing your setup for 4K implementation.
Professional installation
HDBaseT technology offers a single-cable installation, so you can integrate this solution seamlessly using your existing CAT5e or CAT6 infrastructure. Both the transmitter and receiver included with this HDBaseT extender kit are mountable, so you can keep the equipment out of sight in an equipment rack, or on a wall. This helps to reduce clutter and ensure a professional installation that doesn't draw your viewers' attention away from the content on your display. It’s perfect for customer-facing displays in bars, restaurants or hotel lobbies.
What is HDBaseT?
HDBaseT is a standardized, zero-latency video technology that’s revolutionizing HDMI distribution. HDBaseT uses an advanced method of modulation that enables you to distribute uncompressed HDMI audio and video, along with additional signals, over a single Ethernet cable.
Offering greater versatility than traditional HDMI extenders, and longer distances than HDMI cables alone, HDBaseT is the clear choice for every integrator and system designer. It can do so much, with just a single cable.
The ST121HDBTL is TAA compliant and backed by a 2-year StarTech.com warranty with free lifetime technical support.
Note: When using Power over Cable (PoC) to power the transmitter or receiver, it is not recommended to pair the StarTech.com transmitter or receiver with any other HDBaseT hardware. Power over Cable should only be used with the transmitter and receiver that are provided with this extender kit.
Front view - transmitter and receiver units:
Rear view - transmitter and receiver units:
Applications:
Extend video where power outlets are limited with HDBaseT offering power over cable that powers both the transmitter and receiver using a single power source at either side of the connection
Place the display in a convenient viewing area, while the system equipment is placed elsewhere in a clean and secure environment
Optimize placement of your demo stations at tradeshows and in auditoriums
Features:
HDMI OVER CAT5e/CAT6: Extend an Ultra HD 4K 30Hz HDMI video signal and 7.1CH audio up to 115' (35m) over Cat5e/6 Ethernet cable; Extend 1080p HDMI up to 230' (70m); YUV video encoding; RS-232 & IR extension/control; 4:4:4 chroma subsampling, HDCP 1.4
SINGLE POWER ADAPTER FLEXIBILITY: For added installation flexibility, the power adapter can be placed at either the remote or local side for areas where power outlets may be limited; Power is delivered to transmitter/receiver over the Ethernet cable (POC)
HDBASET CERTIFIED: HDMI extender is tested and certified by the HDBaseT Alliance to help ensure quality and compatibility for Digital Signage & AV installers/integrators for commercial and/or professional environments
INCLUDED ACCESORIES: Transmitter & receiver with point to point direct connection (no network equipment required); Cat5e cable for testing; IR Blaster and IR Receiver w/ mounting hardware (IR remote not incl)
EASY INSTALLATION: No IP configuration or drivers required for the powered HDMI extender kit (transmitter & receiver); An HDBaseT repeater (ST121HDBTRP) is available for scalable solutions over longer distances
Certifications, Reports and Compatibility:
Features
Audio output channels
7.1 channels
Daisy chain
No
HDBaseT certified
Yes
Maximum refresh rate
60 Hz
Certification
FCC, CE, TAA
Type
AV transmitter & receiver
Maximum resolution
4096 x 2160 pixels
Cable types supported
Cat5e, Cat6
Maximum transfer distance
100 m
Audio system
Multichannel
Supported video modes
720p, 1080p
Supported graphics resolutions
1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA), 3840 x 2160,4096 x 2160
LED indicators
Status
Product colour
Black
Rubber feet
Yes
Technical details
Audio output channels
7.1 channels
Daisy chain
No
HDBaseT certified
Yes
Maximum refresh rate
60 Hz
Certification
FCC, CE, TAA
Type
AV transmitter & receiver
Maximum resolution
4096 x 2160 pixels
Cable types supported
Cat5e, Cat6
Maximum transfer distance
100 m
Audio system
Multichannel
Supported video modes
720p, 1080p
Supported graphics resolutions
1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA), 3840 x 2160, 4096 x 2160
Product colour
Black
Connectivity technology
Wired
Sustainability certificates
RoHS
Ports & interfaces
Remote (IR) output
1
Remote (IR) input
1
RS-232 output ports
1
RS-232 input ports
1
Serial interface type
RS-232
RJ-45 input ports
1
RJ-45 output ports
1
HDMI in
1
Number of HDMI outputs
1
Connectivity technology
Wired
Power
Input current
0.6 A
Output current
1.5 A
Power plug type
Type M
AC input voltage
100 - 240 V
Power consumption (typical)
18 W
External power adapter
Yes
Operating voltage
12 V
Weight & dimensions (Transmitter & Receiver)
Width
66 mm
Height
27 mm
Depth
92 mm
Weight
452 g
Packaging data
Package width
194 mm
Package height
70 mm
Package depth
281 mm
Package weight
1.1 kg
IR receiver included
Yes
IR blaster included
Yes
Mounting brackets included
Yes
AC adapter included
Yes
Cables included
LAN (RJ-45)
Included power plug types
ANZ, NA, UK
Full specification and details can be found in the
HDMI over CAT5e HDBaseT Extender - RS232 - IR - Ultra HD 4K - 330 ft (100m)
Extend an HDMI® video and audio over standard CAT5e cabling, with support for RS232 Serial and Infrared control
The StarTech.com HDBaseT extender kit, extends HDMI up to 330 feet (100 Meters) over a single CAT5e or CAT6 cable. The extender supports Ultra HD and Full HD resolutions (4K / 1080p) with support for 3D and the accompanying 7.1 digital audio. For added versatility the transmitter and receiver can be used to transmit IR and RS232 serial communication over the same cable. The versatility of this video extender makes it an ideal solution for digital signage applications.
What is HDBaseT?
HDBaseT is a standardized, zero latency, video distribution technology that’s revolutionizing HDMI distribution. HDBaseT uses an advanced method of modulation that enables you to distribute uncompressed HDMI audio and video along with additional signals such as 100BaseT Ethernet, IR, RS-232 serial and power over cable.
Extend More with HDBaseT
The extender offers HDBaseT technology with HDMI, IR, and RS232 control in a single CAT 5e extender kit, for complete end-to-end control. Offering greater versatility than traditional HDMI extenders or HDMI cabling alone HDBaseT is the clear choice for every integrator and system designer. The IR extension enables you operate your display and an IR-enabled source device, such as a Blu-ray player or TV Set top box, from either end of your extension. While RS232 control let you to connect a serial I/O device at your display - an ideal solution for adding a serial touch screen interface to your remote display.
Astonishing Picture Quality from an Impressive Distance
FWith the A/V industry quickly adopting 4K as the new high-resolution video standard, long range video distribution can be a challenge with standard HDMI cables beginning signal degradation at 30 feet.
With support for 4K 30Hz you’ll be amazed at how HDBaseT maintains your Ultra HD picture quality, four times the resolution of high-definition 1080p, even at 164 feet away from your video source. Plus, because the extender is still backward compatible with High-Definition 1080p displays and video sources, you can rest assured this extender will make your video source look great in any remote digital signage application.
Simplify Your Setup
This extender has been specially crafted for a smooth, tidy installation. HDBaseT technology allows for single cable installation, for seamless integration using existing CAT5e or CAT6 infrastructure, avoiding the hassle of running multiple cables, while reducing potential failure points. Mounting hardware is also built-in to both the extender and receiver for discrete, professional mounting.
The ST121UTPHD2 is backed by a 2-year StarTech.com warranty and free lifetime technical support.
Transmitter Unit:
Receiver Unit:
Applications:
Position a display/monitor in a convenient viewing area while the transmitting content over a CAT5 cable from a cleaner, more secure environment
Ideal for digital signage applications in financial, educational, medical and business sectors
Perfect for video conferencing solutions in boardrooms and office settings
Optimize placement of your demo stations at trade-shows and in auditoriums
Features:
With HDBaseT extend HDMI, IR, and RS-232 through one CAT5e or CAT6 cable
Astonishing picture quality with support for resolutions up to UltraHD 4K (up to 50m)
Hassle-free installation with a single CAT5e or CAT6 cable and built-in mounting hardware
Supports HD video resolutions such as 1920x1200 or 1080p at distances up to 330 ft. (100m)
Supports unidirectional RS232
Dolby TrueHD, DTS-HD MA Audio
RS232 interface supports up to 115200bps full-duplex data rate
No software or drivers required
The StarTech.com Advantage:
Integrated bi-directional RS232 and unidirectional IR interfaces enable you to communicate with, monitor and control your source audio-video device, from either end of the connection
Support for 4K and full 1080p resolution with accompanying digital audio, which lets you display your content the way it's meant to be seen and heard
Features
Material
Steel
HDCP
Yes
Plug and Play
Yes
Carrier frequency
38 kHz
Baud rate
115.2 Kbit/s
Daisy chain
No
Certification
CE, FCC
Remote control type
IR
Type
AV transmitter & receiver
Maximum resolution
3840 x 2160 pixels
Cable types supported
Cat5, Cat5e, Cat6
Maximum transfer distance
100 m
Supported video modes
720p, 1080p, 2160p
Supported graphics resolutions
1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA)
LED indicators
LAN, Power
Product colour
Black
Technical details
Material
Steel
HDCP
Yes
Plug and Play
Yes
Carrier frequency
38 kHz
Baud rate
115.2 Kbit/s
Daisy chain
No
Certification
CE, FCC
Remote control type
IR
Type
AV transmitter & receiver
Maximum resolution
3840 x 2160 pixels
Cable types supported
Cat5, Cat5e, Cat6
Maximum transfer distance
100 m
Supported video modes
720p, 1080p, 2160p
Supported graphics resolutions
1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA)
Product colour
Black
Audio support
Yes
Sustainability certificates
RoHS
Ports & interfaces
Remote (IR) output
1
Remote (IR) input
2
RS-232 output ports
1
RS-232 input ports
1
RJ-45 input ports
1
RJ-45 output ports
1
HDMI in
1
Number of HDMI outputs
2
DC-in jack
Yes
Power
Input current
0.6 A
Output current
0.24 A
Power plug type
Type M
AC input voltage
110-240 V
External power adapter
Yes
Operating voltage
12 V
Current
1.24 A
Operational conditions
Operating temperature (T-T)
0 - 70 °C
Storage temperature (T-T)
-20 - 85 °C
Operating relative humidity (H-H)
0 - 95%
Weight & dimensions (Transmitter & Receiver)
Width
80 mm
Height
25 mm
Depth
150 mm
Weight
579 g
Packaging data
Package width
309 mm
Package height
66 mm
Package depth
254 mm
Package weight
1.5 kg
Manual
Yes
AC adapter included
Yes
IR receiver included
Yes
Cables included
HDMI, IR
Full specification and details can be found in the
HDMI over IP distribution kit – 1080p
Deploy content for digital signage through a scalable distribution system with intuitive control that’s ideal for point-to-point or video wall applications
The HDMI® over IP kit lets you extend an HDMI signal over your network. You can use additional receivers (sold separately) to distribute the HDMI signal to multiple locations and combine your remote displays to create a video wall.
Versatile configuration options
In a point-to-multipoint setup, the HDMI over IP kit can be connected through an unmanaged or managed Gigabit LAN portal. You can connect one or multiple sources (transmitters) to multiple displays (receivers) over IP, using a managed Gigabit Ethernet switch (with IGMP). For additional scalability, you can combine up to 16 different kits.
For smaller-scale applications, the extender kit can be used as a point-to-point video extender. You can connect the transmitter and receiver units directly over Cat5 or Cat6 cabling for a small-scale, one-to-one HDMI extension up to 330 feet (100 meters).
Manage your video distribution from your mobile device
The HDMI distribution kit features easy-to-use video control software that helps you manage your IP video distribution. The app is simple to set up with automatic hardware detection, and lets you switch video sources for each remote display. You can also intuitively create and manage a video wall for an impressive digital signage presentation to catch the attention of your audience.
The software is available on iOS for your iPhone or iPad, Android for your smartphone or tablet, and Google Chrome browser.
Professional, cost-effective, simple installation
The HDMI over IP extender kit includes optional mounting hardware for a tidy installation. Ideal for high-definition applications, the extender supports 1080p video resolutions and digital stereo audio. Plus, because the extender uses standard non-proprietary Cat5e or Cat6 Ethernet cable with RJ45 connectors, it eliminates both the expense and hassle of running specialized cables.The extender also features an EDID copy function, which ensures native resolution and maximum compatibility with your display or projector for a convenient plug-and-play installation.
Download the StarTech.com Video Control software to manage your IP video distribution.
NOTE: Your router must support IGMP snooping. Please refer to your network switch or router documentation to ensure IGMP snooping is supported and enabled.
The ST12MHDLAN is TAA compliant and backed by a StarTech.com 2-year warranty with free lifetime technical support.
Front view of transmitter:
1. F1
2. F2
3. Dip rotary switch
4. Serial control (not active)
5. Serial extension (forextending RS232 signal)
Back view of transmitter:
1. Power jack
2. Reset LED
3. Reset button
4. LAN port (RJ-45 connector)
5. Video out
Front view of receiver:
1. F1
2. F2
3. Dip rotary switch
4. Serial control (not active)
5. Serial extension (forextending RS232 signal)
Back view of receiver:
1. Power jack
2. Reset LED
3. Reset button
4. LAN port (RJ-45 connector)
5. Video out
Applications:
Build a multi-display video wall to present entertainment to your patrons, with an impressive display at a restaurant or shopping center
Display multiple communication boards showing dynamic data such as times and dates on digital charts in airports, train stations, bus stations or hospitals, that can be updated at any time/li>
Present your social media feeds on multiple screens in a large viewing area
Place the display in a convenient viewing area, while the HDMI source equipment is placed elsewhere in a separate, secured environment
Display the same HDMI audio / video signal on multiple displays, for large scale digital signage applications
Extend HDMI using existing infrastructure
Run multiple transmitters and receivers over the same network using a managed switch
Features:
Versatile video distribution with support for large multi-display presentations, video walls, video switching and
point-to-point extension
Free mobile app makes it easy to manage switching video wall control (iOS / Android / Chrome browser)
Tidy, professional installation using the included mounting hardware
Connect using a Gigabit LAN network
Easy point-to-point or point-to-multipoint setup
Extend HDMI using existing network infrastructure
Supports video resolutions up to 1920x1080 (1080p)
Features
Material
Aluminium
Daisy chain
Yes
Certification
CE, FCC
Type
AV transmitter & receiver
Maximum resolution
1920 x 1200 pixels
Cable types supported
Cat5e, Cat6
Maximum transfer distance
100 m
Audio system
stereo
Supported video modes
720p, 1080p
Supported graphics resolutions
1920 x 1200 (WUXGA)
LED indicators
Link, Power, Reset
Product colour
Black
Technical details
Material
Aluminium
Daisy chain
Yes
Certification
CE, FCC
Wi-Fi
No
Ethernet LAN
Yes
Type
AV transmitter & receiver
Maximum resolution
1920 x 1200 pixels
Cable types supported
Cat5e, Cat6
Maximum transfer distance
100 m
Audio system
stereo
Supported video modes
720p, 1080p
Supported graphics resolutions
1920 x 1200 (WUXGA)
Product colour
Black
Sustainability certificates
RoHS
Ports & interfaces
Wi-Fi
No
Ethernet LAN
Yes
Bluetooth
No
RJ-45 input ports
1
RJ-45 output ports
1
HDMI in
1
Number of HDMI outputs
1
Power
Input current
0.4 A
Output current
2 A
AC input voltage
Type M
Power consumption (typical)
100 - 240 V
Operating voltage
5 V
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-10 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Weight & dimensions (Transmitter & Receiver)
Width
97 mm
Height
28 mm
Depth
130 mm
Weight
448 g
Packaging data
Package width
295 mm
Package height
86 mm
Package depth
246 mm
Package weight
2.02 kg
Manual
Yes
AC adapter included
Yes
Mounting brackets included
Yes
Handheld remote control
No
Full specification and details can be found in the
HDMI over CAT5e HDBaseT Extender - 4K
Extend HDMI up to 330ft (100m) over CAT5e/CAT6 cable with Power over Cable to Receiver
This HDBaseT extender Kit, extends HDMI up to 330 feet (100 Meters) over a single CAT5e or CAT6 cable. The extender supports Ultra HD and Full HD resolutions (4K / 1080p) with support for 3D and the accompanying 7.1 digital audio. For added versatility, both the transmitter and receiver can be powered by the same single power source using Power Over Cable (POC). The versatility of this video extender makes it an ideal solution for digital signage applications in large buildings such as commercial shopping centers, stadiums, schools, and hospitals.
What is HDBaseT?
HDBaseT is a standardized, zero latency, video distribution technology that’s revolutionizing HDMI distribution. HDBaseT uses an advanced method of modulation that enables you to distribute uncompressed HDMI audio and video, along with additional signals such as 100BaseT Ethernet, IR, RS-232 serial and power over cable.
Extend More than Video with HDBaseT
For greater versatility than a traditional HDMI extender or HDMI cabling alone, this HDBaseT extender offers HDMI + Power Over Cable in a single kit. The added benefit of power over cable means you’ll only need one power source at either side of your extension, great for extending to areas where power outlets may be limited.
Astonishing 4K picture quality from an impressive distance
With the A/V industry quickly adopting 4K as the new high-resolution video standard, long range video distribution can be a challenge with standard HDMI cables beginning signal degradation at 30 feet. With support for 4K you’ll be amazed at how HDBaseT maintains your Ultra HD picture quality, four times the resolution of high-definition 1080p, even at 130 feet away from your video source. Plus, because the extender supports High-Definition 1080p and lower resolutions at 330 feet away, you can comfortably use this extender to make any video source look great.
Hassle-free, Professional Installation with a Single Cable
This extender has been specially crafted for a smooth, tidy setup. HDBaseT technology allows for single cable installation, for seamless integration using existing CAT5e or CAT6 infrastructure, avoiding the hassle of running multiple cables, while reducing potential failure points. Plus, the added benefit of power over cable means you’ll only need one power source to power both your extender and receiver, great for extending to areas where power outlets may be limited. Mounting hardware is also included for both the extender and receiver for discrete, professional mounting.
The ST121HDBTPW is TAA compliant and backed by a 2-year StarTech.com warranty with free lifetime technical support.
Front view:
Rear view:
Applications:
Extend HDMI to locations where power outlets are limited
Place the display in a convenient viewing area, while the system equipment is placed elsewhere in a clean and secure environment
Optimize placement of your demo stations at tradeshows and in auditoriums
Features:
Extend video where power outlets are limited with HDBaseT offering power over cable that powers both the transmitter and receiver using a single power source at either side of the connection
Maintains astonishing picture quality up to 115 ft. (35 m) away, with support for UltraHD 4K over non-proprietary CAT5e or CAT6 cabling
Also supports HD video resolutions such as 1920x1200 or 1080p at distances up to 330 ft. (100m)
Extend HDMI, and Power over Cable all through one Cat5e or CAT6 cable with HDBaseT
Hassle-free, professional installation with included mounting brackets, and full video extension existing infrastructure
HDMI transmitter and receiver included
No software or drivers required
Dolby TrueHD, DTS-HD MA Audio
100m (330ft) maximum Cat5 cable distance
Features
Material
Aluminium
Audio output channels
7.1 channels
Daisy chain
No
HDBaseT certified
Yes
Maximum refresh rate
60 Hz
Certification
CE, FCC, TAA
Type
AV transmitter & receiver
Maximum resolution
4096 x 2160 pixels
Cable types supported
Cat5e, Cat6
Maximum transfer distance
100 m
Audio system
Multichannel
Supported video modes
720p, 1080p, 2160p
Supported graphics resolutions
1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA), 3840 x 2160, 4096 x 2160
LED indicators
Status
Product colour
Black
Rubber feet
Yes
Technical details
Material
Aluminium
Audio output channels
7.1 channels
Daisy chain
No
HDBaseT certified
Yes
Maximum refresh rate
60 Hz
Certification
CE, FCC, TAA
Type
AV transmitter & receiver
Maximum resolution
4096 x 2160 pixels
Cable types supported
Cat5e, Cat6
Maximum transfer distance
100 m
Audio system
Multichannel
Supported video modes
720p, 1080p, 2160p
Supported graphics resolutions
1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA), 3840 x 2160, 4096 x 2160
Product colour
Black
Audio support
Yes
Sustainability certificates
RoHS
Ports & interfaces
RJ-45 input ports
1
RJ-45 output ports
1
HDMI in
1
Number of HDMI outputs
1
DC-in jack
Yes
Power
Input current
0.6 A
Output current
1.5 A
Power plug type
Type M
AC input voltage
100 - 240 V
Power consumption (typical)
18 W
External power adapter
Yes
Operating voltage
12 V
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-10 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Weight & dimensions (Transmitter & Receiver)
Width
67 mm
Height
25 mm
Depth
80 mm
Weight
423 g
Packaging data
Package width
196 mm
Package height
72 mm
Package depth
295 mm
Package weight
1.2 kg
Manual
Yes
AC adapter included
Yes
Mounting brackets included
Yes
AC adapter included
Yes
Grounding wire
Yes
Cables included
LAN (RJ-45)
Included power plug types
AU, EU, NA, UK
Full specification and details can be found in the
HDMI Over IP Extender Kit with Advanced Compression
Transmitter & Receiver | 1920 x 1080 (1080p) | Mountable | Multicast & Unicast
Extend and control HDMI video over your existing LAN to create a state-of-the-art network of video displays in a variety of environments where digital signage is required.
Reliably Extend Compressed HDMI Video with Bandwidth Efficiency
This extender uses advanced compression to distribute high-quality HDMI video over your network, with minimal bandwidth requirements.
With advanced compression technology, broadcasting your video signal requires only 6 - 12 Mbps of local area network bandwidth, when in operation for each kit.
Flexible & Scalable Deployment Options
The HDMI over LAN extender offers many configurations to accommodate your set up.
This HDMI video extender provides four ways to control your video network configurations.
1. Rotary DIP switches located on the Tx and Rx
2. Your computer connected to the transmitter or receiver via a serial cable
3. Over IP using any device equipped with a browser on the same local area network (i.e. tablet, laptop, smartphone)
4. Infrared (IR) remote control using the included receiver
Comprehensive Product Testing & Expert Technical Support
StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to our customers. Our local StarTech.com Technical Advisors have broad product expertise and work directly with StarTech.com Engineers to provide support for our customers both pre and post-sales.
Transmitter Front View:
Transmitter Rear View:
Receiver Front View:
Receiver Rear View:
Applications:
Display 1080p video in educational institutions, offices, restaurants and retail
Present your social media feeds on multiple screens in a large viewing area
Display the same HDMI audio / video signal on multiple displays, for large scale digital signage applications
Features:
Efficiently distribute video throughout your site using your local area network
Easily create your ideal digital signage with a versatile and scalable video distribution system
Deliver brilliant HD quality video with 1080p support
Supports video resolutions up to 1920x1080 (1080p)
Features
Material
Aluminium
Audio output channels
2.0 channels
Rack mounting
Yes
Daisy chain
Yes
Maximum refresh rate
60 Hz
Certification
CE, FCC, TAA, REACH
Type
AV transmitter & receiver
Maximum resolution
1920 x 100 pixels
Cable types supported
Cat5e, Cat6
Maximum transfer distance
15 m
Supported video modes
1080p
LED indicators
Status
Product colour
Black
Rubber feet
Yes
BlackRoHS
Technical details
Material
Aluminium
Audio output channels
2.0 channels
Rack mounting
Yes
Daisy chain
Yes
Maximum refresh rate
60 Hz
Certification
CE, FCC, TAA, REACH
Type
AV transmitter & receiver
Maximum resolution
1920 x 100 pixels
Cable types supported
Cat5e, Cat6
Maximum transfer distance
15 m
Supported video modes
1080p
Product colour
Connectivity technology
Wired
Sustainability certificates
Ports & interfaces
Remote (IR) output
1
Remote (IR) input
1
USB ports quantity
2
USB connector type
Mini-USB B
RJ-45 input ports
1
RJ-45 output ports
1
HDMI in
1
Number of HDMI outputs
1
Audio output
3.5 mm
Audio input
3.5 mm
Connectivity technology
Wired
Power
Input current
0.3 A
Output current
1 A
AC input voltage
100 - 240 V
Operating voltage
5 V
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-10 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Packaging data
Package width
92 mm
Package height
24 mm
Package depth
108 mm
Weight
3.2 kg
Manual
Yes
AC adapter included
Yes
IR receiver included
Yes
IR blaster included
Yes
Handheld remote control
Yes
Mounting brackets included
Yes
Cables included
LAN (RJ-45), Serial, USB
Included power plug types
ANZ, EU, NA, UK
Full specification and details can be found in the
HDMI over CAT5 HDBaseT Extender - Power over Cable - IR - RS232 - 10/100 Ethernet - Ultra HD 4K - 330 ft (100m)
Extend an HDMI signal by up to 330ft (100m) over CAT5/CAT6 cable, with 10/100 network, infrared, serial control, and Power over Cable
The StarTech.com HDBaseT Extender Kit, extends HDMI up to 330 feet (100 Meters) over a single CAT5e or CAT6 cable. The extender supports Ultra HD and Full HD resolutions (4K / 1080p) with support for 3D and the accompanying 7.1 digital audio. For added versatility, both the transmitter and receiver can be powered from one power source using Power Over Cable (POC). The versatility of this video extender makes it an ideal solution for digital signage applications in large buildings such as commercial shopping centers, stadiums, schools, and hospitals.
What is HDBaseT?
HDBaseT is a standardized, zero latency, video distribution technology that’s revolutionizing HDMI distribution. HDBaseT uses an advanced method of modulation that enables you to distribute uncompressed HDMI audio and video along with additional signals such as 100BaseT Ethernet, IR, RS-232 serial and power over cable.
Extend More than Video with HDBaseT
The extender offers HDBaseT technology with HDMI, IR, RS232, Ethernet, and power in a single extender kit, for complete end-to-end control. Offering greater versatility than traditional HDMI extenders or HDMI cabling alone HDBaseT is the clear choice for every integrator and system designer. The IR extension enables you to operate your display and an IR-enabled source device, such as a Blu-ray player or TV Set top box, from either end of your extension. RS232 control let you to connect a serial I/O device at your display - an ideal solution for adding a serial touch screen interface to your remote display for interactive digital signage presentations. While the built-in 6-Port Ethernet hub lets you connect 5 IP devices to your network (3 remote, 2 local).
Astonishing Picture Quality at 295 Feet Away
With the A/V industry adopting 4K as its new high-resolution standard, long-range video distribution can be difficult, especially considering the 4K distance limitations on standard HDMI cables. You’ll be amazed at how this HDBase-T extender kit can deliver your 4K video signal at up to 295 ft. away from your video source.
The extender kit is also backward compatible with 1080p at 330 feet (100 m), so you can comfortably use it to make any video source look great.
Hassle-free, Professional Installation with a Single Cable
This extender has been specially crafted for a smooth, tidy setup. HDBaseT technology allows for single cable installation, for seamless integration using existing CAT5e or CAT6 infrastructure, avoiding the hassle of running multiple cables, while reducing potential failure points. Plus, the added benefit of power over cable means you’ll only need one power source to power both your extender and receiver, great for extending to areas where power outlets may be limited. Mounting hardware is also included for both the extender and receiver for discrete, professional mounting.
The ST121HDBT5 is TAA compliant and backed by a StarTech.com 2-year warranty with free lifetime technical support.
Front View - Transmitter / Receiver Unit:
Rear View - Transmitter/Receiver Unit:
Applications:
Extend an HDMI signal to locations where power outlets are limited
Connect IP devices such as Smart TVs, computers, and gaming consoles to the Interent or Local network on either side of the extender
Connect a remote RS232 device such as a serial touchscreen monitor, or a serial modem to your local computer
At tradeshows and auditoriums, remotely place your demo display in a convenient viewing area, while the system equipment is placed elsewhere in a clean and secure environment
Control your IR video source with remote control from the remote display
Features:
Save cost by extending HDMI, Ethernet, RS-232, IR, and Power over a single Cat5 cable, using HDBaseT technology
Astonishing picture quality with support for UHD 4K resolutions at up to 115 ft. (35 m)
Supports HD 1080p resolutions at up to 330 ft. (100 m)
Tidy, professional installation with optional mounting hardware included and extension over a single cable
Built-in 10/100 extender hub
Supports CAT5e and CAT6 Ethernet cable
HDMI transmitter and receiver included
No software / drivers required
Features
Material
Aluminium
Audio output channels
7.1 channels
Rack mounting
Yes
Daisy chain
No
Maximum refresh rate
60 Hz
Certification
FCC, CE, TAA, HDBT, REACH
Remote control type
IR
Type
AV transmitter & receiver
Maximum resolution
4096 x 2160 pixels
Cable types supported
Cat5, Cat6
Maximum transfer distance
100 m
Audio system
Multichannel
Supported video modes
720p, 1080p
Supported graphics resolutions
1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA), 3840 x 2160, 4096 x 2160
LED indicators
LAN, Status
Product colour
Black
Rubber feet
Yes
Technical details
Material
Aluminium
Audio output channels
7.1 channels
Rack mounting
Yes
Daisy chain
No
Maximum refresh rate
60 Hz
Near Field Communication (NFC)
No
Certification
FCC, CE, TAA, HDBT, REACH
Wi-Fi
No
Remote control type
IR
Ethernet LAN
Yes
Type
AV transmitter & receiver
Maximum resolution
4096 x 2160 pixels
Cable types supported
Cat5, Cat6
Maximum transfer distance
100 m
Audio system
Multichannel
Supported video modes
720p, 1080p
Supported graphics resolutions
1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA), 3840 x 2160, 4096 x 2160
Product colour
Black
Connectivity technology
Wired
Sustainability certificates
RoHS
Ports & interfaces
Remote (IR) output
2
Remote (IR) input
2
Near Field Communication (NFC)
No
RS-232 output ports
1
RS-232 input ports
1
Serial ports quantity
2
Serial interface type
RS-232
Wi-Fi
No
Ethernet LAN
Yes
Bluetooth
No
RJ-45 input ports
4
RJ-45 output ports
4
HDMI in
1
Number of HDMI outputs
1
DC-in jack
Yes
Connectivity technology
Wired
Power
Input current
0.5 A
Output current
1.5 A
AC input voltage
100 - 240 V
Power consumption (typical)
18 W
Operating voltage
12 V
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-10 - 60 °C
Operating relative humidity (H-H)
0 - 80 %
Weight & dimensions
Transmitter width
89 mm
Transmitter height
37 mm
Transmitter depth
139 mm
Transmitter weight
859 g
Receiver width
89 mm
Receiver height
37 mm
Receiver depth
139 mm
Receiver weight
859 g
Packaging data
Package width
179 mm
Package height
74 mm
Package depth
313 mm
Package weight
1.64 kg
Manual
280 mm
AC adapter included
800 g
Grounding wire
Yes
Mounting brackets included
Yes
Mounting kit
Yes
IR receiver included
Yes
IR blaster included
Yes
Full specification and details can be found in the
HDMI Over CAT6 Extender - Power Over Cable - Up to 100 m (328 ft.)
Extend HDMI over CAT5e/CAT6 cabling to a remote location, with support for 4K 60Hz at 70 m (230 ft.) and 1080p 60Hz at 100 m (328 ft.)
This HDMI Over CAT6 extender transmits your HDMI audio/video signal to a remote location up to 100 m (328 ft.) away.
Get 4K at 60Hz from 70 m (230 ft.) away
This HDMI over CAT6 extender maintains your Ultra HD 4K picture quality, even at 70 m (230 ft.) away from your video source. If you're not running 4K video, this extender supports High-Definition 1080p 60Hz and lower resolutions at even greater distances, up to 100 m (328 ft.) from your HDMI source.
With full support for your HDMI 2.0 equipment, including 4K resolution at 60Hz, this extender can transmit at a bandwidth of up to 18Gbps, making it the ideal solution for high-resolution tasks requiring the highest color detail. For smoother video and color transitions, the extender offers 4:4:4 chroma subsampling via visually lossless compression, meaning every pixel gets its own unique color.
Simplify your setup
The HDMI Extender Over CAT6 offers a hassle-free solution for your digital signage project. The extender only requires a single CAT5e or CAT6 cable, so you extend an HDMI signal using existing infrastructure that’s already in your building. Plus, this HDMI extender supports Power Over Cable (POC), which means you’ll only need one power adapter connected to either your transmitter or receiver. Mounting hardware is also included for discreet, professional installation.
The ST121HDBT20L is TAA compliant and backed by a 2-year StarTech.com warranty with free lifetime technical support.
Transmitter Front View:
1. LED
2. IR Out Port
3. IR In Port
Transmitter Rear View:
1. Grounding Screw
2. LINK (RJ45 Connector)
3. DC 18V Power Port
4. HDMI In Port
Receiver Front View:
1. LED
2. IR In Port
3. IR Out Port
Receiver Rear View:
1. Grounding Screw
2. LINK (RJ45 Connector)
3. DC 18V Power Port
4. HDMI Out Port
Applications:
Distribute HDMI in large buildings such as commercial shopping centers, stadiums, schools, and hospitals
Extend your HDMI audio/video signals to locations where power outlets are limited, such as industrial sites
Integrators and system designers can use existing CAT5 or CAT6 infrastructure to create digital signage solutions
Features:
Get astonishing video quality at impressive distances with UHD 4K 60Hz resolution at up to 70 m (230 ft.) and 1080p 60Hz resolutions at up to 100 m (328 ft.)
Hassle-free setup with video and power over a single CAT5e or CAT6 cable
Sleek professional installation with optional mounting hardware included
Remotely control your video source from the location of your remote display, with support for IR extension
Features
Material
Aluminium
Audio output channels
7.1 channels
Daisy chain
No
Type
AV transmitter & receiver
Maximum resolution
4096 x 2160 pixels
Cable types supported
Cat5e, Cat6
Maximum transfer distance
100 m
Supported video modes
720p, 1080p
Supported graphics resolutions
1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA), 3840 x 2160
LED indicators
Status
Product colour
Black
Rubber feet
Yes
Technical details
Material
Aluminium
Audio output channels
7.1 channels
Daisy chain
No
Type
AV transmitter & receiver
Maximum resolution
4096 x 2160 pixels
Cable types supported
Cat5e, Cat6
Maximum transfer distance
100 m
Supported video modes
720p, 1080p
Supported graphics resolutions
1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA), 3840 x 2160
Product colour
Black
Connectivity technology
Wired
Sustainability certificates
CE, RoHS
Ports & interfaces
Remote (IR) output
2
Remote (IR) input
2
RJ-45 input ports
1
RJ-45 output ports
1
HDMI in
1
Number of HDMI outputs
1
Connectivity technology
Wired
Power
Input current
0.6 A
Output current
1 A
Power plug type
Type M
AC input voltage
100 - 240 V
External power adapter
Yes
Operating voltage
18 V
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-10 - 80 °C
Operating relative humidity (H-H)
0 - 80 %
Packaging data
Package width
206 mm
Package height
62 mm
Package depth
280 mm
Package weight
230 g
Quick start guide
Yes
IR blaster included
Yes
IR receiver included
Yes
Mounting brackets included
Yes
AC adapter included
Yes
Mounting brackets included
ANZ, EU, JP, NA, UK
Full specification and details can be found in the
HDMI over IP Extender Kit with Video Wall Support - 1080p
HDMI® Video over Cat5e or Cat6 |Multiple Sources to Multiple Displays | Mobile Control App
This HDMI over IP extender kit distributes video to a remote location, over your local area network (LAN) and Cat5e or Cat6 Ethernet cabling. By combining this kit with additional receivers (sold separately) and an Ethernet switch (sold separately) you can distribute an HDMI source to multiple locations and create video walls using several remote displays and receivers in the same location.
You can also use multiple transmitters on the same network to distribute different video sources or connect the transmitter directly to a receiver at up to 330 ft. (100 m), in a point-to-point setup. Remote control of serial devices is supported through RS-232 extension.
Resolutions up to 1080p, with Audio
With support for video resolutions up to 1080p (1920 x 1080 at 60Hz), the transmitter also supports digital and analog audio to the receiver and analog audio from the receiver to the transmitter.
Mobile Control Through a Free App
The kit includes an easy-to-use online app to manage your IP video distribution.
The app is available on iOS for an iPhone or iPad, Android for a smartphone or tablet, and Google Chrome browser for a desktop.
Download the StarTech.com Video Control software to manage your IP video distribution.
NOTE: Your router must support IGMP snooping. Please refer to your network switch or router documentation to ensure IGMP snooping is supported and enabled.
Hassle-Free Installations
The HDMI transmitter/receiver kit includes optional shelf-mounting hardware. It uses Cat5e or Cat6 cables and works with existing network infrastructures, eliminating the expense of running proprietary cables.
ST12MHDLAN2K is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Transmitter Front:
Transmitter Rear:
Receiver Front:
Receiver Rear:
Applications:
Distribute digital signage or entertainment content in schools, hospitals, office buildings, shopping centers or stadiums
Create a video wall by combining multiple displays
Extend RS-232 serial control to create an interactive digital signage presentation
Point-to-point, point-to-multipoint and multipoint-to-multipoint applications
Features:
Scalable video distribution system extends your HDMI video signal and RS232 control to one or multiple displays
Manage and control your digital signage with the intuitive mobile app
Create stunning video walls easily using a single or multiple video source with multiple receivers
Crystal-clear picture quality, video resolutions up to 1080p
Tidy, professional installation with included mounting hardware
Features
Audio output channels
7.1 channels
Rack mounting
Yes
Daisy chain
Yes
Maximum refresh rate
60 Hz
Certification
CE, FCC, TAA, REACH
Type
AV transmitter & receiver
Maximum resolution
1920 x 1080 pixels
Cable types supported
Cat5e, Cat6
Maximum transfer distance
100 m
Supported video modes
720p, 1080p
Supported graphics resolutions
1280 x 720 (HD 720), 1280 x 768 (WXGA), 1280 x 800, 1360 x 768 (WXGA), 1440 x 900, 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080)
LED indicators
Link, Network, Power, Status
Product colour
Black
Rubber feet
Yes
Technical details
Audio output channels
7.1 channels
Rack mounting
Yes
Daisy chain
Yes
Maximum refresh rate
60 Hz
Certification
CE, FCC, TAA, REACH
Type
AV transmitter & receiver
Maximum resolution
1920 x 1080 pixels
Cable types supported
Cat5e, Cat6
Maximum transfer distance
100 m
Supported video modes
720p, 1080p
Supported graphics resolutions
1280 x 720 (HD 720), 1280 x 768 (WXGA), 1280 x 800, 1360 x 768 (WXGA), 1440 x 900, 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080)
Product colour
Black
Sustainability certificates
RoHS
Ports & interfaces
3.5 mm (1/8-inch) out
Yes
3.5 mm (1/8-inch) in
Yes
RJ-11 ports quantity
4
RJ-45 input ports
1
RJ-45 output ports
1
HDMI in
1
Number of HDMI outputs
1
Audio output
2 x 3.5 mm
Audio input
2 x 3.5 mm
Power
Input current
0.6 A
Output current
1.5 A
Power plug type
Type M
AC input voltage
100 - 240 V
Power consumption (typical)
10 W
External power adapter
Yes
Operating voltage
12 V
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-10 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Weight & dimensions (Transmitter & Receiver)
Width
118 mm
Height
31 mm
Depth
131 mm
Weight
1.2 kg
Packaging data
Package width
235 mm
Package height
75 mm
Package depth
365 mm
Package weight
2.3 kg
Manual
Yes
AC adapter included
Yes
IR receiver included
Yes
IR blaster included
Yes
Mounting kit
Yes
Cables included
LAN (RJ-45), Phone (RJ-11)
Included power plug types
ANZ, EU, JP, NA, UK, US
Full specification and details can be found in the
Multi-Input HDBaseT Extender with Built-in Switch - DisplayPort, VGA and HDMI Over CAT5e or CAT6 - Up to 4K
Connect your laptop to a remote display over standard CAT5e or CAT6 cabling, and easily swap between HDMI, DP or VGA video sources
This multi-input video extender kit uses HDBaseT™ technology to extend your video signals up to 230 feet (70 meters) over a single CAT5e or CAT6 cable. It features a built-in video switch that enables you to choose which video source is outputted from four independent video sources (2 x HDMI, 1 x VGA and 1 x DisplayPort).The video extender supports Ultra HD 4K and Full HD 1080p video resolutions, with support for the accompanying digital 7.1 audio.
Seamless multi-interface operation, with a switch and extender in one
This HDBaseT extender features a built-in converter switch, so you can connect two HDMI sources as well as a VGA and a DisplayPort video source to the same remote HDMI display, without having to use additional adapters or scalers or a separate video switch.
With support for multiple video sources and HDBaseT, this extender is the perfect solution for adding a large display to your boardroom or classroom, enabling BYOD laptops with HDMI, DisplayPort or VGA outputs to share their display with the room.
Effortless control with automatic or priority switching
The extender switch ensures hassle-free operation, with two different auto-switching modes: auto-detect switching, which detects and selects a newly connected device, or priority selection, which lets you choose which port should be activated by default for automatic switching.
The multi-input video extender kit is perfect for digital signage applications, where an automatic switch can replace a failed source with a secondary input to avoid embarrassing video outages. Plus, the combined built-in HDBaseT functionality means you can connect a remote digital signage display with one kit that reduces failure points.
Hassle-free integration with your existing infrastructure
The kit extends your video signal over a single cable, unlike some video extender systems that require two cables and only offer minimal audio support. Extending your video with one cable reduces potential failure points and also lowers your cabling costs.
Using standard CAT5e, CAT6 or CAT7 cables, the HDBaseT extender works with existing Ethernet infrastructure that's already built into large commercial buildings such as shopping centers, stadiums, schools, and hospitals, making it the perfect solution for deploying digital signage.
Astonishing 4K picture quality from an impressive distance
With high-quality HDMI cables beginning signal degradation at 30 feet, it can be difficult to maintain the brilliance of 4K video even at shorter distances. But with HDBaseT, you’ll be amazed at how your Ultra HD picture -- four times the resolution of high-definition 1080p, is just as brilliant even at distances up to 130 feet from your video source.
Even if you're not running 4K, HDBaseT supports High-Definition 1080p and lower resolutions at even greater distances, up to 230 feet from your source, giving you peace of mind knowing that this extender will comfortably work with any HDMI video source and display.
What is HDBaseT?
HDBaseT is a zero-latency connectivity standard that’s revolutionizing HDMI distribution. HDBaseT uses an advanced method of modulation that enables you to distribute uncompressed HDMI audio and video, along with additional signals, over a single Ethernet cable. Offering greater versatility than traditional HDMI extenders and longer distances than HDMI cables alone, HDBaseT is the clear choice for every integrator and system designer, because it can do so much, with just a single cable.
The STDHVHDBT is TAA compliant and backed by a StarTech.com 2-year warranty with free lifetime technical support.
Transmitter Front View:
1. Selected port LEDs
2. Input selection buttons
3. IR sensor
4. Function buttons
5. Status LED
6. Output buttons
Transmitter Rear View:
1. DC 12V power port
2. (Control) RJ11 serial jack
3. IR Out/In ports
4. HDMI output port
5. HDBaseT output port
6. Audio In 3.5mm port (for VGA)
7. VGA input port
8. DP input port
9. HDMI 1 input port
10. HDMI 2 input port
11. Mode switch
12. Auto Inventory EDID switch
13. EDID COPY button
Receiver Front View:
1. HDMI output
2. Status LED
Receiver Rear View:
1. DC power port
2. HDBaseT input port
3. Grounding bolt
Applications:
Use in your classroom or boardroom display, to enable presenters to connect a wide range of devices
Automatically switch between your set-top box or computer, for remote entertainment displays, in hospitality settings, such as restaurants, bars or hotels
Create brilliant digital signage displays in large commercial settings such as hospitals, shopping centers or stadiums
Features:
Save the hassle and expense of using multiple hardware devices, with a switch and extender in one device that accommodates VGA, DP and HDMI inputs
Maintain astonishing picture quality up to 130 feet away, with support for UltraHD 4K over non-proprietary CAT5e or CAT6 cabling
Supports HD video resolutions such as 1920x1200 or 1080p at distances up to 230 ft. (70 m)
Tidy, professional installation with included mounting brackets
No software or drivers required with plug-and-play installation
Dolby TrueHD, DTS-HD MA Audio
Features
Audio output channels
7.1 channels
Rack mounting
Yes
Plug and Play
Yes
Daisy chain
No
HDBaseT certified
Yes
Maximum refresh rate
60 Hz
Certification
CE, FCC, REACH, TAA
Remote control type
IrDA
Type
AV transmitter & receiver
Maximum resolution
4096 x 2160 pixels
Cable types supported
Cat5e, Cat6
Maximum transfer distance
70 m
Audio system
Multichannel
Supported video modes
720p, 1080p, 2160p
LED indicators
Yes
Product colour
Black
Rubber feet
Yes
Features
Audio output channels
7.1 channels
Rack mounting
Yes
Plug and Play
Yes
Daisy chain
No
HDBaseT certified
Yes
Maximum refresh rate
60 Hz
Certification
CE, FCC, REACH, TAA
Remote control type
IrDA
Type
AV transmitter & receiver
Maximum resolution
4096 x 2160 pixels
Cable types supported
Cat5e, Cat6
Maximum transfer distance
70 m
Audio system
Multichannel
Supported video modes
720p, 1080p, 2160p
Product colour
Black
Audio support
Yes
Sustainability certificates
RoHS
Ports & interfaces
3.5 mm (1/8-inch) in
Yes
Remote (IR) output
1
Remote (IR) input
1
DisplayPorts in
1
RJ-45 input ports
1
RJ-45 output ports
1
VGA (D-Sub) input ports
1
HDMI in
2
Number of HDMI outputs
2
DC-in jack
Yes
Power
Input current
0.6 A
Output current
1.5 A
Power plug type
Type M
AC input voltage
100 - 240 V
Power consumption (typical)
18 W
External power adapter
Yes
Operating voltage
12 V
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-10 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Weight & dimensions
Width
160 mm
Height
40 mm
Depth
100 mm
Weight
918 g
Packaging data
Package width
205 mm
Package height
62 mm
Package depth
298 mm
Package weight
1.68 kg
Quick start guide
Yes
AC adapter included
Yes
Remote control included
Yes
Mounting kit
Yes
Mounting brackets included
Yes
Cables included
LAN (RJ-45), Phone (RJ-11)
Included power plug types
ANZ, EU, NA, UK
Full specification and details can be found in the
Dual HDMI over CAT6 Extender - 1080p
Extend two HDMI signals to distances up to 295 ft. (90m) over a single CAT5e or CAT6 cable
This HDMI® over CAT6 extender lets you extend two HDMI sources up to 90 m (295 ft.), to individual HDMI displays over a single CAT6 cable. Designed for a simple, tidy setup, the extender also supports bi-directional IR control for added flexibility.
Dual source support
Reduce the need for additional equipment and cables, by extending two HDMI connections with a single CAT6 cable. Running only one cable can save cost on installation or enable you to extend two HDMI signals using an existing cable run. You can also use this 1080p HDMI extender to run separate video signals to the same display, for mission critical digital signage applications where if one signal goes down, the other can easily be swapped in it's place.
Bi-directional control
With bi-directional IR control, you can control your devices from either end of the extension, such as a Blu-ray™ player and laptop on one end and two TV displays on the other. The extender includes an IR kit with discreet dongles that easily connect to both your transmitter and receiver, enabling you to remotely control any device you choose from either side of your extension.
Simplified setup
The simplicity of one-cable setup avoids the hassle of running multiple cables, while also reducing potential failure points. The included mounting hardware offers professional mounting options ideal for public spaces such as offices or auditoriums.
The TAA compliant ST222HDBT is backed by a 2-year StarTech.com warranty and free lifetime technical support.
Transmitter Front View:
Transmitter Rear View:
Receiver Front View:
Receiver Rear View:
Applications:
Great for tradeshows where multiple remote source devices need to be placed out of sight
Ideal for auditoriums, lecture halls or other professional presentation venues, where a discreet setup is required
Features:
Extend two separate HDMI sources to their own HDMI 1080p displays with one CAT6 cable
Support for bi-directional IR signals, for remote control from either end of your extension
Extend two 1080p source signals up to 90 m (295 ft.)
Includes mounting brackets
Features
Audio output channels
7.1 channels
Daisy chain
No
Maximum refresh rate
60 Hz
Certification
CE, FCC, TAA
Type
AV transmitter & receiver
Maximum resolution
1920 x 1080 pixels
Cable types supported
Cat5e, Cat6
Maximum transfer distance
90 m
Supported video modes
720p, 1080p
Supported graphics resolutions
1280 x 720 (HD 720), 1920 x 1080 (HD 1080)
LED indicators
Link, Status
Product colour
Black
Chipset
VS2310TX, VS2310RX
Rubber feet
Yes
Wired
Technical details
Audio output channels
7.1 channels
Daisy chain
No
Maximum refresh rate
60 Hz
Certification
CE, FCC, TAA
Type
AV transmitter & receiver
Maximum resolution
1920 x 1080 pixels
Cable types supported
Cat5e, Cat6
Maximum transfer distance
90 m
Supported video modes
720p, 1080p
Supported graphics resolutions
1280 x 720 (HD 720), 1920 x 1080 (HD 1080)
Product colour
Black
Connectivity technology
Sustainability certificates
RoHS
Ports & interfaces
3.5 mm (1/8-inch) out
Yes
3.5 mm (1/8-inch) in
Yes
Remote (IR) output
2
Remote (IR) input
2
Serial ports quantity
2
Serial interface type
RS-232
RJ-45 input ports
1
RJ-45 output ports
1
HDMI in
2
Number of HDMI outputs
2
Audio output
1 x Toslink
Audio input
1 x Toslink
DC-in jack
Yes
Connectivity technology
Wired
Power
Output current
1.5 A
Power plug type
Type M
AC input voltage
100 - 240 V
Operating voltage
12 V
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-10 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Weight & dimensions (Transmitter & Receiver)
Width
130 mm
Height
43 mm
Depth
158 mm
Weight
200 g
Packaging data
Package width
224 mm
Package height
67 mm
Package depth
475 mm
Package weight
1.43 kg
Manual
Yes
Mounting brackets included
Yes
IR receiver included
Yes
IR blaster included
Yes
Cables included
LAN (RJ-45)
Included power plug types
ANZ, EU, JP, NA, UK
Full specification and details can be found in the
HDMI over CAT5e HDBaseT Extender with USB Hub - 295 ft (90m) - Up to 4K
Extend Ultra HD 4K video, an IR signal and four USB devices to a remote location, with power over cable
This HDMI extender kit uses HDBaseT 2.0 technology, enabling you to extend 4K HDMI video and four USB 2.0 peripheral devices to a remote location up to 295 feet (90 meters) away, using a single CAT5e or CAT6 cable. The extender can extend 1080p (HD) video even further at up to 330 feet (100 meters).
You can power both the transmitter and receiver using the same single power source, which you can connect to either the extender or receiver using Power Over Cable (POC). You can also connect up to four USB devices on the remote side and support 3D video and 7.1 digital audio. The versatility of this video extender makes it the perfect solution for digital signage applications in large buildings such as commercial shopping centers, stadiums, schools, and hospitals.
What is HDBaseT?
HDBaseT is a standardized, zero-latency video technology that’s revolutionizing HDMI distribution. HDBaseT uses an advanced method of modulation that enables you to distribute uncompressed HDMI audio and video along with additional signals such as USB and power over cable.
Extend more with HDBaseT
The extender offers a complete end-to-end solution, using HDBaseT technology to extend HDMI, IR, power and USB over a single CAT5e cable. With power and USB along with your video signal, HDBaseT is the clear choice for every integrator and system designer. The added benefit of power over cable means that you’ll only need one power source at one side of your extension, and USB lets you add a console at the remote location - great for extending video and control to areas where power outlets may be limited, such as industrial sites.
Astonishing 4K picture quality from an impressive distance
The A/V industry is quickly adopting 4K as the new high-resolution video standard. But long-range video distribution can be a challenge if you’re using standard HDMI cables because the signal becomes susceptible to degradation at 30 feet. HDBaseT maintains your Ultra HD 4K picture quality - four times the resolution of high-definition 1080p - even at 330 feet away from your video source. Plus, because the extender supports high-definition 1080p and lower resolutions, you can comfortably use this extender to make any video source look great, while future proofing your setup for 4K implementation.
Simplify your setup
This extender has been specifically designed for a simple and tidy installation. HDBaseT technology offers single-cable installation, so you can integrate it seamlessly using your existing CAT5e or CAT6 infrastructure. This means that you can avoid the hassle of running multiple Ethernet cables, while reducing potential failure points.
The extender also features Power-over-Cable technology, so you only need one power source for both the extender and receiver units. Mounting hardware is included for both the extender and receiver, for discreet, professional installation.
The ST121HDBTU is TAA compliant is backed by a 2-year StarTech.com warranty with free lifetime technical support.
HDBaseT is a registered trademark of The HDBaseT Alliance.
Transmitter Unit Front View:
1. IR output
2. IR input
3. 3.5mm audio input
Receiver Unit Rear View:
1. USB peripheral ports
2. IR input
3. IR output
4. 3.5mm audio output
Transmitter Unit Front View:
1. Power jack
2. Link port (RJ-45 connector)
3. HDMI input port
4. USB host port
Receiver Unit Rear View:
1. Power jack
2. Link port (RJ-45 connector)
3. HDMI output port
4. USB peripheral ports
Applications:
Extend USB and video to create a remote kiosk with touchscreen or console control
Place the display in a convenient viewing area, while the system equipment is installed elsewhere in a clean and secure environment
Optimize the placement of your demo stations at tradeshows and in auditoriums
Features:
Extend video to locations where power outlets are limited, with both the transmitter and receiver using a single power source at either side of the connection
Maintain astonishing picture quality up to 295 feet away, with support for UltraHD 4K
Mounting brackets are included for a hassle-free installation
Also supports HD video resolutions such as 1920x1200 or 1080p at 330 ft
No software or drivers required
Supports Dolby TrueHD, DTS-HD Master Audio
Features
Audio output channels
7.1 channels
Plug and Play
Yes
Daisy chain
No
Certification
FCC, CE
Remote control type
IR
Type
AV transmitter & receiver
Maximum resolution
4096 x 2160 pixels
Cable types supported
Cat5e, Cat6
Maximum transfer distance
100 m
Audio system
Multichannel
Supported video modes
720p, 1080p, 2160p
Supported graphics resolutions
1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA)
Technical details
Audio output channels
7.1 channels
Plug and Play
Yes
Daisy chain
No
Certification
FCC, CE
Remote control type
IR
Type
AV transmitter & receiver
Maximum resolution
4096 x 2160 pixels
Cable types supported
Cat5e, Cat6
Maximum transfer distance
100 m
Audio system
Multichannel
Supported video modes
720p, 1080p, 2160p
Supported graphics resolutions
1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA)
Audio support
Yes
Sustainability certificates
RoHS
Ports & interfaces
USB ports quantity
4
USB version
2.0
USB connector type
USB Type-A
RJ-45 output ports
1
HDMI in
1
Number of HDMI outputs
1
Audio output
1
Audio input
1
DC-in jack
Yes
Power
Output current
1.5 A
Power plug type
Type M
AC input voltage
100-240 V
External power adapter
Yes
Operating voltage
12 V
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-10 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Weight & dimensions (Transmitter & Receiver)
Width
75 mm
Height
24 mm
Depth
102 mm
Weight
306 g
Packaging data
Package width
245 mm
Package height
85 mm
Package depth
300 mm
Package weight
1.58 kg
Quick start guide
Yes
AC adapter included
Yes
IR receiver included
Yes
IR blaster included/strong>
Yes
Mounting brackets included
Yes
Cables included
USB
Full specification and details can be found in the
HDMI Over IP Extender Kit - 4K
Deploy HDMI over LAN and get a video over IP solution that’s scalable and features intuitive control that’s ideal for your video wall or other digital signage application
This HDMI® over IP extender gives you the flexibility to locate digital signage displays where you need them. Using your local network to extend a 4K HDMI signal, you can seamlessly distribute video to multiple displays from multiple source devices, making it easy to position your displays, or create a video wall.
You can add additional receivers (sold separately) to distribute your HDMI signal to multiple locations. You can also create a video wall and combine your video source across multiple displays.
The IP receiver also features RS-232 extension which enables you to add a remote serial-operated device.
Versatile configuration options
In a point-to-multipoint setup, you can connect the HDMI over IP kit through a Gigabit LAN portal. You can also connect one or several sources (transmitters) to multiple displays (receivers) over your network, using a Gigabit Ethernet switch with IGMP.
For further scalability, you can combine up to 16 total extender kits. The extender also features a separate 3.5 mm audio source that enables you to switch between the native HDMI audio and a separate 3.5 mm audio source, so you can distribute a single audio source to multiple remote locations over IP.
For smaller-scale applications, you can use the extender kit as a point-to-point video extender by connecting the transmitter and receiver units directly over Cat5 or Cat6 cabling up to 330 feet (100 meters). In this configuration, two independent 3.5 mm audio source can also be extended to separate 3.5 mm speaker systems.
Ultra HD 4K resolution at 30Hz
This HDMI over IP kit delivers astonishing 4K UHD video to your remote 4K displays. With support for 4K, you can achieve an output resolution of up to 3840 x 2160p at 30Hz, which enables you to extend a 4K video source to multiple remote locations -- perfect for distribution throughout large buildings such as schools, hospitals, shopping centers or areas. The extender also works at lower resolutions such as 1080p or 720p.
Manage your video distribution from your mobile device
This HDMI distribution kit features an easy-to-use video control software app to manage your IP video distribution. The app is simple to set up, with automatic hardware detection, and lets you switch video sources for each remote display. You can also create and manage a video wall, for an impressive digital signage presentation.
The software is available on iOS for your iPhone or iPad, Android™ for your smartphone or tablet, and Google Chrome™ browser.
Professional, cost-effective, simple installation
The HDMI over IP extender kit includes optional slot shelf mounting hardware for a tidy installation. Plus, because the extender uses standard non-proprietary CAT5e or CAT6 cable, it eliminates both the expense and hassle of running specialized cables.
Download the StarTech.com Video Control software.
Note: For best performance, a managed network switch with IGMP is recommended for more than one transmitter, or more than four receivers, Non-managed network switches will also limit the performance of other devices on your network. Support for Jumboframes must be enabled to distribute 4K video.
The ST12MHDLAN4K is This product is TAA compliant and backed by a Startech.com 2-year warranty with free lifetime technical support.
Transmitter Unit:
1. Function 1 button
2. Function 2 button
3. Dip rotary switch
4. Serial control port (not active)
5. Serial extension (RS-232 signal)
6. Infrared (in) and (out) ports
7. Audio out port
8. DC 9-12V power jack
9. Network status LED
10. Reset button
11. LAN port (RJ-45)
12. HDMI input port (audio/video)
13. Analog audio source port (3.5 mm stereo)
14. Audio source selection switch
15. Link and power LED
Receiver Unit:
1. Function 1 button
2. Function 2 button
3. Dip rotary switch
4. Serial control (not active)
5. Serial extension (for extending RS-232 signal)
6. Infrared (in) and (out) ports
7. Audio in port
8. Video resolution selection switch
9. DC 9-12V power jack
10. Network status LED
11. Reset button
12. LAN port (RJ-45)
13. HDMI output port (audio/video)
14. Analog audio output (3.5 mm stereo)
15. Link and power LED
Applications:
Distribute a separate 3.5 mm audio source and switch between that source and the native HDMI audio source
Build a multi-display video wall to present entertainment to your patrons with an impressive display at a restaurant or shopping center
Extend HDMI and RS-232 serial to create an interactive digital signage presentation
Display multiple communication boards showing dynamic data such as times and dates on digital charts in airports, train stations, bus stations or hospitals, that can be updated at any time
Present your social media feeds on multiple screens in a large viewing area
Features:
Versatile video distribution with support for large multi-display presentations, video walls, video switching and point-to-point extension
Astonishing picture quality over IP with support for 4K at 30Hz resolution
Free mobile app makes it easy to manage switching video wall control (iOS / Android / Chrome browser)
Tidy, professional installation using the included mounting hardware
Connect using a Gigabit LAN network
Easy point-to-point or point-to-multipoint setup
Extend HDMI using existing network infrastructure
Features
Material
Aluminium
Rack mounting
Yes
Daisy chain
Yes
Maximum refresh rate
30 Hz
Certification
CE, FCC, TAA, REACH
Type
AV transmitter & receiver
Maximum resolution
3840 x 2160 pixels
Cable types supported
Cat5e
Maximum transfer distance
100 m
Audio system
stereo
Supported video modes
720p, 1080p, 2160p
Supported graphics resolutions
1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA), 3840 x 2160
LED indicators
Link, Power, Reset
Product colour
Black
Technical details
Material
Aluminium
Rack mounting
Yes
Daisy chain
Yes
Maximum refresh rate
30 Hz
Certification
CE, FCC, TAA, REACH
Type
AV transmitter & receiver
Maximum resolution
3840 x 2160 pixels
Cable types supported
Cat5e
Maximum transfer distance
100 m
Audio system
stereo
Supported video modes
720p, 1080p, 2160p
Supported graphics resolutions
1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA), 3840 x 2160
Product colour
Black
Audio support
Yes
Sustainability certificates
RoHS
Ports & interfaces
Remote (IR) output
2
Remote (IR) input
2
RJ-11 ports quantity
4
RJ-45 input ports
1
RJ-45 output ports
1
HDMI in
1
Number of HDMI outputs
1
Audio output
2 x 3.5mm
Audio input
2 x 3.5mm
Power
Input current
0.6 A
Output current
1.5 A
Power plug type
Type M
Operating voltage (transmitter)
12 V
Operating voltage (receiver)
12 V
AC input voltage
100-240 V
Power consumption (typical)
18 W
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-10 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Weight & dimensions (Transmitter & Receiver)
Width
117 mm
Height
30 mm
Depth
130 mm
Weight
592 g
Packaging data
Package width
235 mm
Package height
76 mm
Package depth
370 mm
Package weight
2.3 kg
Quick start guide
Yes
Mounting brackets included
Yes
Cables included
LAN (RJ-45), Phone (RJ-11)
Included power plug types
ANZ, EU, NA, UK
Full specification and details can be found in the
HDMI and USB over IP Distribution Kit - 1080p
Deploy content for digital signage through a scalable distribution system with intuitive control and USB extention that’s ideal for point-to-point or video wall applications
This HDMI® over IP kit lets you extend an HDMI signal, as well as four USB peripheral device connections, over your network. You can use additional receivers (sold separately) to distribute the HDMI and USB signals to multiple locations and combine your remote displays to create a video wall while using the USB connection to extend a touch screen to create an interactive digital signage presentation.
Versatile configuration options
In a point-to-multipoint setup, you can connect the HDMI over IP kit through an unmanaged or managed Gigabit LAN portal. You can also connect one or several sources (transmitters) to multiple displays (receivers) over your network, using a managed Gigabit Ethernet switch with IGMP. For further scalability, you can combine up to 16 different extender kits.
For smaller-scale applications, you can use the extender kit as a point-to-point video extender by connecting the transmitter and receiver units directly over Cat5 or Cat6 cabling for a one-to-one HDMI extension up to 330 feet (100 meters).
Manage your video distribution from your mobile device
This HDMI distribution kit features an easy-to-use video control software app that helps you manage your IP video distribution. The app is simple to set up, with automatic hardware detection, and it lets you switch video sources for each remote display. You can also create and manage a video wall, for an impressive digital signage presentation that’s sure to catch your audience’s attention.
The software is available on iOS for your iPhone or iPad, Android™ for your smartphone or tablet, and Google Chrome™ browser.
Professional, cost-effective, simple installation
The HDMI over IP extender kit can be powered using Power over Ethernet to conveniently connect both data and power using an 802.3af PoE switch or injector, avoiding the hassle of external power adapters.
The kit includes optional mounting hardware for a tidy installation. Ideal for high-definition applications, the extender supports 1080p video resolutions and digital stereo audio. Plus, because the extender uses standard non-proprietary Cat5e or Cat6 Ethernet cable with RJ45 connectors, it eliminates both the expense and hassle of running specialized cables.
The extender also features an EDID copy function, which ensures native resolution and maximum compatibility with your display or projector, for a convenient plug-and-play installation.
Download the StarTech.com Video Control software to manage your IP video distribution.
Note: For best performance, a managed network switch with IGMP is recommended if you are using more than one transmitter, or more than four receivers, Non-managed network switches may also limit the performance of other devices connected to the same network.
The ST12MHDLANU is TAA compliant and backed by a StarTech.com 2-year warranty with free lifetime technical support.
Transmitter Unit:
1. USB host port
2. Video input port (HDMI)
3. LAN port (RJ-45 connector)
4. Reset button
5. Power jack
6. Link and power LED
7. Function 2 button
8. Function 1 button
9. Dip rotary switch
10. Serial control (not active)
11. Serial extension (for extending RS232 signal)
Receiver Unit:
1. USB peripheral ports
2. Video output port (HDMI)
3. LAN port (RJ-45 connector)
4. Reset button
5. Power jack
6. Link and power LED
7. Function 2 button
8. Function 1 button
9. Dip rotary switch
10. Serial control (not active)
11. Serial extension (for extending RS232 signal)
Applications:
Build a multi-display video wall to present entertainment to your patrons with an impressive display at a restaurant or shopping center
Extend HDMI and USB to create an interactive digital signage presentation
Display multiple communication boards showing dynamic data such as times and dates on digital charts in airports, train stations, bus stations or hospitals, that can be updated at any time
Present your social media feeds on multiple screens in a large viewing area
Place the display in a convenient viewing area, while the HDMI source equipment is placed elsewhere in a separate, secured environment
Display the same HDMI audio / video signal on multiple displays, for large scale digital signage applications
Extend HDMI using existing infrastructure
Run multiple transmitters and receivers over the same network using a managed switch
Features:
Versatile video distribution with support for large multi-display presentations, video walls, video switching and point-to-point extension
Extends four USB peripheral devices for remote console control
Free mobile app makes it easy to manage switching video wall control (iOS / Android / Chrome browser)
Tidy, professional installation using the included mounting hardware
Connect using a Gigabit LAN network
Easy point-to-point or point-to-multipoint setup
Extend HDMI using existing network infrastructure
Supports video resolutions up to 1920x1080 (1080p)
Can be powered by PoE (Power over Ethernet) or by included power adapter for versatile installation
Features
Material
Aluminium
Rack mounting
Yes
Daisy chain
Yes
Maximum refresh rate
60 Hz
Certification
CE, FCC, TAA, REACH
Type
AV transmitter & receiver
Maximum resolution
1920 x 1200 pixels
Cable types supported
Cat5e
Maximum transfer distance
100 m
Audio system
stereo
Supported video modes
720p, 1080p
LED indicators
Link, Power, Reset
Product colour
Black
BlackRoHS
Technical details
Material
Aluminium
Rack mounting
Yes
Daisy chain
Yes
Maximum refresh rate
60 Hz
Certification
CE, FCC, TAA, REACH
Type
AV transmitter & receiver
Maximum resolution
1920 x 1200 pixels
Cable types supported
Cat5e
Maximum transfer distance
100 m
Audio system
stereo
Supported video modes
720p, 1080p
Product colour
Audio support
Yes
Sustainability certificates
Ports & interfaces
USB ports quantity
5
USB connector type
USB Type-A, USB Type-B
RJ-45 input ports
1
RJ-45 output ports
1
HDMI in
1
Number of HDMI outputs
1
Power
Input current
0.6 A
Output current
1.5 A
Power plug type
Type M
AC input voltage
100 - 240 V
External power adapter
Yes
Operating voltage
5 V
Current
2 A
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-10 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Weight & dimensions (Transmitter & Receiver)
Width
131 mm
Height
27 mm
Depth
131 mm
Weight
1.25 kg
Packaging data
Package width
367 mm
Package height
76 mm
Package depth
238 mm
Package weight
2.2 kg
Quick start guide
Yes
Mounting brackets included
Yes
AC adapter included
Yes
Cables included
LAN (RJ-45)
Full specification and details can be found in the
Multi-Input HDBaseT Extender Kit with Built-In Switch and Video Scaler
Connect four video sources to a remote HDMI display over CAT5e/CAT6 cabling, and easily scale and switch between HDMI, DP or VGA video sources
This multi-input HDBaseT™ extender kit extends your A/V signals to a remote location up to 230 ft. (70 m) away. It features a built-in switch and scaler, so you can choose which video source is output from four independent video sources (2 x HDMI, 1 x VGA and 1 x DisplayPort).
Seamless Integration and Operation
The HDBaseT extender’s built-in converter switch lets you connect two HDMI sources, a VGA source, and a DP source to the same remote and local HDMI display. You don’t need adapters or scalers, or a video switch.
Along with manually switching your video source with easy-to-use buttons, the video extender ensures hassle-free operation with two auto-switching modes: auto-detect switching, which detects and selects a newly connected device, and priority selection, which lets you choose which port is activated by default, for automatic switching.
Built-In Video Scaling
This HDBaseT extender features a built-in scaler that scales the image to 1080p, so you can rest assured your HDMI display will intuitively work with any source that’s connected through it. Scaling is easy to do, with an intuitive OSD that's accessible using buttons on the remote receiver. Newer HDMI displays no longer support legacy resolution video signals. Without support for these common VGA resolutions, your source may not work with your new HDMI display.
High-Definition 1080p Video at 230 Feet (70 Meters)
The extender kit maintains your HD picture quality, even at 230 ft. (70 m) away from your video source, ensuring you can provide the best possible viewing experience.
The ST121HDBTSC is backed by a 2-year StarTech.com warranty and free lifetime technical support.
Transmitter Front View:
1. Selected Port LEDs
2. IR Sensor
3. Output Port LED
4. Input Selection Buttons
5. VGA Input Button/Function Button 1
6. Function Button 2
7. Output Selection Buttons
Transmitter Rear View:
1. DC 12V Power Port
2. IR Out/In Ports
3. HDMI Output Port
4. EDID Copy Button
5. 3.5 mm Audio In Port
6. VGA Input Port
7. DP Input Port
8. Ground
9. (Control) RJ-11 Serial Jack
10. HDBaseT Output Port
11. Auto/Inventory EDID Switch
12. Mode Switch
13. HDMI Input Port #2
14. HDMI Input Port #1
Receiver Front View:
1. Input LED (1 - 4)
2. Status LED
3. Enter Button
4. Navigation Buttons
5. Exit Button
6. Menu Button
Receiver Rear View:
1. RJ11 Control Port
2. Ground
3. DC 12V Power Port
4. IR In/Out Port
5. Port Link Switch
6. HDBaseT Input Port
7. HDMI Output Port
8. 3.5 mm Audio Out Port
Applications:
Create brilliant digital signage displays in large public settings such as hospitals, shopping centers or stadiums
Automatically switch between your set-top box or computer, for remote entertainment displays, in hospitality settings such as restaurants, bars or hotels
Features:
Save hassle and expense with a switch and extender in one device, that accommodates VGA, DP and HDMI inputs
Ensure perfect video connectivity, every time, with a built-in video scaler
Get crystal-clear picture quality at impressive distances with 1080 resolution at up to 230 ft.
Features
Material
Aluminium
Audio output channels
2.0 channels
Rack mounting
Yes
HDCP & EDID bypass
Yes
Daisy chain
No
Maximum refresh rate
CE, FCC, TAA, REACH
Certification
IR
Type
AV repeater
Maximum resolution
4096 x 2160 pixels
Cable types supported
Cat5e, Cat6
Maximum transfer distance
70 m
Supported graphics resolutions
Multichannel
LED indicators
1080p, 2160p
Product colour
1920 x 1200 (WUXGA), 4096 x 2160
Rubber feet
Yes
Technical details
Material
Aluminium
Audio output channels
2.0 channels
Rack mounting
Yes
HDCP & EDID bypass
Yes
Daisy chain
No
Maximum refresh rate
60 Hz
AUX in
Yes
Certification
CE, FCC, TAA
Type
AV transmitter & receiver
Maximum resolution
1920 x 1200 pixels
Cable types supported
Cat5e, Cat6
Maximum transfer distance
70 m
Supported graphics resolutions
640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800, 1360 x 768 (WXGA), 1366 ? 768, 1400 x 1050 (SXGA+), 1440 x 900, 1600 x 1200 (UXGA), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA)
Product colour
Black
Connectivity technology
Wired
Sustainability certificates
RoHS
Ports & interfaces
3.5 mm (1/8-inch) in
Yes
Remote (IR) output
2
Remote (IR) input
2
DisplayPorts in
1
AUX in
Yes
RJ-11 ports quantity
2
RJ-45 input ports
1
RJ-45 output ports
1
VGA (D-Sub) input ports
1
HDMI in
2
Number of HDMI outputs
2
VGA (D-Sub) ports quantity
1
DC-in jack
Yes
Connectivity technology
Wired
Power
Input current
0.6 A
Output current
1.5 A
Power plug type
Type M
AC input voltage
100 - 240 V
Power consumption (typical)
18 W
External power adapter
Yes
Operating voltage
12 V
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-10 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Weight & dimensions (Transmitter & Receiver)
Width
61 mm
Height
67 mm
Depth
106 mm
Weight
2 kg
Packaging data
Package width
98 mm
Package height
40 mm
Package depth
160 mm
Quick start guide
Yes
Quick start guide
Yes
AC adapter included
Yes
IR receiver included
Yes
IR blaster included/strong>
Yes
Remote control included
Yes
Mounting brackets included
Yes
Cables included
LAN (RJ-45), Phone (RJ-11)
Included power plug types
ANZ, EU, JP, NA, UK
Full specification and details can be found in the
3-Port HDBaseT Extender Kit with 3 Receivers - 1x3 HDMI over CAT5e Splitter - Up to 4K
Distribute your HDMI source to three remote displays over standard CAT5e, CAT6 or CAT7 cable
This 3-Port HDBaseT™ extender kit lets you extend an HDMI® source to three remote locations, using HDBaseT technology. The kit includes three remote receiver units, and the transmitter features a local HDMI output, which gives you the ability to keep a fourth HDMI display at your local video source.
A complete extender kit that includes transmitter and receivers
This all-in-one extender kit saves you the complications and compatibility issues that can happen if you're not using the correct receivers. It’s perfect for use in corporate environments such as small or large offices, or in retail, hospitality, and educational establishments.
Astonishing 4K picture quality from an impressive distance
With the A/V industry adopting 4K as its new high-resolution standard, long-range video distribution can be difficult, especially considering the 4K distance limitations on standard HDMI cables. You’ll be amazed at how this HDBase-T extender kit can deliver your video signal to three different locations while maintaining 4K Ultra HD picture quality. You get four times the resolution of high-definition 1080p, even at 115 feet (35 m) away from your video source.
The extender is also backward compatible with 1080p at 230 feet (70 m), so you can comfortably use it to make any video source look great.
Professional installation
HDBaseT technology offers a single-cable installation, so you can integrate this solution seamlessly using your existing CAT5e or CAT6 infrastructure. Plus, each device included with the HDBaseT extender kit is mountable, so you can keep the equipment out of sight in an equipment rack, or on a wall. This helps to reduce clutter and ensure a professional installation that doesn't draw your viewers' attention away from the content on your display. It’s perfect for customer-facing displays in bars or restaurants.
What is HDBaseT?
HDBaseT is a standardized, zero-latency video technology that’s revolutionizing HDMI distribution. HDBaseT uses an advanced method of modulation that enables you to distribute uncompressed HDMI audio and video, along with additional signals, over a single Ethernet cable.
Offering greater versatility than traditional HDMI extenders, and longer distances than HDMI cables alone, HDBaseT is the clear choice for every integrator and system designer. It can do so much, with just a single cable.
The ST124HDBT is backed by a 2-year StarTech.com warranty and free lifetime technical support.
Transmitter front view:
1. HDMI IN port
2. SYNC LED
3. HDMI OUT port - output #4
4. LINK LED
5. EDID switch
6. SERVICE USB port
7. POWER LED
8. DC 24V power port
Transmitter rear view:
1. IR IN port
2. IR OUT port
3. CAT5e/6/7 OUT port - output #1
4. CAT5e/6/7 OUT port - output #2
5. CAT5e/6/7 OUT port - output #3
Receiver front view:
1. POWER LED
2. LINK LED
3. CAT5e/6/7 IN
Receiver rear view:
4. Serial port (not in use)
5. IR IN port
6. IR OUT port
7. HDMI OUT port
Applications:
Route digital signage throughout large environments, such as schools, hospitals, arenas or shopping centers
Extend a single entertainment source to multiple locations in hospitality settings such as bars, hotels or restaurants
Features:
Extends your HDMI video signal to three remote HDMI displays, each in different locations
A complete extender kit that includes the transmitter and three remote receivers
Maintains UHD 4K up to 115 feet away, and HD 1080p up to 230 ft. away, over non-proprietary CAT5e or CAT6 cabling
Mountable, to install securely and out of the way
Dolby TrueHD, DTS-HD MA Audio
Features
Rack mounting
Yes
HDCP & EDID bypass
Yes
Daisy chain
Yes
Maximum refresh rate
30 Hz
Certification
CE, FCC, TAA
Type
AV transmitter & receiver
Maximum resolution
4096 x 2160 pixels
Cable types supported
Cat5e, Cat6, Cat7
Maximum transfer distance
70 m
Supported video modes
720p, 1080p, 2160p
Supported graphics resolutions
1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA), 4096 x 2160
LED indicators
Link, Power
Technical details
Rack mounting
Yes
HDCP & EDID bypass
Yes
Daisy chain
Yes
Maximum refresh rate
30 Hz
Certification
CE, FCC, TAA
Type
AV transmitter & receiver
Maximum resolution
4096 x 2160 pixels
Cable types supported
Cat5e, Cat6, Cat7
Maximum transfer distance
70 m
Supported video modes
720p, 1080p, 2160p
Supported graphics resolutions
1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA), 4096 x 2160
Country of origin
Taiwan
Audio support
Yes
Sustainability certificates
RoHS
Ports & interfaces
Remote (IR) output
1
Remote (IR) input
1
RJ-45 input ports
3
RJ-45 output ports
3
HDMI in
1
Number of HDMI outputs
4
DC-in jack
Yes
Power
Input current
1.5 A
Output current
2.7 A
AC input voltage
100 - 240 V
Power consumption (typical)
64.8 W
Operating voltage
24 V
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-10 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Weight & dimensions (Transmitter & Receiver)
Width
145 mm
Height
30 mm
Depth
200 mm
Weight
1 kg
Packaging data
Package width
299 mm
Package height
98 mm
Package depth
363 mm
Package weight
2.6 kg
Quick start guide
Yes
AC adapter included
Yes
IR receiver included
Yes
Included power plug types
AU, EU, NA, UK
Full specification and details can be found in the
- Review: The 10 Best Wireless Access Points
- Review: The Top 10 Best Ethernet Cables
- What Is An Ethernet Cable And What Does It Do?
- 10 Best CCTV Security IP Cameras For Home & Business
- Review: Best Powerline Adapters In The UK
- Celebrating 20 Years Of Comms Express!
- The Top 10 DrayTek Wireless Access Points
- Best Selling APC Products At Comms Express
- Review: Top 5 Best Performing APC Uninterruptible Power Supply Units (UPS)
- Review: Top 10 Best PDU’s
