Vertiv SA1-01002S Network Equipment Chassis 1U, Black, Rear

The Vertiv Geist SwitchAir- SA1-01002S is a passive 1U airflow management device for switches with rear air intake (non-port side).

Channels provide a dedicated path for cold aisle air to flow to the intake of the switch using the on-board fans of the network devices to pull cool air from the front of the cabinet. The SwitchAir also creates a barrier preventing recirculation of hot exhaust air from the hot aisle from entering switch intakes.

Key Benefits

• Adjustment range 5.75in to 8.5in / 146.00mm to 215.9mm.
• Reduces the chance of network switches overheating by directing cool air to device intakes.
• Reduces the likelihood of premature equipment failure due to high intake temperatures.
• Improves equipment efficiency by providing network equipment with the same cold aisle air temperature as other devices in the rack.
• Decreases wraparound hot airflow from the hot aisle to the cold aisle due to missing blanking panels.
• Standard three-year warranty, upgraded to five years with product registration.

Vertiv Geist SwitchAir models come with a standard three-year warranty that is automatically extended to five years if the product is registered within 120 days of purchase.

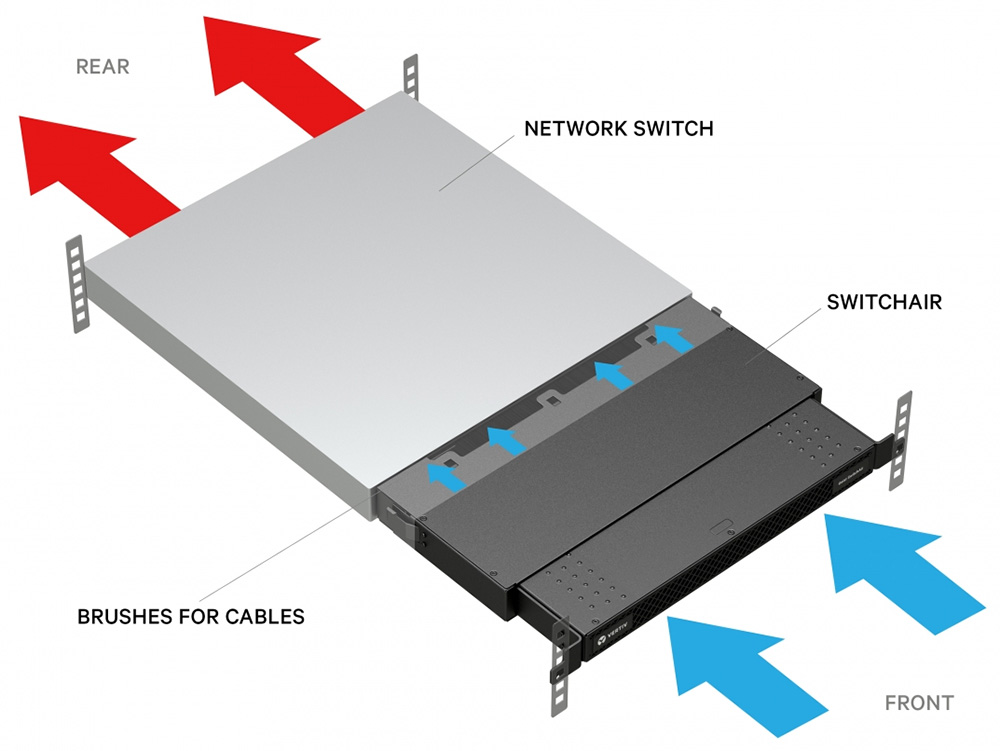

Product Illustration
