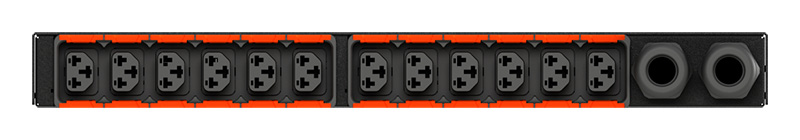

Rack Transfer Switch (RTS) delivers redundant power to single corded devices. The RTS automatically detects the loss of power and switches the power load (no phase-syncronization required) to the alternative power source in less than 4-8 milliseconds without the need for human intervention.
Benefits
Vertiv Geist VA1G8100 RTS Specifications
| Input Monitoriing |
Phase (A) Monitoring (kWh, W, VA, PF, V, A)
Power Measurements Compliant with ANSI C12.1 and IEC 62053-21 at 1% Accuracy Class Requirements |
| Power Switching | Auto Switching - In Event of Power Failure |
| Transfer Time | <4-8ms |
| Voltage (V) | 200-240V |
| Current (A) | 16A |
| VA per Input (Load Capacity) | 3.6kw |
| Input Type | (2) IEC60309 1P+N+E |
| Output Type | (12) Combination C13/C19 |
| Cable Length | 10ft/3m |
| Complete specifications for this PDU can be found in the documentation tab above | |
Rack Transfer Switch (RTS) delivers redundant power to single corded devices. The RTS automatically detects the loss of power and switches the power load (no phase-syncronization required) to the alternative power source in less than 4-8 milliseconds without the need for human intervention.
Benefits
Vertiv Geist VA1G8100 RTS Specifications
| Input Monitoriing |
Phase (A) Monitoring (kWh, W, VA, PF, V, A)
Power Measurements Compliant with ANSI C12.1 and IEC 62053-21 at 1% Accuracy Class Requirements |
| Power Switching | Auto Switching - In Event of Power Failure |
| Transfer Time | <4-8ms |
| Voltage (V) | 200-240V |
| Current (A) | 16A |
| VA per Input (Load Capacity) | 3.6kw |
| Input Type | (2) IEC60309 1P+N+E |
| Output Type | (12) Combination C13/C19 |
| Cable Length | 10ft/3m |
| Complete specifications for this PDU can be found in the documentation tab above | |
Product data is provided by Icecat, we do not warrant the accuracy of the material above.
