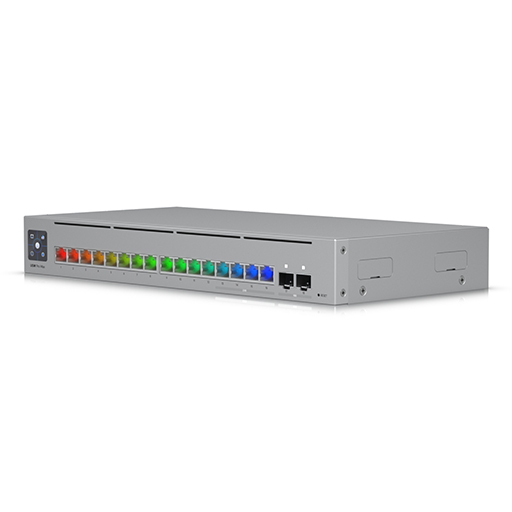

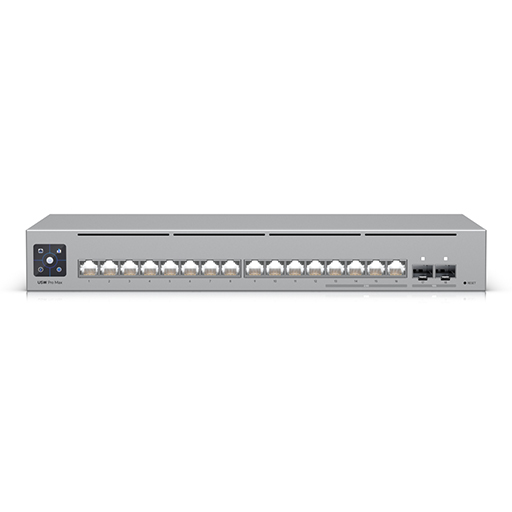

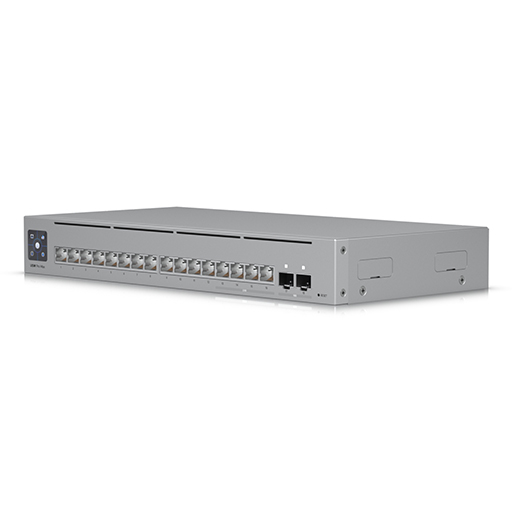

Ubiquiti USW-Pro-Max-16 UniFi Pro Max 16-Port Layer 3 Switch

by Ubiquiti

See more product details

Part No:	FEUSW-Pro-Max-16
Manufacturer No:	USW-Pro-Max-16
Delivery:	In Stock: Next Day Delivery to UK Mainland on orders placed before 4:30pm Mon-Fri currently estimated 1-2 Working Days due to current service disruption. Additional charges may apply dependant on location, floor standing cabinets and other heavy/bulky items.

Looking to save even more money?

Submit a quote request today and we may be able to save you money

Similar & Related Items (See All)

Qty:

Ubiquiti USW-PRO-24 UniFi PRO 24 Port Network Switch

Click to change options

Warranty:

Apply

£305.27 Ex VAT

Qty:

Ubiquiti USW-24-POE UniFi 24 Port Managed Switch Gen2

Click to change options

Warranty:

Apply

£316.92 Ex VAT

Qty:

Ubiquiti USW-Pro-24-POE UniFi 24 Port Managed Switch Gen2

Click to change options

Warranty:

Apply

£519.89 Ex VAT

Qty:

Ubiquiti USW-16-POE UniFi 16 Port Managed Switch Gen2

Click to change options

Warranty:

Apply

£234.03 Ex VAT

Qty:

Ubiquiti US-24-500W UniFiSwitch, 24 Port Managed PoE+ Gigabit Switch

£484.79 Ex VAT

Ubiquiti UniFi Switches

More Related Items

Prism PI 42u 600mm Wide x 1000mm Deep Server Cabinet

Click to change options

Colour:

Door:

Flat Pack:

Accessory Kit:

Apply

£556.25 Ex VAT

Qty:

CE LC - SC Connector Multimode Duplex Fibre Patch Leads

Click to change options

Length:

Fibre Size:

Apply

£6.03 Ex VAT

Qty:

Cat5e RJ45 Ethernet Cable/Patch Leads - Shielded

Click to change options

Length:

Colour:

Apply

£1.10 Ex VAT

Qty:

Excel 24 Port Cat6 Patch Panel - 1u RJ45 UTP

£29.22 Ex VAT

Qty:

Email product to a friend

Your Name:

Your Email:

Recipient Email:

Message:

Scroll to top

Ubiquiti USW-Pro-Max-16 UniFi Pro Max 16-Port Layer 3 Switch

The A 16-port, Layer 3 Etherlighting™ switch 2.5 GbE and versatile mounting options. The Etherlighting™ ports that illuminate to indicate port location, speed/link, and native VLAN/network.

Technical Specifications

Mechanical

Dimensions: 325.1 x 160 x 43.7 mm (12.8 x 6.3 x 1.7")

Weight: 1.95 kg (4.3 lb)

Enclosure material: SGCC steel

Hardware

Management interface: Ethernet In-Band

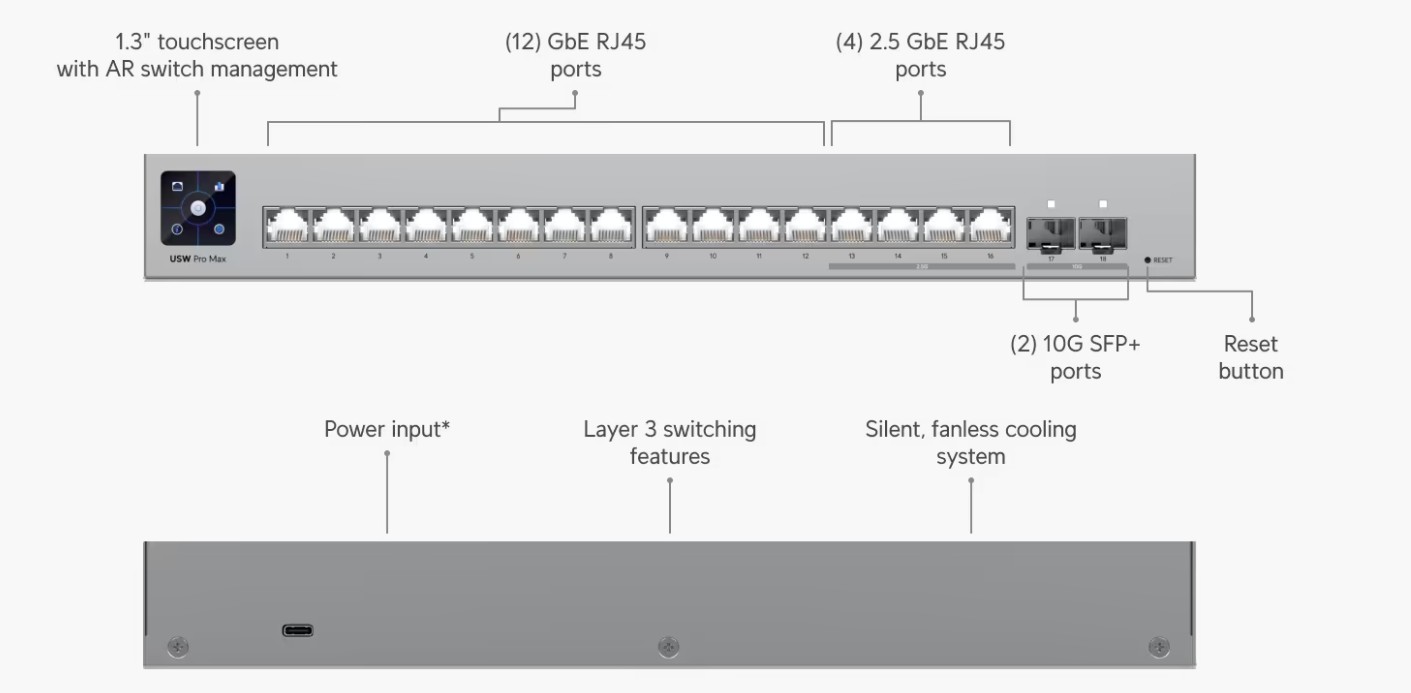

Networking interface: (12) GbE RJ45 ports, (4) 1/2.5 GbE RJ45 ports, (2) 10G SFP+ ports

Total non-blocking throughput: 42 Gbps

Switching capacity: 84 Gbps

Forwarding rate: 62.496 Mpps

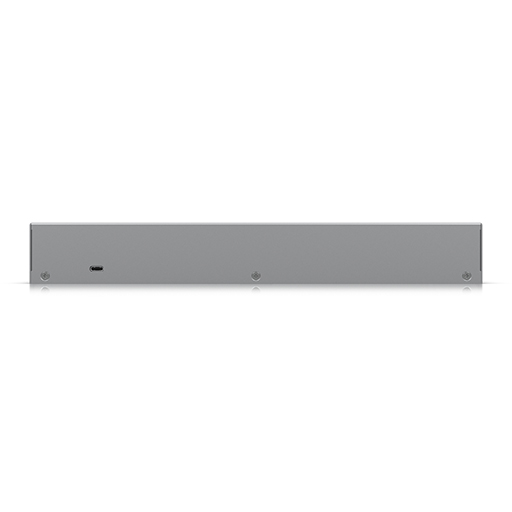

Power method: Type-C adapter

Power supply: 5V, 25W

Max. power consumption: 25W

LCM display: (1) 1.3" touchscreen

Button: Factory reset

Ambient operating temperature: -5 to 40° C (23 to 104° F)

Ambient operating humidity: 10 to 90% noncondensing

Certifications: CE, FCC, IC

Switching Features

Layer 2 features

IGMP snooping

STP / RSTP with priorities and port-level disable

Port isolation

Storm control

Voice VLAN

Port mirroring

LACP port aggregation

Multicast / broadcast rate limiting

MAC address blocking

Flow control

802.1X control

Jumbo frames

Proprietary loop protection

DHCP snooping / guarding

Egress rate limit

LLDP-MED

Port restricted by MAC

Device isolation with ACLs

Layer 3 features

DHCP for locally-managed networks
DHCP relay
Inter-VLAN routing between networks on same switch
Static routing between local networks
Network isolation with ACLs

Etherlighting™

Ethernet: Locating, Speed/link, Native VLAN/network

SFP+: Locating, Speed/link, Native VLAN/network

Application Requirements

UniFi Network : Version 8.1.127 and later

*The images shown are for illustrative purposes only

The A 16-port, Layer 3 Etherlighting™ switch 2.5 GbE and versatile mounting options. The Etherlighting™ ports that illuminate to indicate port location, speed/link, and native VLAN/network.

Technical Specifications

Mechanical

Dimensions: 325.1 x 160 x 43.7 mm (12.8 x 6.3 x 1.7")

Weight: 1.95 kg (4.3 lb)

Enclosure material: SGCC steel

Hardware

Management interface: Ethernet In-Band

Networking interface: (12) GbE RJ45 ports, (4) 1/2.5 GbE RJ45 ports, (2) 10G SFP+ ports

Total non-blocking throughput: 42 Gbps

Switching capacity: 84 Gbps

Forwarding rate: 62.496 Mpps

Power method: Type-C adapter

Power supply: 5V, 25W

Max. power consumption: 25W

LCM display: (1) 1.3" touchscreen

Button: Factory reset

Ambient operating temperature: -5 to 40° C (23 to 104° F)

Ambient operating humidity: 10 to 90% noncondensing

Certifications: CE, FCC, IC

Switching Features

Layer 2 features

IGMP snooping

STP / RSTP with priorities and port-level disable

Port isolation

Storm control

Voice VLAN

Port mirroring

LACP port aggregation

Multicast / broadcast rate limiting

MAC address blocking

Flow control

802.1X control

Jumbo frames

Proprietary loop protection

DHCP snooping / guarding

Egress rate limit

LLDP-MED

Port restricted by MAC

Device isolation with ACLs

Layer 3 features

DHCP for locally-managed networks
DHCP relay
Inter-VLAN routing between networks on same switch
Static routing between local networks
Network isolation with ACLs

Etherlighting™

Ethernet: Locating, Speed/link, Native VLAN/network

SFP+: Locating, Speed/link, Native VLAN/network

Application Requirements

UniFi Network : Version 8.1.127 and later

*The images shown are for illustrative purposes only

Product data is provided by Icecat, we do not warrant the accuracy of the material above.
