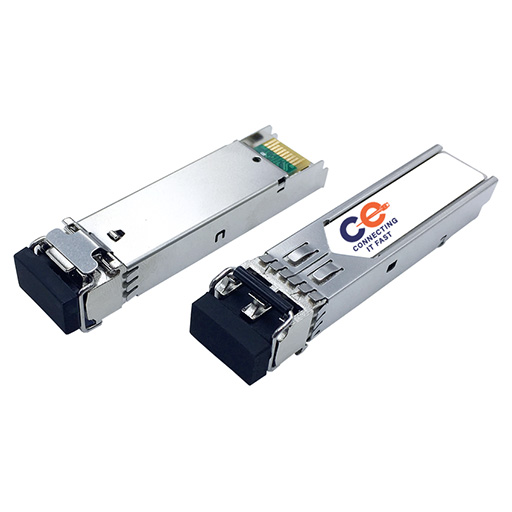

Ubiquiti Compatible UACC-OM-SM-1G-S-2 Transceiver 2 x SFP 1000Base BX

The CE UACC-OM-SM-1G-S-2 Ubiquiti Compatible Transceiver provides 1G bidirectional connectivity over single-mode fibre using a simplex LC UPC connector. Supplied as a 2-pack, the SFP modules support connections of up to 3km and use complementary 1310nm and 1550nm transmit and receive wavelengths.

Key Features of CE Ubiquiti Compatible Transceiver

• 2-pack of 1G bidirectional SFP transceivers
• Supports single-mode fibre connections up to 3km
• Simplex LC UPC connector
• BiDi operation over a single fibre strand
• 1310nm and 1550nm complementary wavelengths
• Supports 1Gbps data transmission
• Maximum power consumption of 0.66W
• Must be used as a matched pair

Bidirectional Fibre Connectivity

The transceiver pair uses BiDi technology to transmit and receive data over a single strand of single-mode fibre. The two modules use complementary wavelengths, with one transmitting at 1310nm and receiving at 1550nm, while its counterpart reverses these wavelengths.

3km Single-Mode Fibre

With a supported cable distance of up to 3km, the modules provide 1G connectivity over single-mode fibre. The simplex LC UPC interface uses one fibre strand for both transmission and reception, making it suitable for BiDi fibre links.

SFP Form Factor

The modules use an SFP form factor and are compatible with SFP interfaces. Each module has a maximum power consumption of 0.66W and operates between 0°C and 70°C.
