| Product Code: | |
| Options: | |
| Qty: | |
| Unit Price: | £ |
| Part No: | FEAMO-5G13 |
| Manufacturer No: | AMO-5G13 |
| Delivery: | In Stock: Next Day |
 |

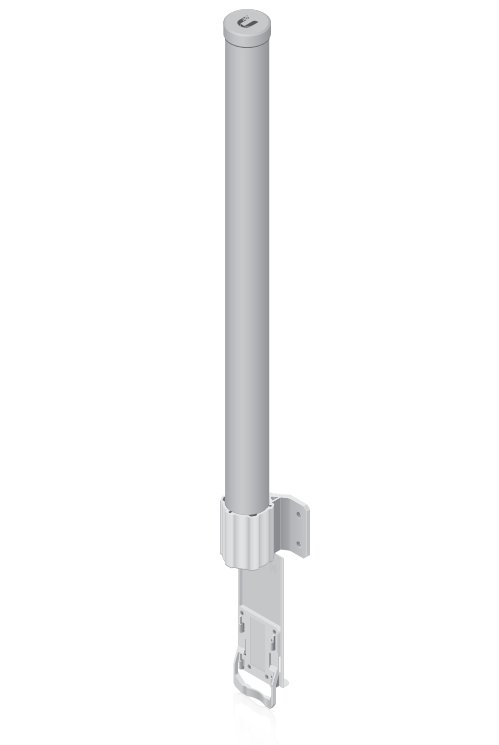

The AMO-5G13 is a 5 GHz, 13 dBi airMAX Omni antenna that provides powerful 360° coverage, 2x2 MIMO performance in Line-of-Sight (LoS) or Non-Line-of-Sight (NLoS) applications. Every airMAX Omni antenna has a built-in Rocket mount, so installation requires no special tools. Snap the Rocket securely into place and mount the antenna; you then have the optimal combination of Rocket radio and airMAX Omni Antenna for your application.
Omnidirectional Coverage airMAX Omni is a Carrier Class 2x2 Dual Polarity MIMO Omnidirectional Antenna that was designed to seamlessly integrate with RocketM radios (RocketM sold separately). Pair the RocketM’s radio with the airMAX Omni’s reach to create a powerful, 360° omnidirectional basestation.. This seamless integration gives network architects unparalleled flexibility and convenience.
Utilize airMAX Technology Unlike standard Wi-Fi protocol, Ubiquiti’s Time Division Multiple Access (TDMA) airMAX protocol allows each client to send and receive data using pre-designated time slots scheduled by an intelligent AP controller. This “time slot” method eliminates hidden node collisions and maximizes airtime efficiency. It provides many magnitudes of performance improvements in latency, throughput, and scalability compared to all other outdoor systems in its class.
Intelligent QoS Priority is given to voice/video for seamless streaming.
Scalability High capacity and scalability.
Long Distance Capable of high-speed, carrier-class links.
Latency Multiple features dramatically reduce noise.
| Performance | |
|---|---|
| Antenna gain level (max) | 13 dBi |
| Frequency band | 5 GHz |
| Vertical beam width (5 GHz) | 2° |
| Horizontal beam width (5 GHz) | 7° |
| Features | |
| Antenna gain level (max) | 13 dBi |
| Frequency band | 5 GHz |
| Antenna type | Sector antenna |
| Voltage Standing Wave Ratio (VSWR) | 1.5:1 |
| Vertical beam width (5 GHz) | 2° |
| Purpose | Outdoor |
| Polarization | Dual polarization |
| Mounting | Wall |
| Horizontal beam width (5 GHz) | 7° |
| Product colour | White |
| Certification | EN 302 326 DN2 |
| Technical details | |
| Antenna gain level (max) | 13 dBi |
| Frequency band | 5 GHz |
| Antenna type | Sector antenna |
| Voltage Standing Wave Ratio (VSWR) | 1.5:1 |
| Vertical beam width (5 GHz) | 2° |
| Purpose | Outdoor |
| Polarization | Dual polarization |
| Mounting | Wall |
| Horizontal beam width (5 GHz) | 7° |
| Harmonized System (HS) code | 85177100 |
| Colour | |
| Product colour | White |
| Certificates | |
| Certification | EN 302 326 DN2 |
| Weight & dimensions | |
| Weight | 820 g |
| Width | 799 mm |
| Depth | 90 mm |
| Height | 65 mm |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
