| Product Code: | |
| Options: | |
| Qty: | |
| Unit Price: | £ |
| Part No: | TLSR42UBDP48 |
| Manufacturer No: | SR42UBDP48 |
| Delivery: | In Stock: 2-3 Weeks |
 |

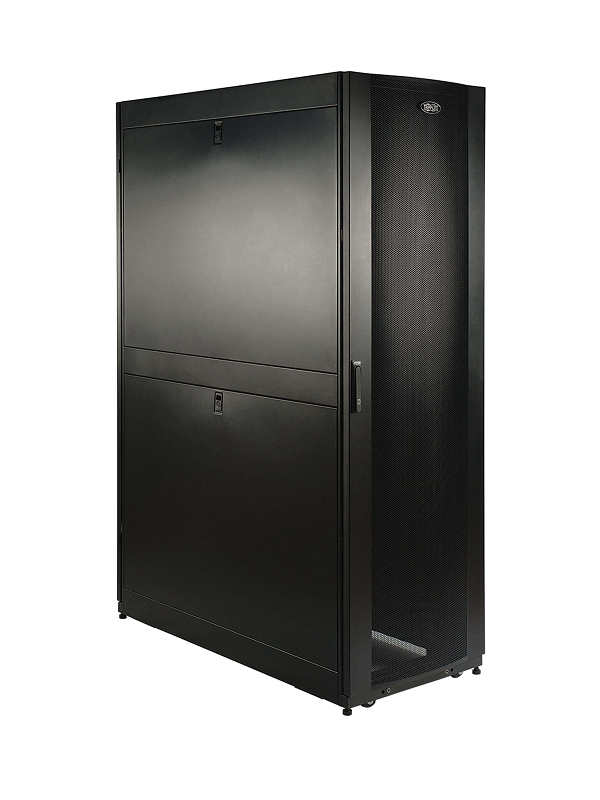

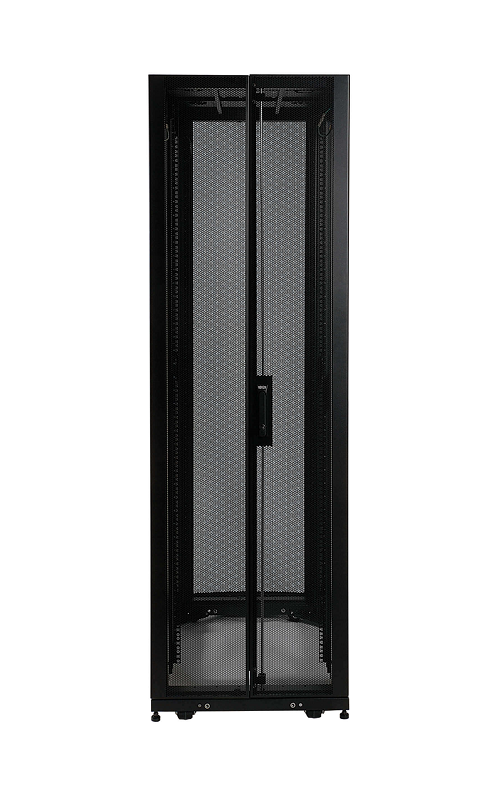

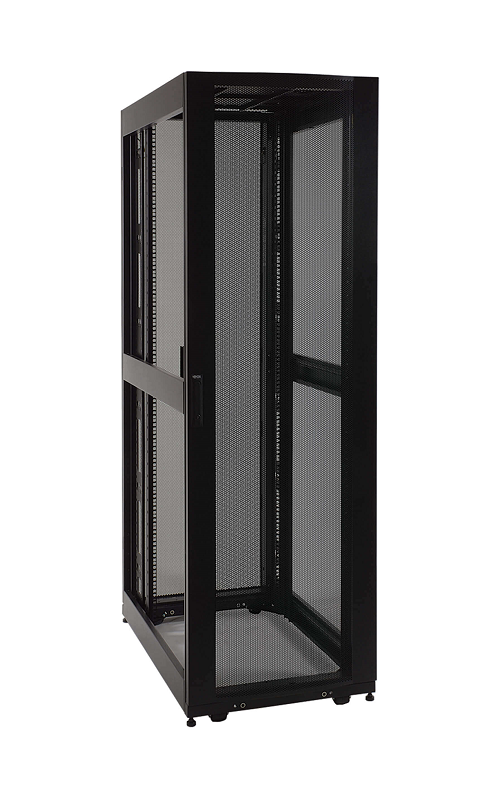

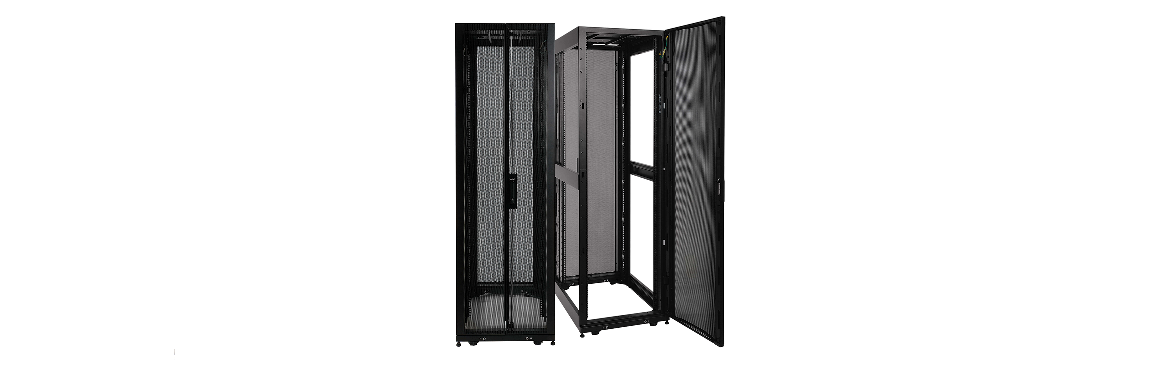

42U SmartRack Extra-Deep Server Rack - 48 in. (1219 mm) Depth, Doors & Side Panels Included
42U rack cabinet houses, organizes and secures extra-deep standard-width rack equipment in high-density server and IT networking areas
Features
Designed for network wiring closets, retail locations, classrooms, back offices and other areas with essential rack-mount IT equipment, this SmartRack® 42U rack enclosure is 48 inches (1219 millimeters) deep. This allows high-density equipment installations, extra space for cable management, and room for removing hot-swap power supplies from the rear of mounted devices. Constructed from heavy-duty steel with a durable black powder-coated finish, the SR42UBDP48 has a maximum stationary load capacity of 3000 lbs (1360.8 kgs) and a maximum rolling load capacity of 2250 lbs (1020.6 kgs).

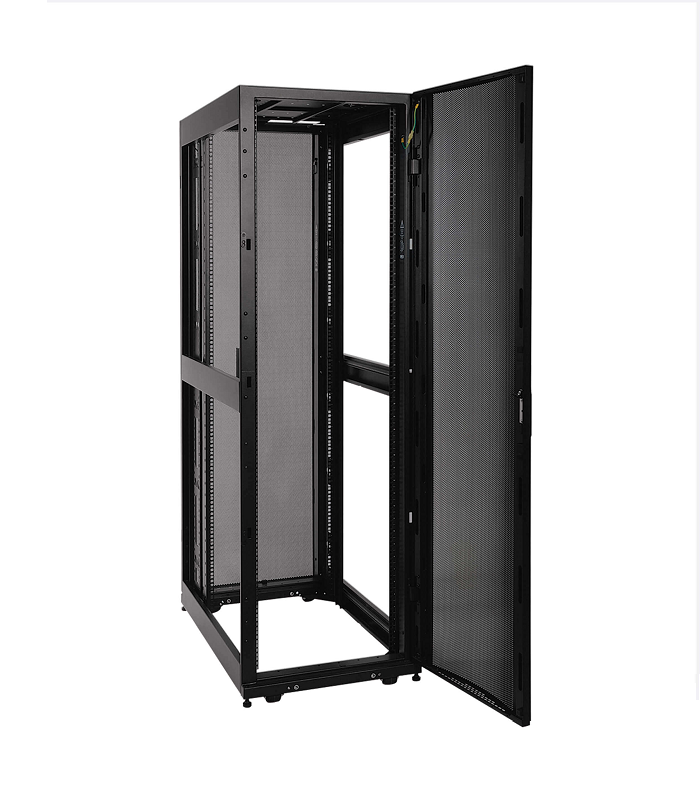

The reversible front door, split rear doors and half-size side panels lock securely to help prevent damage, tampering or theft. The doors, side panels and top panel are designed for quick release, making it easy to access connected equipment and cabling with little effort. Convenient top access ports and an open bottom allow easy cable routing through the cabinet. The vented doors allow generous airflow from front to rear to keep your equipment cool and functioning at its peak.

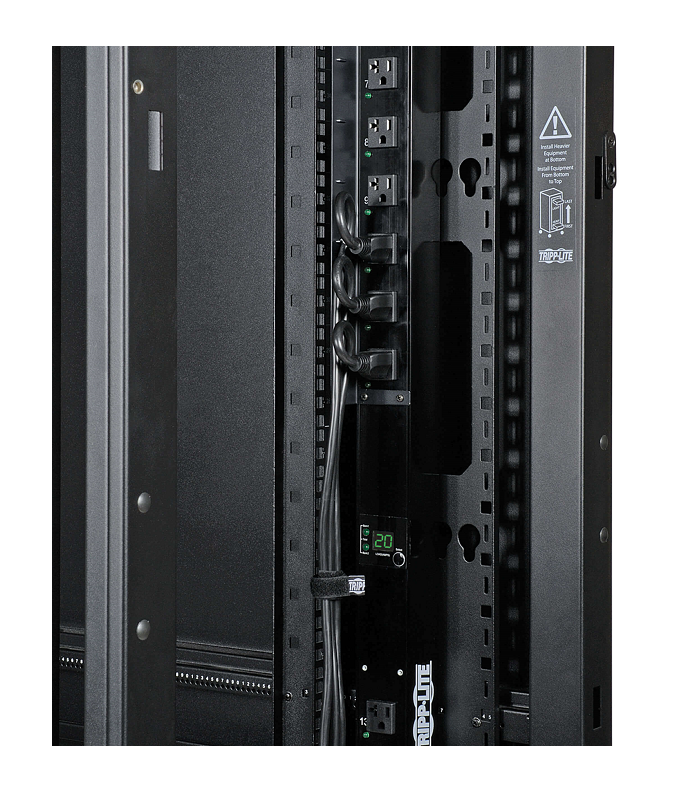

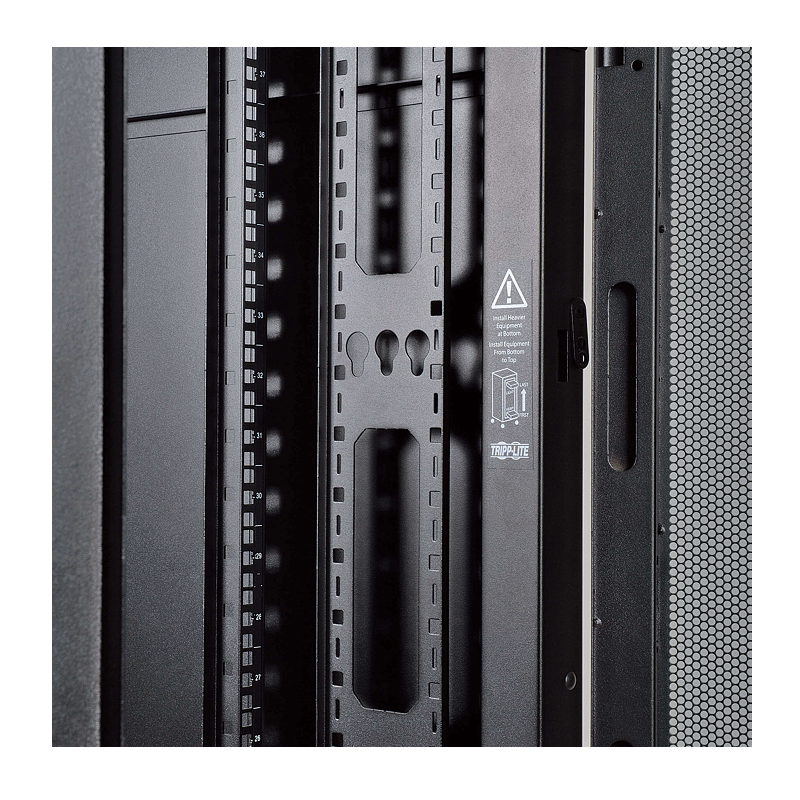

This 42U server rack comes fully assembled for quick and easy deployment with pre-installed casters that let you maneuver it over a level, smooth, stable surface and through a standard 7-ft. (2.13 m) doorway into position, where it can be stabilized by adjusting the levelers. Four mounting rails adjust in quarter-inch increments from four to 42 inches. Two rails also support toolless 0U mounting for quick installation of up to four compatible PDUs and vertical cable managers to help cut down on clutter.
Built-in baying brackets and removable side panels allow the combination of two or more rack cabinets in a row. Center-to-center width can be set at 24 inches (600 millimeters) to match standard data-center floor tiles.
The SR42UBDP48 provides physical equipment and media security required for PCI DSS (Payment Card Industry Data Security Standard) compliance. This is essential for companies that process, store and/or transmit credit card information.
Typical Applications
Package Includes
| Overview | |
| UPC Code | 037332239242 |
| Device Compatibility | Patch Panel; Network Switch; UPS; Server |
| Rack Type | Enclosure |
| Physical | |
| Colour | Black |
| Factory Preset Rack Depth | 71.4 cm / 714 mm |
| Maximum Device Depth | 119.79 cm / 1,198 mm |
| Minimum Device Depth | 10.16 cm / 102 mm |
| Rack Height | 42U |
| Shipping Dimensions (height x width x depth) | 215.90 x 85.09 x 133.98 cm |
| Shipping Weight | 180.08 kg |
| Unit Dimensions (height x width x depth) | 199.39 x 60.02 x 120.1 cm |
| Unit Weight | 142.88 kg |
| Weight Capacity - Rolling | 1,021 kg |
| Weight Capacity - Stationary | 1,361 kg |
| Rack Depth | Extra Depth |
| Number of Vertical Mounting Rails | 4 |
Full specification and details can be found in the PDF file
