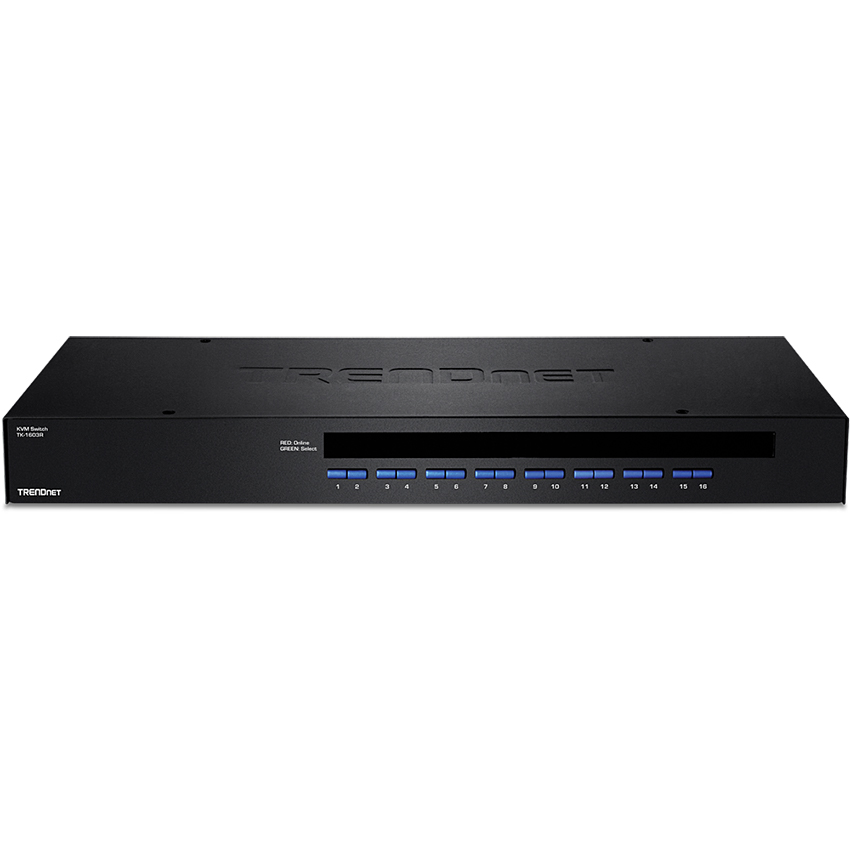

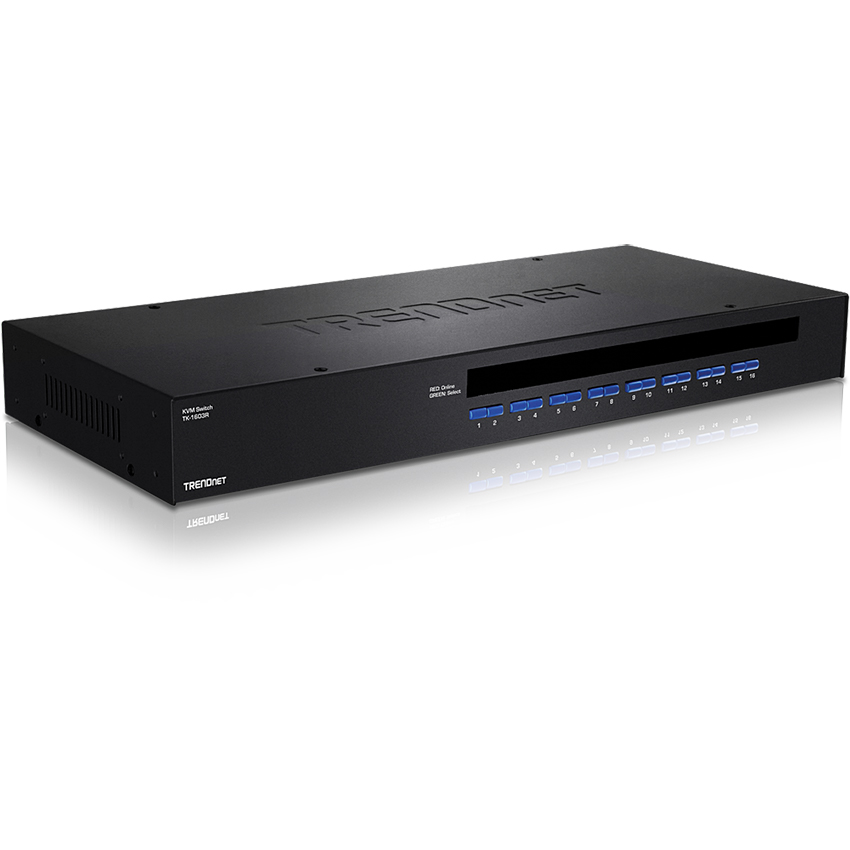

TRENDnet TK-1603R 16-Port Rackmount KVM Switch

TRENDnet's 16-Port Rackmount VGA KVM Switch, model TK-1603R, lets you manage multiple computers with just one set of keyboard, monitor, and mouse.

This rackmount KVM switch supports USB and PS/2 interface on the console side, and USB only on the PC side. Popular hardware platforms such as Windows, Linux, and Mac are supported.

Users can switch between PCs using hot-key or push button for flexible management. Users can also hot-plug PCs on the fly to avoid downtime.

The 16-Port Rackmount KVM Switch is the perfect choice for managing multiple PC's.

Key Features:

• Controls up to 16 computers or servers

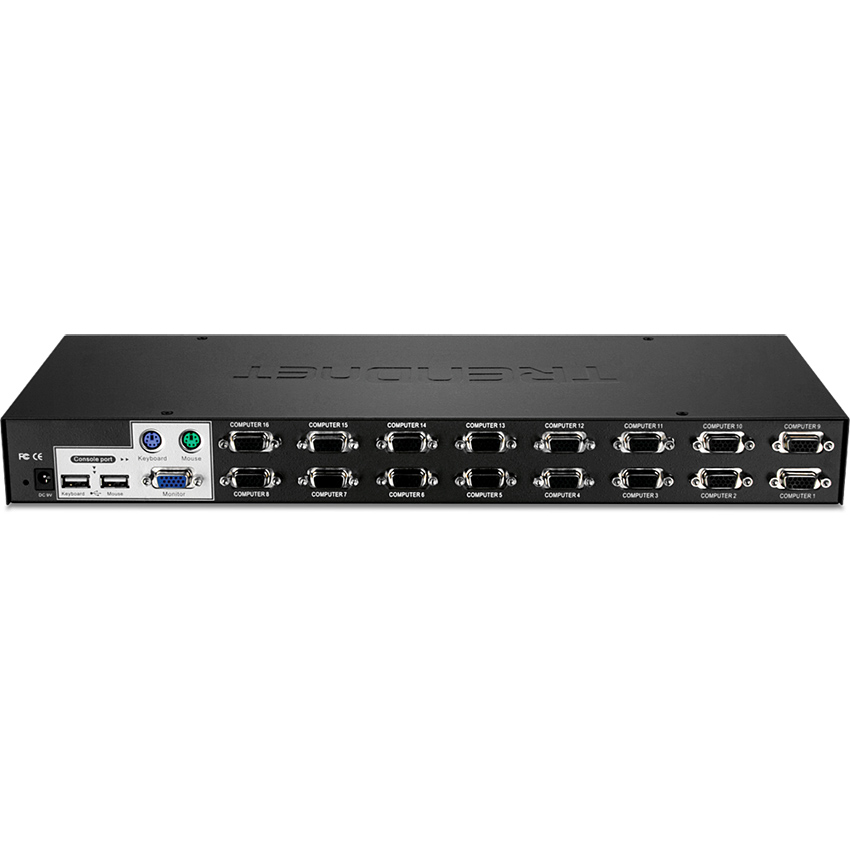

• Console port supports both USB and PS/2 for keyboard and mouse interfaces
• USB only for PC side mouse and keyboard connections
• Supports Windows®, Linux®, Mac OS® and more
• Supports up to 2048 x 1536 VGA resolution
• Auto-scan for monitored PCs with adjustable scan interval from 10-99 seconds
• Keyboard status restored when switching between computers
• LEDs display for easy status monitoring
• Audio notification for port switching confirmation (enable/disable)
• Keyboard hot-key command or push button switching
• Plug & Play and Hot-Pluggable
• Required cabling sold separately (TK-CU06 / TK-CU10 / TK-CU15)
• Standard 19” (1U) rackmount design
• 2 year warranty

Datasheets / User Manuals / Quick Start Guides can be downloaded from our Documentation tab (above)
