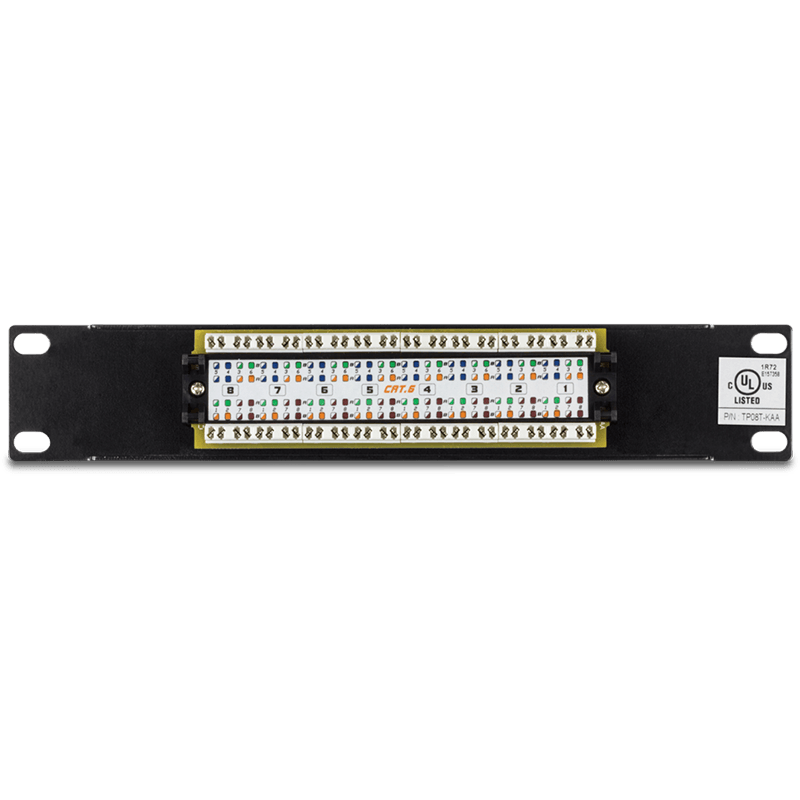

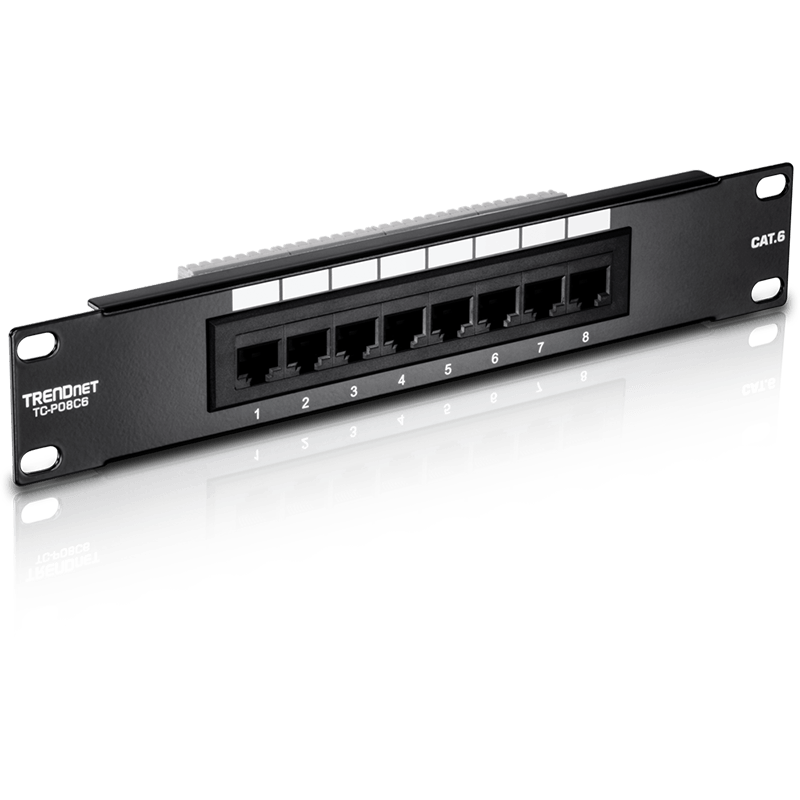

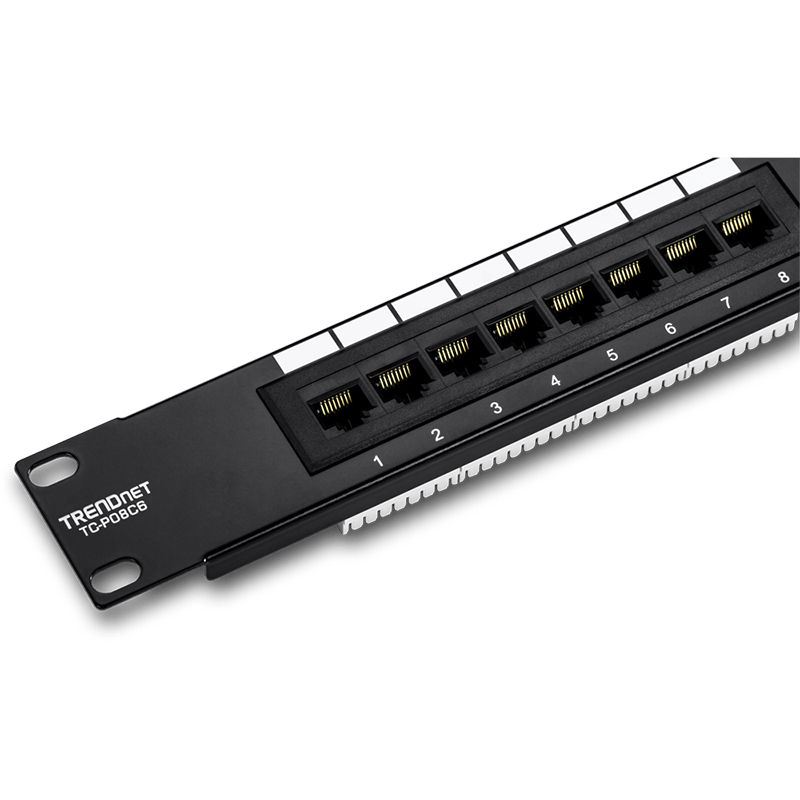

TRENDnet TC-P08C6 8-Port Cat6 Unshielded Patch Panel

The 8-Port Cat. 6 Unshielded Patch Panel, model TC-P08C6, provides a 250 MHz connection to 8 x Gigabit RJ-45 Ethernet ports.

This 10 inch wide patch panel is well suited for home and SMB applications.

Control cable clutter with included removable cable pass-through holders and cable ties. A writing surface above each port allows users to label respective connections.

Use with TRENDnet's Punch Down Tool with 110 and Krone Blade, model TC-PDT, and RJ-11/RJ-45 crimp/cut/strip tool, model TC-CT68.

Key Features:

• 8 x 1000Base-T Gigabit RJ-45 ports
• Supports a 250 MHz connection
• Cat. 6 colour coded labeling for T568A and T568B wiring schemes
• IDC terminal blocks are compatible with 110 and Krone style connectors
• Labels above each port Cat. 6 transmission performance compliant with ANSI, TIA, and EIA 568 B.2 standards
• Nylon cable ties and holders included
• 3-year limited warranty
• 8 x Gigabit RJ-45 ports
• 10 inch wide patch panel is well suited for home and SMB applications
• Designed for Category 6 cabling
• Includes cable management holders, tie, and port labels
• Use with TRENDnet TC-PDT Punch Down Tool

Datasheets / User Manuals / Quick Start Guides can be downloaded from our Documentation tab (above)
