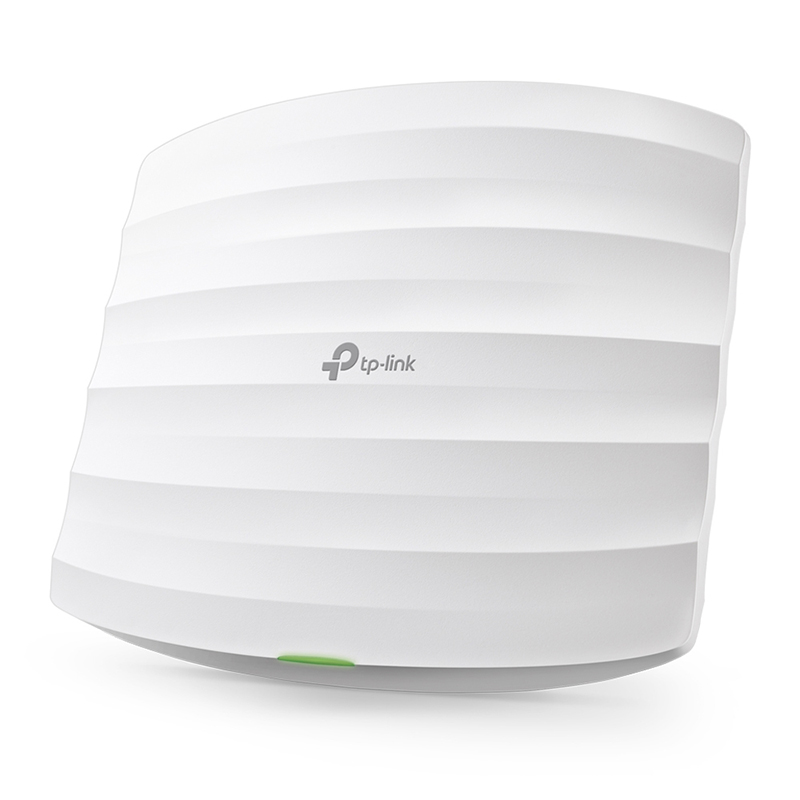

TP-Link Omada EAP110

The Omada EAP110 by TP-Link provides a business-class wireless network solution that’s flexible, manageable, secure, and easy-to-deploy. Featuring cloud access, Omada Cloud Controller OC200 or Omada Software Controller allow users to centrally manage the entire Omada networks in the remote site. And the intuitive Omada app makes network management incredibly convenient. Omada EAPs also feature captive portal and advanced RF management functions, which make them ideal for demanding, high-traffic environments such as campuses, hotels, malls and offices..

• Free cloud centralised management and Omada app for ultra convenience and easy management

• Supports passive PoE for convenient installation up to 100 metres

• Simple mounting design for easy attachment to a wall or ceiling

• Secure guest network along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies

• Enterprise class Wi-Fi security help to decrease network security threats

• Multi-SSID divides multiple wireless networks for different user types

• Supports management VLAN for an enhanced network management

Flexible Placement

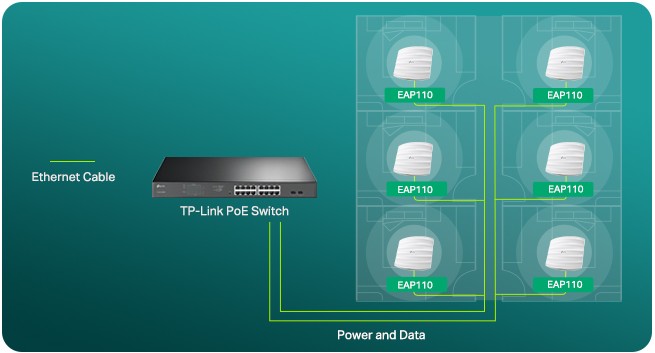

Easy mounting design & PoE

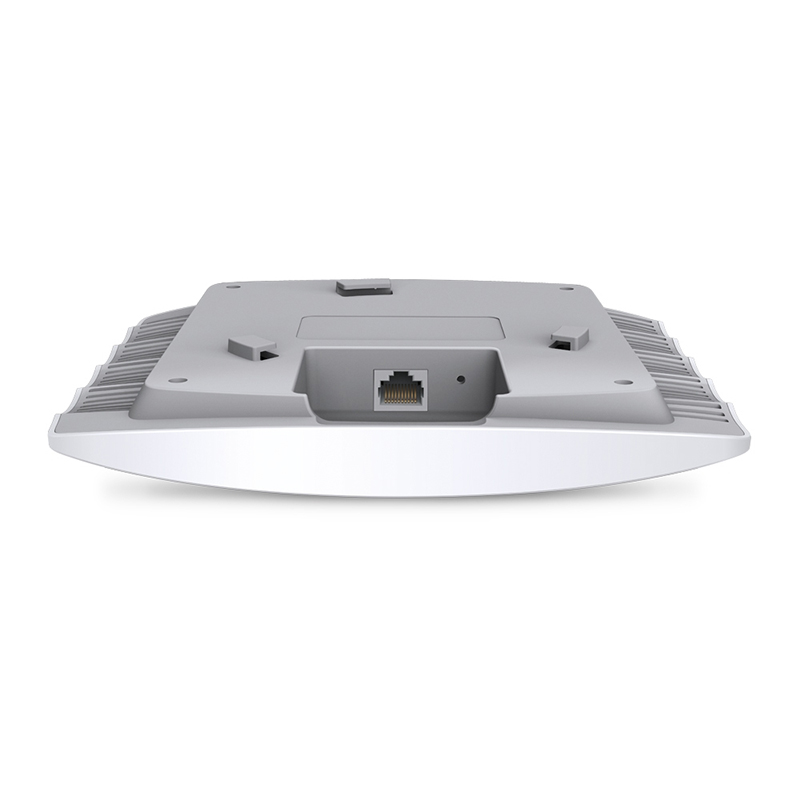

The EAP’s elegant appearance and easy mounting design with chassis make it easy to be integrated seamlessly into any wall or ceiling surface to blend in with most interior decorations. EAP110 supports Passive PoE to make deployment effortless and flexible.

Free Cloud Centralised Management - Anytime, Anywhere

Omada Cloud Controller OC200 and Omada Software Controller make it easy to manage and monitor the whole Omada network in real-time, while cloud service enables remote and secure access no matter where you find yourself.

Easy Management with the Omada App

Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet..

Guest Network with Facebook and SMS Support

Captive portal helps maintain only authorised guests to use the network, presenting devices with a convenient, user-friendly authentication method to grant Wi-Fi access. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and boost your business.

Model	Omada EAP225-wall	Omada EAP245v3	Omada EAP225v3	Omada EAP115	Omada EAP110
Product Name	AC1200 Wireless MUMIMO Wall Plate Access Point	AC1750 Wireless MU-MIMO Gigabit Ceiling Mount Access Point	AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point	300Mbps Wireless N Access Point	300Mbps Wireless N Access Point
Speed	2.4GHz : 300Mbps 5GHz : 867Mbps	2.4GHz : 450Mbps 5GHz : 1300Mbps	2.4GHz : 450Mbps 5GHz : 867Mbps	2.4GHz : 300Mbps	2.4GHz : 300Mbps
Ethernet Port	4 × 10/100Mbps Port	2 × Gigabit Port	1 × Gigabit Port	1 × 10/100Mbps Port	1 × 10/100Mbps Port
Power Supply	802.3af/at PoE +	802.3af & 48V Passive PoE	802.3af & 24V Passive PoE	802.3af & 9V/0.6A DC	24v Passive PoE
Internal Antennas	2.4GHz:2×2.3dBi 5GHz: 2×4dBi	2.4GHz: 3×3.5dBi 5GHz: 3×4dBi	2.4GHz: 3×4dBi 5GHz: 2×5dBi	2×4dBi	2×4dBi
