TP-Link LS1210GP 10-Port Gigabit Desktop Switch with 8-Port PoE+

The LS1210GP is a high-performance 10-port gigabit switch, boasting 8 PoE+ ports, 250m PoE transmission, and isolation mode for robust network security and seamless connectivity.

Features

• Full Gigabit Ports: 9× gigabit auto-negotiation RJ45 Ethernet ports and 1× gigabit SFP port provide up to 20 Gbps switching capacity.
• 61 W PoE Budget: Eight gigabit 802.3af/at-compliant PoE+ ports easily connect and power fixed devices like IP cameras, access points, and IP phones via a single cable. Up to 30 W PoE output is supported by each PoE port.*

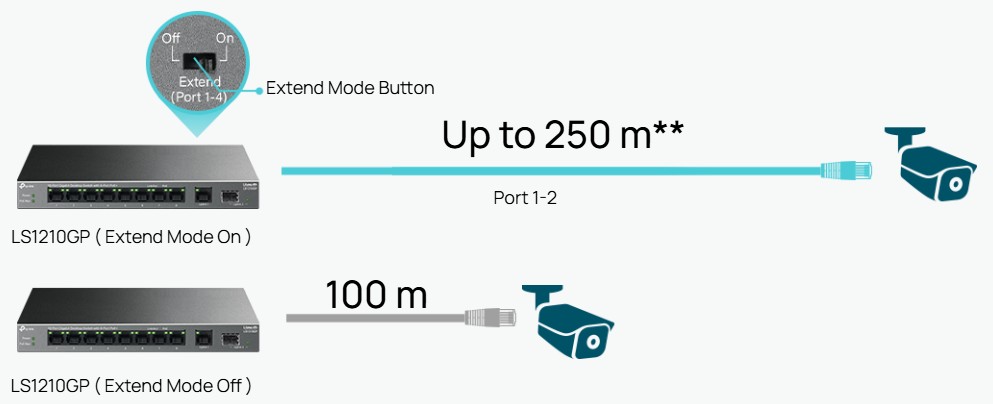

• Up to 250 m PoE Transmission: With Extend Mode, PoE transmission distance reaches up to 250m, perfect for surveillance camera deployment in large areas.**

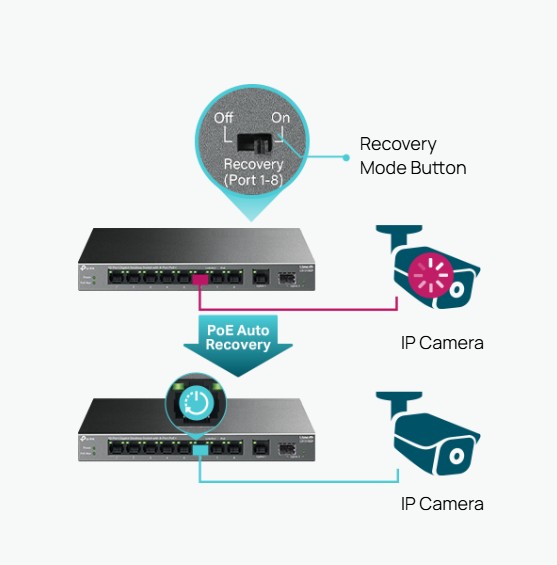

• PoE Auto Recovery: Automatically reboots your dropped or unresponsive PoE-powered devices.

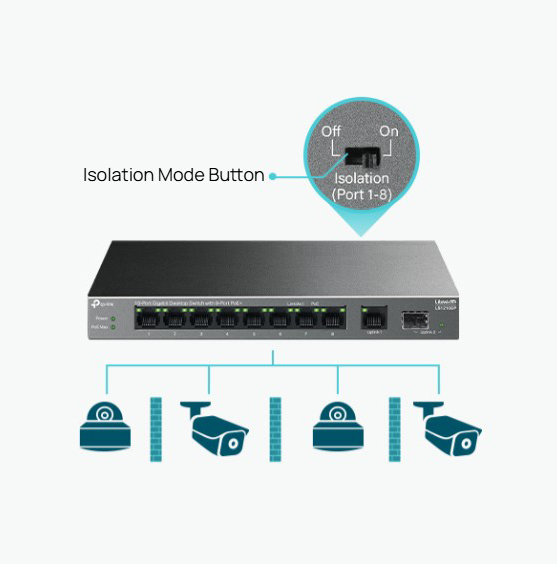

• Traffic Separation for Higher Security: Isolation Mode allows one-click client traffic separation to avoid snooping and tampering, and isolate broadcast storm.
• Plug and Play: Simply plug and play for instant connectivity with no configuration required.
• Silent Operation: Fanless design reduces power consumption and ensures silent operation, ideal for noise-sensitive homes or businesses.
• Reliable Hardware Design: Durable metal casing and desktop/wall-mounting design are well-suited for different environments.

What's in the box

• LS1210GP
• Power Adapter
• Installation Guide

Specifications

• Interface: 9× 10/100/1000 Mbps RJ45 Ports (Ports 1–8 supports PoE+ output), 1× Gigabit SFP Port
• Fan Quantity: Fanless
• Power Supply: External Power Adapter(Output: 53.5VDC / 1.31A)
• Dimensions: 8.2×4.9×1.0 in (209×126×26 mm)
• Mounting: Desktop, Wall Mounting
• Power Consumption: 7.3 W (220/50Hz. no PD connected), 76.96 W (220/50Hz. with 61 W PD connected)
• Performance:
  • Switching Capacity: 20 Gbps
  • Packet Forwarding Rate: 14.88 Mpps
  • MAC Address Table: 4K
  • Jumbo Frame: 16 KB
• Advanced Features:
  • Extend Mode Button (Ports 1–4, Up to 250 m PoE power supply and data transmission)
  • Isolation Mode Button (Ports 1–8)
  • PoE Auto Recovery Button (Ports 1–8)
  • Compatible With IEEE 802.3af/at Compliant PDs
  • IEEE802.3x Flow Control
  • 802.1p/DSCP QoS
  • IGMP Snooping
  • Green Technology
• Management: Transmission Method: Store-And-Forward
• System Requirements: Certification: CE, FCC, RoHS

*For complete specification see the documentation tab above
