TP-Link EAP772 BE9300 Ceiling Mount Tri-Band Wi-Fi 7 Access Point

The TP-Link EAP772 BE9300 Ceiling Mount Tri-Band Wi-Fi 7 Access Point delivers ultra-fast wireless performance across three bands, providing high-speed connectivity for high-density environments. With support for the latest Wi-Fi 7 standard, a 2.5G uplink port, and advanced features like Multi-Link Operation, Multi-RUs, and 320 MHz bandwidth, it ensures smooth, low-latency connections for multiple devices simultaneously. Ceiling-mount design, PoE support, and centralized Omada SDN management make deployment and network oversight simple and flexible.

Key Features of TP-Link EAP772

• BE9300 Tri-Band Wi-Fi 7: 5760 Mbps (6 GHz) + 2880 Mbps (5 GHz) + 574 Mbps (2.4 GHz)
• A clear 6 GHz band provides cleaner and wider band resources
• 1 × 2.5G port unlocks the full potential of Wi-Fi 7
• 320 MHz bandwidth enables more simultaneous transmissions
• Multi-Link Operation and Multi-RUs for high network performance
• Advanced functions include centralized management, mesh, and AI roaming

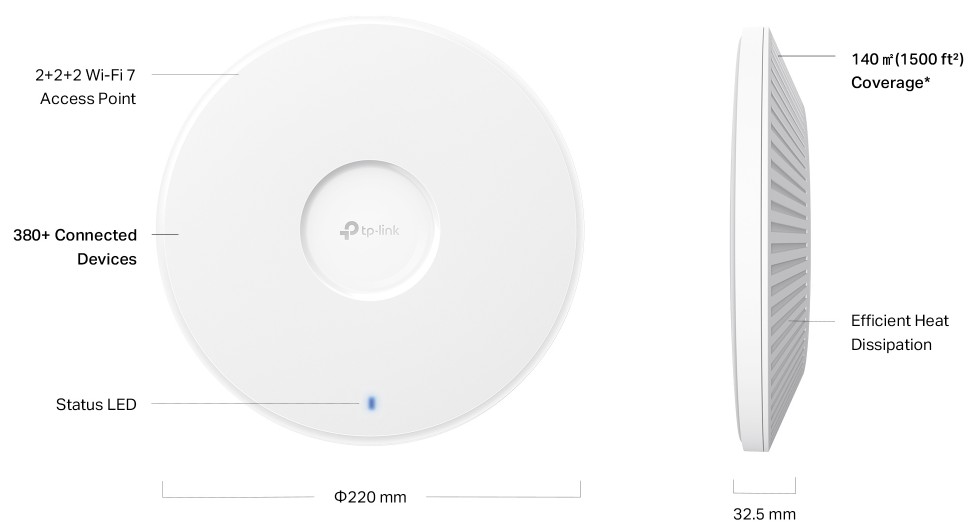

Ultra-Thin Design for Flexible Deployment

The overall design of EAP772 utilizes a thinner circular arc with a groove around the top cover, fitting closer to various installation surfaces such as ceilings. The compact internal hardware layout and heat-dissipating design ensure high performance with a sharp aesthetic.

---

WiFi 7 Supersized Throughput

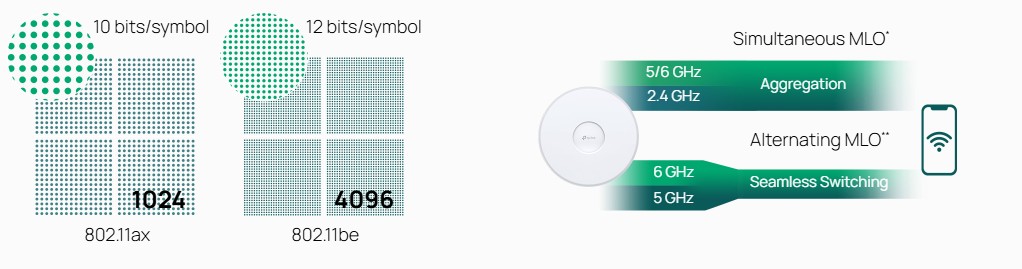

4096-QAM for Higher Capacity

MLO for Lower Latency

*STR-MLMR MLO Mode (Simultaneous Transmit and Receive Multi-Link Multi-Radio Operation Mode) **E-MLSR MLO Mode (Enhanced Multi-Link Single Radio Operation Mode)

---

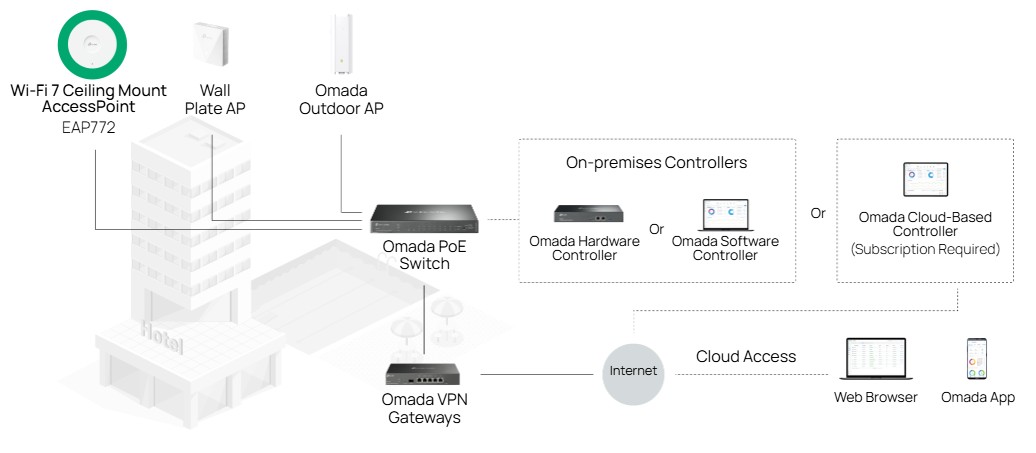

Software Defined Networking (SDN) with Cloud Access
