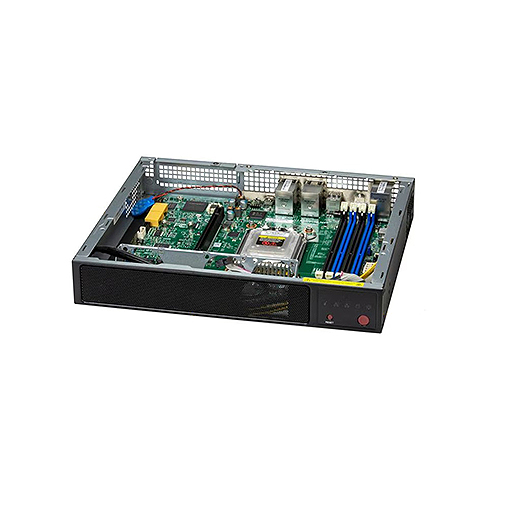

Supermicro AS -E300-14GR-01-G2 IoT SuperServer - 32GB DDR5-5600, 180W Power Adapter

The Supermicro AS-E300-14GR-01-G2 IoT SuperServer delivers server-class performance in a compact Mini-1U chassis designed for space-conscious edge deployments. Powered by an AMD EPYC 4545P processor with 16 cores and 32 threads, this system provides the processing capability required for data handling, automation, monitoring, and intelligent edge applications.

Key Features of Supermicro AS-E300-14GR-01-G2

• AMD EPYC 4545P processor with 16 cores and 32 threads
• 32GB DDR5-5600 ECC UDIMM memory
• 960GB M.2 NVMe SSD storage
• Mini-1U compact embedded chassis design
• Four 1GbE LAN ports with dedicated IPMI management
• PCIe 5.0 x16 low-profile expansion slot
• HDMI 2.1 and Mini DisplayPort connectivity
• USB 3.2 connectivity options

Efficient Memory and Storage

Featuring 32GB of DDR5-5600 ECC UDIMM memory, the AS-E300-14GR-01-G2 supports fast data access and dependable operation for demanding workloads. The system includes a 960GB M.2 NVMe SSD for quick storage performance, while additional M.2 expansion options provide flexibility for future storage requirements.

Flexible Connectivity

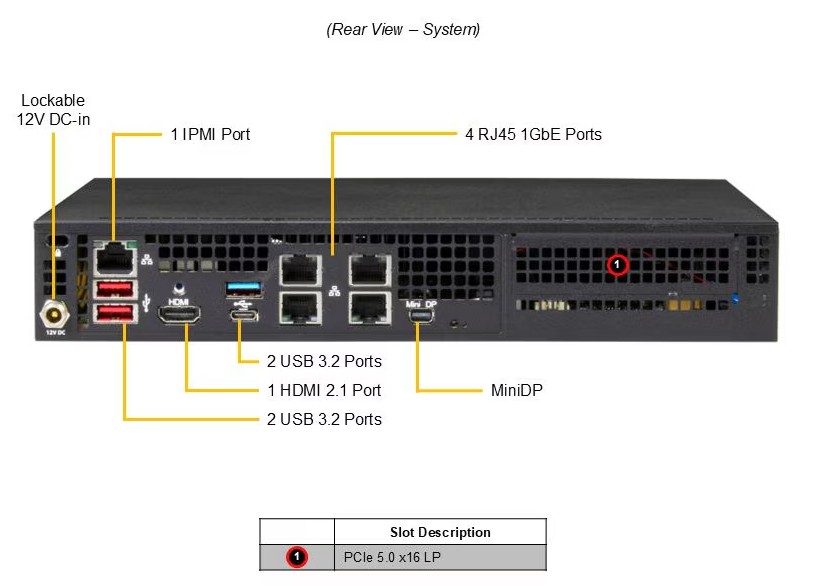

Built with multiple networking and expansion options, this IoT SuperServer includes four 1GbE LAN ports, a dedicated IPMI management port, and a PCIe 5.0 x16 low-profile expansion slot. These features allow the system to connect with a wide range of peripherals, devices, and edge infrastructure.

Compact Design for Versatile Deployment

The Mini-1U fan-based chassis offers a small footprint while maintaining server management capabilities. With HDMI 2.1, Mini DisplayPort, USB connectivity, and a 180W power adapter, the AS-E300-14GR-01-G2 is suited for locations where space, reliability, and remote administration are important.
