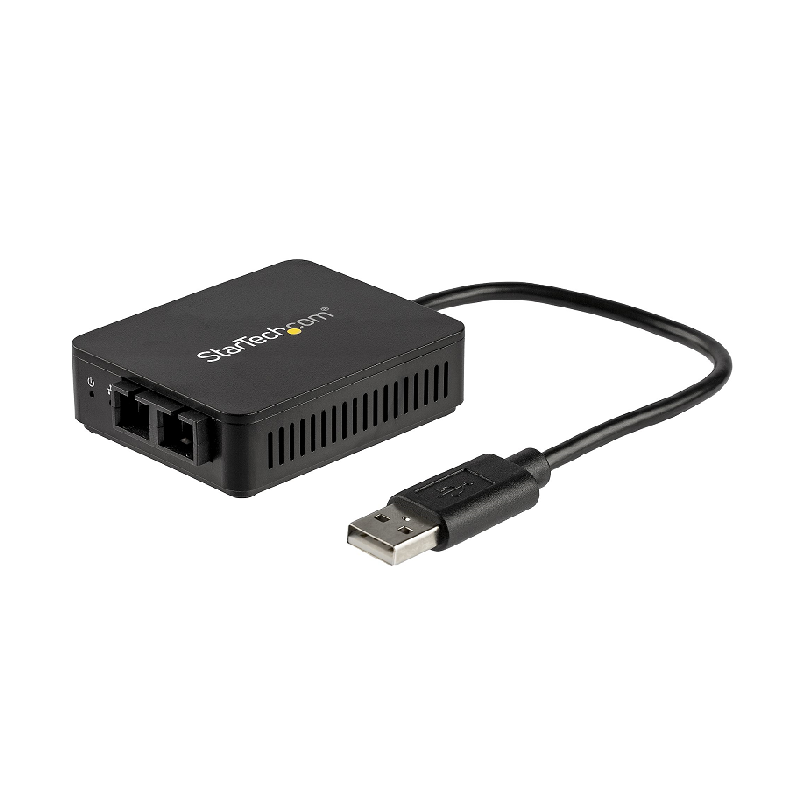

USB to Fiber Optic Converter - 100Mbps - USB 2.0 to Fiber Network Adapter - 100Base-FX SC Female Duplex Multimode Fiber/MMF Compatible - 2Km - Compact USB to Fiber LAN
Connect to a 100Mbps fiber optic network through your laptop’s USB-A port
This USB to fiber-optic converter lets you utilize the USB 2.0 (Type-A) port on your laptop or tablet to provide a secure fiber network connection. Windows® and Mac compatible, the network adapter provides a 100Mbps Ethernet network connection and 100BaseFX SC optical transceiver.
With an optical transceiver for 100Base-FX networks, the USB to fiber converter delivers network connectivity with a maximum range of 2 km over multimode fiber.
For reliable fiber connectivity, this USB to fiber-optic converter protects your network from problems with electronic interference - a common issue with copper Ethernet networks. Fiber-to-the-desk connectivity (FTTD) maximizes network security, reducing the risk of data leaks of sensitive information, without compromising network speed and reliability.
Compact and portable, this USB 2.0 to fiber-optic converter is powered directly from the USB port, making it easy to connect when you’re on the go.
Get up and running quickly. The USB fiber-optic converter supports certified drivers for Windows and Linux®. When you plug the adapter into a USB port, you simply install the drivers and the adapter is ready to transmit over a fiber network.
Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:
Mac Address Pass-Through Utility: To improve network security.
Wi-Fi Auto Switch Utility: Enabling users to quickly access faster network speeds via wired LAN.
For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/Connectivity-Tools
The US100A20FXSC is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Ports & interfaces | |
Internal | No |
USB version | 2.0 |
Fiber ports quantity | 1 |
Fiber optic connector | SC |
Interface | Fibre |
Host interface | USB |
Connectivity technology | Wired |
Bandwidth | |
Maximum data transfer rate | 1000 Mbit/s |
Network | |
Chipset | ASIX Electronics - AX88772C |
VLAN tagging | Yes |
Networking standards | IEEE 802.1Q,IEEE 802.3x |
Wake-on-LAN ready | Yes |
Maximum operating distance | 2000 m |
Fiber ethernet cabling technology | 100BASE-FX |
Maximum data transfer rate | 1000 Mbit/s |
Technical details | |
Product colour | Black |
Wake-on-LAN ready | Yes |
Plug and Play | Yes |
Cable length | 0.195 m |
Sustainability certificates | RoHS |
Design | |
Housing material | Plastic |
Product colour | Black |
Chipset | ASIX Electronics - AX88772C |
Certification | CE, FCC |
Plug and Play | Yes |
Internal | No |
LED indicators | Activity, Link, Power |
Operational conditions | |
Operating temperature (T-T) | 0 - 60 °C |
Storage temperature (T-T) | -10 - 70 °C |
Operating relative humidity (H-H) | 5 - 90 °C |
Other features | |
Housing material | Plastic |
Chipset | ASIX Electronics - AX88772C |
Quick start guide | Yes |
Cable length | 0.195 m |
Weight & dimensions | |
Width | 140 mm |
Depth | 170 mm |
Height | 20 mm |
Weight | 108 g |
Packaging data | |
Package width | 52 mm |
Package depth | 270 mm |
Package height | 30 mm |
Package weight | 52 g |
Quick start guide | Yes |
Full specification and details can be found in the PDF file
A user quick start guide can be found in the PDF file
A product diagram can be found in the PDF file
