HDMI KVM Extender over IP Network - 4K 30Hz HDMI 2.0 and USB over IP LAN or Cat5e/Cat6 Ethernet Cable (100m/330ft) - Remote KVM Switch/Console Transmitter/Receiver Extender Kit
KVM Console Extender Over IP | HDMI® | 4K @ 30Hz | 4x USB Ports | EDID Pass-Through
This HDMI KVM extender kit lets you use a keyboard, mouse and monitor to remotely control any computer over your IP-enabled local area network (LAN). Combined with a KVM switch, the KVM console extender can be used with multiple computers. The extender features four USB ports that enable you to connect other USB devices, in addition to your keyboard and mouse.
The HDMI KVM extender delivers astonishing 4K UHD picture quality to your remote display with support for resolutions up to 3840 x 2160p at 30Hz.
With a transmitter and a receiver, the KVM extender provides a complete end-to-end solution that supports mounting for tidy installation. Plus, it uses standard CAT5e or CAT6 Ethernet cable, eliminating the expense and hassle of specialized cables and enabling you to use existing network infrastructure.
The extender supports EDID pass-through, ensuring your computer can automatically configure optimal settings for your display over your LAN.
The extender uses your local intranet to connect your computers to your remote workstation. You can connect additional receivers (sold separately) to distribute your HDMI signal to multiple displays in your remote location, or combine the source to create a video wall that expands your single video source across multiple displays.
For smaller-scale applications, you can connect the transmitter and receiver units directly over CAT5e or CAT6 cabling up to 330 feet (100 meters).
SV565HDIP is backed by a 2-year warranty and free lifetime technical support.

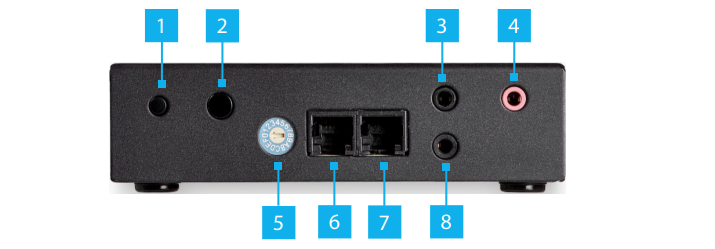

1. F2 Button
2. F1 Button
3. IR In Connector
4. Mic Out Port
5. Rotary Dip Switch
6. Serial Port 1
7. Serial Port 2
8. IR Out Connector

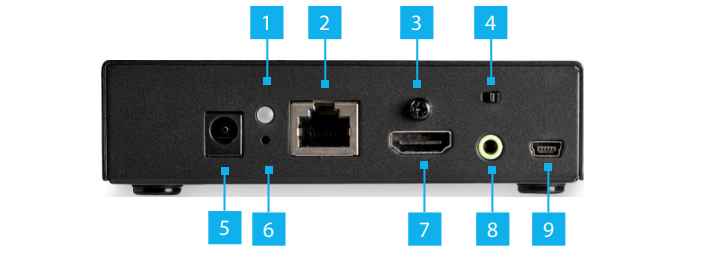

1. Network Status LED
2. RJ45 Port
3. HDMI Lock Screw
4. Audio Embed Switch
5. Power Port
6. Reset Button
7. HDMI Port
8. 3.5 mm Audio Port
9. Mini USB-B Port

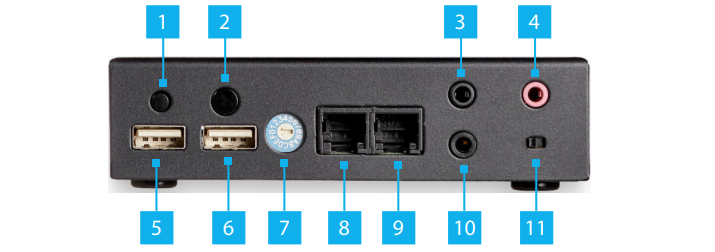

1. F2 Button
2. F1 Button
3. IR IN Connector
4. Microphone In Port
5. USB-A Port
6. USB-A Port
7. Rotary DIP Switch
8. Serial Port 1
9. Serial Port 2
10. IR OUT Connector
11. Resolution Switch

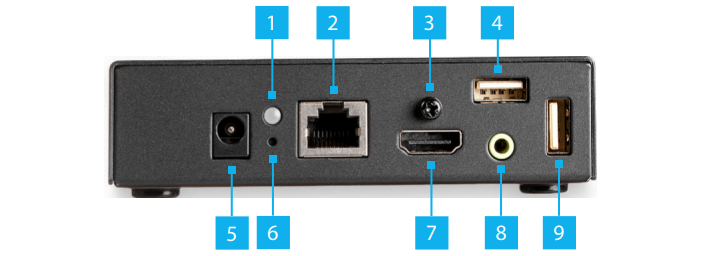

1. Network Status LED
2. RJ45 Port
3. HDMI Lock Screw
4. USB-A Port
5. Power Port
6. Recessed Reset Button
7. HDMI Port
8. 3.5 mm Audio Port
9. USB-A Port
Technical details | |
Product colour | Black |
On Screen Display (OSD) | Yes |
Maximum operating distance | 100 m |
LED indicators | Yes |
Hot keys | No |
IP control | No |
USB hub | Yes |
Sustainability certificates | RoHS |
Video | |
HD type | 4K Ultra HD |
Video bandwidth | 30 Hz |
Maximum resolution | 3840 x 2160 pixels |
Ports & interfaces | |
Number of microphone inputs | 2 |
Keyboard port type | USB |
Mouse port type | USB |
Video port type | HDMI |
Audio connections | Yes |
Headphone outputs | 8 |
HDMI ports quantity | 2 |
Ethernet LAN (RJ-45) ports | 2 |
DC-in jack | Yes |
USB hub | Yes |
USB 2.0 Type-A hub ports quantity | 2 |
Performance | |
Daisy chain | No |
Chipset | ASPEED - AST1520 |
HD type | 4K Ultra HD |
Video bandwidth | 30 Hz |
Maximum resolution | 3840 x 2160 pixels |
Maximum operating distance | 100 m |
Audio channels | 7.1 |
Design | |
Mean time between failures (MTBF) | 60000 h |
Product colour | Black |
LED indicators | Yes |
Hot keys | No |
Certification | CE, FCC, TAA, REACH |
Housing material | Steel |
Display | |
Built-in display | No |
On Screen Display (OSD) | Yes |
Power | |
Input current | 0.6 A |
Output current | 1.5 A |
Power plug type | Type M |
Compatible power plug types | AU, EU, JP, UK |
Output voltage | 12 V |
AC input voltage | 100 - 240 V |
Power consumption (typical) | 18 W |
External power adapter | Yes |
Operational conditions | |
Operating temperature (T-T) | 0 - 40 °C |
Storage temperature (T-T) | -10 - 60 °C |
Operating relative humidity (H-H) | 0 - 80% |
Weight & dimensions | |
Width | 117 mm |
Height | 28 mm |
Depth | 130 mm |
Weight | 610 g |
Packaging data | |
Package width | 365 mm |
Package height | 235 mm |
Package depth | 195 mm |

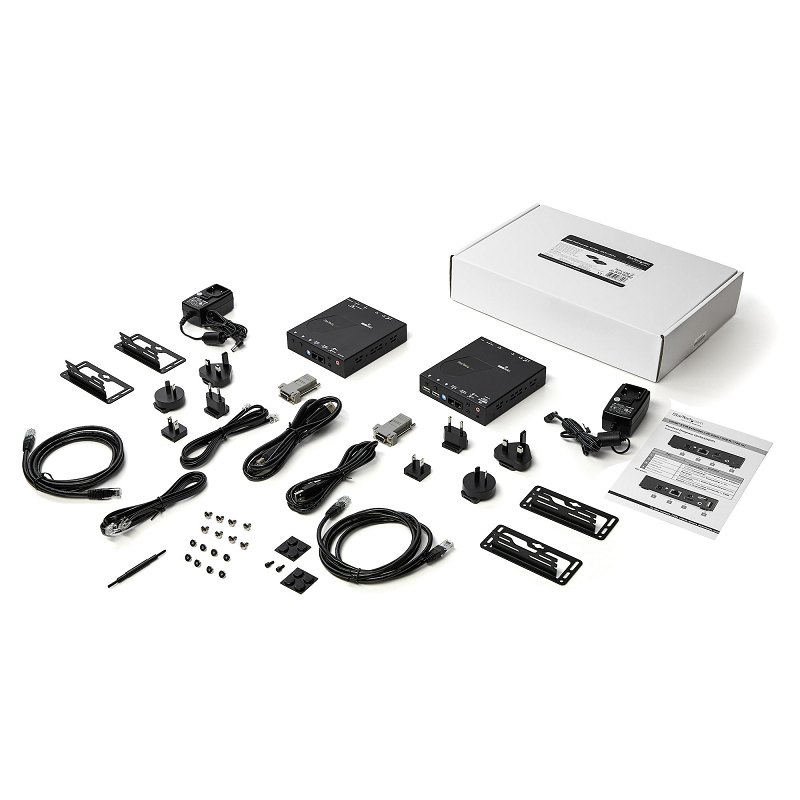

Quick installation guide | Yes |
AC adapter included | Yes |
Rubber feet | Yes |
Cables included | HDMI, LAN (RJ-45), Phone (RJ-11), USB |
Full specification and details can be found in the PDF file
A user manual can be found in the PDF file
A quick start guide can be found in the PDF file
