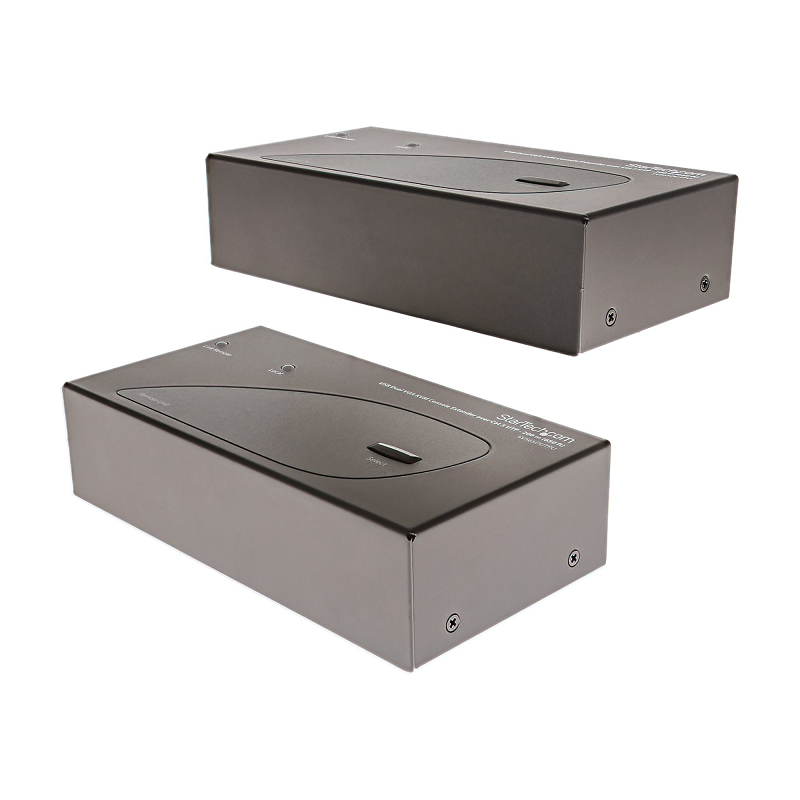

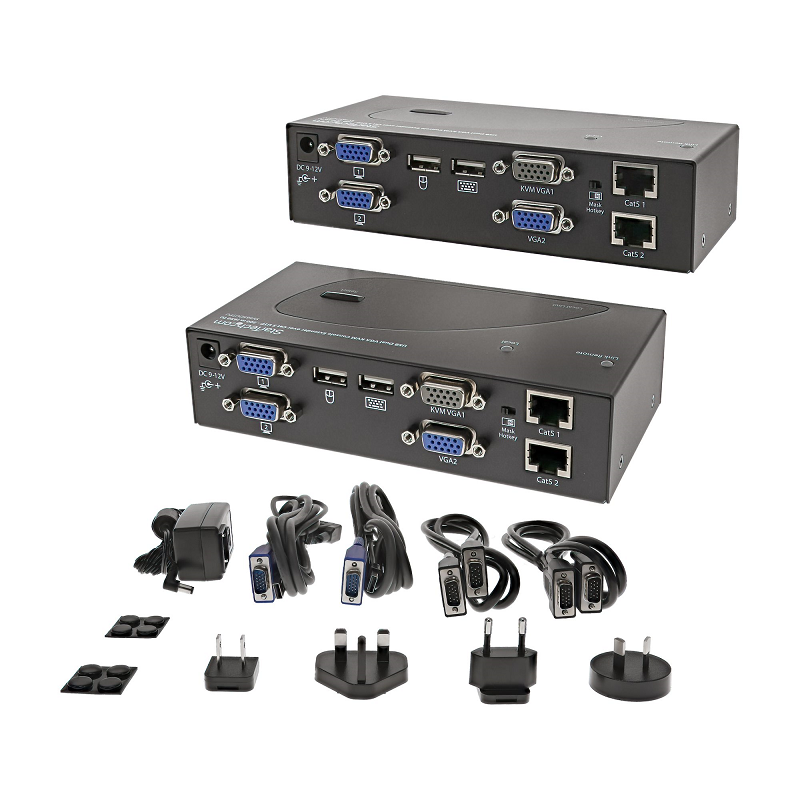

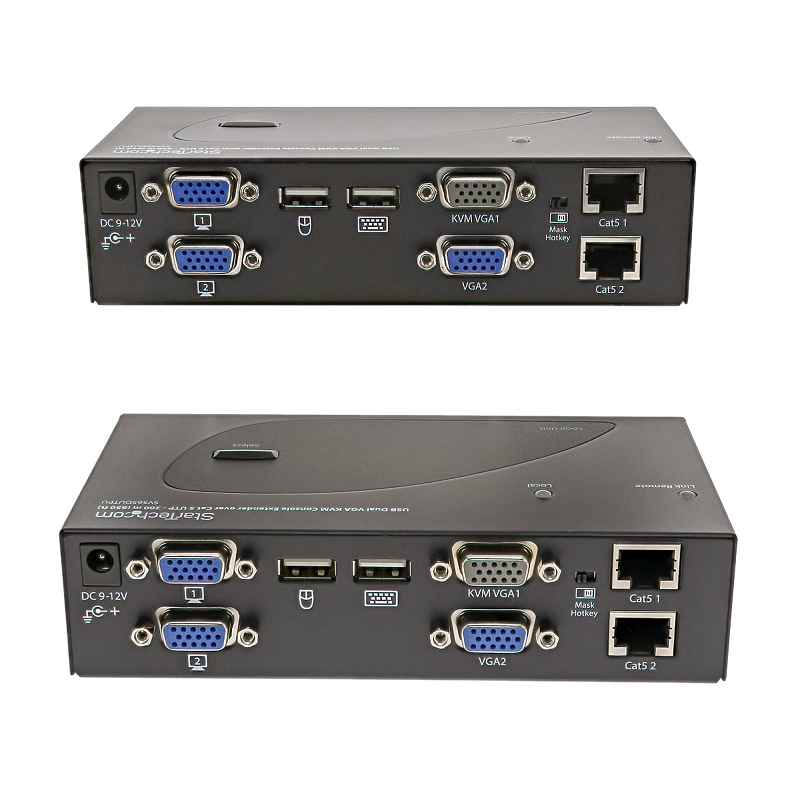

StarTech SV565DUTPU USB Dual VGA over Cat5 KVM Console Extender - 650 ft / 200m

USB Dual VGA over Cat5 KVM Console Extender - 650 ft / 200m

Operate a Dual VGA, USB-enabled PC up to 650ft away, as if it was installed locally

The SV565DUTPU USB Dual VGA KVM Console Extender over CAT5 UTP lets you Operate a Dual VGA PC or KVM switch up to 650ft (200 m) away, as if it was installed locally, at high-definition 1920x1200 resolution. PC connection cables are included with this product for a ready to use solution.

The dual VGA cat5 KVM extender supports easy to use hot-key and push button commands which allow you to switch between local and remote connected systems, while console connections at both ends of your setup provide easy access to all connected systems from either location. The hot-key commands also provide video adjustment controls for optimizing picture quality over varying distances. Extending over two standard Cat 5 (or better) cables gives you the ability to use existing infrastructure wiring to achieve remote access to your server or KVM switch.

This product is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support.

Applications:

• Ideal for controlling a PC in an area where fan or hard drive noise is unacceptable such as a television broadcast studio
• Control/Monitor a remote server from a harsh environment where the PC would not function properly due to heat/dust/etc. (factory, warehouse, mining, etc.)
• Can act as a thin client for power users controlling powerful rack mounted servers as their desktop machines
• Use one or more servers in a server room from a remote location within the same building or campus

Features:

• Dual VGA KVM extender at 1920x1200 resolution
• Can be used with a single computer or connected to an existing KVM switch
• Extend up to 650 ft. (200 m) using 2 industry-standard UTP network cables
• KVM console connections available on both the local and remote end
• Supports most combo keyboard and mouse sets (including Wireless)
• Intuitive hot-key commands for fine-tuning video

The StarTech.com Advantage:

• Low cost way to convert existing dual VGA KVM units, or individual Servers into remotely accessible hardware extending your hardware’s capabilities
• Maintain network security with long distance local access without being exposed over IP
• Broad support for newer USB keyboards, mice, and even most combo/wireless configurations

Full specification and details can be found in the PDF file

A user manual can be found in the PDF file
