| Product Code: | |
| Options: | |
| Qty: | |
| Unit Price: | £ |
| Part No: | FESAT2M2NGFF25 |
| Manufacturer No: | SAT2M2NGFF25 |
| Delivery: | In Stock: Next Day |
 |

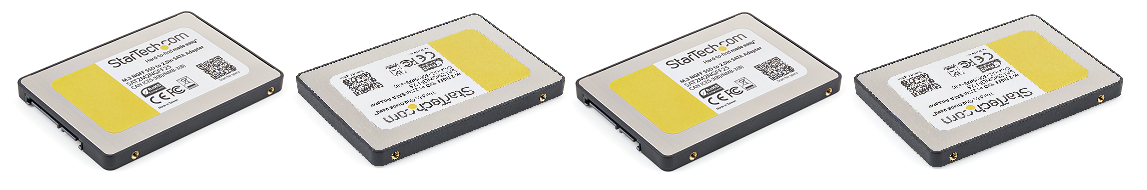

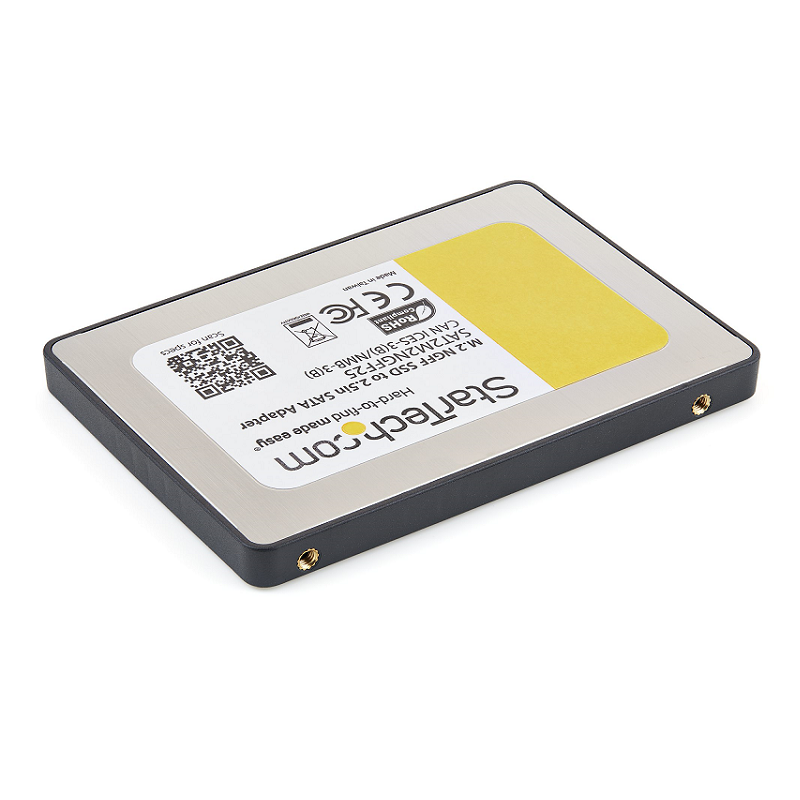

M.2 SSD to 2.5in SATA III Adapter - M.2 Solid State Drive Converter with Protective Housing
Convert an M.2 solid state drive into a standard 2.5in form factor 6Gbps SSD
Vastly increase system performance by replacing your 2.5” SATA hard drive with an M.2 solid state drive, using the SAT2M2NGFF25 M.2 SSD to SATA adapter.
The M.2 to SATA adapter features an enclosed housing that adds protection to your NGFF (Next Generation Form Factor) SSD. The added protection gives you the peace of mind to confidently use your M.2 drive in applications that require an added level of durability such as hot-swap drive bays, or external SATA docking stations.
Using an M.2 SSD in place of a platter drive better utilizes the full potential of your SATA III controller, by reducing your data transfer bottleneck with file transfer speeds up to 6 Gbps -- an ideal solution for further increasing the performance of a HyperDuo array.
For wide compatibility with all of the common M.2 solid state drives, the SAT2M2NGFF25 supports multiple drive heights including: 2230, 2242, 2260, 2280.
The SAT2M2NGFF25 is backed by a StarTech.com 2-year warranty, and lifetime technical support.

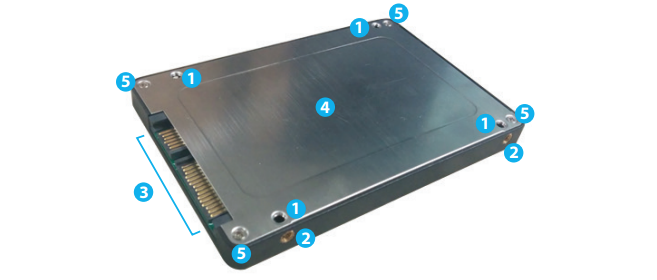

1. Top mounting holes
2. Side mounting holes

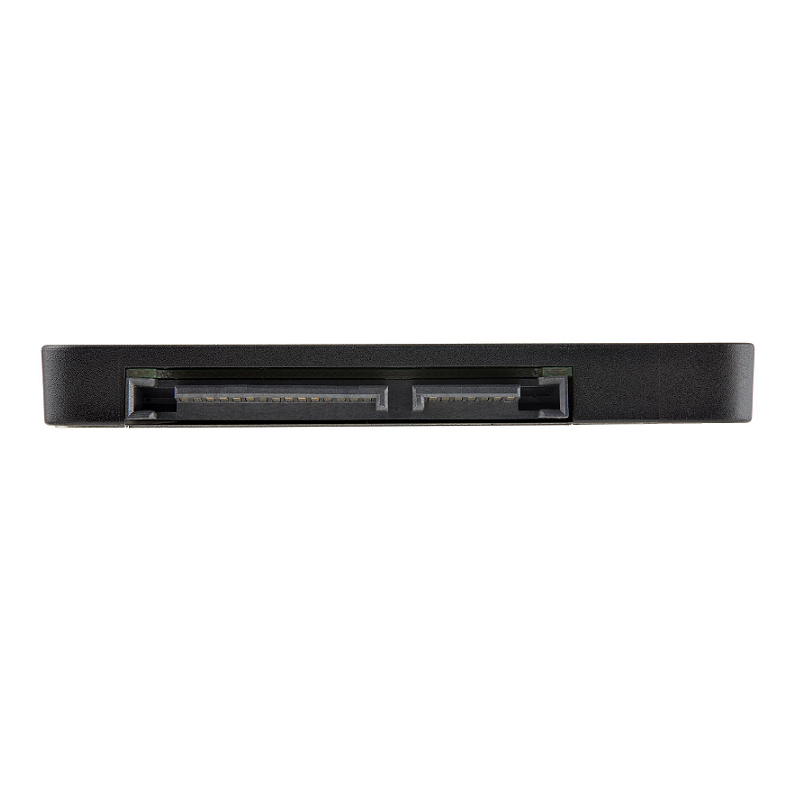

3. SATA DATA & Power Combo (7+15 pin)
4. HDD plate
5. HDD plate mounting holes

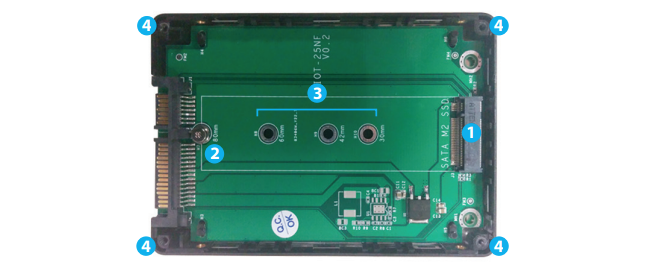

1. M.2 (NGFF) SSD Connector
2. Drive installation bracket
3. Drive length adjustment holes
4. HDD plate mounting holes
| Ports & interfaces | |
| Internal | Yes |
| Output interface | M.2 |
| SATA revision | 3.0 |
| Host interface | SATA |
| Technical details | |
| Plug and Play | Yes |
| Data transfer rate (max) | 6 Gbit/s |
| Material | Aluminium, Plastic |
| Sustainability certificates | RoHS |
| Performance | |
| Hot-swap | Yes |
| Plug and Play | Yes |
| Data transfer rate (max) | 6 Gbit/s |
| Product colour | Black |
| Design | |
| Hot-swap | No |
| Internal | Yes |
| Product colour | Black |
| Certification | CE, FCC, TAA, REACH |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -10 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95 % |
| Weight & dimensions | |
| Width | 68 mm |
| Depth | 98 mm |
| Height | 8 mm |
| Weight | 162 g |
| Packaging data | |
| Package width | 162 mm |
| Package depth | 131 mm |
| Package height | 32 mm |
| Package weight | 116 g |
| Manual | Yes |
| Manual | Yes |
| Quantity | 1 |
Full specification and details can be found in the PDF file
A user manual can be found in the PDF file
