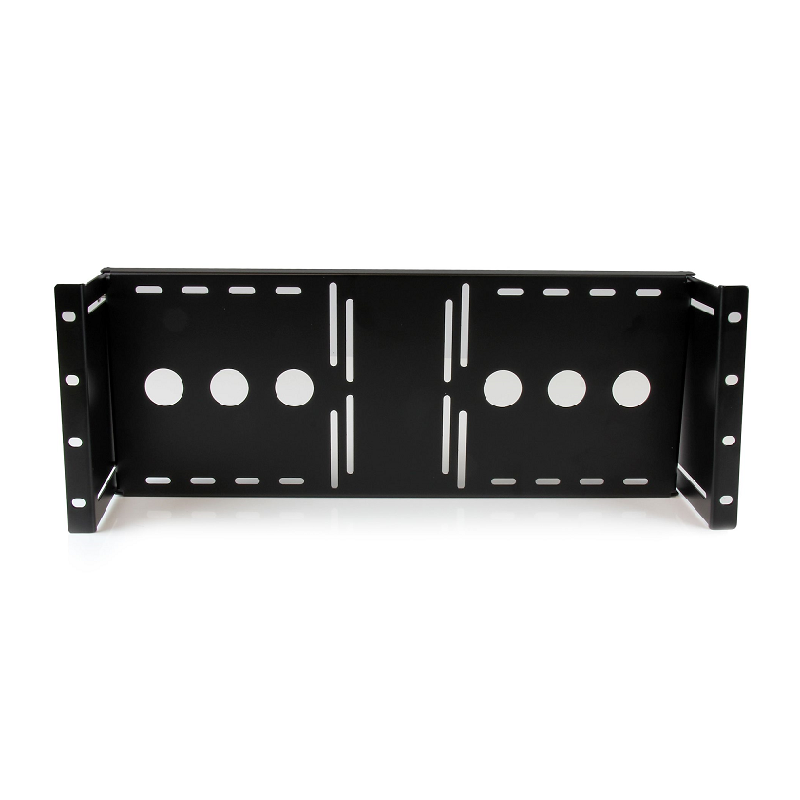

Universal VESA LCD Monitor Mounting Bracket for 19in Rack or Cabinet

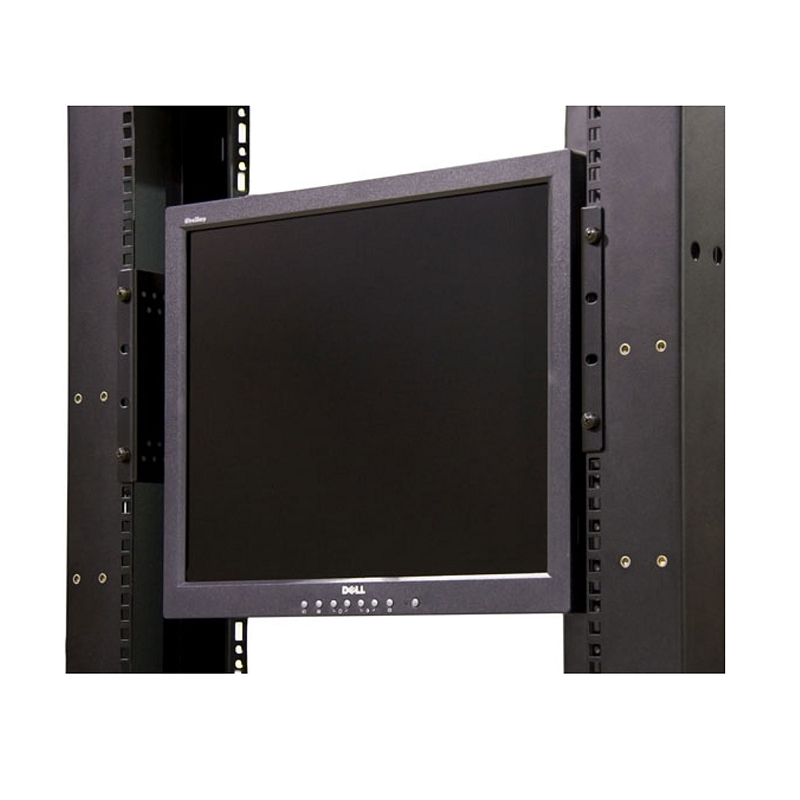

Mount a 17-19 inch LCD panel into a standard 19 inch rack/cabinet
The RKLCDBK Universal VESA LCD Monitor Mounting Bracket for 19in Rack or Cabinet lets you mount almost any retail LCD or Touch screen panel into a server/storage rack/cabinet. This TAA compliant product adheres to the requirements of the US Federal Trade Agreements Act (TAA), allowing government GSA Schedule purchases.

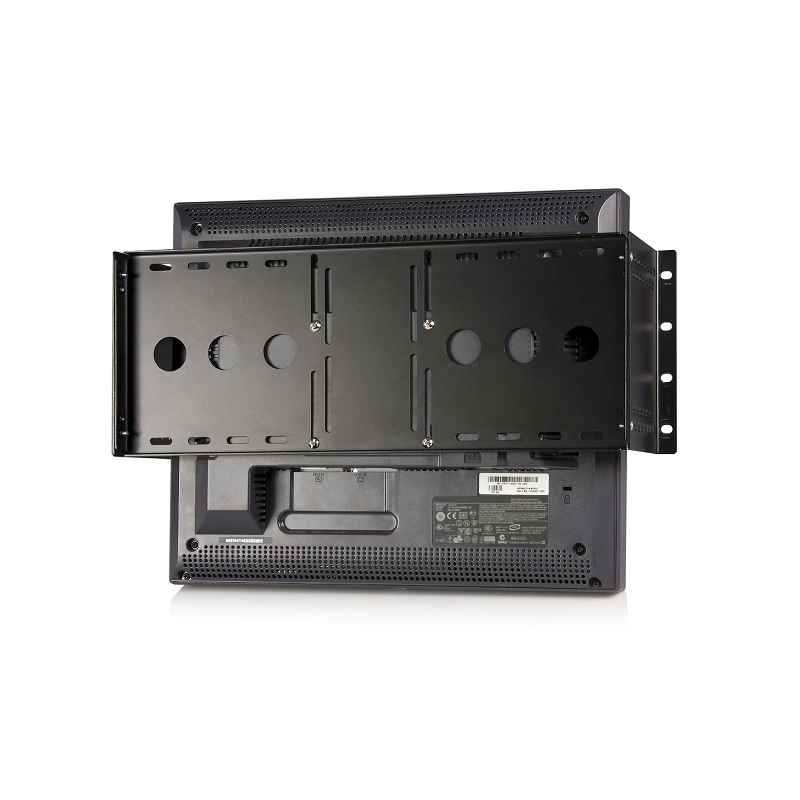

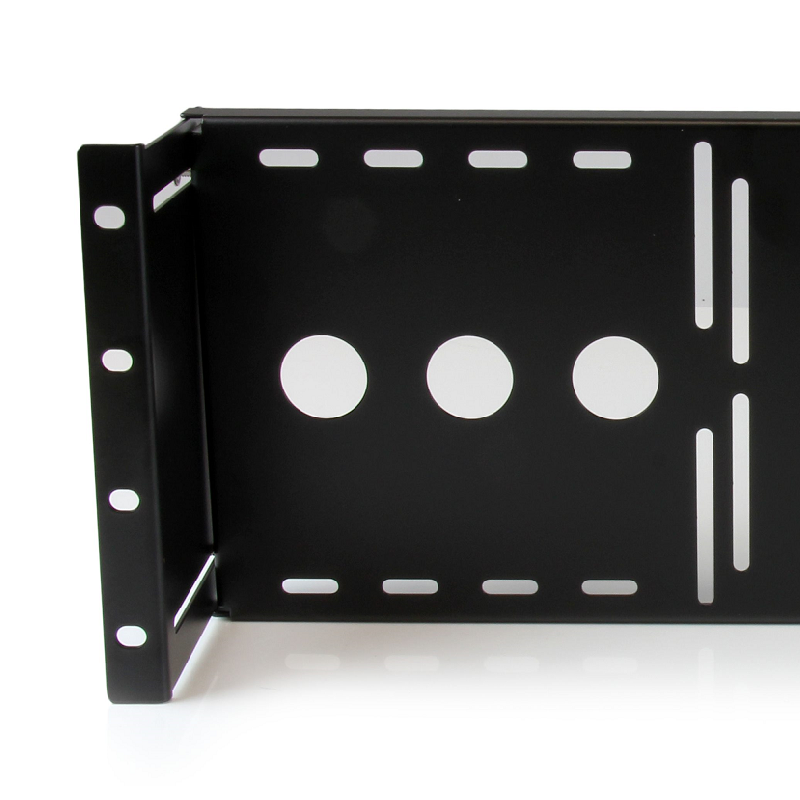

The LCD mounting bracket is made of solid cold pressed steel (SPCC), is designed to support 100mm and 75mm VESA mounted LCD panels, and meets ANSI/EIA RS-310-D standards rack mounting. A unique adjustable design enables an LCD panel to be mounted into the cabinet at various depths - allowing the rack/cabinet door to be closed.

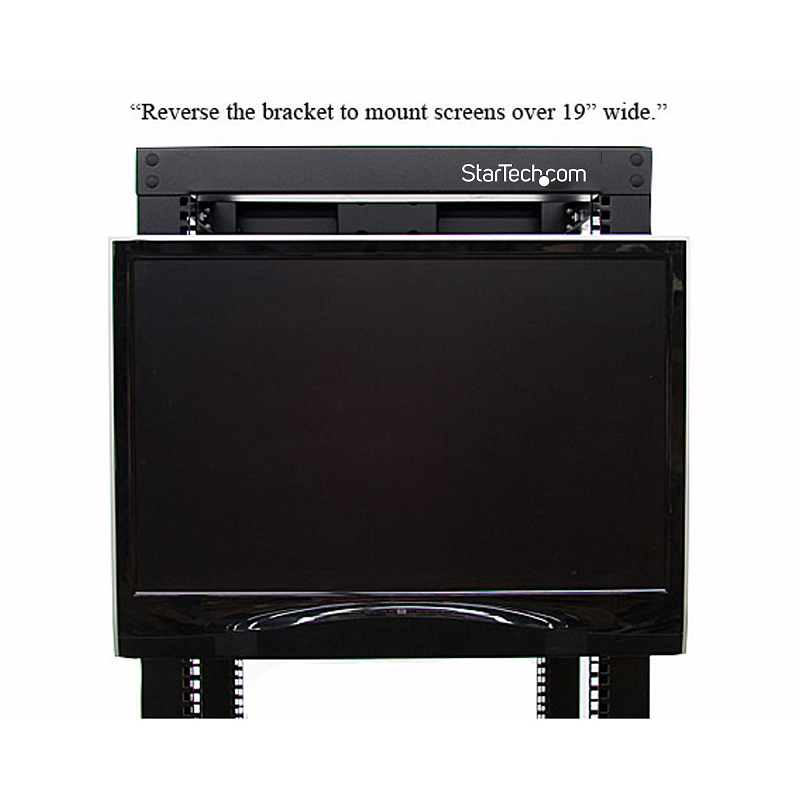

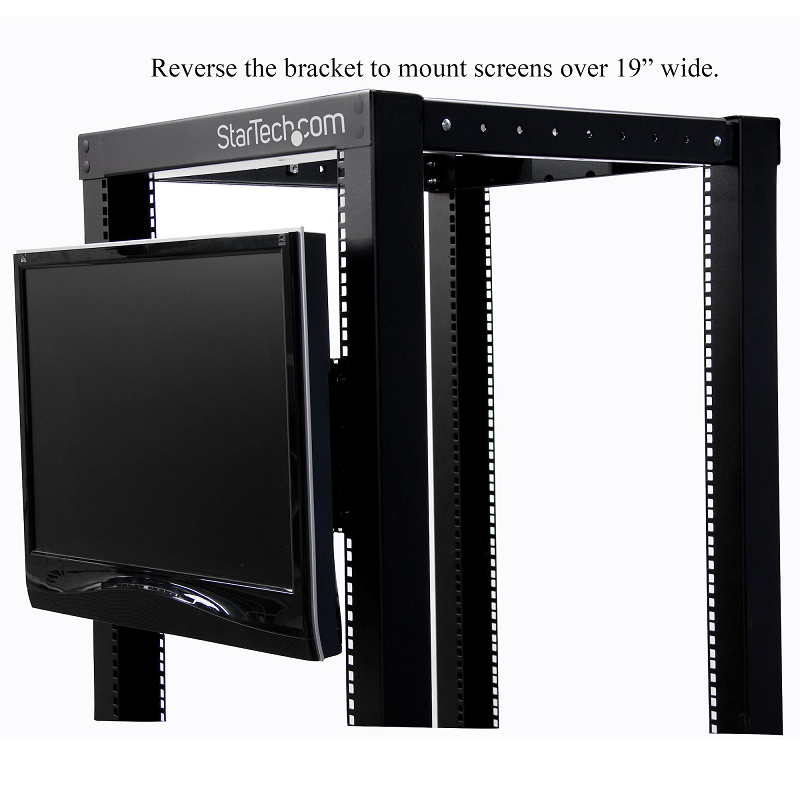

The LCD mounting bracket also supports wall-mounted LCD installation, by inverting the adjustable bracket or by adding this bracket to a wall mount bracket or rack, such as the 6U (10 inch) Wallmount Bracket for 19" Rack Equipment (WALLMOUNT6) or 8U Open Frame Wall Mount Equipment Rack (RK812WALLO).
Backed by a StarTech.com Lifetime warranty.
| Features | |
| Certification | CE, REACH, TAA |
| Type | Mounting bracket |
| Rack capacity | 4U |
| Product colour | Black |
| Compliance industry standards | EIA RS310-D |
| Housing material | Steel |
| Technical details | |
| Type | Mounting bracket |
| Rack capacity | 4U |
| Sustainability certificates | RoHS |
| Weight & dimensions | |
| Width | 842 mm |
| Height | 177 mm |
| Depth | 107.5 mm |
| Weight | 1.7 kg |
| Packaging data | |
| Package width | 54 mm |
| Package height | 220 mm |
| Package depth | 472 mm |
| Package weight | 2 kg |
Full specification and details can be found in the PDF file
An instruction manual can be found in the PDF file

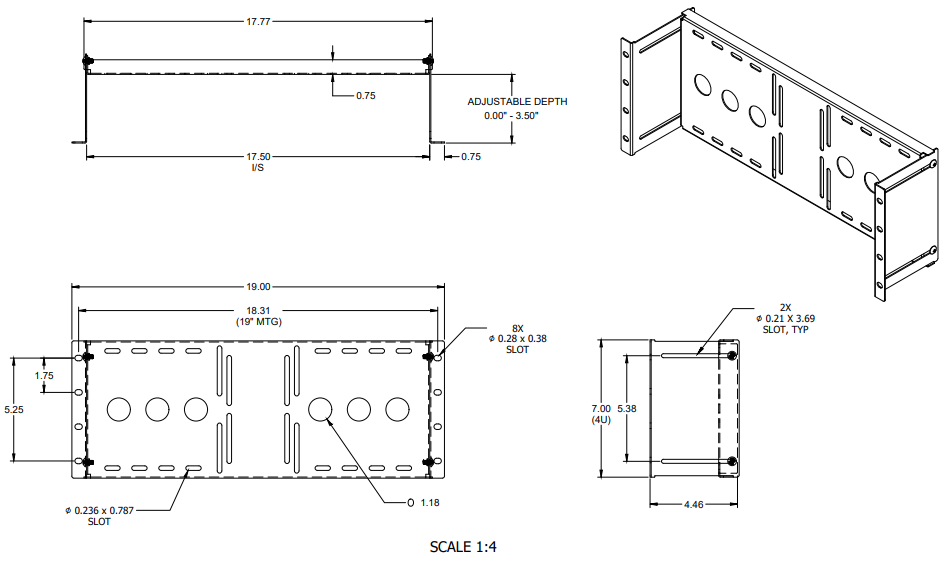

A product drawing can be found in the PDF file
