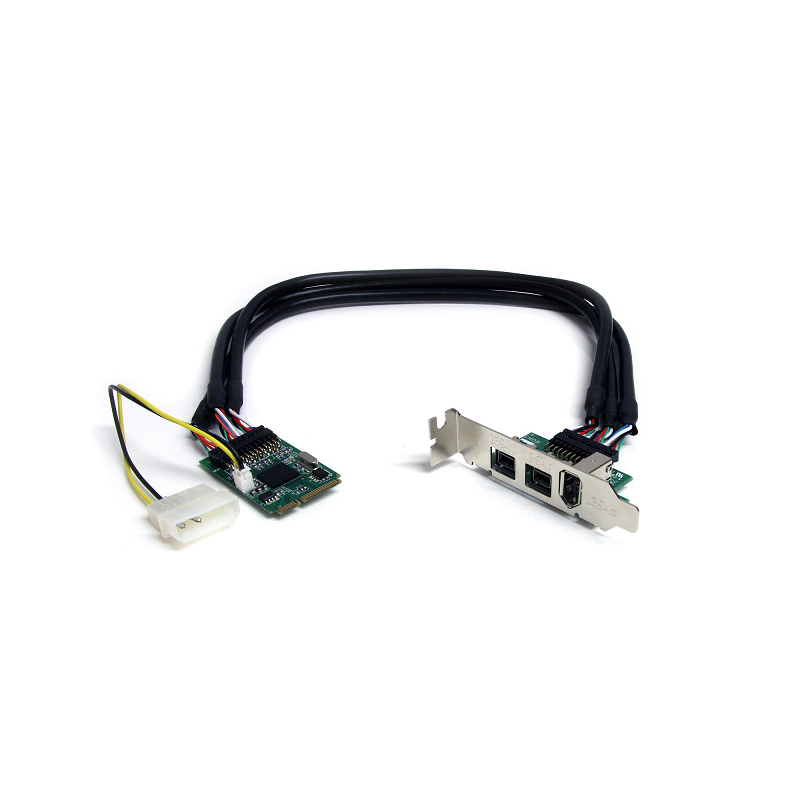

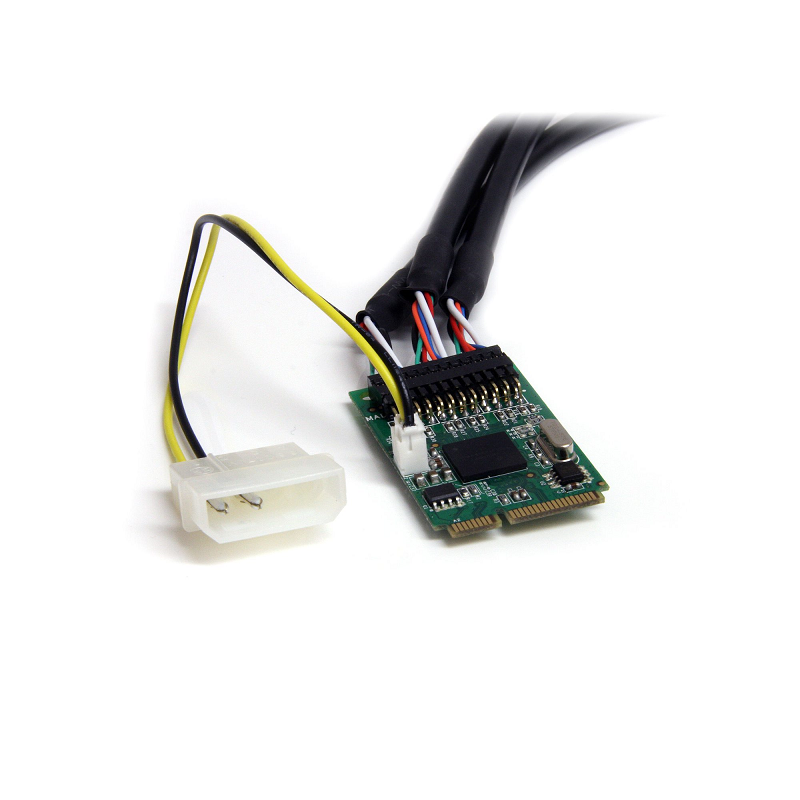

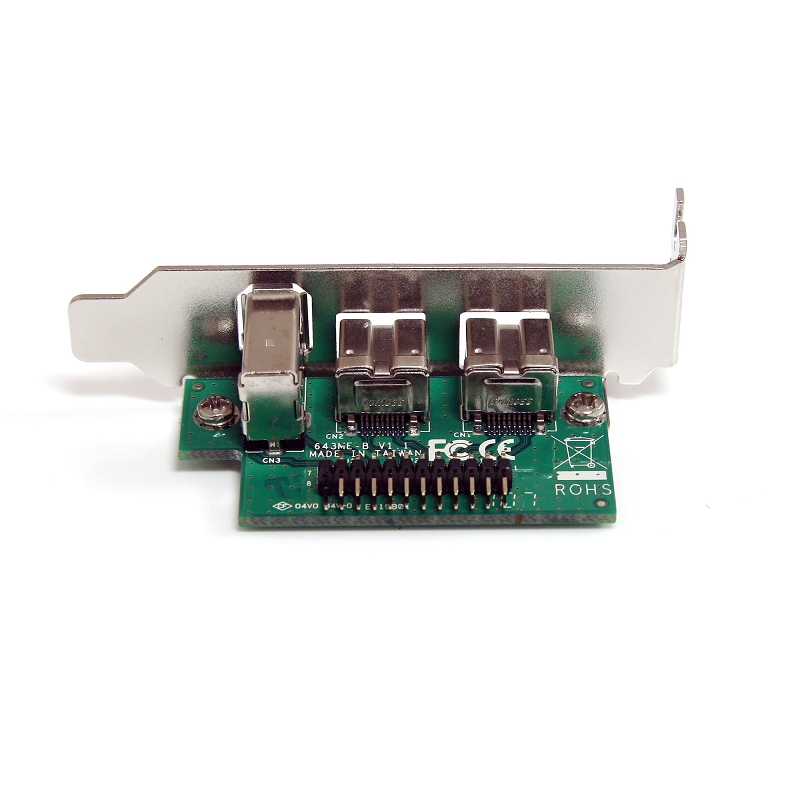

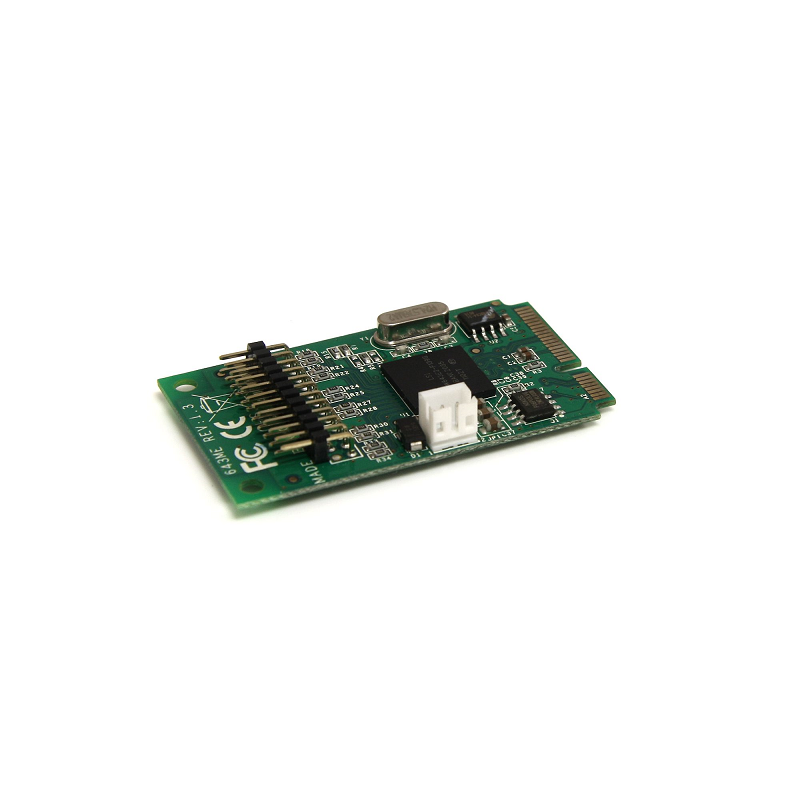

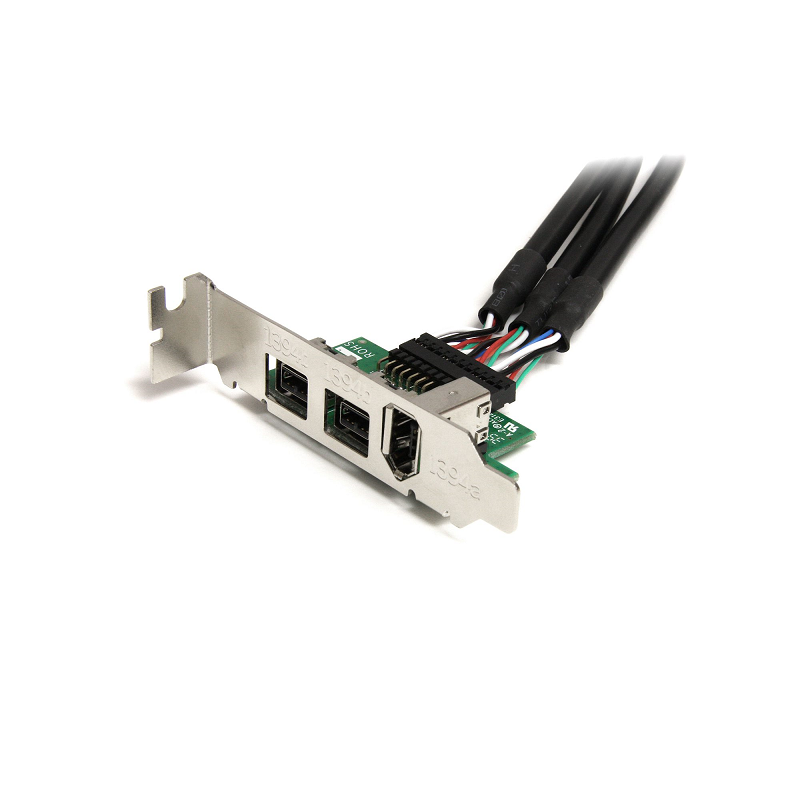

3 Port 2b 1a 1394 Mini PCI Express FireWire Card Adapter
Add 2 FireWire-800 and 1 FireWire-400 port through a Mini PCI Express slot
The MPEX1394B3 3-Port Mini PCI Express FireWire Card is a PCI Express to FireWire-800/FireWire-400 adapter that enables you to add external FireWire connectivity on very small form factor or embedded systems. The PCIe FireWire card provides two FireWire-800 ports and one FireWire-400 port, this adapter card supports the latest external FireWire storage devices at data transfer speeds of up to 800 Mbps.
Using the Mini PCI Express (Mini Card) form factor, this adapter card is designed for use in the latest very small form factor computer systems, such as Mini-ITX or custom embedded solutions where a full-sized PCI Express card would not fit.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
Ports & interfaces | |
Internal | Yes |
Output interface | IEEE 1394/Firewire |
Firewire (IEEE 1394) ports | 3 |
Host interface | PCIe |
Expansion card form factor | Full-height / Low-profile |
Technical details | |
Plug and Play | Yes |
Chipset | LSI/Agere - FW643 |
Data transfer rate (max) | 0.8 Gbit/s |
Sustainability certificates | RoHS |
Product colour | Black, Stainless steel |
Operational conditions | |
Operating temperature (T-T) | 0 - 70 °C |
Storage temperature (T-T) | -54 - 150 °C |
Weight & dimensions | |
Width | 30 mm |
Height | 4 mm |
Depth | 50 mm |
Weight | 6.8 g |
Full specification and details can be found in the PDF file
A user manual can be found in the PDF file
