Multimode (MM) SC Fiber Media Converter for 10/100/1000 Network - 550m Range - Gigabit Ethernet - 850nm - Full Duplex
Convert and extend a Gigabit Ethernet connection up to 550 m over multimode SC fiber
This fiber media converter extends a Gigabit Ethernet (1000Mbps) network up to 550 m over multimode fiber, on 1000BASE-SX networks.

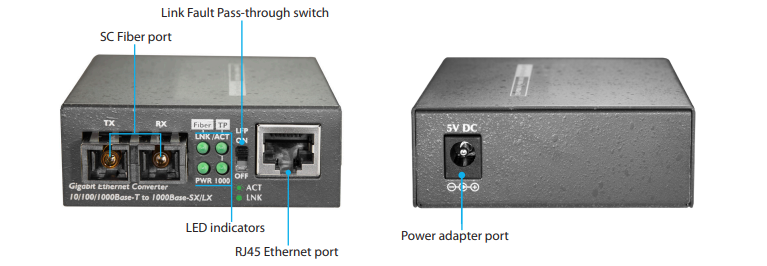

The fiber media converter offers a cost-effective way to transparently convert copper to fiber, or fiber to copper, for connecting remote sub-networks to larger fiber-optic networks. Providing both SC fiber and RJ45 Ethernet ports, it integrates easily into a wide range of Gigabit Ethernet network infrastructures. The RJ45 port supports triple-speed (10/100/1000 BASE-T) auto-negotiation.
Supporting a maximum multimode fiber-optic cable distance of 550 meters (0.34 miles), the media converter delivers a simple and reliable solution for connecting Gigabit Ethernet networks to remote locations over multimode fiber, while ensuring solid network performance. It provides optimum network scalability for connecting two or more Ethernet network nodes, for instance, connecting two buildings on the same campus or facility. The media converter also offers high-speed bandwidth to meet the increasing demands of large-scale workgroups that require expansion of a Gigabit Ethernet network.
The MCMGBSCMM055 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Network | |
Fiber optic connector | SC |
Jumbo frames support | Yes |
Store-and-forward | Yes |
Flow control support | Yes |
Jumbo frames | 9000 |
Converter input interface | 100Base-TX, 1000Base-T |
Networking standards | IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
Ethernet LAN data rates | 10, 100, 1000 Mbit/s |
Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
Duplex system | Full |
Converter output interface | 1000Base-SX |
Auto MDI/MDI-X | Yes |
Maximum data transfer rate | 1000 Mbit/s |
Technical details | |
Housing material | Steel |
Wavelength | 850 nm |
Maximum transfer distance | 550 m |
Fiber mode structure | Multi-mode |
Internal | No |
Sustainability certificates | RoHS |
Performance | |
Jumbo frames support | Yes |
Store-and-forward | Yes |
Flow control support | Yes |
Wavelength-division multiplexing (WDM) | No |
Wavelength | 850 nm |
Maximum transfer distance | 550 m |
Fiber mode structure | Multi-mode |
Mean time between failures (MTBF) | 50000 h |
Ports & interfaces | |
Connectivity technology | Wired |
Ethernet LAN (RJ-45) ports | 1 |
Fiber ports quantity | 1 |
Fiber optic connector | SC |
Design | |
Housing material | Steel |
LED indicators | Activity, Link, Power |
Product colour | Black |
Certification | CE, FCC, REACH |
Internal | No |
Power | |
Power plug type | Type N |
Input voltage | 100 - 240 V |
Input current | 0.5 A |
Output voltage | 5 V |
Output current | 2.6 A |
Power consumption (typical) | 5 W |
External power adapter | Yes |
Operational conditions | |
Operating temperature (T-T) | 0 - 50 °C |
Storage temperature (T-T) | -10 - 70 °C |
Operating relative humidity (H-H) | 5 - 90 % |
Weight & dimensions | |
Width | 97 mm |
Height | 26 mm |
Depth | 70 mm |
Weight | 200 g |
Packaging data | |
Package width | 280 mm |
Package height | 66 mm |
Package depth | 133 mm |
Package weight | 564 g |
Quick installation guide | Yes |
AC adapter included | Yes |
Full specification and details can be found in the PDF file
A quick start guide can be found in the PDF file
