| Product Code: | |
| Options: | |
| Qty: | |
| Unit Price: | £ |
| Part No: | FEICUSB422IS |
| Manufacturer No: | ICUSB422IS |
| Delivery: | In Stock: Next Day |
 |

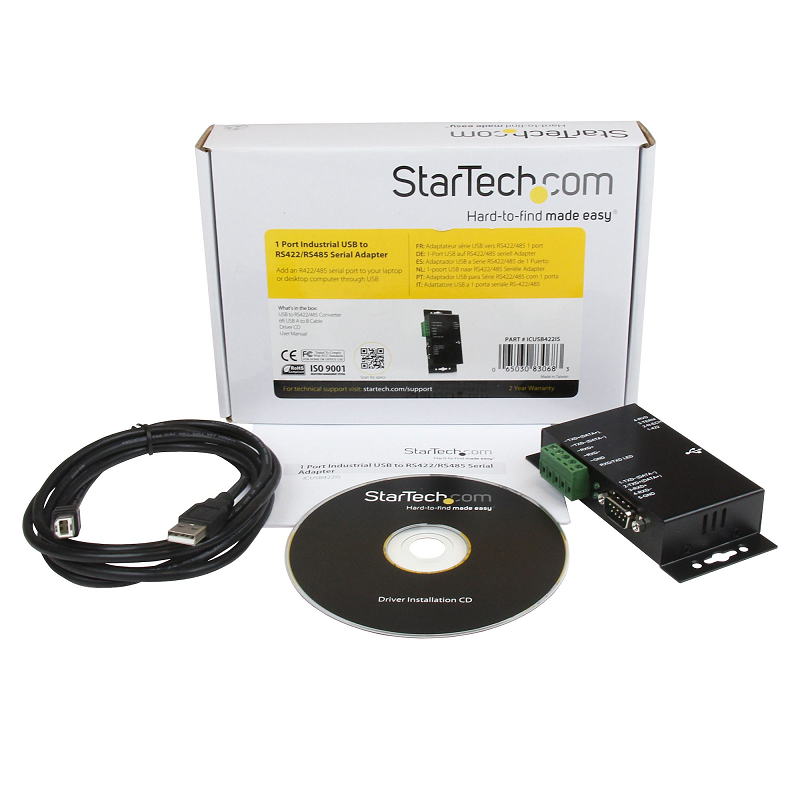

1 Port Metal Industrial USB to RS422/RS485 Serial Adapter w/ Isolation
Add an R422/485 serial port to your laptop or desktop computer through USB

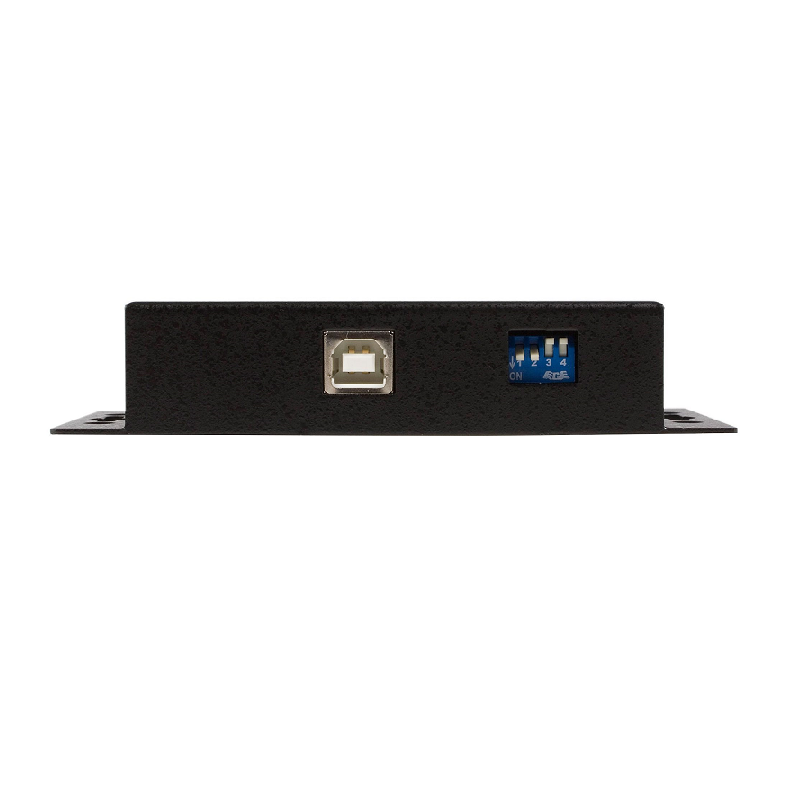

The ICUSB422IS 1 Port Metal Industrial USB to RS422/RS485 Serial Adapter w/ Isolation connects to a computer using USB and allows you to connect any RS-422 or RS-485 serial device via the provided DB9 port or hard-wired to the terminal block.
The USB to serial adapter features circuit isolation to ensure that sensitive controls and devices will not be damaged while connected, making it a viable solution for connecting costly industrial serial devices.
The RS422/485 Converter receives full power via the host USB connection, and provides power to the attached serial device without requiring an external power adapter. Designed to provide a durable serial solution, the USB to RS422/485 Converter is ruggedly constructed and can be mounted nearly anywhere.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.

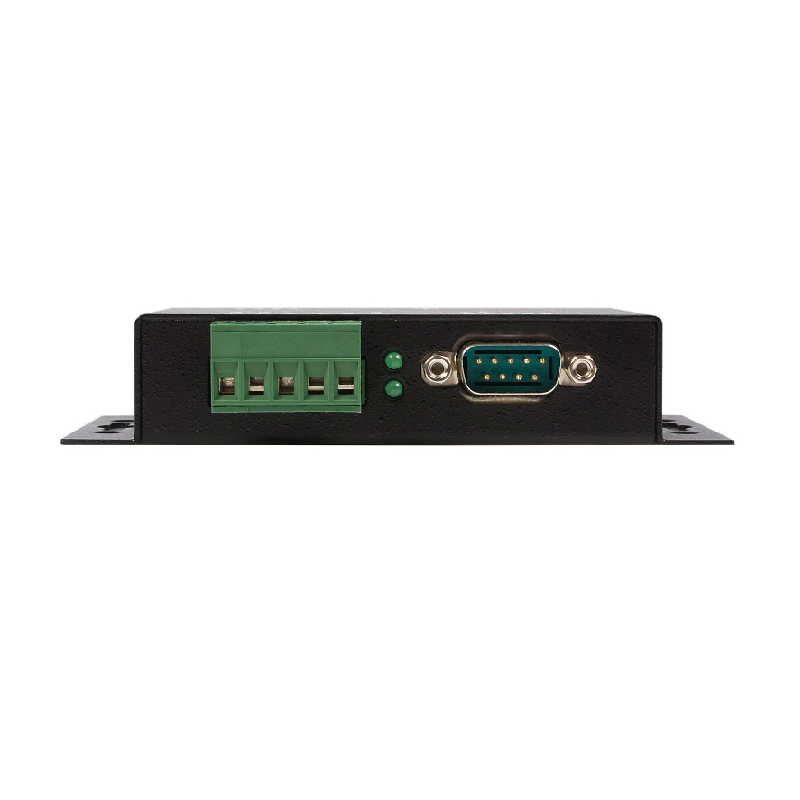

Note: The DB9 Male Connector at the Terminal Blocks are connected to the same signals internally. They are not two individual ports. As such, the signals coming from the Terminal Blocks and the DB9 connector are identical.
| Ports & interfaces | |
| Connector 2 | RS-422/485 |
| Connector 1 | USB B |
| Cables included | USB |
| Cable length | 1.8 m |
| Connector 2 gender | Female |
| Connector 1 gender | Male |
| Technical details | |
| Input voltage | 5 V |
| Product colour | Black |
| Cable length | 1.8 m |
| Design | |
| Product colour | Black |
| Cable length | 1.8 m |
| Performance | |
| Input voltage | 5 V |
| Compatible operating systems | Windows 8((32/64bit), (32/64), Vista (32/64), XP (32/64), 2000, 98SE, XP Embedded, CE (4.2+), Windows Server 2012, 2008 R2, 2003 (32/64), Mac OS 10.x, Linux 2.4.x / 2.6.x |
| Product colour | Black |
| Data transfer rate | 0.00088 Gbit/s |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 85 °C |
| Operating temperature (T-T) | 0 - 55 °C |
| Relative humidity | 5 - 95 % |
| Weight & dimensions | |
| Width | 64 mm |
| Height | 23 mm |
| Depth | 118 mm |
| Weight | 180 g |
| Packaging data | |
| Package width | 45 mm |
| Package height | 160 mm |
| Package depth | 230 mm |
| Package weight | 390 g |
Full specification and details can be found in the PDF file
A user manual can be found in the PDF file
