4 Port Serial Hub USB to RS232/RS485/RS422 Adapter - Industrial USB 2.0 to DB9 Serial Converter Hub - IP30 Rated - Din Rail Mountable Metal Serial Hub - 15kV ESD Protection
Add four ports supporting three serial protocols, to easily connect serial devices to your computer through USB, with 15kV ESD protection
Add four extra COM ports to your laptop or desktop computer, quickly and easily. This USB to RS232/422/485 serial adapter lets you connect to your serial devices through an external USB port.
The versatile serial adapter converts a single USB port into four RS232/RS422/RS485 serial ports, enabling you to connect, monitor, and control a wide range of serial devices, such as sensors, barcode scanners, and LED signage. It supports four operating modes, including RS232, RS422, 4-wire and 2-wire RS485.
With its rugged IP30-rated metal hub housing, the serial adapter is built to meet the extreme demands of harsh and mission-critical environments. It provides 15 kV ESD protection, which helps to reduce downtime in industrial environments where communications lines are more prone to noise emissions or sudden spikes in voltage.
The serial adapter offers flexible mounting options, with a built-in wall-mounting bracket and included DIN rail mounting kit. It also features a screw-locking host connection plus a screw-locking USB-B connector on the included USB cable, to prevent accidental disconnections.
The serial adapter is equipped with high-speed UARTs, providing fast data rates of up to 921Kbps in RS232/422/485 operating modes.
The ICUSB234854I is backed by a StarTech.com 2-year warranty and free lifetime technical support.

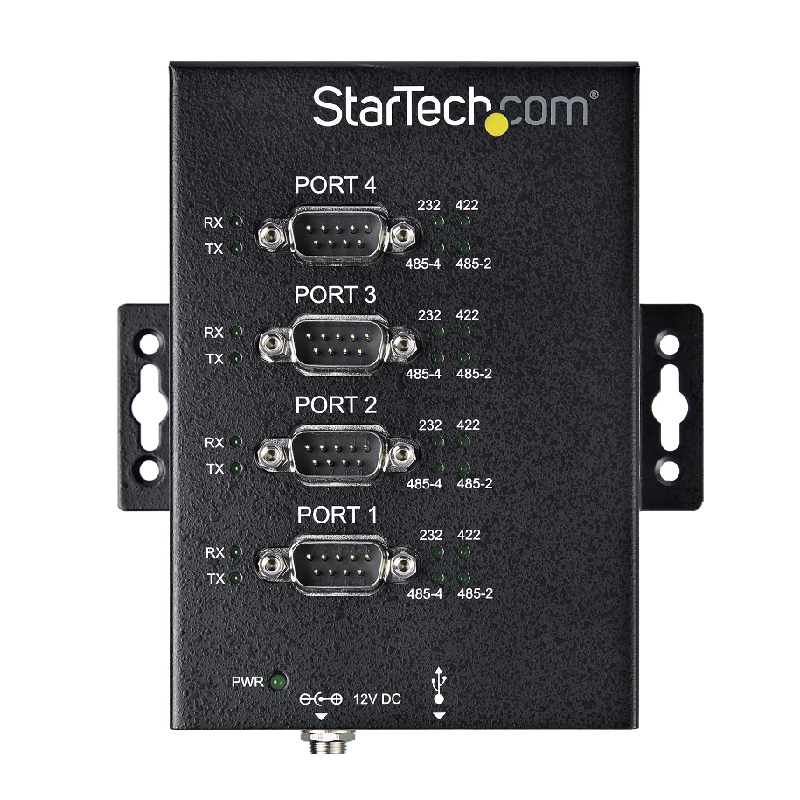

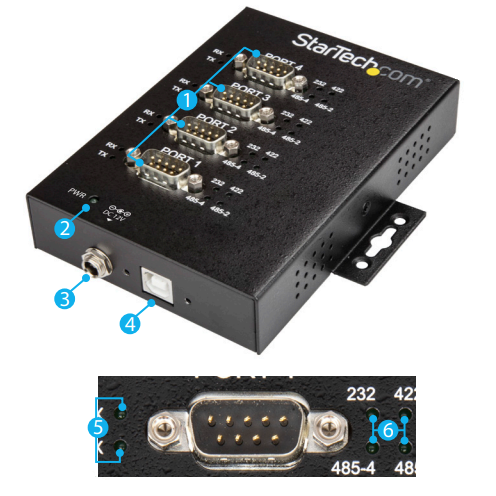

1. RS-232/422/485 ports
2. Power LED
3. Power adapter port
4. USB 2.0 host port
5. Port send/receive LED
6. Port mode LED
Ports & interfaces | |
Host interface | USB 2.0 Type-B |
RS-232 ports | 4 |
Hub interfaces | Serial |
Ports quantity | 4 |
Features | |
Surge protection | Yes |
Plug and Play | Yes |
LED indicators | Power |
Product colour | Black |
Certification | CE, FCC, TAA, RoHS |
Housing material | Steel |
Host interface | USB 2.0 Type-B |
Power | |
Power plug type | Type N |
Output voltage | 12 V |
Output current | 1 A |
Technical details | |
Plug and Play | Yes |
Product colour | Black |
Performance | |
Certification | CE, FCC, TAA, RoHS |
Surge protection | Yes |
Plug and Play | Yes |
Data bits | 7, 8 |
Stop bits | 1, 2 |
Baud rate | 921.6 Kbit/s |
Parity bit | Even, Mark, N, Odd, Space |
Design | |
LED indicators | Power |
Product colour | Black |
Certification | CE, FCC, TAA, RoHS |
Operational conditions | |
Operating temperature (T-T) | 0 - 55 °C |
Storage temperature (T-T) | -20 - 85 °C |
Operating relative humidity (H-H) | 5 - 95% |
Weight & dimensions | |
Width | 116 mm |
Height | 25 mm |
Depth | 128 mm |
Weight | 382 g |
Packaging data | |
Package width | 165 mm |
Package height | 55 mm |
Package depth | 240 mm |
Package weight | 598 g |
Full specification and details can be found in the PDF file
An instruction manual can be found in the PDF file
