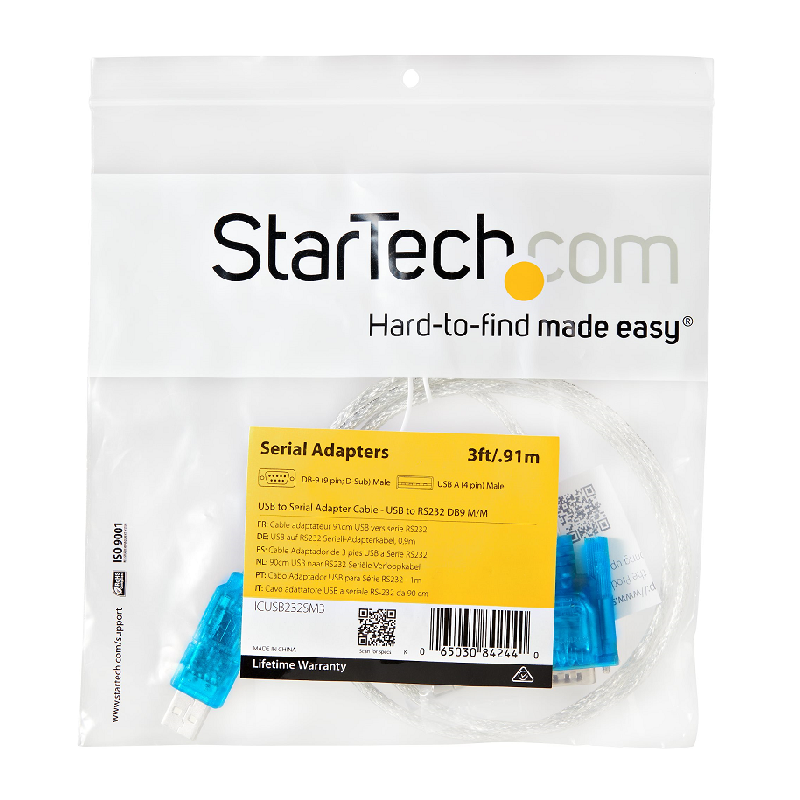

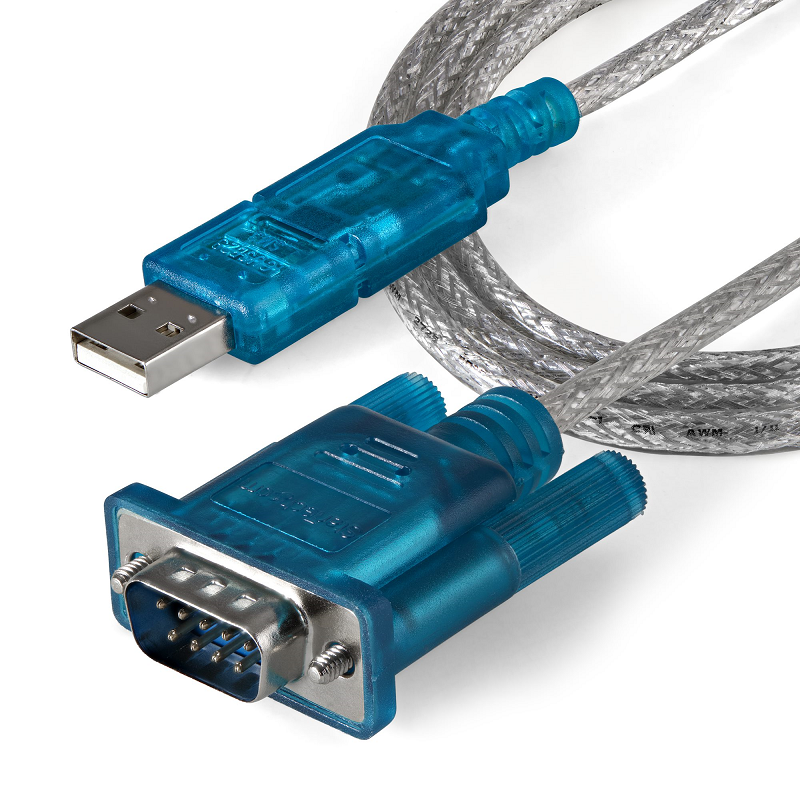

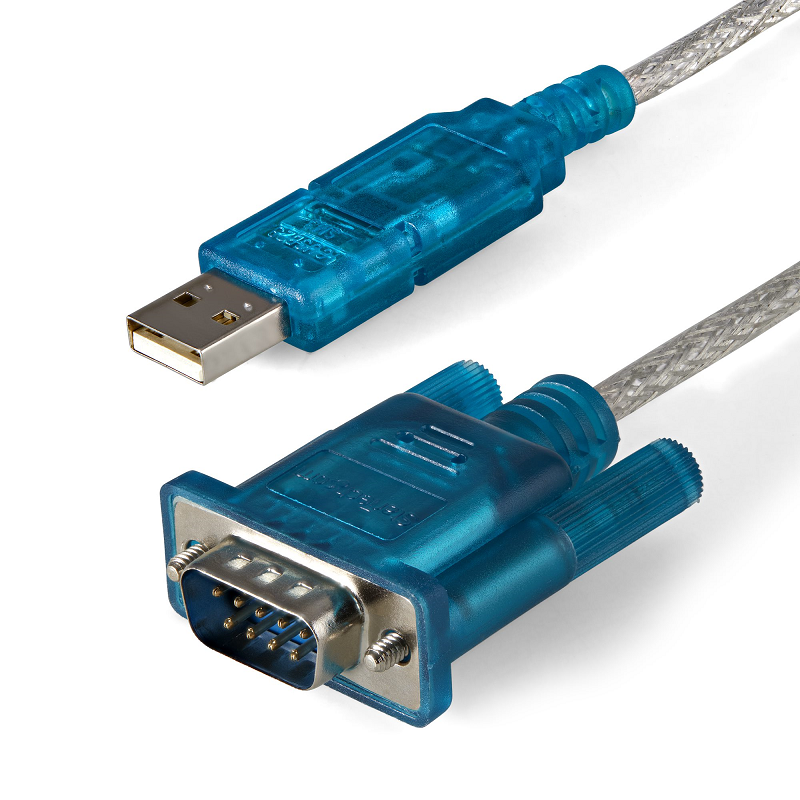

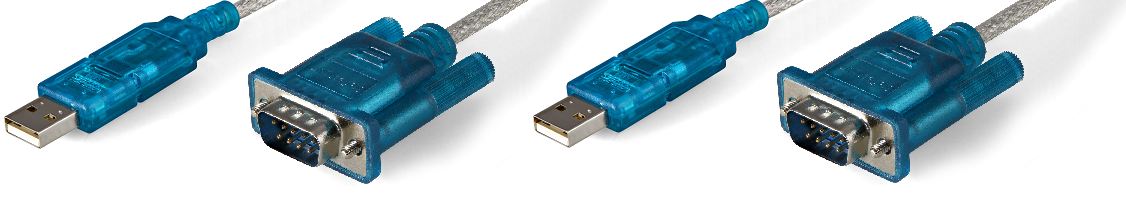

3ft USB to RS232 DB9 Serial Adapter Cable - M/M
Add an RS232 serial port to your laptop or desktop computer through USB

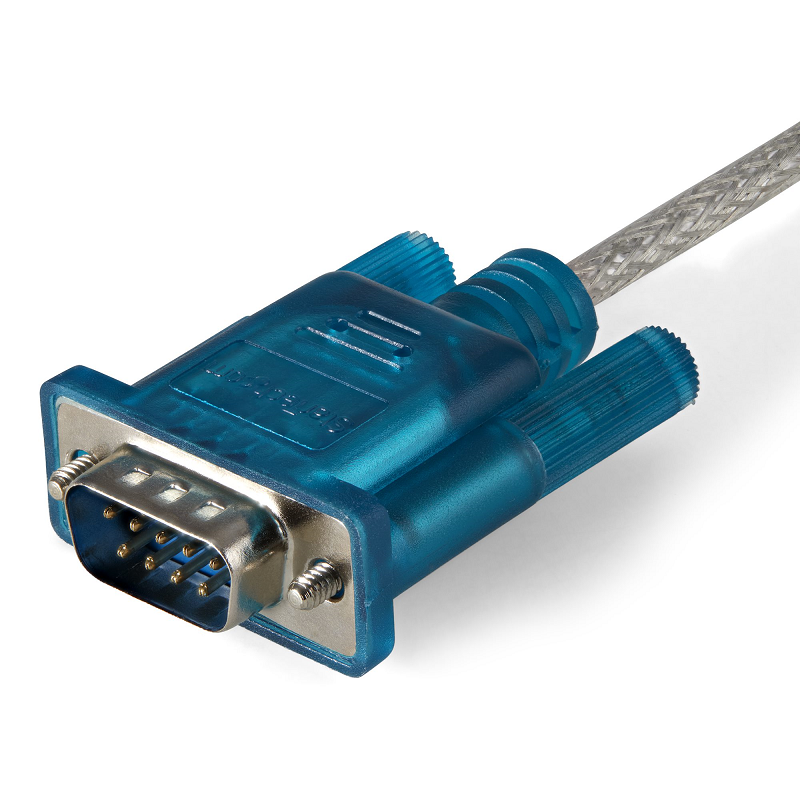

The ICUSB232SM3 3ft USB to Serial Adapter Cable lets you connect DB9 RS232 serial devices to your Mac® or PC laptop or desktop computer through an available USB port, as though the computer offered an onboard DB9M connector.

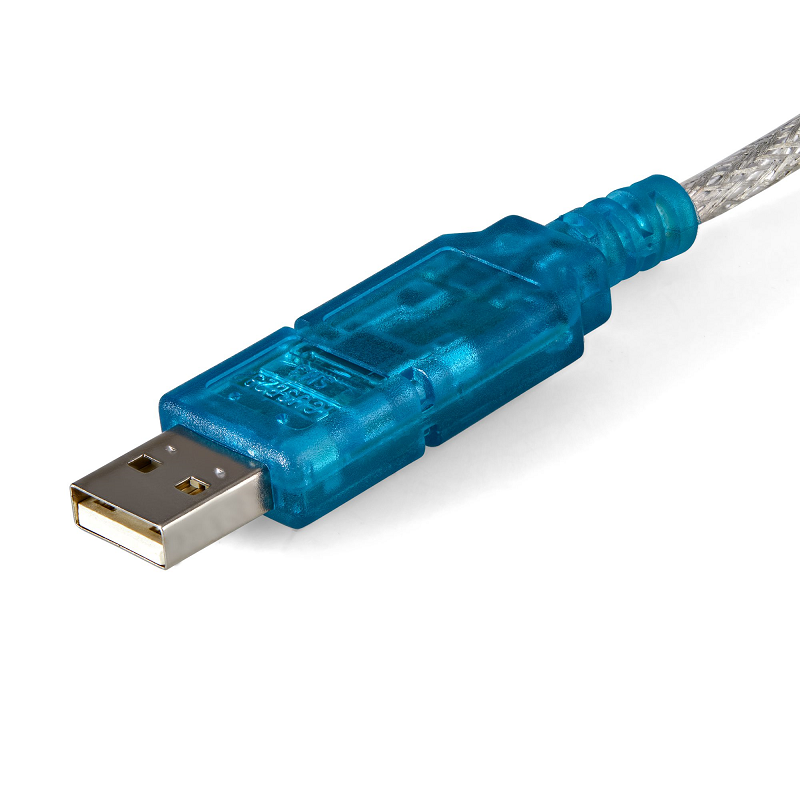

Unlike typical USB to serial converter cables where the conversion takes place at the DB9 end, the StarTech.com ICUSB232SM3 features a converter chip on the USB end. Converting at the USB source overcomes the 15ft. technical limit of USB cables, allowing for a much greater serial DB-9 extension cable (50ft.+ is possible depending on the application) if necessary.
Simple to install and use, this USB to Serial adapter is a cost-effective solution that bridges the compatibility gap between modern computers and legacy serial peripherals.
Backed by a StarTech.com lifetime warranty and free lifetime technical support.
Ports & interfaces | |
Connector 2 | USB 2.0 A |
Connector 1 | DB-9 |
Cable length | 0.9 m |
Connector 2 gender | Male |
Connector 1 gender | Male |
Technical details | |
Product colour | Blue, Transparent |
Cable length | 0.9 m |
Housing material | Plastic |
Sustainability certificates | RoHS |
Design | |
Housing material | Plastic |
Product colour | Blue, Transparent |
Certification | CE, FCC |
Cable length | 0.9 m |
Performance | |
Housing material | Plastic |
Chipset | Prolific - PL2303HXD |
Baud rate | 921.6 Kbit/s |
FIFO (First In, First Out) | 192 B |
Compatible operating systems | Windows 98SE/ ME/ 2000/ XP(32/64bit)/ Vista(32/64bit)/ 7(32/64bit)/ Server 2008 R2, MAC X, Linux |
Product colour | Blue, Transparent |
Certification | CE, FCC |
Operational conditions | |
Storage temperature (T-T) | -20 - 80 °C |
Operating temperature (T-T) | 0 - 60 °C |
Relative humidity | 0 - 65% |
Weight & dimensions | |
Width | 35 mm |
Height | 15 mm |
Depth | 914 mm |
Weight | 56 g |
Packaging data | |
Package width | 200 mm |
Package height | 15 mm |
Package depth | 220 mm |
Package weight | 70 g |
Full specification and details can be found in the PDF file
An instruction manual can be found in the PDF file
