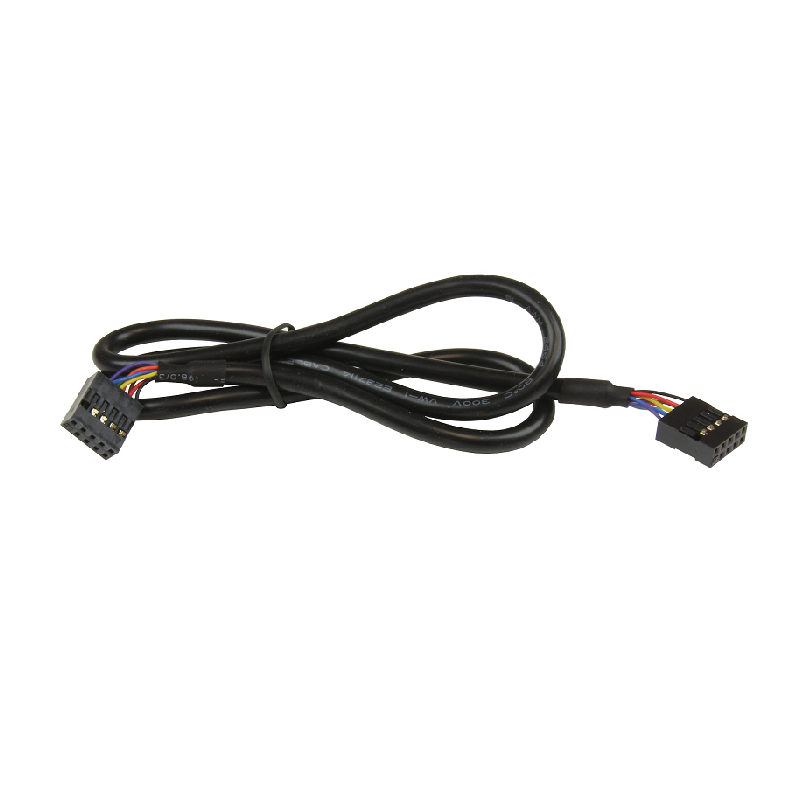

24in Internal USB Motherboard Header to 2 Port Serial RS232 Adapter
Add two RS232 serial ports to any system with an available USB motherboard header
The ICUSB232INT2 USB to Serial Adapter lets you add 2 RS232 ports to any desktop system that is equipped with an available USB motherboard header.
Unlike standard USB to serial cables, this cable is designed for use inside the PC case, affording an entirely internal solution with no mess or extra adapters needed.
This compact and simple USB adapter offers a cost-effective solution that bridges the compatibility gap between modern computers and legacy serial peripherals.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
Ports & interfaces | |
Internal | Yes |
Output interface | Serial |
Serial interface type | RS-232 |
Serial ports quantity | 2 |
Host interface | IDC |
Technical details | |
Plug and Play | Yes |
FIFO (First In, First Out) | 256 B |
Sustainability certificates | RoHS |
Performance | |
Stop bits | 1, 2 |
Data bits | 7, 8 |
Baud rate | 115.2 Kbit/s |
Plug and Play | Yes |
FIFO (First In, First Out) | 256 B |
Operational conditions | |
Operating temperature (T-T) | -10 - 80 °C |
Storage temperature (T-T) | -20 - 100 °C |
Operating relative humidity (H-H) | 5 - 85 % |
Weight & dimensions | |
Width | 120 mm |
Height | 19 mm |
Depth | 68 mm |
Weight | 63 g |
Packaging data | |
Package width | 144 mm |
Package height | 32 mm |
Package depth | 175 mm |
Package weight | 153 g |
Manual | Yes |
Mounting brackets included | Yes |
Drivers included | Yes |
Full specification and details can be found in the PDF file
A user manual can be found in the PDF file
