| Product Code: | |
| Options: | |
| Qty: | |
| Unit Price: | £ |
| Part No: | FEICUSB232INT1 |
| Manufacturer No: | ICUSB232INT1 |
| Delivery: | In Stock: Next Day |
 |

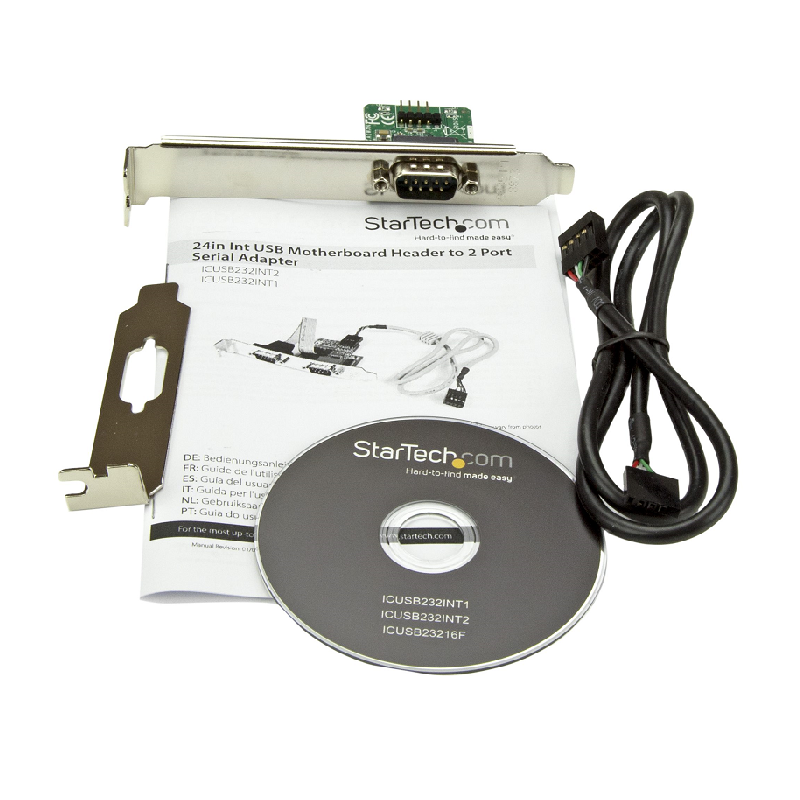

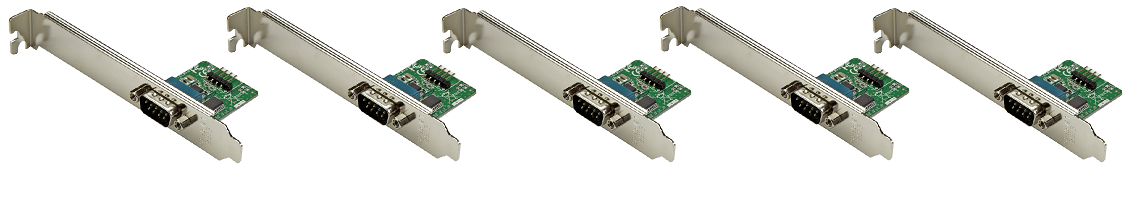

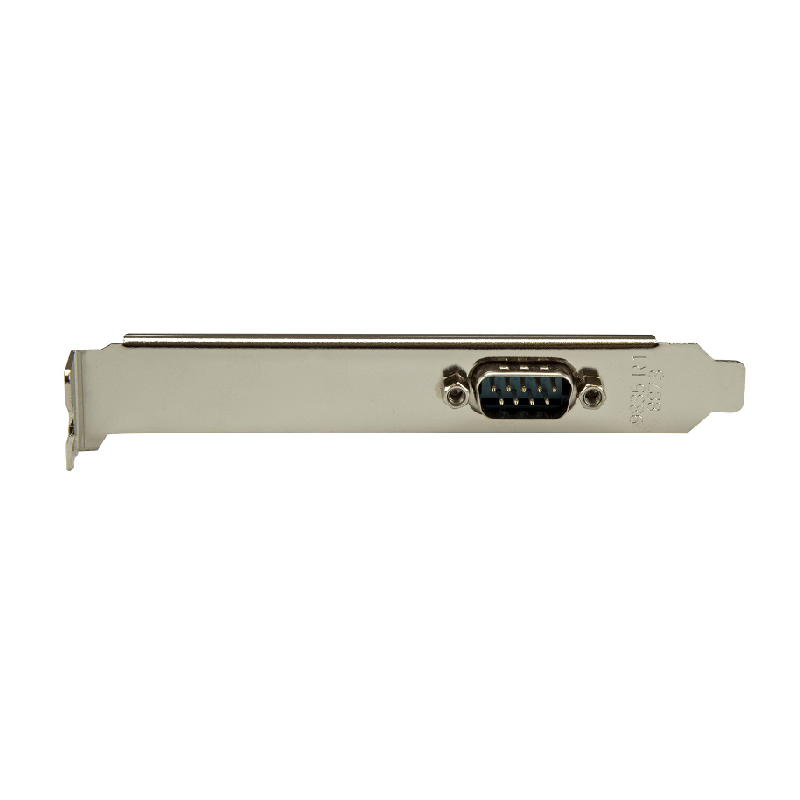

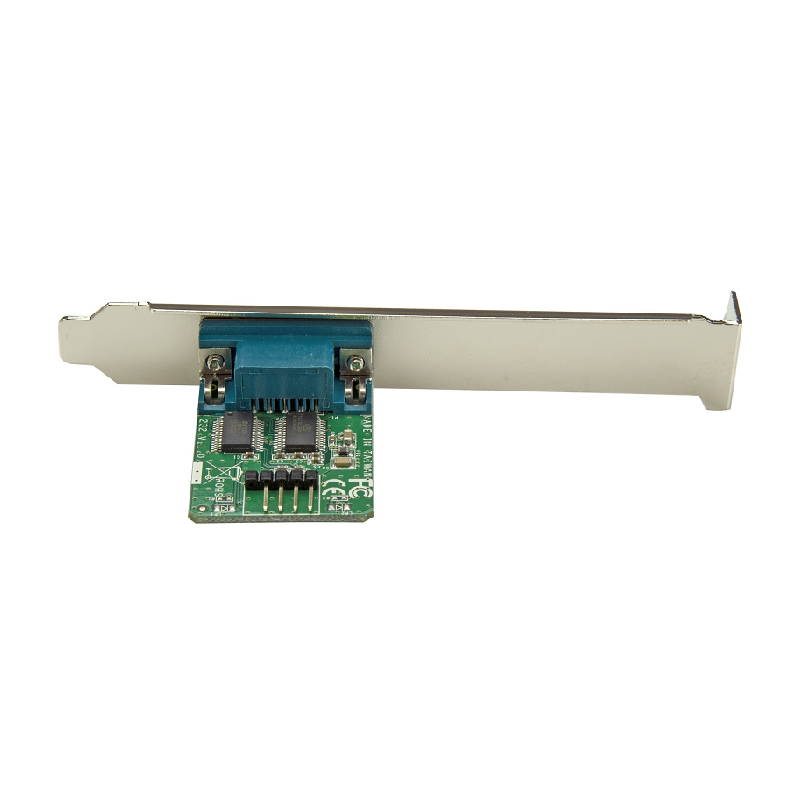

24in Internal USB Motherboard Header to Serial RS232 Adapter
Add an RS232 serial port to any system with an available USB motherboard header
The ICUSB232INT1 USB to RS232 Serial Adapter lets you add an RS232 port to any desktop system that is equipped with an available USB motherboard header.
Unlike standard USB to serial cables, this cable is designed for use inside the PC case, affording an entirely internal solution with no mess or extra adapters needed.
This compact and simple USB adapter offers a cost-effective solution that bridges the compatibility gap between modern computers and legacy serial peripherals./p>
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
| Ports & interfaces | |
| Internal | Yes |
| Output interface | Serial |
| Serial interface type | RS-232 |
| Serial ports quantity | 1 |
| Host interface | IDC |
| Technical details | |
| Chipset | FTDI - FT232RL |
| FIFO (First In, First Out) | 256 B |
| Performance | |
| Stop bits | 1, 2 |
| Data bits | 7, 8 |
| Baud rate | 115.2 Kbit/s |
| Chipset | FTDI - FT232RL |
| FIFO (First In, First Out) | 256 B |
| Product colour | Black, Green, Silver |
| Design | |
| Internal | Yes |
| Product colour | Black, Green, Silver |
| Certification | Microsoft WHQL, CE, FCC |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 85 °C |
| Storage temperature (T-T) | -20 - 100 °C |
| Operating relative humidity (H-H) | 5 - 85 % |
| Weight & dimensions | |
| Width | 123 mm |
| Height | 12 mm |
| Depth | 45 mm |
| Weight | 31 g |
| Packaging data | |
| Package width | 143 mm |
| Package height | 32 mm |
| Package depth | 173 mm |
| Package weight | 160 g |
| Manual | Yes |
| Mounting brackets included | Yes |
| Drivers included | Yes |
Full specification and details can be found in the PDF file
A user manual can be found in the PDF file
