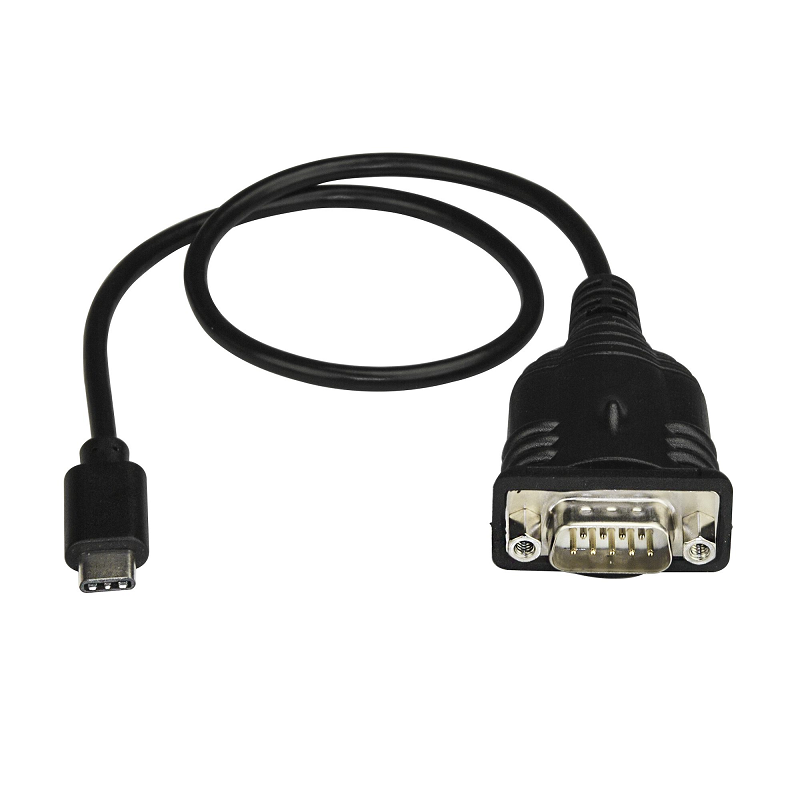

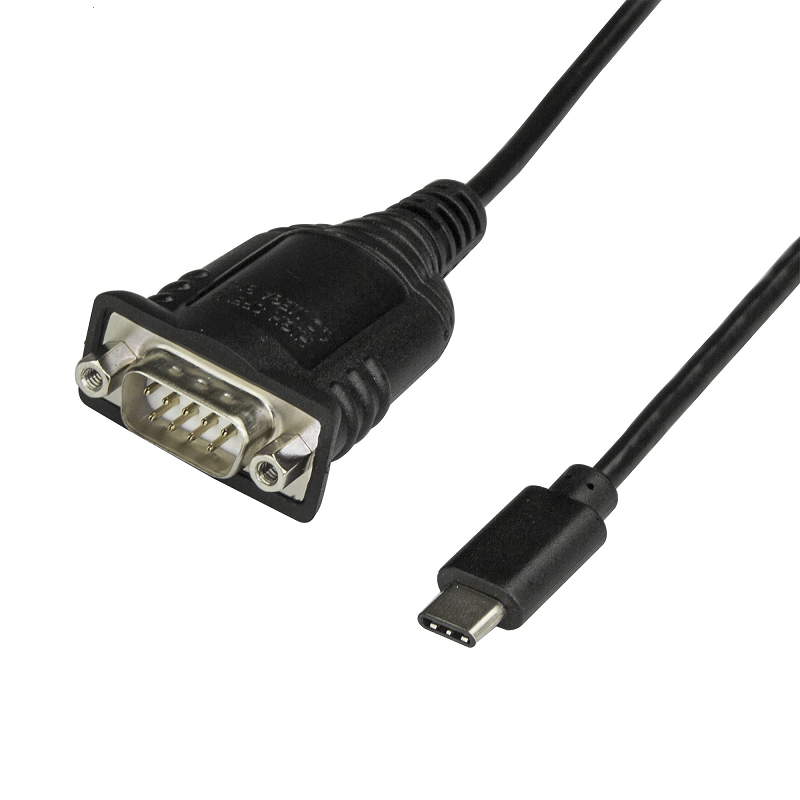

StarTech ICUSB232C USB Type C to RS232 (DB9) Converter Cable - M/M - 40cm

USB C to Serial Adapter Cable 16" (40cm) - USB Type C to RS232 (DB9) Converter Cable - USB-C Serial Cable for PLCs, Scanners, Printers - Male/Male - Windows/Mac/Linux

Connect an RS232 (DB9) peripheral to your USB-C device

This USB-C™ to serial adapter lets you connect your USB-C devices to your legacy serial equipment. It converts a USB-C port on your laptop or computer into a RS232 DB9 serial port, giving you a cost-saving way to connect to serial devices such as point-of-sale terminals, serial modems, industrial equipment, and a wide variety of other RS232 peripherals.

Connect with ease

The RS232 adapter cable is compatible with Windows®, macOS and Linux® operating systems, which makes it easy to integrate into mixed environments.

Ready for mobile or desktop applications

The USB-C to serial adapter is USB powered, so you don’t need an additional external power supply. It’s a compact solution that’s easy to bring along with your laptop, when you’re on the go.

The ICUSB232C is backed by a StarTech.com 2-year warranty and free lifetime technical support.

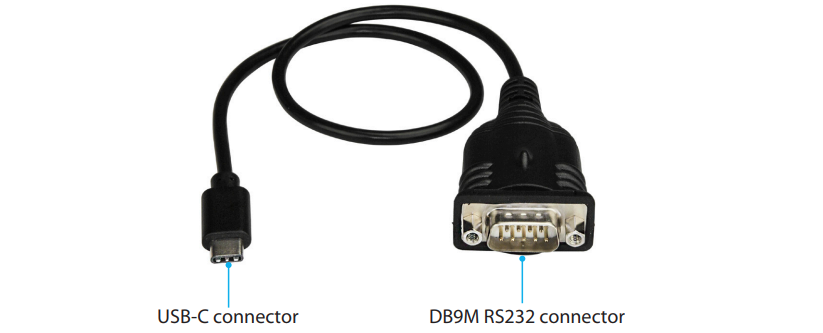

Product Diagram:

Applications:

• IT administrators looking to add legacy functionality to newer notebooks, PCs and servers that lack an integrated RS232 port
• Connect bar code scanners, receipt printers and other point of sale devices
• Connect, monitor and control industrial/automotive sensors and other sensitive equipment
• Connect and program LED and digital signage boards

Features:

• USB-C TO SERIAL: Interface with Serial RS-232 (DB9) equipment using this black USB Type-C Serial adapter converter cable; Male DB9 connector features screw-lock nuts; Cable length of 16" [40 cm]
• TECH SPECS: 921.6 Kbps baud 512 byte FIFO Data bits of 5/6/7/8 and stop bits 1/1.5/2 Parity Modes of None, Xon/Xoff, RTS/CTS, DTR/DSR Flow control options Odd/Even/Mark/Space/None
• APPLICATIONS: Using your laptop's USB-C port, control serial equipment such as PLCs, scanners, sensors, oscilloscopes, medical, scales or receipt printers; Use in manufacturing, scientific, automation
• HOST COMPATIBILITY: Driverless setup for easy install; Tested on major operating systems, including Windows 7 and up, macOS 10.11 and up, Linux 2.6 and up; USB bus powered
• STARTECH.COM ADVANTAGE: IT professionals choice for over 30 years; This RS232 Serial Adapter is backed for 2-years by StarTech.com, including free 24/5 North America based multi-lingual tech support

Full specification and details can be found in the PDF file

A user quick start guide can be found in the PDF file
