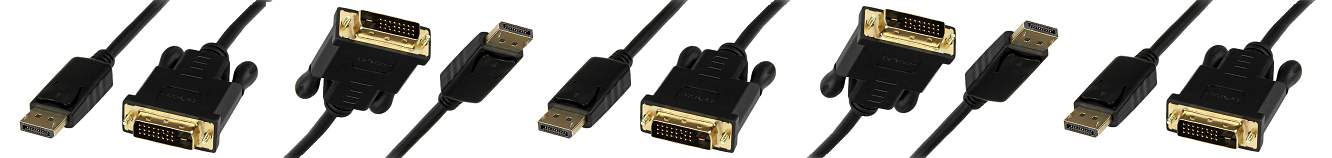

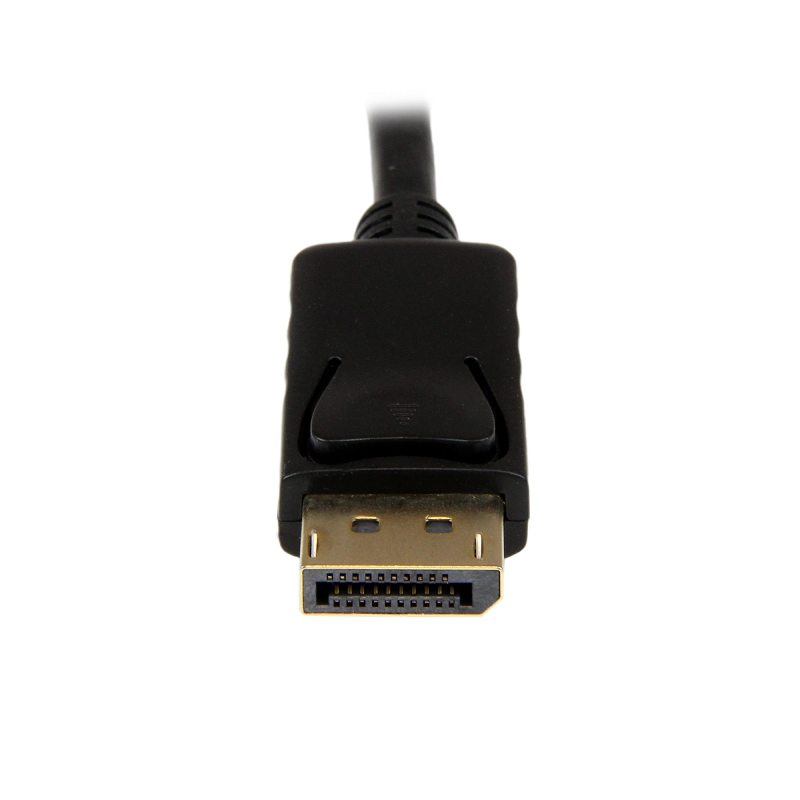

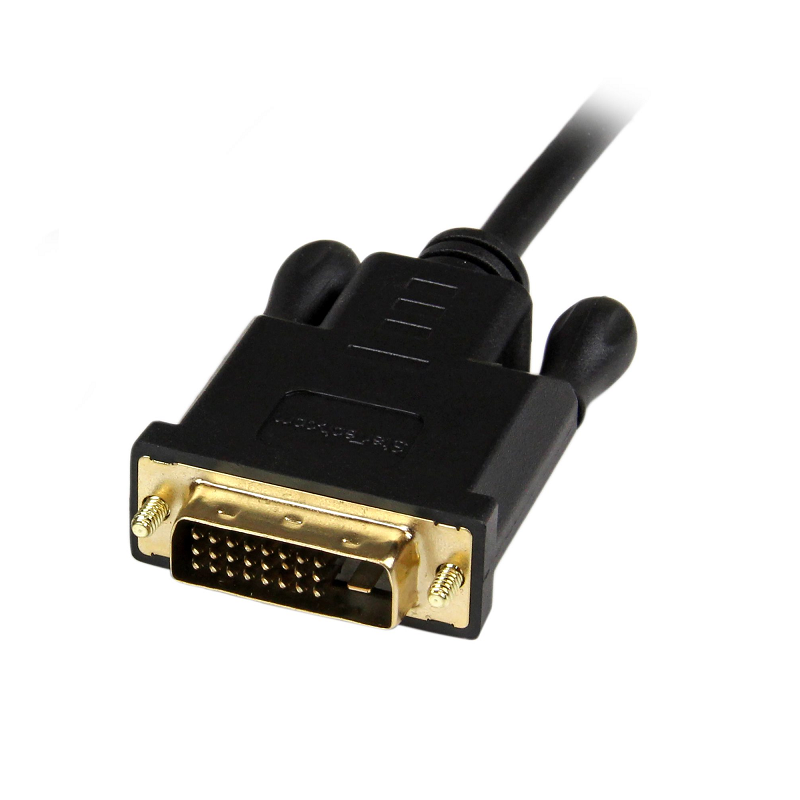

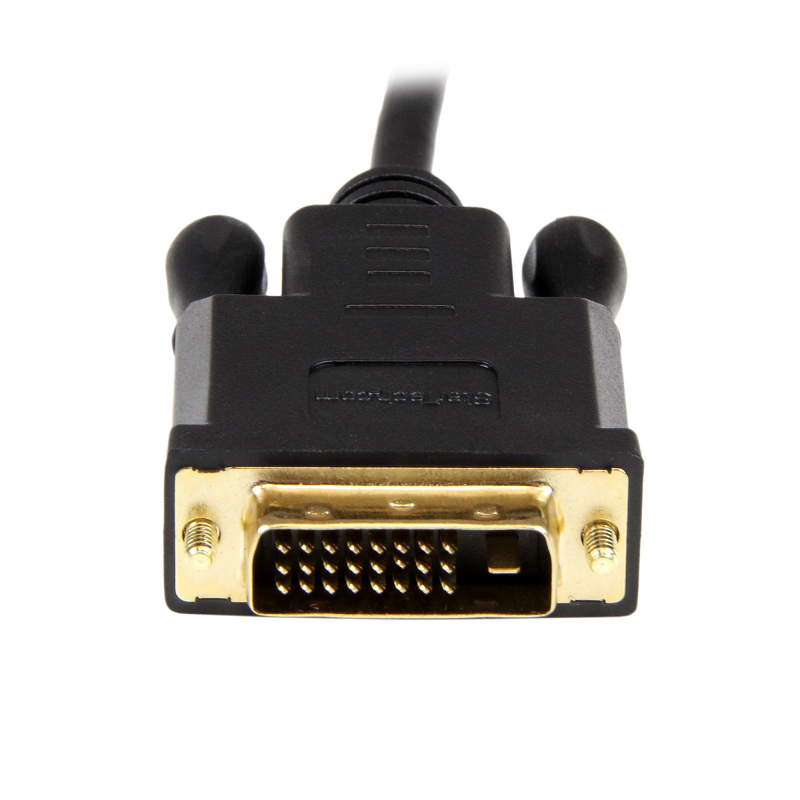

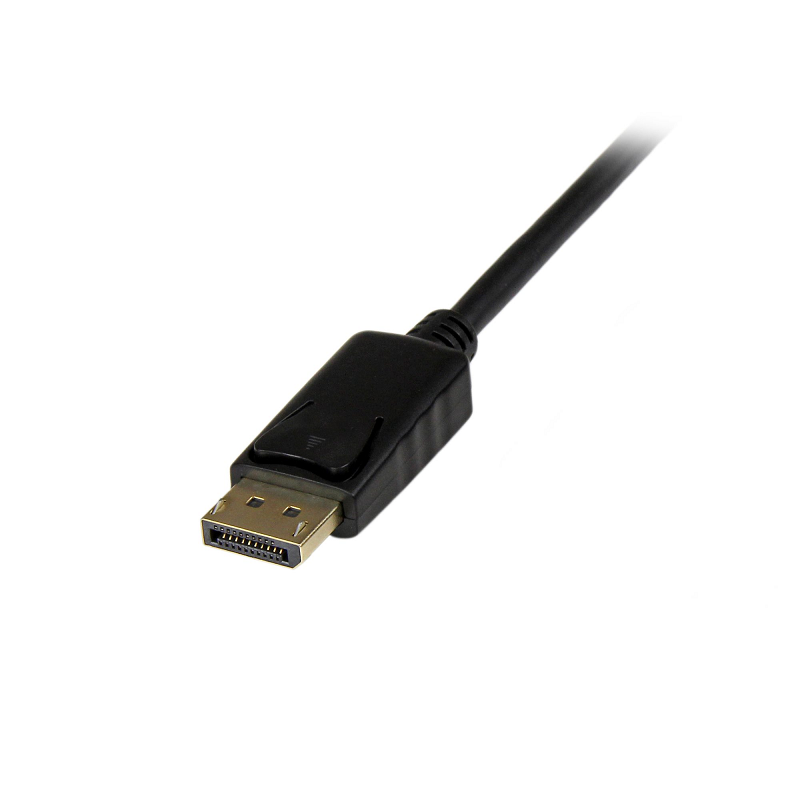

6ft (1.8m) DisplayPort to DVI Cable - 1080p Video - Active DisplayPort to DVI Adapter Cable - DisplayPort to DVI-D Cable Single Link - DP 1.2 to DVI Monitor Cable Converter
Connect a DisplayPort-equipped PC to a DVI display, with an active 6ft cable
The DP2DVIMM6BS 6ft active DisplayPort to DVI converter cable lets you connect your DisplayPort-equipped desktop or laptop directly to a DVI monitor or projector with no additional adapters or cables required -- a cost-effective solution for enabling your new DisplayPort computer to work with an older DVI monitor or projector.
For guaranteed compatibility with virtually any DisplayPort output the active DisplayPort to DVI adapter supports multimode (DP++) as well as single-mode DisplayPort signals. Unlike passive adapters, this ensures the DP2DVIMM6BS can be used with graphics cards that are not capable of outputting multimode DP++ signals, such as ATI® Eyefinity cards.
Plus, because the converter cable supports video resolutions up to 1920x1200 you can convert a DisplayPort video source to DVI without sacrificing video quality.
The DP2DVIMM6BS is backed by a 3-year StarTech.com warranty and free lifetime technical support.
Note: This adapter is not compatible for use with the Apple Cinema Display.
| Features | |
| Converter type | Active |
| Chipset | Parade - PS171 |
| Audio connector | No |
| DisplayPort version | 1.2 |
| Product colour | Black |
| Cable length | 1.8 m |
| Connector 1 | DisplayPort |
| Connector 2 | DVI-D |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Maximum resolution | 1920 x 1200 pixels |
| Supported graphics resolutions | 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA) |
| Plug and Play | Yes |
| Certification | CE, FCC, REACH |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Dual Link DVI | No |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 60 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 40 - 85 % |
| Weight & dimensions | |
| Width | 40 mm |
| Height | 15 mm |
| Depth | 1900 mm |
| Weight | 105.2 g |
| Packaging data | |
| Package width | 194 mm |
| Package depth | 220 mm |
| Package height | 15 mm |
| Package weight | 123 g |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Master (outer) case width | 42 cm |
| Master (outer) case length | 41.5 cm |
| Master (outer) case height | 43.5 cm |
| Quantity per master (outer) case | 150 pc(s) |
Full specification and details can be found in the PDF file
