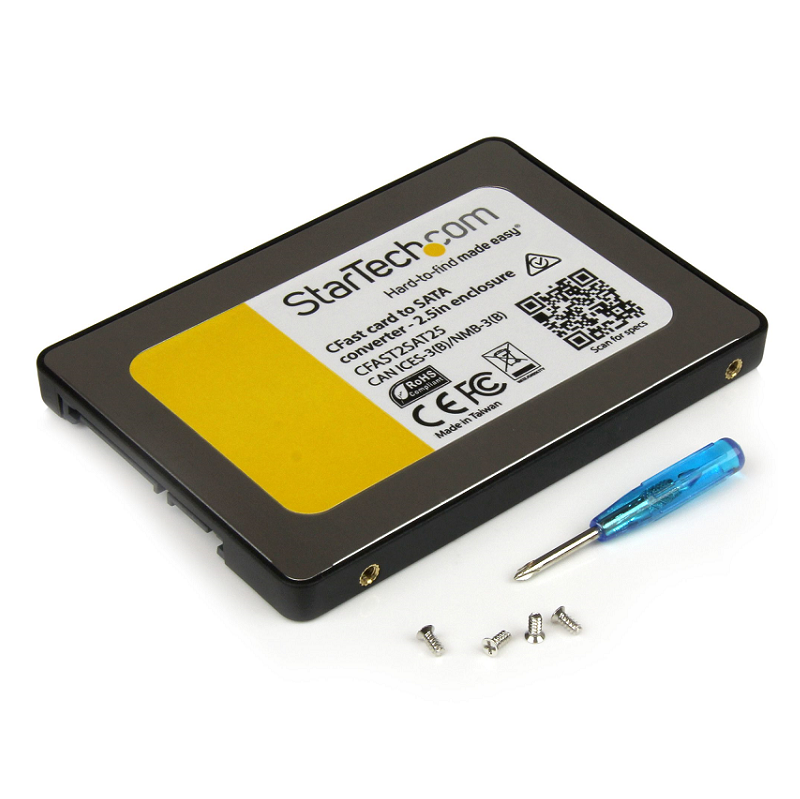

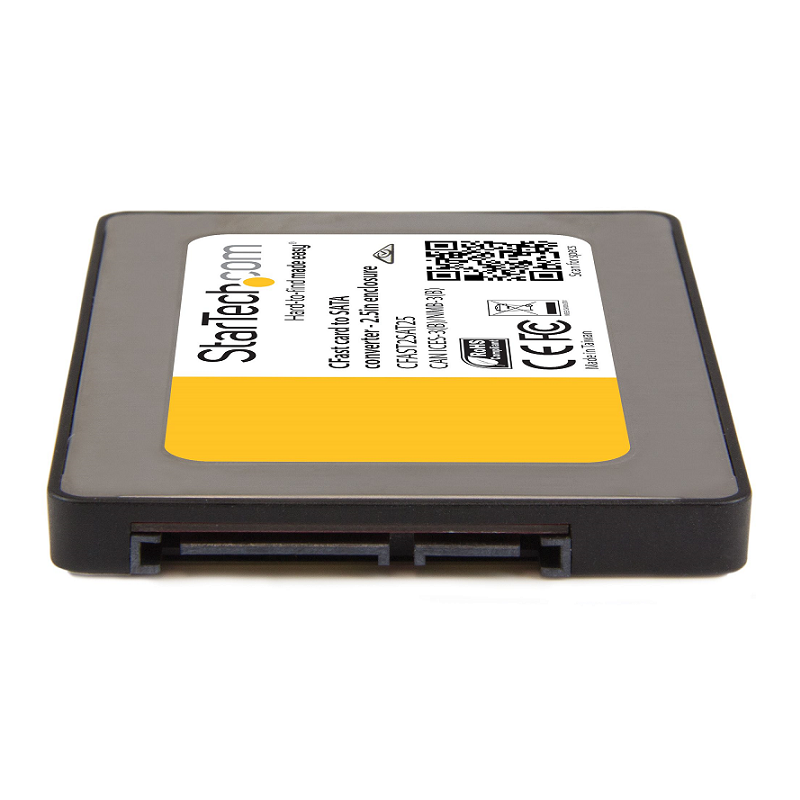

CFast Card to SATA Adapter with 2.5" Housing
Convert your CFast card into a 2.5in SATA drive for faster data transfer
Now you can use your CFast™ memory card like a standard 2.5" SATA solid-state drive. This unique adapter lets you access and recover data from a CFast card through SATA at faster data transfer speeds.
This CFast to SATA adapter creates a permanent conversion from CFast to SATA for use inside small form factor or embedded solutions. The drive frame and the connector on the adapter mimic the exact size and connector location of a 2.5" SATA hard drive.
Standard 2.5" housing allows the converted card to be installed into a laptop or other standard mounting bracket. Once the CFast card is mounted inside this adapter, you can use it just like a 2.5" SATA drive - in your laptop, docking station, enclosure or desktop computer.
Transfer data from your CFast card to your PC through SATA, with file transfer speeds of up to 6 Gbps. You can offload data from your DSLR cameras and camcorders, or transfer graphic design files, videos and other files from your CFast card.
Faster file transfer speeds means you'll spend less time waiting for file transfers to complete. The actual speed will depend on the speed of the CFast media.
Engineered with a durable protective housing, the CFAST2SAT25 adapter is backed by a StarTech.com 2-year warranty and free lifetime technical support.

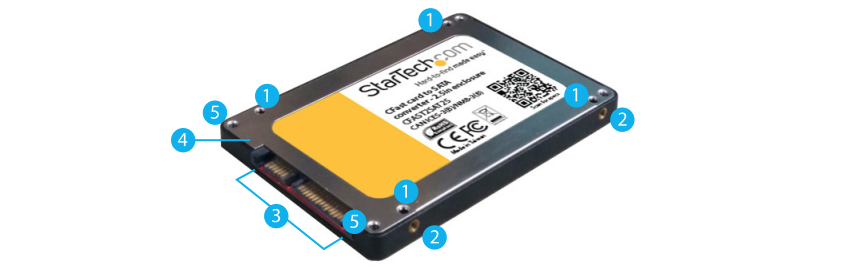

1. Top mounting holes
2. Side mounting holes
3. SATA DATA & Power Combo (7+15 pin)
4. Enclosure plate
5. Enclosure plate mounting holes

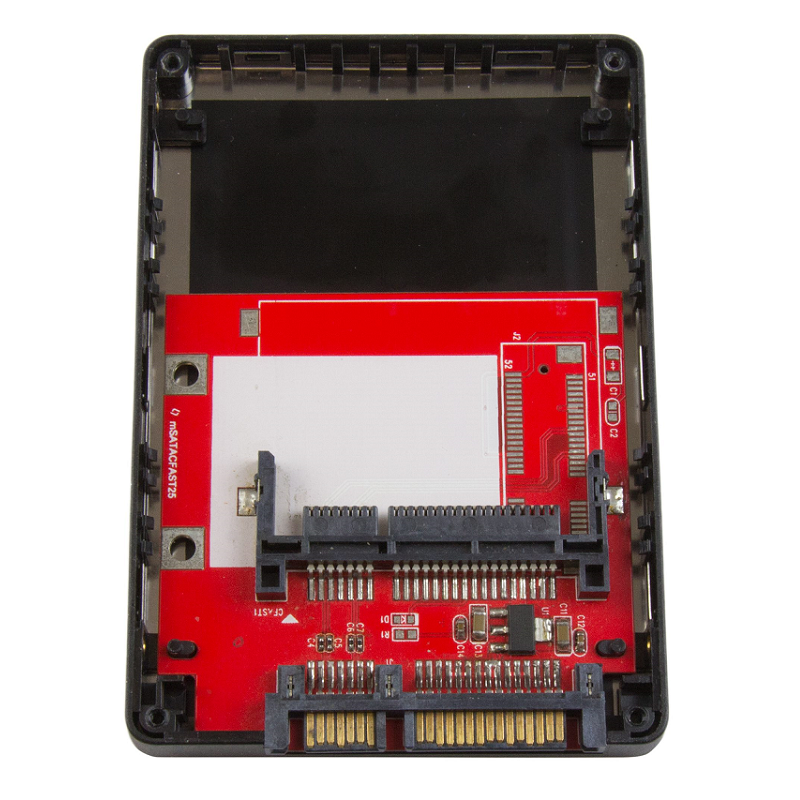

1. SATA DATA & Power Combo (7+15 pin)
2. CFast card Connector
3. Enclosure plate assembly holes
| Ports & interfaces | |
| Internal | No |
| Output interface | CFast |
| Host interface | SATA |
| SATA connector insertion cycles | 10000 |
| Technical details | |
| Data transfer rate (max) | 6 Gbit/s |
| Material | Plastic, Steel |
| Sustainability certificates | RoHS |
| Performance | |
| Data transfer rate (max) | 6 Gbit/s |
| Product colour | Black, Silver |
| Supported storage drive heights | 3.3, 5 mm |
| SATA connector insertion cycles | 10000 |
| Design | |
| Supported storage drive heights | 3.3, 5 mm |
| Mean time between failures (MTBF) | 50000 h |
| Internal | No |
| Product colour | Black, Silver |
| Certification | CE, FCC, RoHS |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 75 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95 % |
| Weight & dimensions | |
| Width | 69 mm |
| Depth | 99 mm |
| Height | 10 mm |
| Weight | 54 g |
| Packaging data | |
| Package width | 144 mm |
| Package depth | 167 mm |
| Package height | 32 mm |
| Package weight | 100 g |
| Quick installation guide | Yes |
| Screws included | Yes |
Full specification and details can be found in the PDF file
A quick install guide can be found in the PDF file
