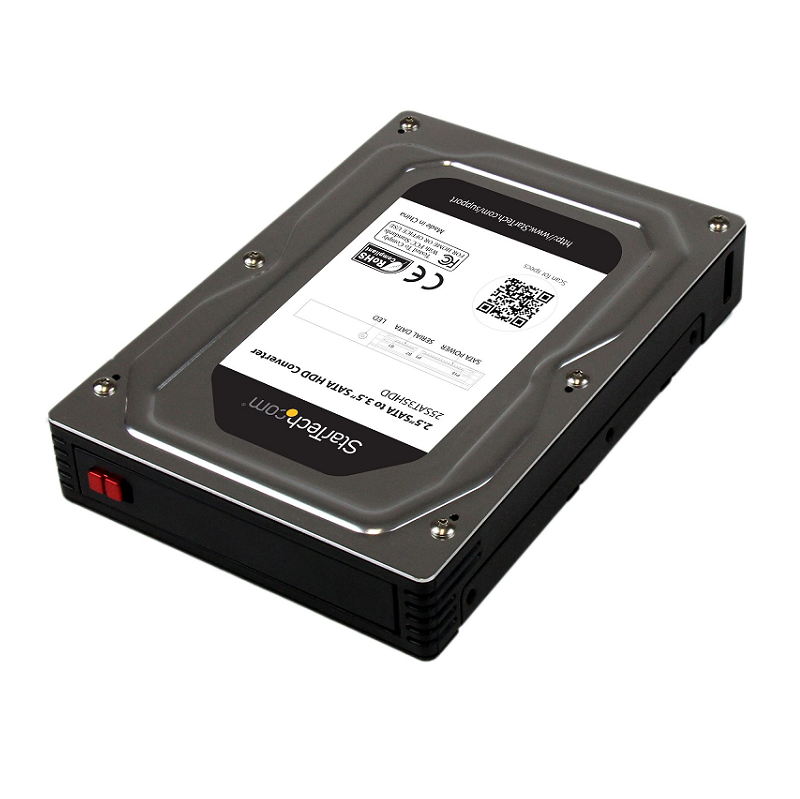

2.5” to 3.5” SATA Aluminum Hard Drive Adapter Enclosure with SSD / HDD Height up to 12.5mm
Turn a 2.5” SATA HDD/SSD into a 3.5” SATA Drive

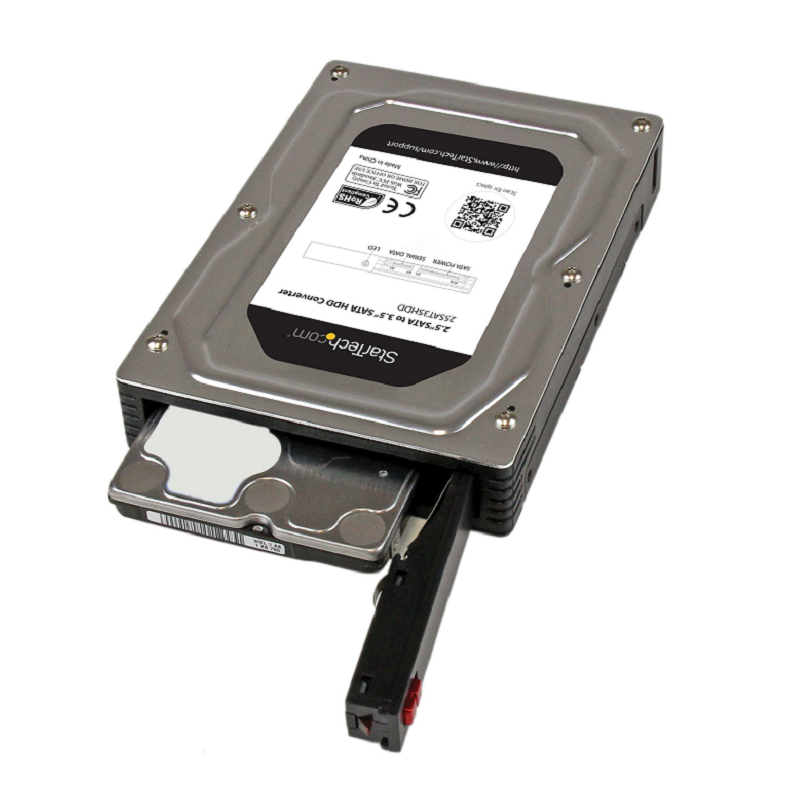

The 25SAT35HDD 2.5" to 3.5" hard drive adapter enclosure turns a 2.5" SATA hard drive (HDD) or solid state drive (SSD) into a 3.5" drive.
The adapter enclosure lets you substitute a 3.5" hard drive for a 2.5" SSD/HDD in any application that would typically require a 3.5" drive, such as desktop chassis, backplane, or docking station. The enclosure has the same dimensions as a standard 3.5" hard drive, including mounting points, and SATA connector locations.
With support for drives up to 12.5mm in height, and high-capacity SATA I/II/III drives (tested up to 1TB) this HDD adapter ensures compatibility with virtually any 2.5" SATA hard drive or solid state drive.
The 25SAT35HDD is backed by a StarTech.com 2-year warranty and free lifetime technical support.

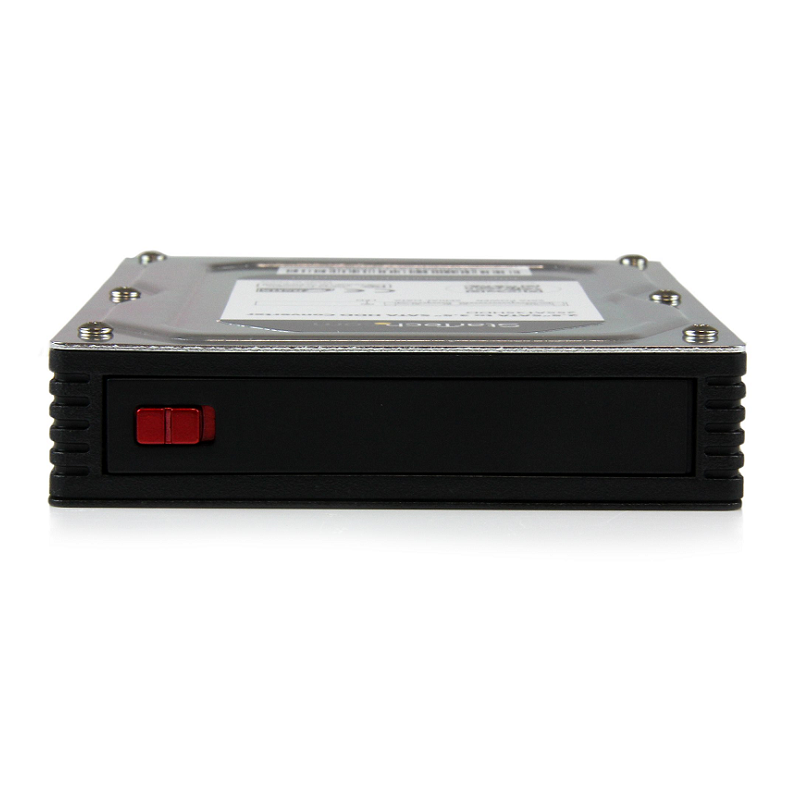

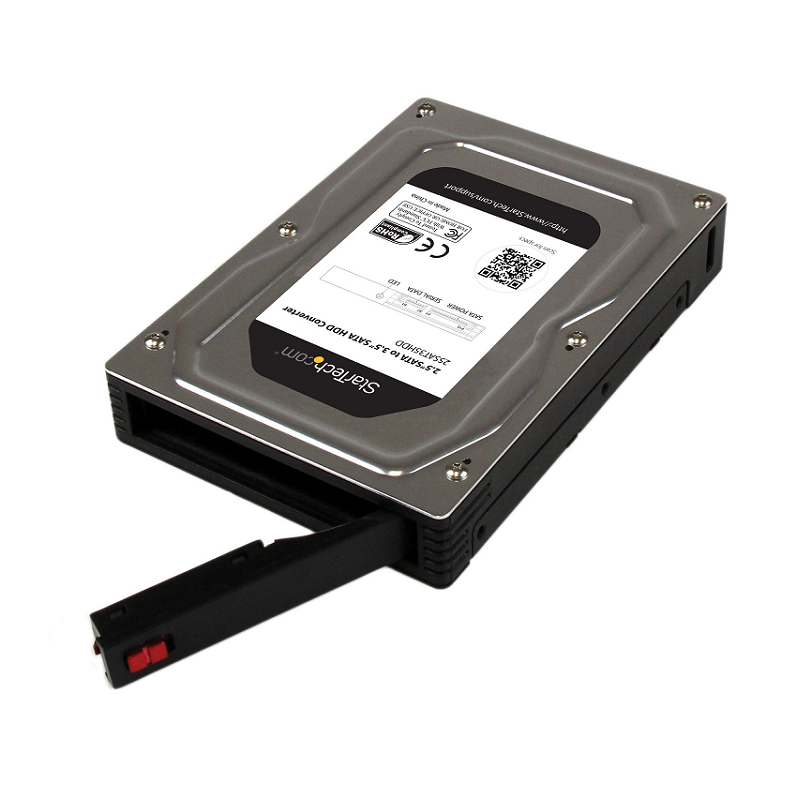

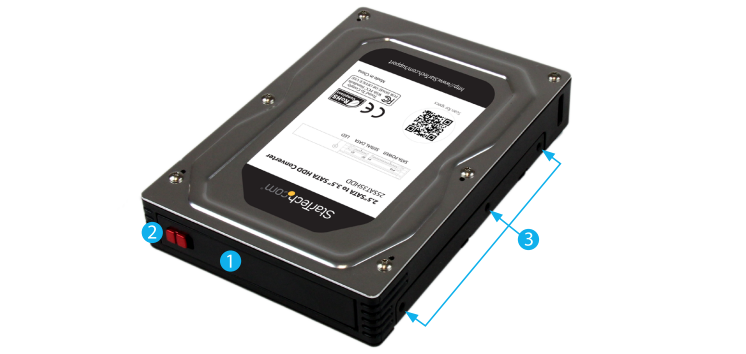

1. Enclosure Door
2. Release switch
3. Mounting holes

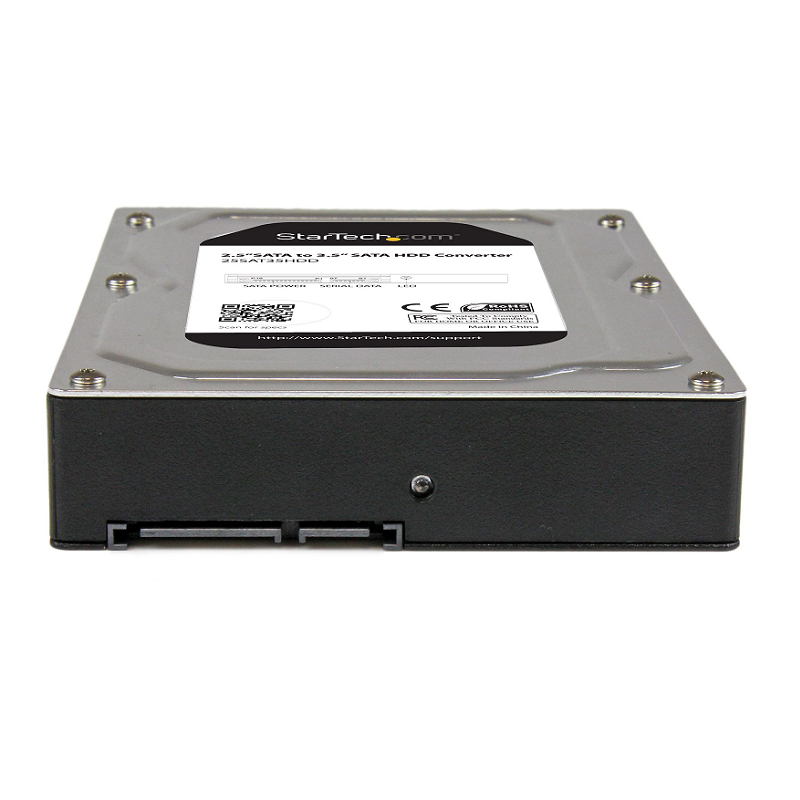

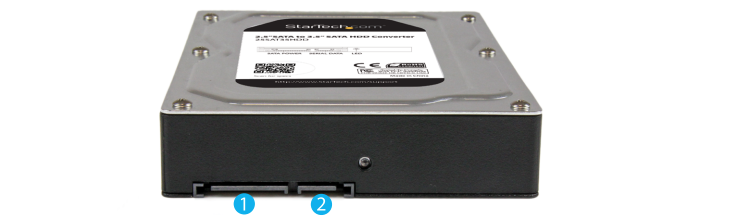

1. SATA Power Port
2. SATA Data Port
Features | |
Certification | FCC, REACH |
HDD size | 2.5" |
Supported storage drive height | 12.5 mm |
Type | Storage drive tray |
Size (imperial) | 8.89 cm (3.5") |
Number of HDDs supported | 1 |
Data transfer rate | 6 Gbit/s |
Product colour | Black, Silver |
Material | Aluminum, Plastic |
Technical details | |
Certification | FCC, REACH |
HDD size | 2.5" |
Operating relative humidity (H-H) | 5 - 85 % |
Supported storage drive heights | 12.5 mm |
Type | 12.5 mm |
Size (imperial) | 8.89 cm (3.5") |
Operating temperature (T-T) | 5 - 55 °C |
Number of HDDs supported | 1 |
Data transfer rate | 6 Gbit/s |
Product colour | Black, Silver |
Material | Aluminium, Plastic |
Sustainability certificates | RoHS |
Operational conditions | |
Operating temperature (T-T) | 5 - 55 °C |
Storage temperature (T-T) | 5 - 55 °C |
Operating relative humidity (H-H) | 5 - 85 % |
Weight & dimensions | |
Width | 102 mm |
Depth | 146 mm |
Height | 36 mm |
Weight | 260 g |
Packaging data | |
Package width | 115 mm |
Package depth | 163 mm |
Package height | 38 mm |
Package weight | 260 g |
Screws included | Yes |
Manual | Yes |
Cables included | SATA |
Full specification and details can be found in the PDF file

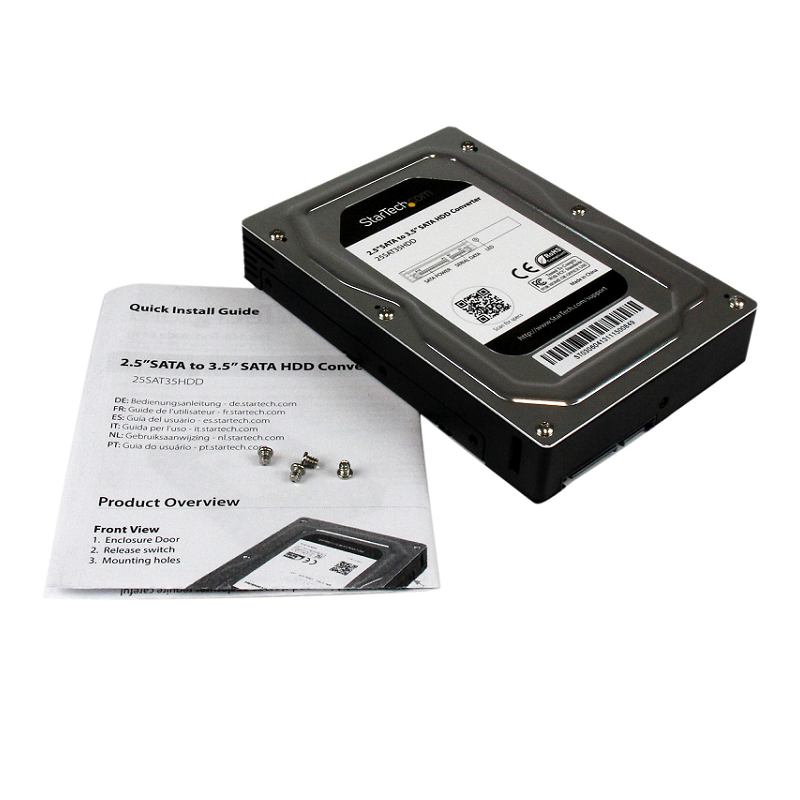

A quick installation guide can be found in the PDF file
