| Part No: | FE25SAT22MSAT |
| Manufacturer No: | 25SAT22MSAT |
| Delivery: | In Stock: Next Day |
 |

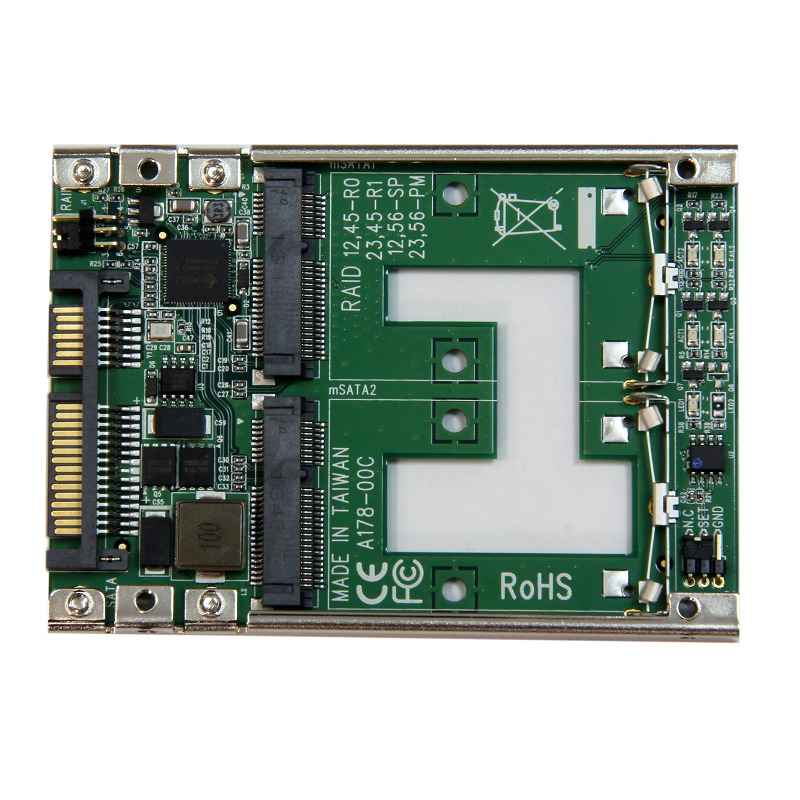

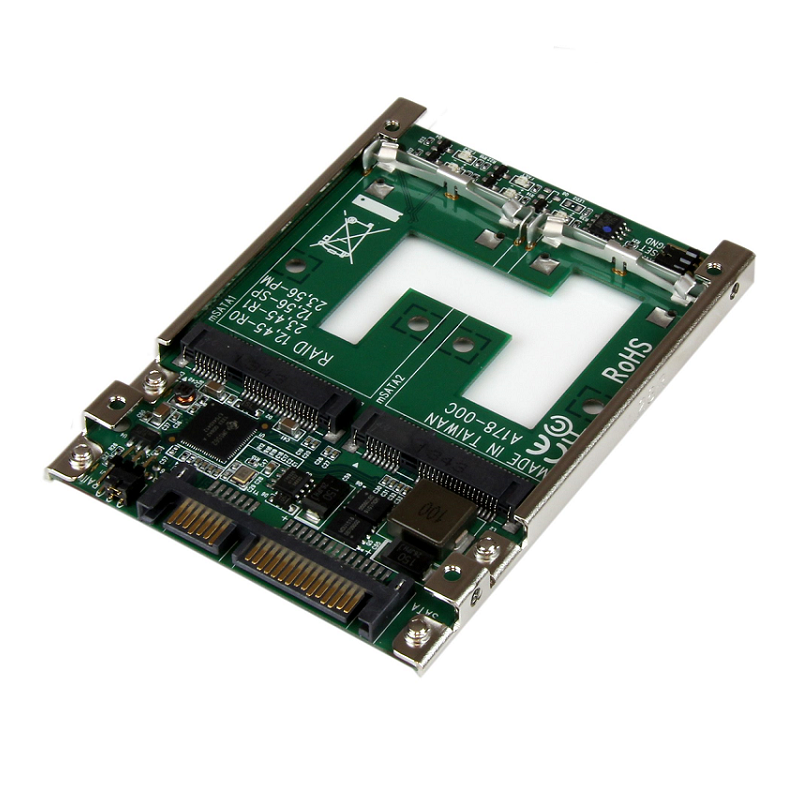

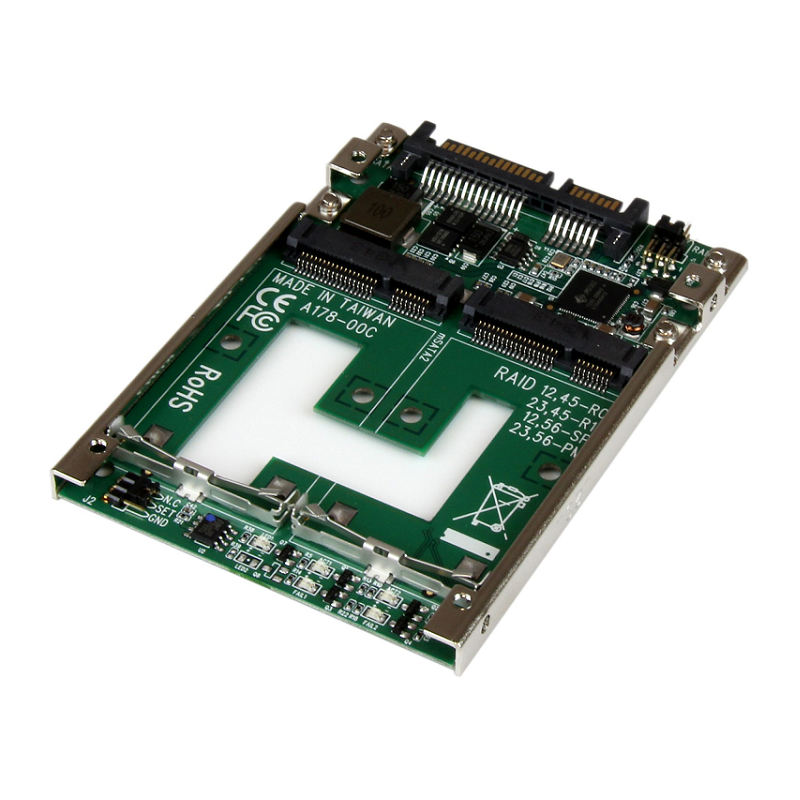

Dual mSATA SSD to 2.5” SATA RAID Adapter Converter
Build a RAID array with two mSATA SSDs that can be installed into a single 2.5in SATA bay
Vastly increase system performance by adding a dual mSATA SSD RAID array into any 2.5" SATA HDD application with the 25SAT22MSAT mSATA to SATA adapter.
Utilize the full potential of your SATA III controller, with mSATA SSDs reducing your data transfer bottleneck with file transfer speeds up to 6 Gbps. mSATA SSDs also save you money by reducing your power consumption over regular platter drives.
You can achieve greater SSD capacity, or data redundancy with the Dual SSD controller supporting multiple RAID modes (RAID 0, 1, BIG). The SSD adapter also supports non-RAID operation (JBOD) when paired with a port-multiplying SATA controller, so both drives can be used independent of one another.
Help protect the health of your drive with an open-frame design ensuring maximum heat dissipation.
The 25SAT22MSAT is backed by a StarTech.com 2-year warranty, and lifetime technical support.

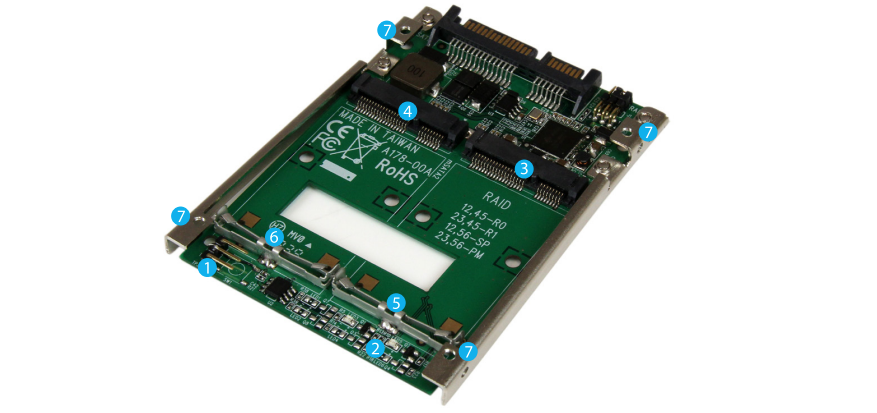

1. RAID lock/unlock jumper pins
2. Drive Activity/Fail LEDs
3. Drive #1 mSATA connector
4. Drive #2 mSATA connector
5. Drive #1 mounting bracket
6. Drive #2 mounting bracket
7. Top mounting holes

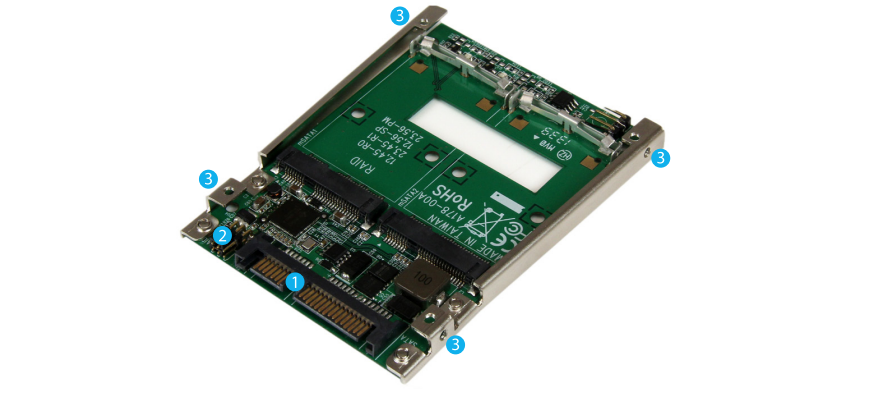

1. DATA & Power Combo (7+15 pin)
2. RAID setting jumper pins
3. Side mounting holes
| Ports & interfaces | |
| Internal | Yes |
| Port multiplier | Yes |
| Output interface | mSATA |
| SATA revision | 3.0 |
| Host interface | SATA |
| Technical details | |
| Plug and Play | Yes |
| Chipset | JMicron JMS562 |
| RAID levels | 0, 1, BIG, JBOD |
| Data transfer rate (max) | 6 Gbit/s |
| Sustainability certificates | RoHS |
| Performance | |
| Port multiplier | Yes |
| Hot-swap | No |
| Plug and Play | Yes |
| Chipset | JMicron JMS562 |
| RAID levels | 0, 1, BIG, JBOD |
| Data transfer rate (max) | 6 Gbit/s |
| Product colour | Black, Green |
| Design | |
| Mean time between failures (MTBF) | 5101299 h |
| Hot-swap | No |
| Internal | Yes |
| Product colour | Black, Green |
| Certification | CE, FCC |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 85 °C |
| Weight & dimensions | |
| Width | 70 mm |
| Depth | 97 mm |
| Height | 7 mm |
| Weight | 39 g |
| Packaging data | |
| Package width | 174 mm |
| Package depth | 145 mm |
| Package height | 32 mm |
| Package weight | 107 g |
| Mounting brackets included | Yes |

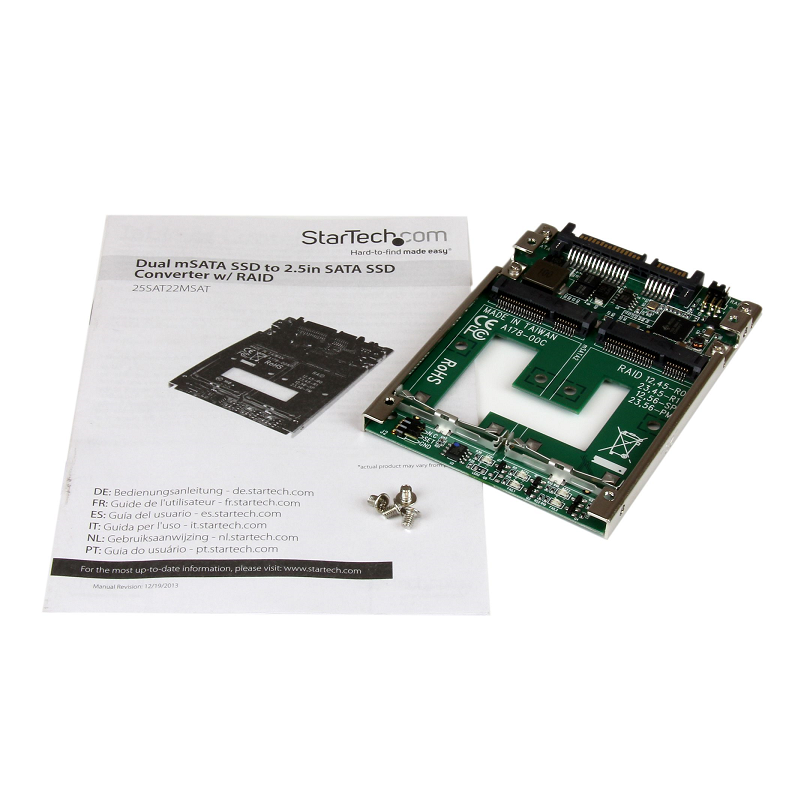

| Quick installation guide | Yes |
Full specification and details can be found in the PDF file
A user manual can be found in the PDF file
