SilverNet SIL 716E8C4M Managed 16 x Gigabit Ethernet, 8 x Gigabit Combo slots

Key Features

• 16 x Gigabit Ethernet, 8 x RJ45 / SFP Combo, 4 x 10G SFP+ Ports
• Up to 12 Mbit cache, supporting up to 4K video traffic
• 128 Gbps bandwidth
• 10 KB maximum packet length
• 16K MAC address table
• Store and forward (full/half duplex mode)
• <7 µs response time
• Supports IEEE 802.3, 802.3u, 802.3z, 802.3ab, 802.3x, 802.3az, 802.3ah
• Supports IEEE 802.1X and IEEE 802.1Q
• Dual redundant power supply
• Wide range power design (15-56 VDC)
• Operating temperature: -40 °C to +75 °C
• Overcurrent protection
• Reverse polarity protection
• Ethernet ESD protection
• IP40 protection
• High strength metal enclosure

Performance Built for Demanding Networks

Delivering up to 128 Gbps switching bandwidth, this switch ensures smooth data handling even under high traffic loads. Support for jumbo frames up to 10 KB and a 16K MAC address table allows scalability for complex environments.

Advanced Management and Control

Comprehensive management options, including Web UI, CLI, and SNMPv3, make it adaptable to different administrative preferences. Features like dual firmware images, multiple configuration files, and secure authentication methods provide flexibility for reliable operation and updates.

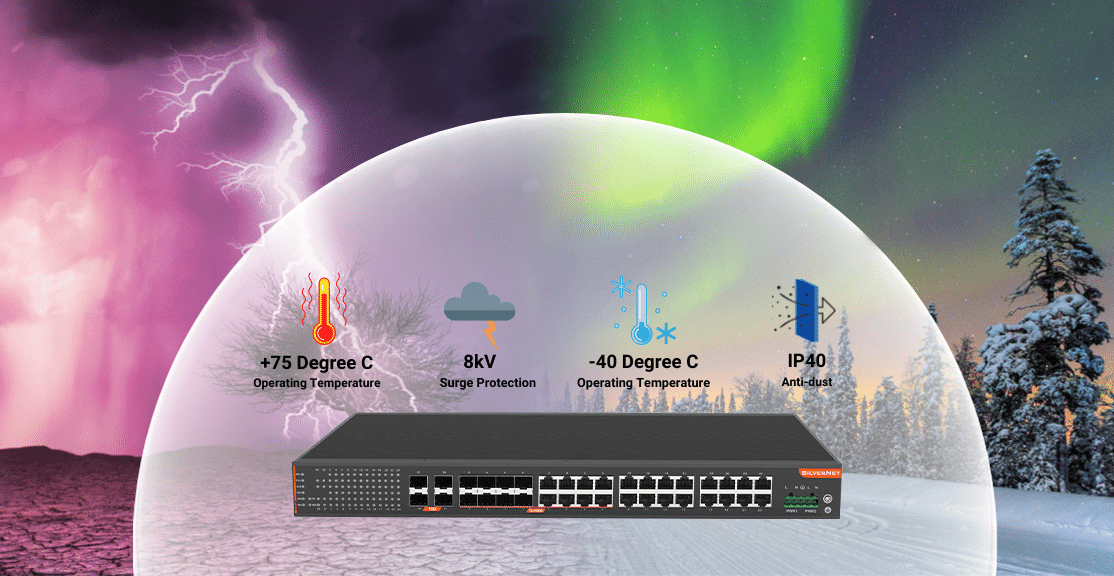

Industrial-Grade Durability

Engineered for harsh conditions, the SIL 716E8C4M operates across a wide temperature spectrum and features an IP40-rated aluminium enclosure. The fanless cooling design minimizes mechanical wear while ensuring consistent performance in unconditioned spaces.
