Senko SCK-VM-3000-01 Smart Probe 2 for Fibre Inspection

Senko Smart Probe

for Fibre Inspection

Images are captured digitally and streamed on the monitor of any compatible device

Features:

• WiFi streaming: easily connect with Smartphones and Tablets

• 1 x 1.25mm & 1x 2.5mm Smart Probe included with Kit

• Replaceable and rechargeable battery

• High-Definition image

• True completely wireless probe.

• Integrated Wi-Fi module

• Highly compact easy to use design

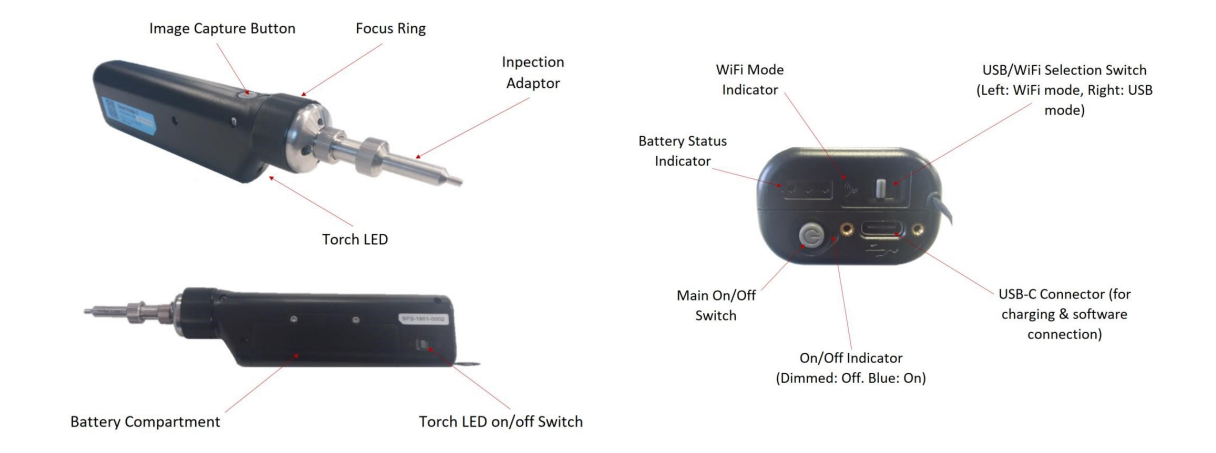

• Left or right handed thumb/finger operation

• Free Smart Phone/Tablet app with digital zoom and still capture functions

• Tips for all common connector types for both patchcord and patch panel inspection available (sold seperately)

The FTTX Smart Probe allows technicians to inspect the fibre endfaces. Images are captured digitally and streamed on the monitor of any Android Tablet or Smartphone. The FTTX Smart Probe is an ergonomically designed, compact, Wi-Fi probe for smart phones and tablets. Featuring integrated Wi-Fi module and left/right handed thumb or finger operation for greater ease of use and convenience. Incorporating high resolution sensor outputting 960 x 544 pixel resolution images at 16:9 aspect ratio, the Smart Probe can easily view two MT/MPO fibres rather than just a single fibre. The App, available from Google Play, includes digital zoom and still capture capabilities.

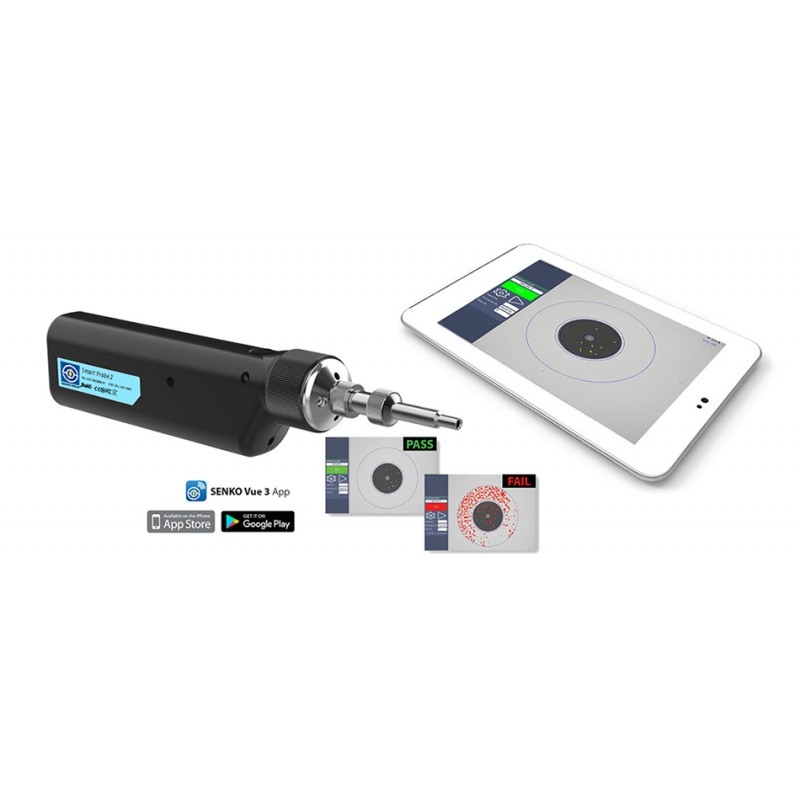

The Smart Probe 2 Inspection Probe is a portable video microscope with an automated IEC 61300-3-35 End-Face Inspection App, used to inspect fiber ends. The microscope can be connected with a WiFi or USB connection to platfrms or with a WiFi connection to mobile smart devices (Android or iOS).
