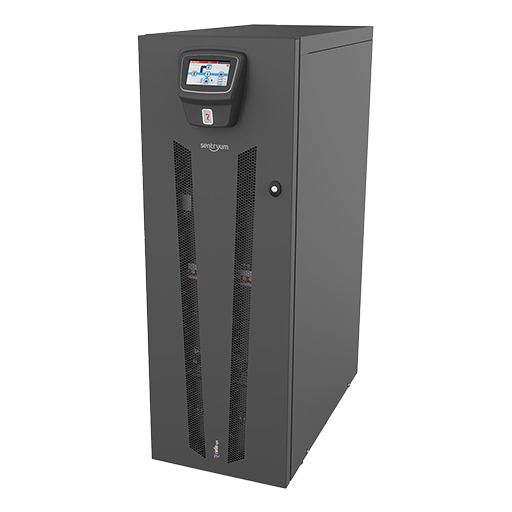

Riello S3T 10 XTD S2 10kVA S3T Xtend UPS

Riello S3T 10 XTD S2 10kVA S3T Xtend UPS

1 String of 40 internal batteries INCLUDED. This model can have up to 3 Strings of 40 internal batteries.

by Riello
See more product details
Part No:RIS3T10XTDS2
Manufacturer No:S3T 10 XTD S2
Delivery: In Stock: 1-2 Days

/assets/images/gallery/large/1617793317RIS3T10XTDS2.jpg

Riello S3T 10 XTD S2 10kVA S3T Xtend UPS
More Related Items
Click to change options
Colour:
Apply
£222.67 Ex VAT
Qty:
Click to change options
Colour:
Apply
£431.21 Ex VAT
Qty:
Click to change options
Length:
Fibre Size:
Apply
£4.77 Ex VAT
Qty:
Email product to a friend
X
  • Scroll to top
    Riello S3T 10 XTD S2 10kVA S3T Xtend UPS
    1 String of 40 internal batteries INCLUDED. This model can have up to 3 Strings of 40 internal batteries.

    Overview

    Sentryum is Riello UPS’s third generation of transformerless ONLINE UPS. Delivering outstanding performance and up to 96.5% efficiency in a compact footprint, it’s a proven solution for smaller data centres and similar applications.

    Now available in 10-15-20-30-40 kVA models, choose from 3 different cabinet sizes to maximise your battery autonomy and make the most of your valuable floor space.

    Designed to handle capacitive loads like blade servers without any reduction in active power.

    Highlights

    • Choice of 3 cabinet sizes (Compact, Active, Xtend) to maximise battery runtime
    • 96.5% operating efficiency (ONLINE mode) reduces energy waste
    • High overload and short circuit capacity guarantees availability
    • Parallel up to 8 UPS for extra capacity or redundancy
    • Large touchscreen display and LED status indicator

    Fantastic Flexibility

    Sentryum offers you a choice of power ranges and cabinet sizes, making this versatile series suitable for several mission-critical environments. Select from 3 frames to suit your space and battery requirements:

    Compact (CPT)

    • 70 cm x 28 cm x 84 cm (H x W x D)
    • 0.25m² footprint
    • 1 internal battery string - space for 40 blocks
    • Available for 10-15-20 kVA versions only; not available for 30-40 kVA versions

    Active (ACT)

    • 102.5 cm x 38 cm x 85 cm (H x W x D)
    • 0.35m² footprint
    • 1-2 internal battery strings - space for 2x40 blocks
    • Available for all versions

    Xtend (XTD)

    • 132 cm x 44 cm x 84 cm (H x W x D)
    • 0.25m² footprint
    • 3 internal battery strings - space for 3x40 blocks
    • Optional isolation transformers
    • Available for all versions

    Available as 1-phase/3-phase input, 1-phase output or 3-phase input and output.

    Reliable And Efficient

    Our transformerless UPS delivers unity power (pf 1) and operating efficiency of up to 96.5%, which helps you minimise wasted energy. It features a unique control system that reduces harmonic voltage distortion (<1% at resistive load and < 1.5% at non-linear load).

    The Sentryum can also handle high overloads (125% for 10 minutes or 150% for 1 minute) and short circuits (270% for 200ms or 150% for 300ms), meaning you won’t have to transfer to bypass to deal with sudden peak loads.

    Scalable Power

    Easily increase your power or battery autonomy by installing up to 8 Sentryum UPS in parallel (3-phase version).

    Parallel installations operate on a closed-loop system, so your UPS will keep running even if there’s an issue or disruption with your cable connection.

    Enhanced Performance

    Sentryum builds on previous Riello UPS transformerless series such as the Multi Sentry (MST), with an optimised card layout that reduces the number of components, cables, and interconnections.

    This reduces the amount of installation space your UPS will need and makes it far easier and more cost-effective to maintain.

    Power At Your Fingertips

    Take control with a 5-inch colour touchscreen display panel which clearly shows real-time information and allows you to easily adjust the operating mode.

    Also features an innovative new LED status indicator which automatically changes colour depending on the current operating mode and UPS status. In-built wheels enable easy manoeuvrability.


    Notes on Riello Part Numbers, Battery Strings and what's included:

    Compact (CPT) models can have 1 String of 40 internal batteries.
    Active (ACT) models can have 1-2 Strings of 40 internal batteries.
    Xtend (XTD) models can have 3 Strings of 40 internal batteries.

    The final digits of the Part Number indicate how many strings of batteries are included:

    A0 = NO Batteries INCLUDED
    S2 = 1 String of 40 internal batteries - INCLUDED
    T4 = 2 Strings of 40 internal batteries - INCLUDED
    T5 = 3 Strings of 40 internal batteries - INCLUDED

    The following Riello Battery String Packs are available from Comms Express:

    Part No: RIBB1320480VT5 - Riello BB 1320 480V T5 27Ah Battery box housing 3x40x9Ah (3 String)
    For use with Sentryum and Multi Sentry UPS up to 30kVA

    Part No: RIBB1320480VT4 - Riello BB 1320 480V T4 18Ah Battery box housing 2x40x9Ah (2 String)
    For use with Sentryum and Multi Sentry UPS up to 30kVA

    Part No: RIBB1600480VS3-1 - Riello BB 1600 480V S3-1 22Ah Battery box housing 1x40x22Ah (1 String)
    For use with Sentryum and Multi Sentry UPS up to 60kVA

    Part No: RIBB1600480VS5-1 - Riello BB 1600 480V S5-1 40Ah Battery box housing 1x40x40Ah (1 String)
    For use with Sentryum and Multi Sentry UPS up to 80kVA

    Part No: RIBB1900480VV7 - Riello BB 1900 480V V7 70Ah Battery box housing 1x40x70Ah (1 String)
    For use with Sentryum and Multi Sentry UPS 15-200kVA

    Part No: RIBB1900480VV8 - Riello BB 1900 480V V8 90Ah Battery box housing 1x40x90Ah (1 String)
    For use with Sentryum and Multi Sentry UPS 15-200kVA

    Part No: RIBB1900480VV9 - Riello BB 1900 480V V9 110Ah Battery box housing 1x40x110Ah (1 String)
    For use with Sentryum and Multi Sentry UPS 15-200kVA
