| Part No: | NETCSM4316-100NES |
| Manufacturer No: | CSM4316-100NES |
| Delivery: | In Stock: Next Day |
 |

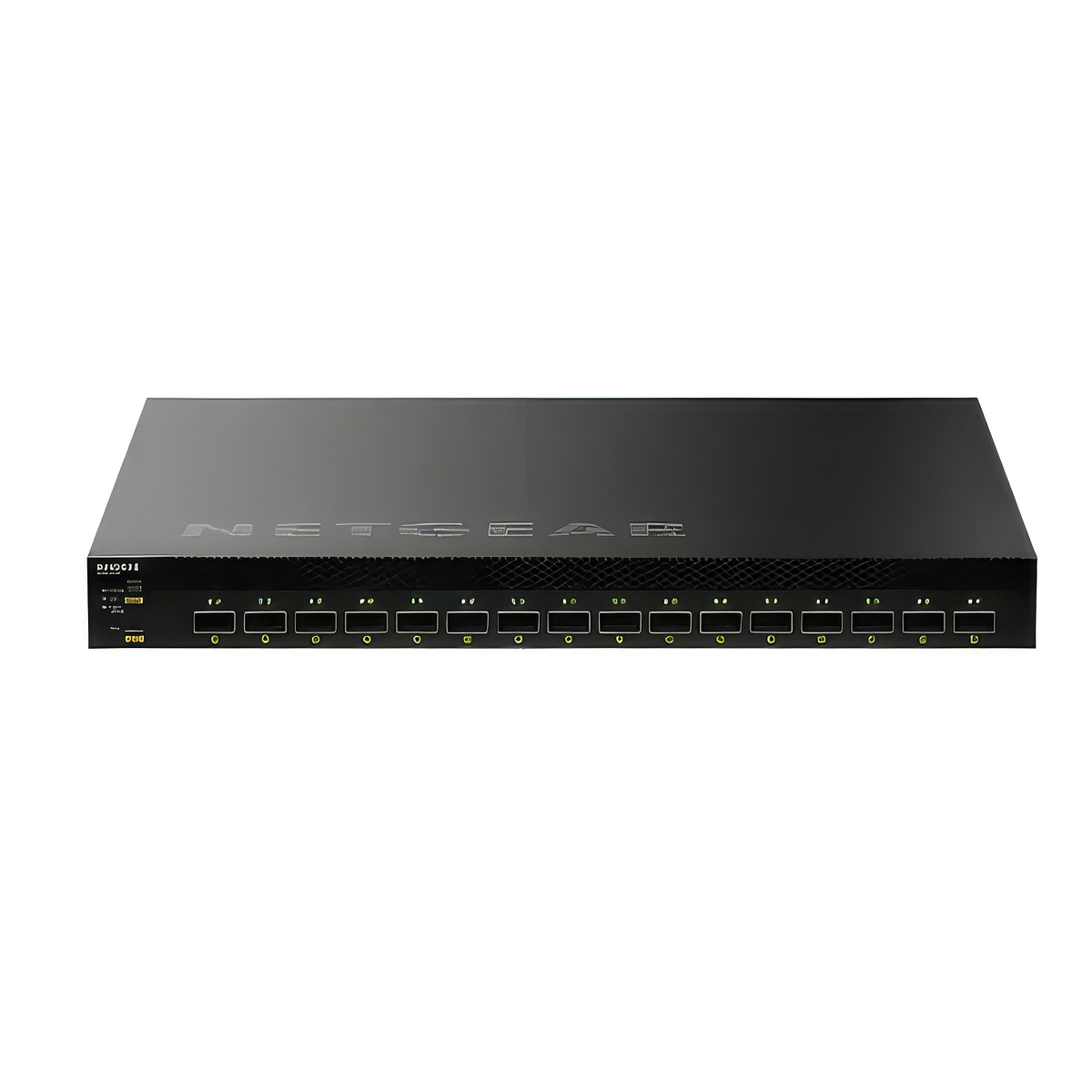

The NETGEAR CSM4316-100NES is a fully managed Layer 3 switch with 16 100G QSFP28 ports for high-speed network connectivity. It provides static, policy-based and dynamic routing, along with NETGEAR IGMP Plus, AV OS and Engage Controller support for managed AV and IT networks. The switch includes a 420W internal power supply and one modular power supply slot for 1+1 power redundancy.
The switch provides 16 100G QSFP28 ports for high-bandwidth network connections. The QSFP28 interfaces support high-speed links and can be configured for breakout connectivity with compatible transceivers and cables.
The Layer 3 feature set includes static, policy-based and dynamic routing, providing flexible control over traffic between network segments. The switch is fully managed for configuration and monitoring across connected network infrastructure.
NETGEAR IGMP Plus, AV OS and Engage Controller provide features for managed AV installations and network administration. The switch also supports SMPTE ST 2110 Grandmaster Clock and Boundary Clock functions for AES67 and ST2059-2 applications.
A 420W internal power supply provides the primary power source, while a separate modular power supply slot allows a second power source to be added for 1+1 redundancy. Compatible modular power supplies include the APS600Wv3, APS1200Wv2 and APS2000Wv2.
The NETGEAR CSM4316-100NES is a fully managed Layer 3 switch with 16 100G QSFP28 ports for high-speed network connectivity. It provides static, policy-based and dynamic routing, along with NETGEAR IGMP Plus, AV OS and Engage Controller support for managed AV and IT networks. The switch includes a 420W internal power supply and one modular power supply slot for 1+1 power redundancy.
The switch provides 16 100G QSFP28 ports for high-bandwidth network connections. The QSFP28 interfaces support high-speed links and can be configured for breakout connectivity with compatible transceivers and cables.
The Layer 3 feature set includes static, policy-based and dynamic routing, providing flexible control over traffic between network segments. The switch is fully managed for configuration and monitoring across connected network infrastructure.
NETGEAR IGMP Plus, AV OS and Engage Controller provide features for managed AV installations and network administration. The switch also supports SMPTE ST 2110 Grandmaster Clock and Boundary Clock functions for AES67 and ST2059-2 applications.
A 420W internal power supply provides the primary power source, while a separate modular power supply slot allows a second power source to be added for 1+1 redundancy. Compatible modular power supplies include the APS600Wv3, APS1200Wv2 and APS2000Wv2.
