| Product Code: | |
| Options: | |
| Qty: | |
| Unit Price: | £ |
| Part No: | NETMSM4320-100NES |
| Manufacturer No: | MSM4320-100NES |
| Delivery: | In Stock: Next Day |
 |

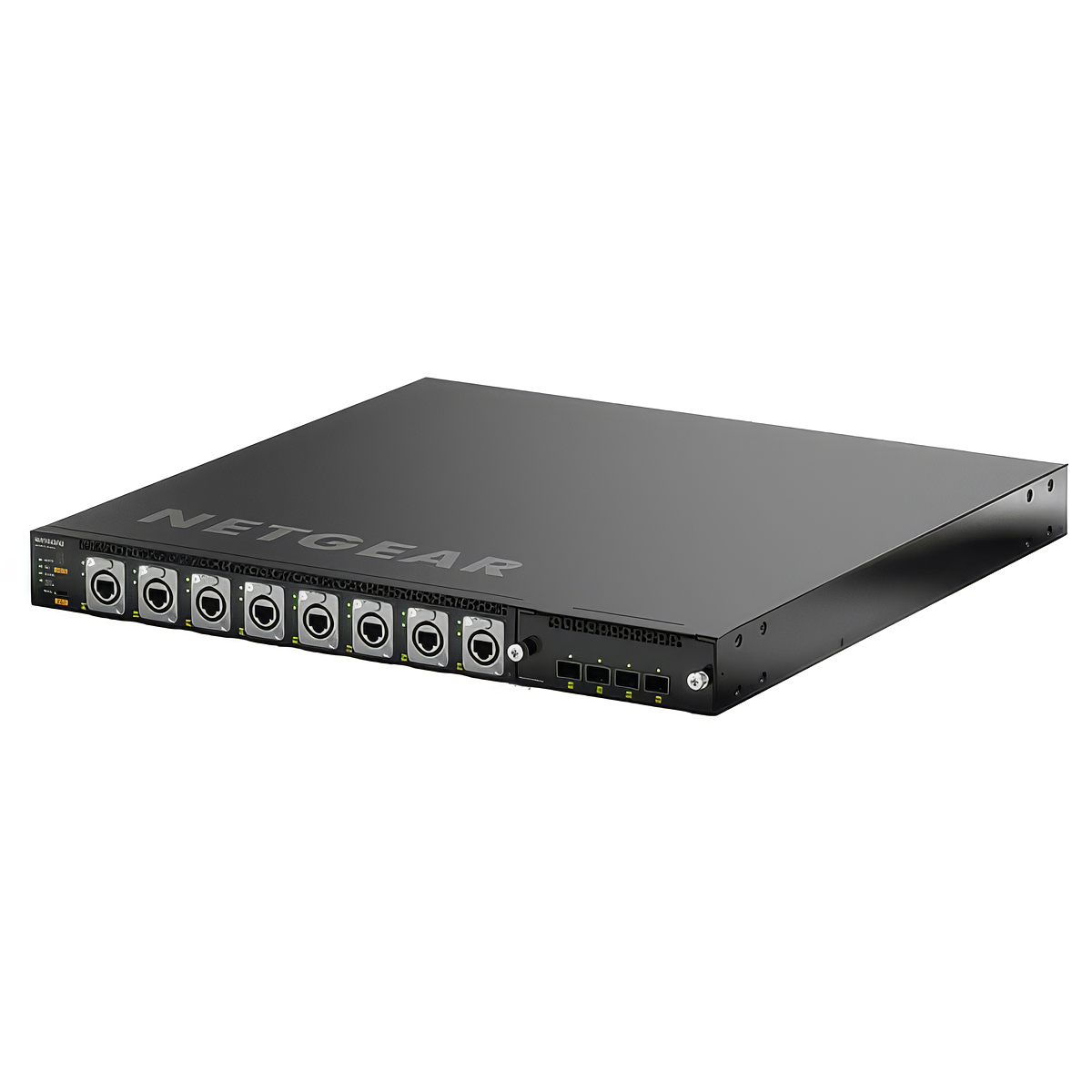

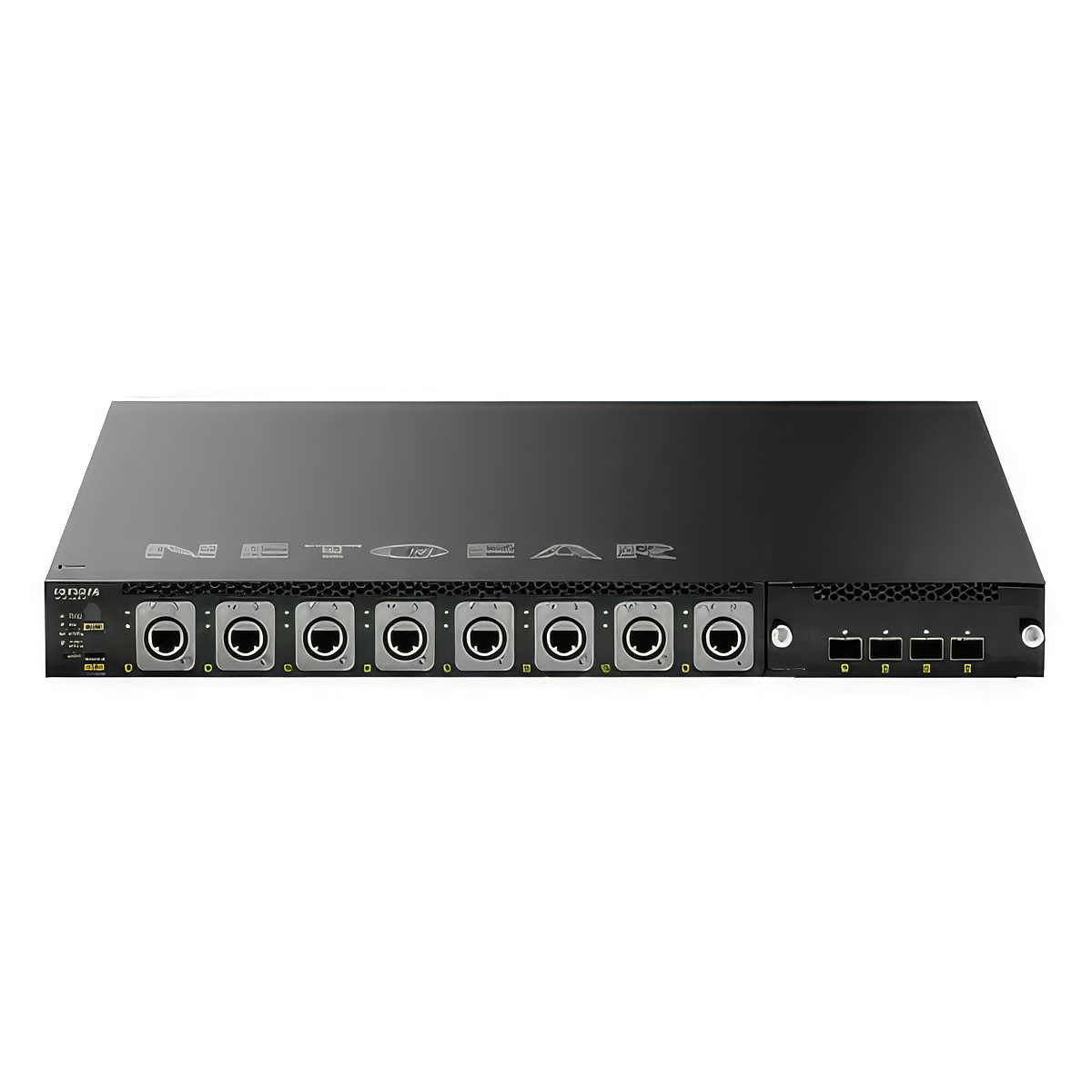

The Netgear MSM4320-100NES is a fully managed Layer 3 switch with 16 2.5G PoE++ ports and four 25G SFP28 uplink ports. Eight of the copper ports use Neutrik etherCON connectors, making the switch suitable for professional AV and IT networks. Two internal 800W power supplies provide a 530W redundant base PoE budget, with the total PoE capacity reaching up to 1,130W when configured with redundant power. :contentReference[oaicite:0]{index=0}
The switch provides 16 2.5G PoE++ Ethernet ports for connecting compatible network and powered devices. Eight of these ports feature Neutrik etherCON connectors for installations where a more secure and ruggedised cable connection is required.
Four 25G SFP28 uplink ports are provided through the pre-installed APM414V interface card. These interfaces support high-speed connections to compatible network equipment and provide additional bandwidth for AV and IT traffic.
Two internal 800W power supplies provide a 530W redundant base PoE budget. With the appropriate configuration, the available PoE budget can reach 1,130W while maintaining a 530W redundant PoE allocation.
Layer 3 functionality includes static, policy-based and dynamic routing. Virtual Chassis stacking provides non-stop forwarding and hitless failover, while the switch can be managed through NETGEAR interfaces including the Engage Controller.
NETGEAR IGMP Plus, AV OS and Engage Controller support provide features for professional AV network installations. The switch also supports SMPTE ST 2110 Grandmaster Clock and Boundary Clock functions for AES67 and ST2059-2 applications, with multi-colour LEDs showing the assigned AV profile for each physical port.
The Netgear MSM4320-100NES is a fully managed Layer 3 switch with 16 2.5G PoE++ ports and four 25G SFP28 uplink ports. Eight of the copper ports use Neutrik etherCON connectors, making the switch suitable for professional AV and IT networks. Two internal 800W power supplies provide a 530W redundant base PoE budget, with the total PoE capacity reaching up to 1,130W when configured with redundant power. :contentReference[oaicite:0]{index=0}
The switch provides 16 2.5G PoE++ Ethernet ports for connecting compatible network and powered devices. Eight of these ports feature Neutrik etherCON connectors for installations where a more secure and ruggedised cable connection is required.
Four 25G SFP28 uplink ports are provided through the pre-installed APM414V interface card. These interfaces support high-speed connections to compatible network equipment and provide additional bandwidth for AV and IT traffic.
Two internal 800W power supplies provide a 530W redundant base PoE budget. With the appropriate configuration, the available PoE budget can reach 1,130W while maintaining a 530W redundant PoE allocation.
Layer 3 functionality includes static, policy-based and dynamic routing. Virtual Chassis stacking provides non-stop forwarding and hitless failover, while the switch can be managed through NETGEAR interfaces including the Engage Controller.
NETGEAR IGMP Plus, AV OS and Engage Controller support provide features for professional AV network installations. The switch also supports SMPTE ST 2110 Grandmaster Clock and Boundary Clock functions for AES67 and ST2059-2 applications, with multi-colour LEDs showing the assigned AV profile for each physical port.
Product data is provided by Icecat, we do not warrant the accuracy of the material above.
