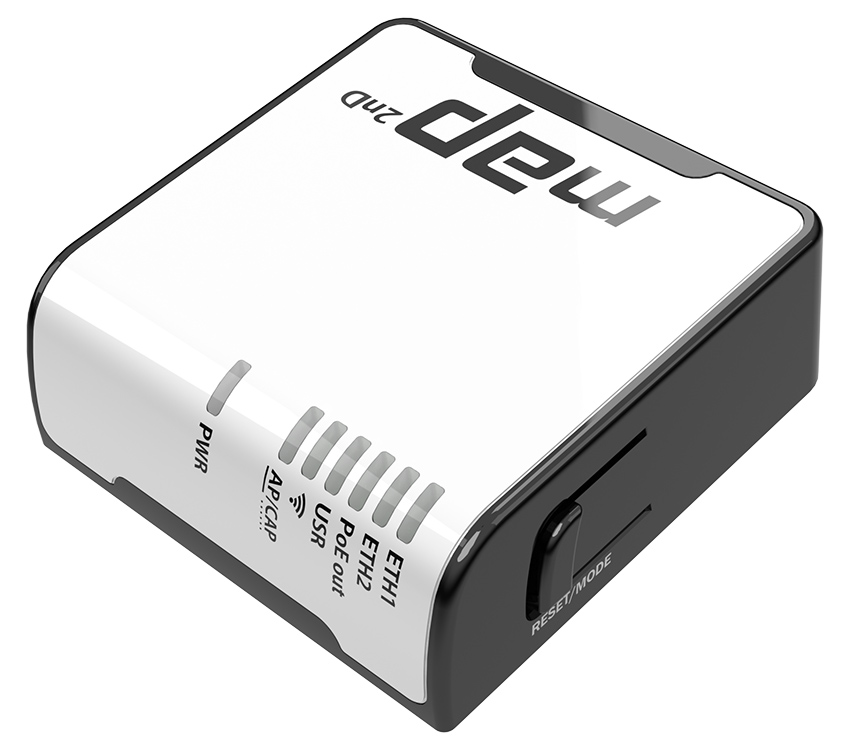

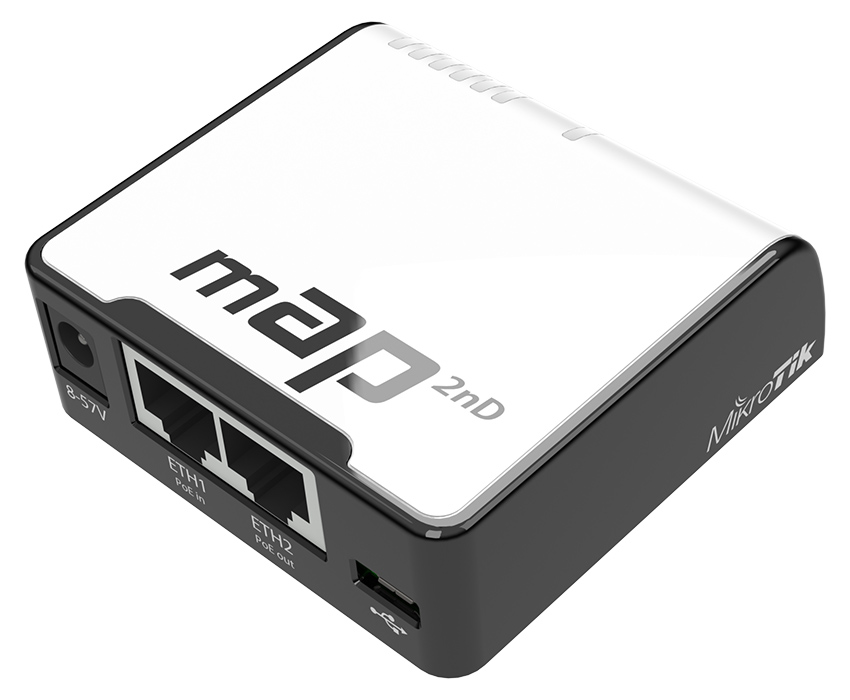

MikroTik RBMAP2ND RouterBoard mAP Mini Access Point L4

RBMAP2ND - mAP - Dual-Chain 2.4GHz micro AP, 650MHz CPU, 64MB RAM, 2xEthernet, PoE out

The mAP (micro Access Point) is a small wireless Dual-Chain 2.4GHz Access Point with the power of RouterOS. It's portable, accepts a wide variety of sources - Micro USB(5V), Passive PoE and standard DC power(11-57V) and also works as a PoE injector. Port 2 can provide up to 500mA to another PoE device, for example, you could connect an SXT CPE device to it, for remote connections.

The device has an operating system preinstalled and licenced. No separate licence or OS purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase...

RBmAP2nD Specifications:

• 10/100 Ethernet ports: 2
• 10/100/1000 Ethernet ports: None
• Antenna gain: 1.2
• Architecture: MIPSBE
• CPU: QCA9531
• CPU core count: 1
• CPU nominal frequency: 650 MHz
• DC jack input Voltage: 8-57 V
• Dimensions: 68 x 68 x 19mm
• Ethernet Combo ports: 0
• Licence level: 4
• Max power consumption: 5 W
• Number of DC inputs: 3
• Number of SIM slots: 0
• Number of USB ports: 1
• Operating System: RouterOS
• PoE in: 802.3af/at
• PoE in input Voltage: 12-57 V
• SFP ports: None
• SFP+ ports: None
• Size of RAM: 64 MB
• Storage size: 16 MB
• USB slot type: micro USB type AB
• Wireless 1 band: 2.4 GHz
• Wireless 1 Number of chains: 2
