MikroTik RBCAPGI-5ACD2ND-XL CAP AC XL Wireless Access Point

cAP XL ac  (Ceiling Access Point) - The ceiling AP on steroids! Our bestseller cAP is back - juiced up and stronger than ever.

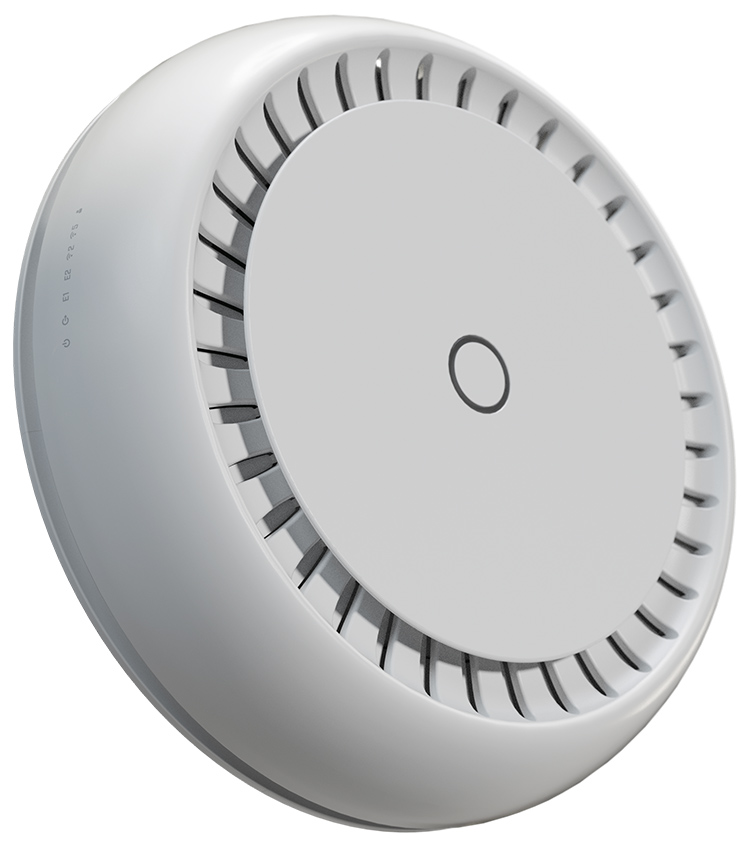

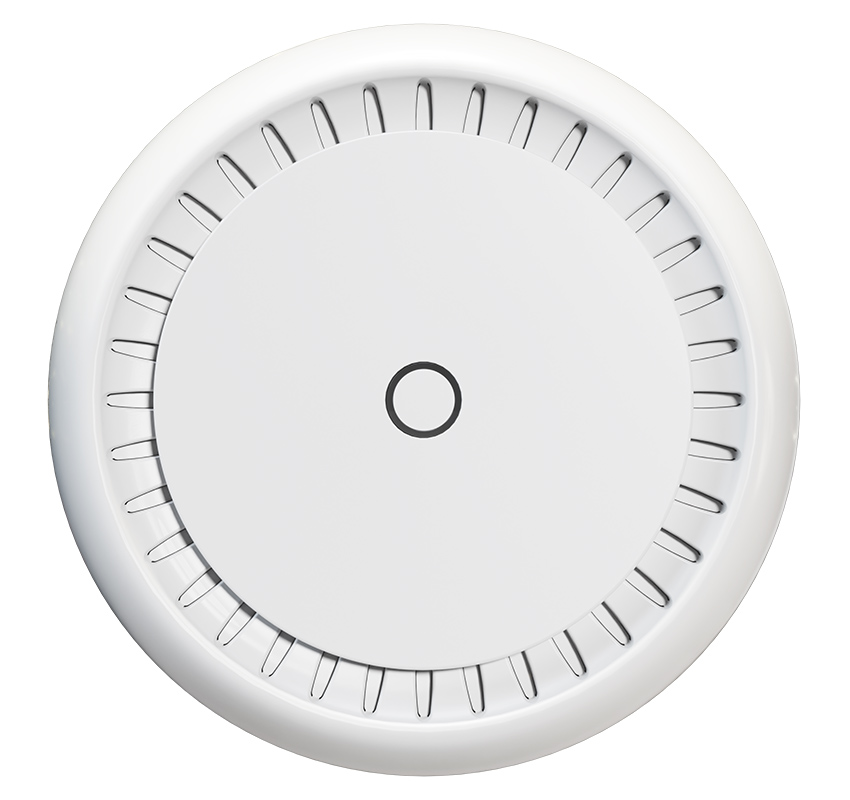

The new cAP XL ac design features a larger high-gain antenna, higher sensitivity, and a built-in reflector. These improvements allow for an increased coverage area of up to 100%, compared to the previous cAP models.

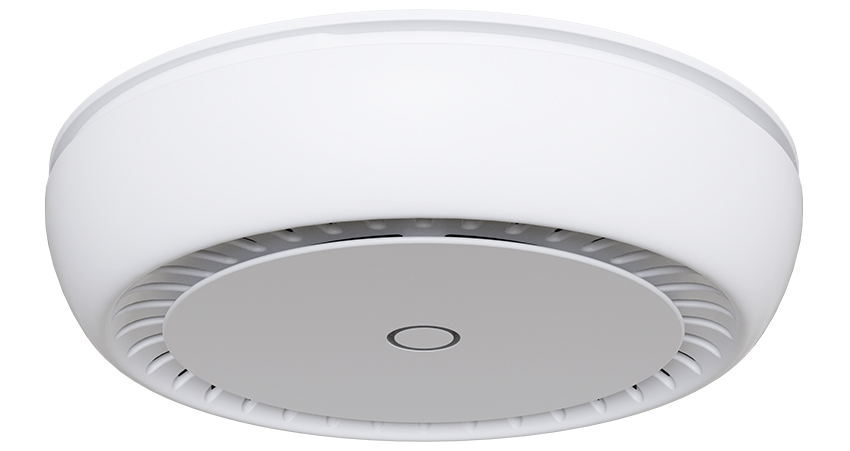

The dual-band, dual-chain 2.4 and 5 GHz wireless radios provide improved 360 degree coverage, no need to worry about placement. Mounting the RBcAPGi-5acD2nD-XL on the ceiling eliminates most signal absorption problems, such as the signal being blocked by large TV sets, metal cubicle walls in open space offices, etc.

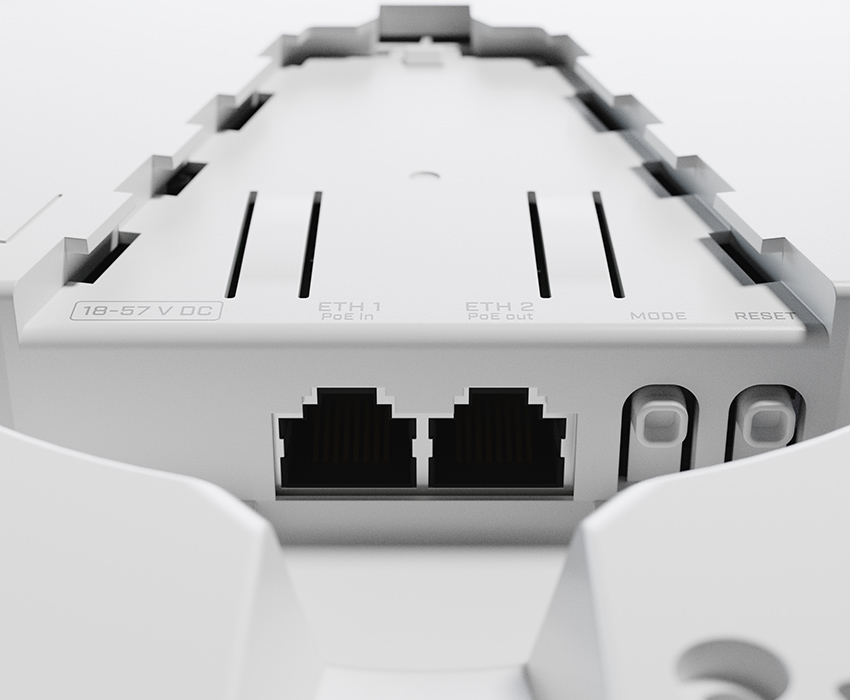

Even though the radio supports repeater mode, the two Gigabit Ethernet ports offer the ability to extend your network with cables, if PoE power is required on the second device: the cAP XL ac supports 802.3af/at PoE input on the first port and passive PoE output (up to 57V) on the second port.

The device has an operating system preinstalled and licenced. No separate licence or OS purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase...

MikroTik Product News: cAP XL ac:

RBcAPGi-5acD2nD-XL Specifications:

• Architecture: ARM 32bit
• CPU: IPQ-4018
• CPU core count: 4
• CPU nominal frequency: 716 MHz
• RouterOS Licence: 4
• Operating System: RouterOS
• Size of RAM: 128 MB
• Storage size: 16 MB
• Storage type: FLASH
• MTBF: Approximately 100'000 hours at 25°C
• Tested ambient temperature -40°C to 70°C
• Wireless 2.4 GHz Max data rate: 300 Mbit/s
• Wireless 2.4 GHz number of chains: 2
• Wireless 2.4 GHz standards: 802.11b/g/n
• Antenna gain dBi for 2.4 GHz: 6
• Wireless 2.4 GHz chip model: IPQ-4018
• Wireless 2.4 GHz generation: Wi-Fi 4
• Wireless 5 GHz Max data rate: 867 Mbit/s
• Wireless 5 GHz number of chains: 2
• Wireless 5 GHz standards: 802.11a/n/ac
• Antenna gain dBi for 5 GHz: 5.5
• Wireless 5 GHz chip model: IPQ-4018
• Wireless 5 GHz generation: Wi-Fi 5
• 10/100/1000 Ethernet ports: 2
• Number of 1G Ethernet ports with PoE-out: 1
• Number of DC inputs: 1 (PoE-IN)
• Max power consumption: 24 W
• Max power consumption without attachments: 11 W
• FAN count: Passive
• PoE in: 802.3af/at
• PoE in input Voltage: 18-57 V
• PoE-out ports: Ether2
• PoE out: Passive PoE up to 57V
• Max out per port output: (input 18-30 V) 500 mA
• Max out per port output: (input 30-57 V) 330 mA
• Max total out: 500 mA
• Certification: CE, FCC, IC, EAC, ROHS
• Mode button: Yes
