| Product Code: | |
| Options: | |
| Qty: | |
| Unit Price: | £ |
| Part No: | MT-UP760 |
| Manufacturer No: | UP760 |
| Delivery: | In Stock: 5-7 Days |
 |

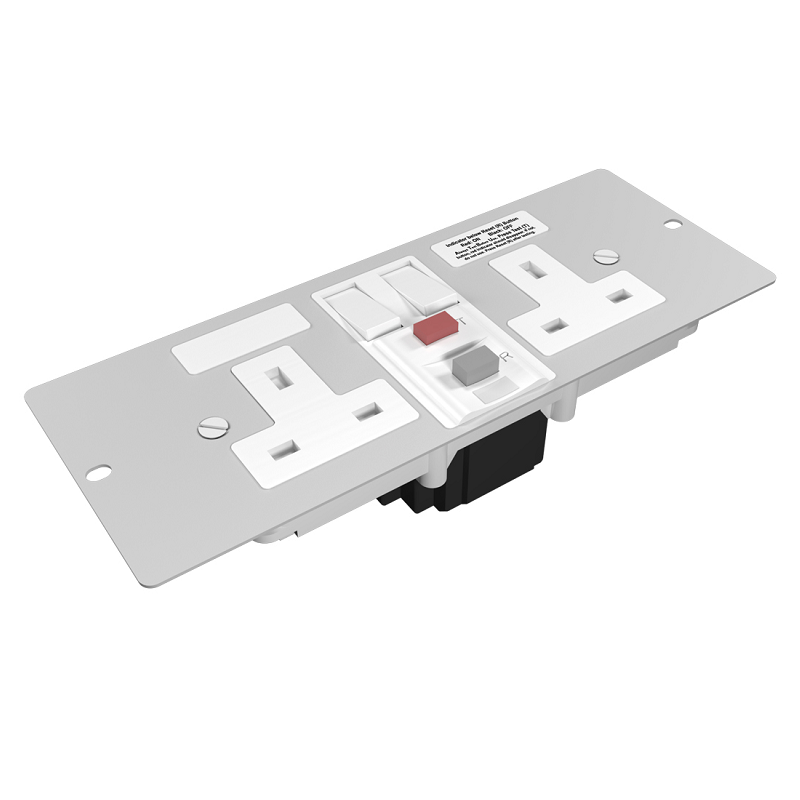

FLOOR BOX RCD TWIN SOCKET 4 COMP STD
13Amp 2 gang RCD unswitched socket, standard.
Please note: Not for use with the inscreed flooring system/USF32
• 13A Latching RCD DP
• Rated Voltage: 220-250V
• Frequency: 50-60Hz
• IP Rating: IP2X
• Rated fault current: 30mA
• Ambient Operating Temperature: -5 to 40?C (24Hr average not exceeding 25?C)
| Code | UP760 |
| Compartment | 4 compartment Std |
| Pack | 1 |
| Recycled PVC-U Content | N/A |
| Dimensions | 3 x 2.5mm 3 x 4.0mm 2 x 6.0mm Minimum box depth: 35mm |
| Materials | Painted steel plate |
| Compliance / Standards | BS 7671:2018 BS 7288:2016 BS 1363-2:2016+A1:2018 |
Full specification and details can be found in the Product Datasheet PDF file
Additional details can be found in the Product Catalogue PDF file
